Guangzhou MeCan Medical Limited Best MCE-RM-9200 China Ophthalmic Optical Instrument kerato Auto Refractometer price Supplier,MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
Availability: | |
---|---|
Quantity: | |

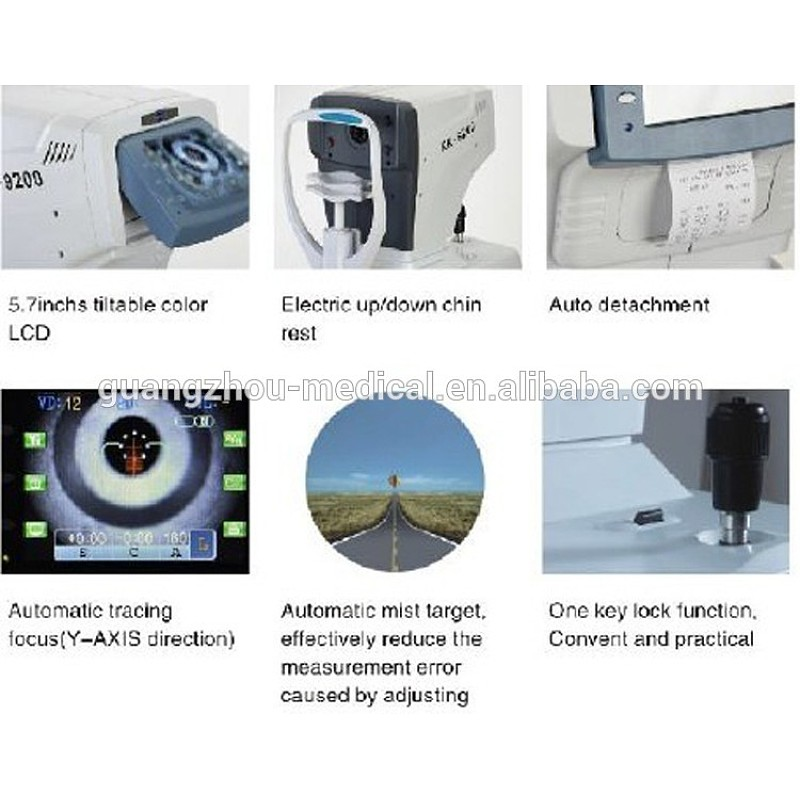

1.5.7’ Tiltable color screen.
2. Auto detachment printer
3. Auto tracking optical system
4. Motorized chinrest
Use the ARM processor and the latest domestic image processing
The system is fast and the image is clear
Japan’s mature optical path system, humanized automatic mist measurement process, reduce the error caused by adjustment
More precise measurements, good consistency, Motorized chinrest
Light rack with integral casting, CNC machining, measuring system is more stable,
Data transmission with computerized vision tester, improved efficiency of online.
Auto detachment printer
Auto tracking optical system
Tiltable color LCD

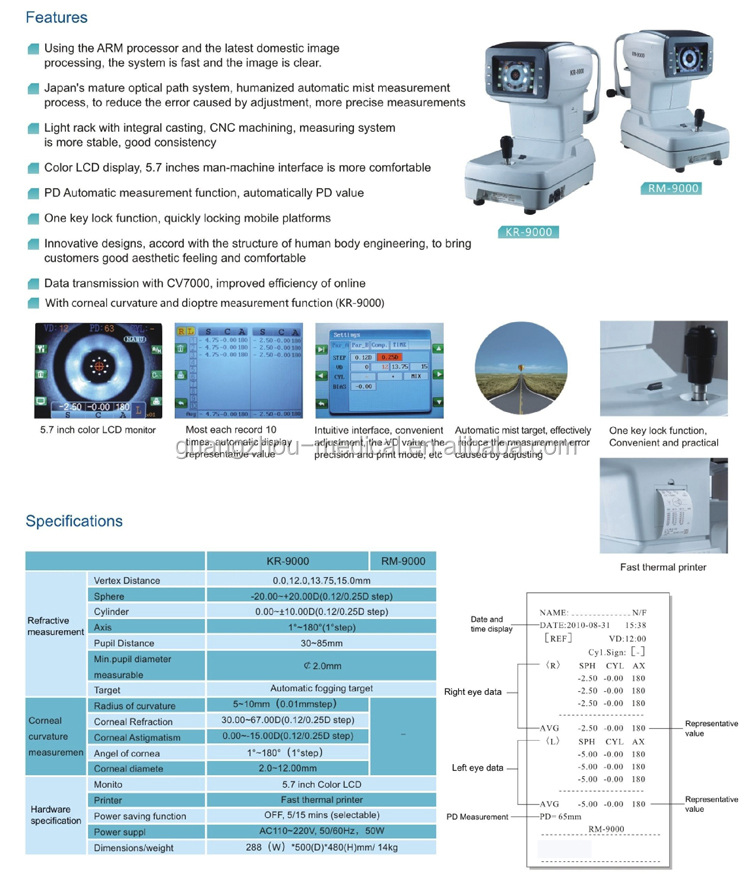

Parameters of the Auto Refractometer:
Measurement mode | REF mode | Refractive measurement |
Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0 mm |
Sphere | -20.00~+20.00D (0.12/0.25D step)(VD=12mm) | |
Cylinder | 0.00~±10.00D (0.12/0.25D step) | |
Axis | 1°~180°(1° step) | |
Pupil Distance | 30~85 mm | |
Min pupil diameter measurable | 2.0mm | |
Target | Automatic fogging target | |
Corneal curvature measurement | Radius of curvature | 5~10mm(0.01mmstep) |
Corneal Refraction | 33.00~67.00D(0.12/0.25Dstep) | |
Corneal Astigmatism | 0.00~-15.00D(0.12/0.25Dstep) | |
Angle of corneal | 1°~180°(1°step) | |
Corneal diameter | 2.0~12.00mm | |
Hardware specification | Monitor | 5.7 inch Color LCD |
Printer | Auto detachment printer | |
Power saving function | OFF, 5, 15 mins (selectable) | |
Power supply | AC110~220 V,50/60HZ | |
Dimensions/weight | 288(W)*500(D)*480(H)mm/14kg |
