Place of Origin:CN;GUA
Model Number:MCC-3000
Brand Name:MeCan (Chemistry Analyzer)
Type:Biochemical Analysis System
Instrument classification:Class II

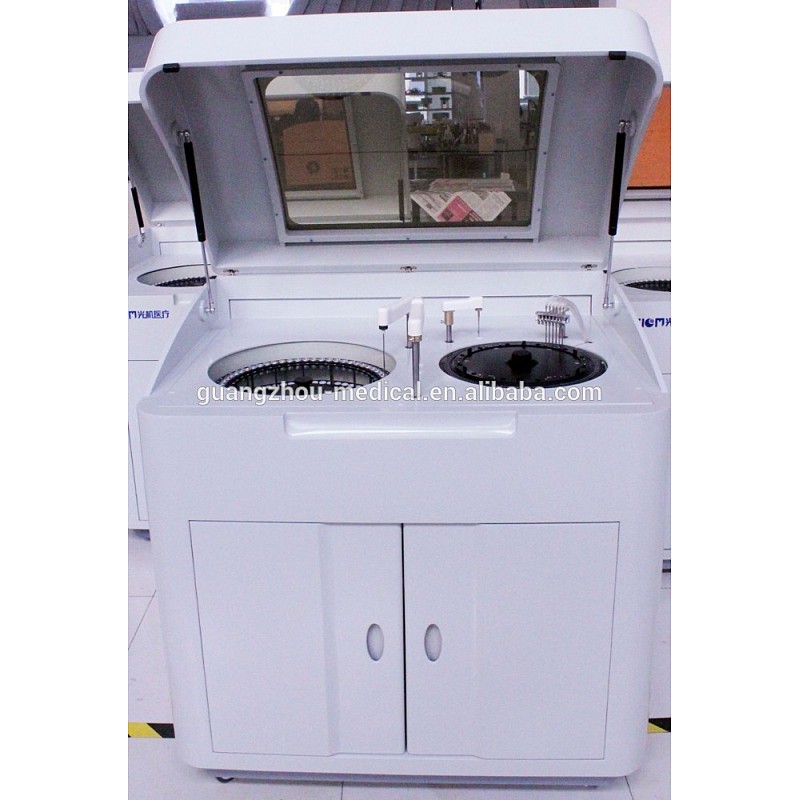

300T/H Laboratory Equipment Clinical Blood Chemistry Analyzer Automatic Biochemistry Analyzer
Model: MCC-3000
Working Conditions of the Biochemistry Analyzer:
Weight : 90KG
Humidity : 35-80%
Water consumption : 7L/Hour
Ambient Temperature: 15-30 °C
Bench top: 750mm*520mm*600mm
Power supply : AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Overall Performance of the Chemistry Analyzer:
Test principle: Colorimetry, turbidimetry
Analysis rate : Constant speed 300T/H(without ISE)
Equipment type : Fully automatic discrete, STAT priority
Analysis method: End-point, 2 kinetics, fixed-time, etc. support single/double wavelength,
linear and non-linear calibration
Sample System of the Blood Chemistry Analyzer :
Sample Tray 60 sample positions, random access of all samples
Sample probe Liquid level detection, the remaining detection, collision protection etc.
Sample Volume 2-50ul, 0.1ul increment
Sample Containers Sample cups, Micro tube, Original blood-collection tube, etc.
Reagent System of Fully Automatic Biochemistry Analyzer:
Reagent Tray 45 reagent positions
Reagent Probe Liquid level detection, the remaining detection, collision protection etc.
Reagent Volume R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Refrigeration 4-15°C, independent power supply, 24-hour non-stop refrigeration
Reaction System of the Laboratory Equipment Biochemistry Analyzer :
Cuvette Reusable high quality cuvette, Optical diameter 6mm
Temperature 37°C±0.1°C with real-time display
Reaction Tray Rotating tray, 120 cuvettes
Reaction Volume 180-500ul
Incubation system Bi-directional liquid-air device
Operating System of the Clinical Chemistry Analyzer :
Report printing Report formats support the user-defined mode, QC and state information etc
System connection RS-232
PC operating system Windows XP or above.
Analysis control software English version graphical operating software
Optical System of the Automatic Biochemistry Analyzer :
Resolution 0.0001Abs
Wavelength 340,405,450,510,546,578,630,700nm
Light source 12V35W halogen lamps, over 2000 hours
Absorbance range 0-3.500Abs
Photoelectron road after spectrophotometry
Some Parts of This Automatic Chemistry Analyzer:
1. Cuvette
2. Needle

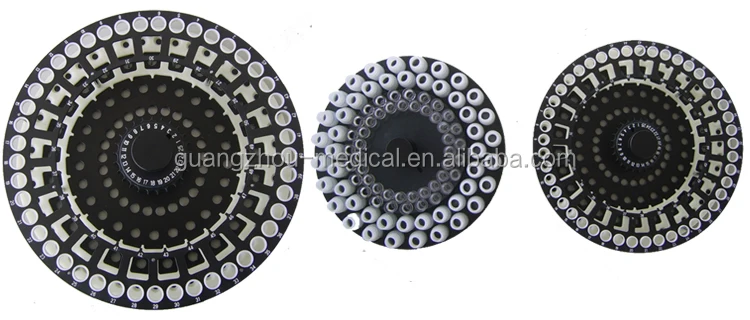

3. Reagent Tray

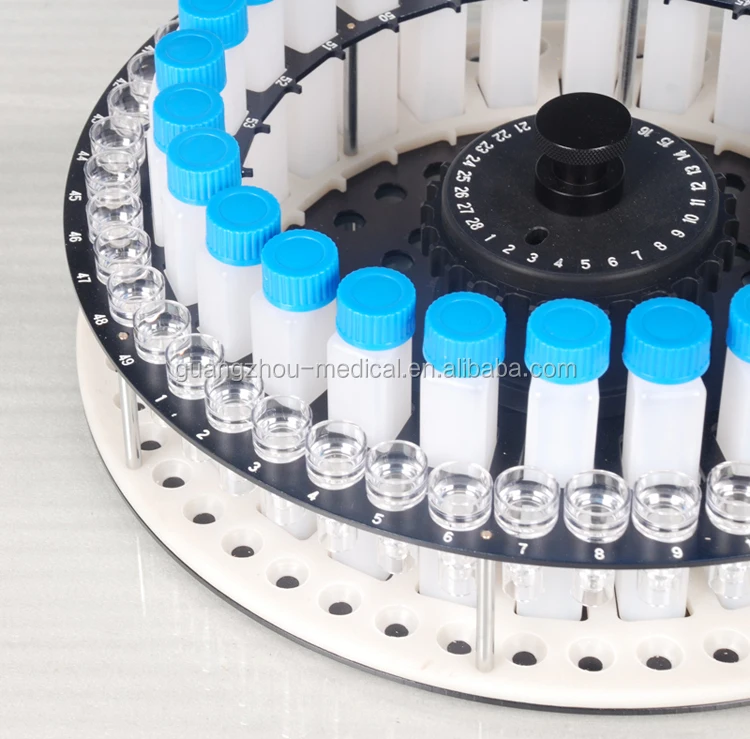

4. Sample & Reagent Tray
5. Manufacturing Plant
Lab Analyzer
We provide different kinds of Laboratory Analyzer. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.
Our Advantage
1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service
