Professional Portable Mini Dry Chemistry Analyzer Dry Biochemical Analyzer manufacturers

MeCan Medical Professional Dry Chemistry Analyzer Dry Biochemical Analyzer manufacturers,MeCan Focus on medical equipments over 15 years since 2006. MCL-100 covers various applications from emergency departments to clinical labs, from ICU to surgery centers, from anesthesia department to respiratory care, from home to ambulance. It is a portable automatic chemistry analyzer which is applied to clinical biochemistry analysis with lithium heparin anticoagulant whole blood, serum and plasma.



Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

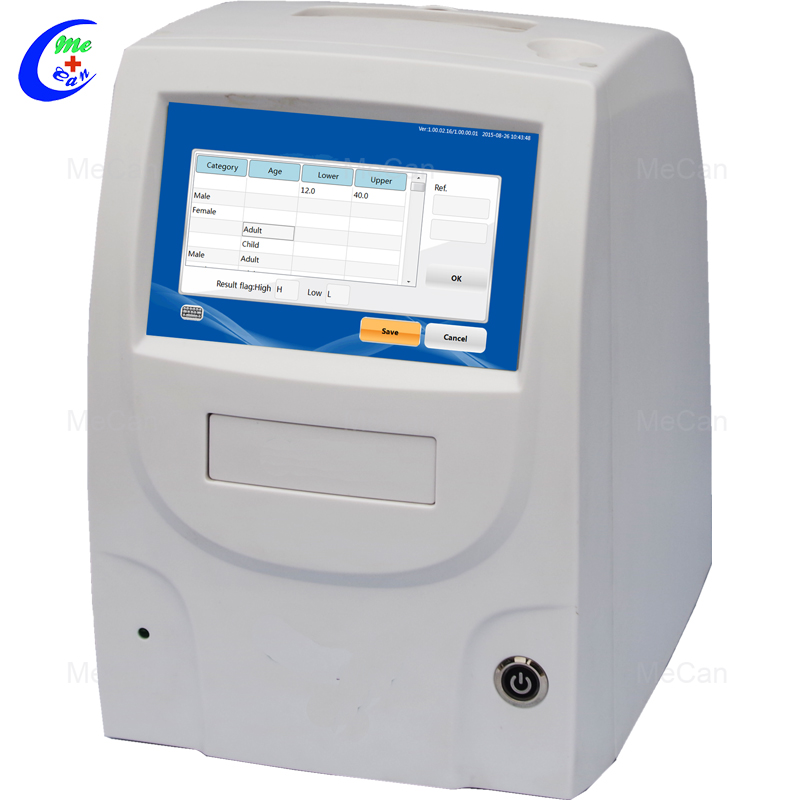

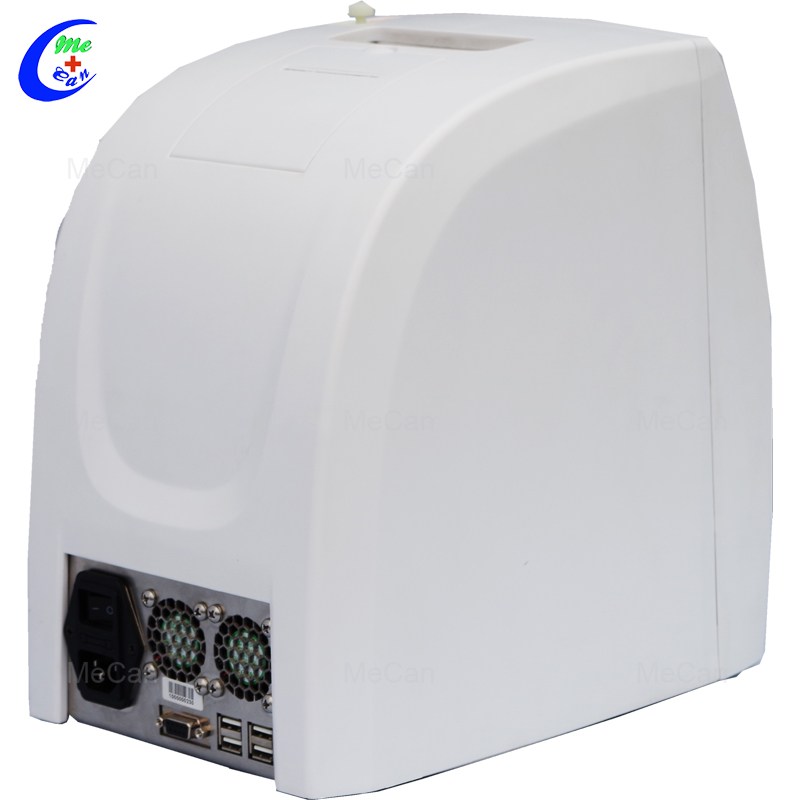

Portable Mini Dry Chemistry Analyzer Dry Biochemical Analyzer

Model:MCL-100




Advantages:

Simple operation

Free of centrifugation, water treatment system and professional doctor. Anyone can operate only by 3 steps. Add 100ul whole blood into disc, put disc into analyzer and delay 12 minutes to print report.



Little sample volume

Sample volume is 10-20% of normal chemistry analyzer.



Accurate Result

Test sample and dilution volume measured by mould, without random error.



No carryover

Portable,5 Kg, 0.02m3

Provide with AC and DC power, suitable for use at movable place and outdoor.



Free maintenance

Auto QC and real time Calibrate.

Stroboscopic xenon lamp, service life is over one hundred million times.

No internal fluid flow, no pump and valve, decrease machine fault.


Specification:

Sample type Anti-coagulation whole blood, serum, plasma
Sample volume 100ul
Bar code Two-dimensional bar code
Testing time 12mini/person
Testing principle absorption spectroscopy, transmission turbidimetry
Testing method end point, kinetic, fixed time, turbidmetry, etc.
Temperature 37 ±0.2 degrees celsius
Absorbance 0-4.5Abs
Resolution 0.001Abs
Carryover 0
QC & Calibrate auto test in real time
Work environment Temperature:10-32 degrees Celsius Humidity: <90%
Optic system Reversed optic. 340nm, 405nm, 450m, 505nm,546nm, 578nm, 630nm, 850nm
Light source 12V/20W,Tungsten halogen lamp's life span reaches over 2500hours
Power supply AC100V-240V,50-60Hz
Power 70W
Interface 7.0 inch True color LCD touch screen, multi-language choice.
Vet version is optional
Storage >100000 results
Printer built-in thermal printer and external printer
Data port 4 USB, 1 RS232. Software upgrade function by WIFI
Weight 5KG
Size 31cm(H)*21cm(W)*28(L)cm
Animal types Over10 species


Simple operation, free of centrifugation, water treatment system and professional doctor, anyone can operate only by 3 steps.

FAQ

1.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.
2.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
3.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.

Advantages

1.More than 20000 customers choose MeCan.
2.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
3.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
4.MeCan offer professional service,our team is well-tained
