MeCan Medical Best Quality Best PortableInfusion PumpandSyringe PumpSupplier Factory,OEM/ODM, customized according to your requirements. The machine has 5 different brands of I.V sets can be calibrated and customized into the system. It will show Rate,Time-Rate,Volume-Rate,Time-Drop,Volume-Drop,Time-Volume to satisfy different clinical choices. If you have any questions for our Infusion Pumps, please contact us in time. We will give you the most satisfactory answer!
Availability: | |
---|---|

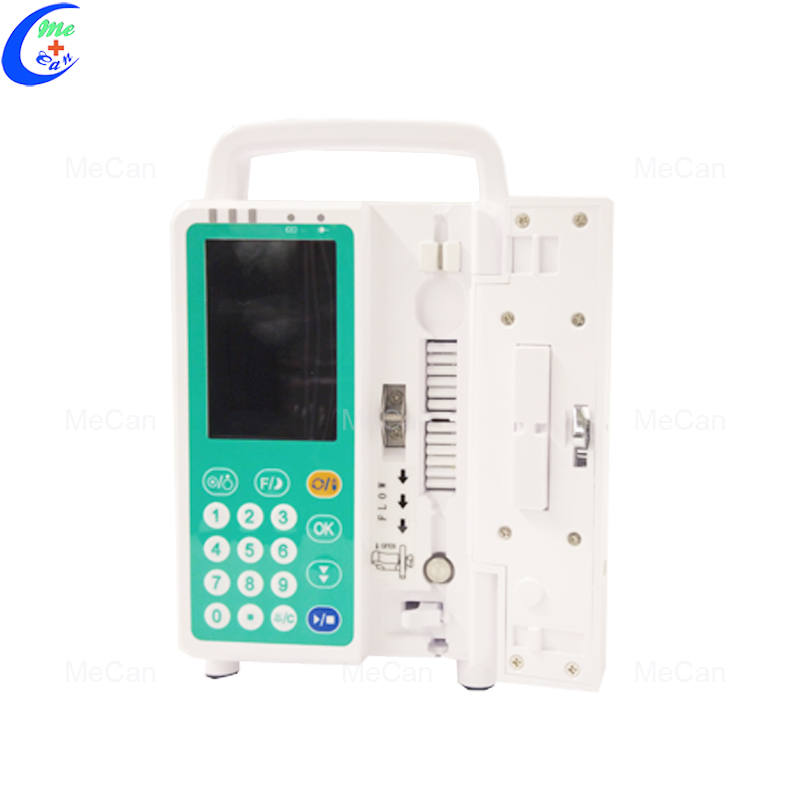

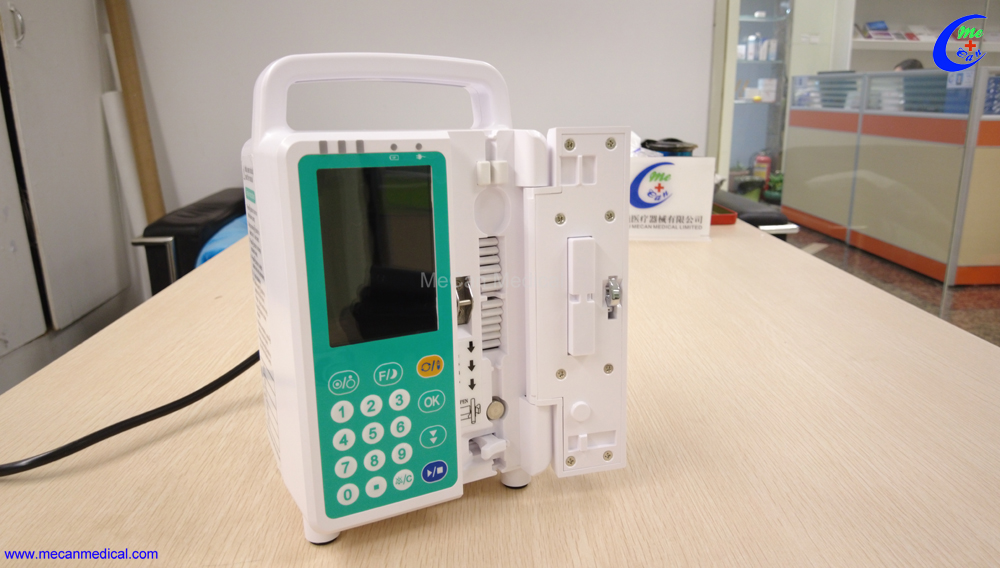

High Quality ICU Equipment Infusion Pump
Model:MC-112
1.Different types of indicator

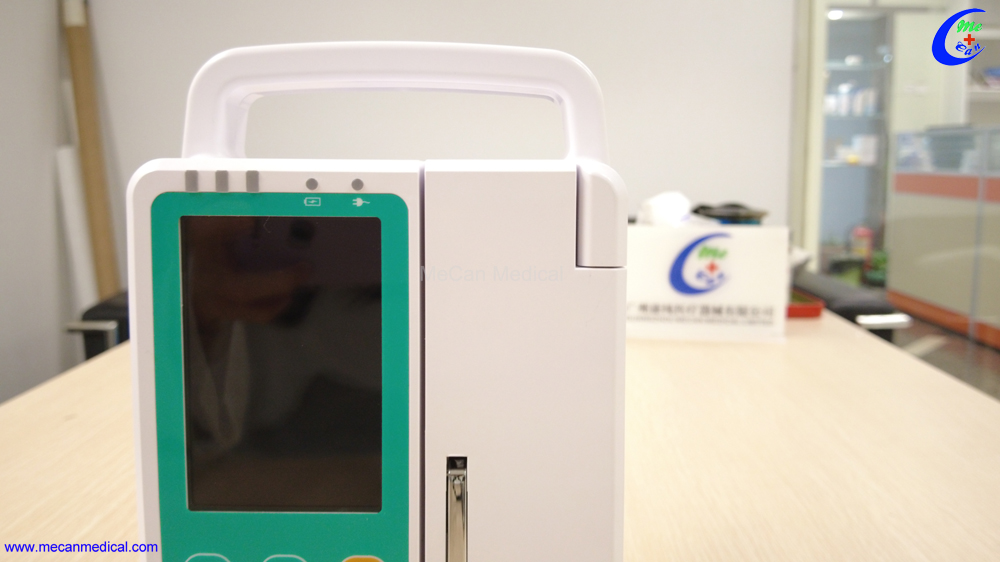

2.3.5 inch LCD screen for clear vision within 5 meters
3.One-button night mode design for patient's more comfortable restatnight

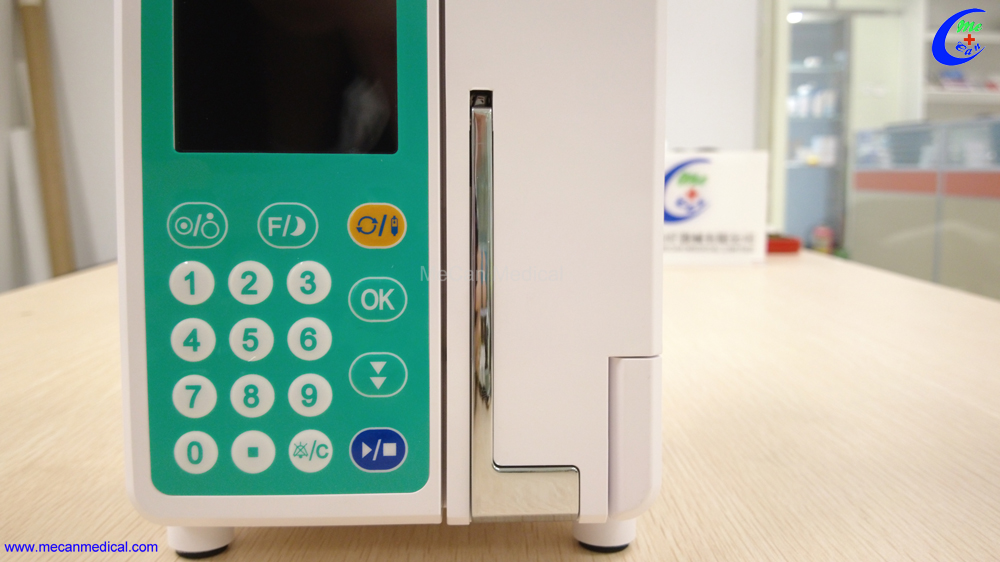

4.User friendly numeric setting key
5.Finger-tip peristaltic pump with down-stream free-flow protect
6.Pull & Push hook design for easier door open and close
Specification:
Model No. | MC-112 | |
Infusion Principle | Fingertip Peristaltic Pump | |
Range of Flow Rate | 0.1-1200m/h | |
Infusion Mode | Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time | |
Drug Library | 20 drug list with drug code display | |
Purge/Bolus Rate | 1-1200mlVhdefalut 800m/h, step by 1m/h | |
Single Bolus Volume | 1.0-10ml Adjustable, default 3 ml | |
Time Preset | 00:01-99 59 (Hour: Min) | |
Volume Range | 1~9999ml | |
Drop Range | 5% | |
Total Volume Infused | 0-9999 ml | |
Occlusion Pressure | High | 40 KPa+20KPa |
Middle | 60 KPa+20KPa | |
Low | 100KPa+20KPa | |
Air in line Detection | Ultrasonic wave | |
Visible & Audible Alarms | MPU Error, Batery Charing, Battery Charing Completion, Circuit Malfunction,Exhausted, Low Temperature, Motor Malfunction, A.C Disconnection, A.C connection, I.V set dislocation,MPU Error, Batery Charing, Battery Charing Completion, Circuit Malfunction | |
K.V.O Rate | 1m/h-5ml/h, default value 1m/h, can be programmed by user step 0.1ml/h | |
Intermnal Battery | Lithium battery,11.1/2000mAh,more than 4 hours working back up | |
Power Consumption | 30VA | |
Power | AC:100V-240V 50HZ/60HZ | |
Classification | Class I,Type CF, IPX4 | |
Dimension & Weight | 13x17.5x23 cm;2Kg | |
Optional Function | Ambulance DC: 12V |
High Quality ICU Equipment Infusion Pump
Model:MC-112
1.Different types of indicator
2.3.5 inch LCD screen for clear vision within 5 meters
3.One-button night mode design for patient's more comfortable restatnight
4.User friendly numeric setting key
5.Finger-tip peristaltic pump with down-stream free-flow protect
6.Pull & Push hook design for easier door open and close
Specification:
Model No. | MC-112 | |
Infusion Principle | Fingertip Peristaltic Pump | |
Range of Flow Rate | 0.1-1200m/h | |
Infusion Mode | Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time | |
Drug Library | 20 drug list with drug code display | |
Purge/Bolus Rate | 1-1200mlVhdefalut 800m/h, step by 1m/h | |
Single Bolus Volume | 1.0-10ml Adjustable, default 3 ml | |
Time Preset | 00:01-99 59 (Hour: Min) | |
Volume Range | 1~9999ml | |
Drop Range | 5% | |
Total Volume Infused | 0-9999 ml | |
Occlusion Pressure | High | 40 KPa+20KPa |
Middle | 60 KPa+20KPa | |
Low | 100KPa+20KPa | |
Air in line Detection | Ultrasonic wave | |
Visible & Audible Alarms | MPU Error, Batery Charing, Battery Charing Completion, Circuit Malfunction,Exhausted, Low Temperature, Motor Malfunction, A.C Disconnection, A.C connection, I.V set dislocation,MPU Error, Batery Charing, Battery Charing Completion, Circuit Malfunction | |
K.V.O Rate | 1m/h-5ml/h, default value 1m/h, can be programmed by user step 0.1ml/h | |
Intermnal Battery | Lithium battery,11.1/2000mAh,more than 4 hours working back up | |
Power Consumption | 30VA | |
Power | AC:100V-240V 50HZ/60HZ | |
Classification | Class I,Type CF, IPX4 | |
Dimension & Weight | 13x17.5x23 cm;2Kg | |
Optional Function | Ambulance DC: 12V |
