MeCan Medical Professional Invasive ICU Ventilator with Compressor manufacturers From China,MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money. The Ventilator adopts microcomputer control with high-definition LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance. If you are interested in it, plesse contact us anytime!
Quantity: | |
---|---|

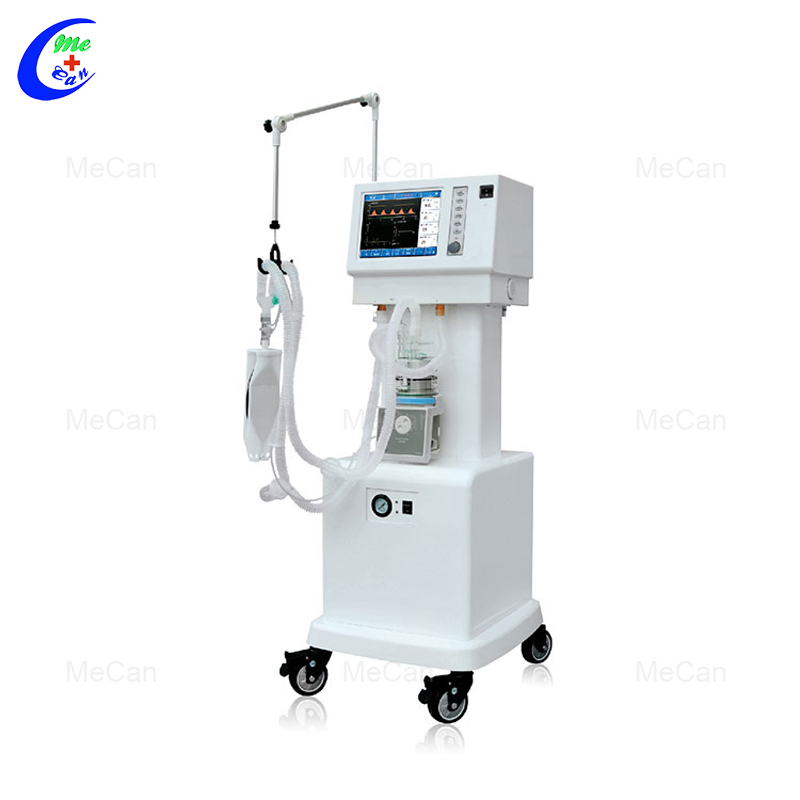

Invasive ICU Ventilator with Compressor
Model:MCV-03B
1.Display Mode: 10.4 inch High-denfinition TFT color LCD screen display
2.Ventilation Mode: VCV,PCV,SIMV,PSV,PSV+SIMV,CPAP
3.Ventilation Function: PEEP,SIGH, IRV, IP,Standby
Specification:
Tidal volume | 20~1800 ml |
Rate | 2~120bpm |
SIMV rate | 2~120bpm |
I:E | 4:1~1:8 |
Pressure trigger sensitivity | -10-20cmH2O |
Flow trigger sensitivity | 1-20L/min |
PEEP | 0~25 cmH2O |
Pressure range | 3~50 cmH2O |
Pressure limitation | 5~60 cmH2O |
Pressure slope | 1~10 gear |
Flow rate setting | 1~10 gear |
Expiratory trigger sensitivity | 10%-90% |
Time control | 1~10s |
SIGH | 1.5 times the inspiratory time (60-120 adjustable) |
Inspiratory platform | 0~50% |
Oxygen concentration | 21%~100% |

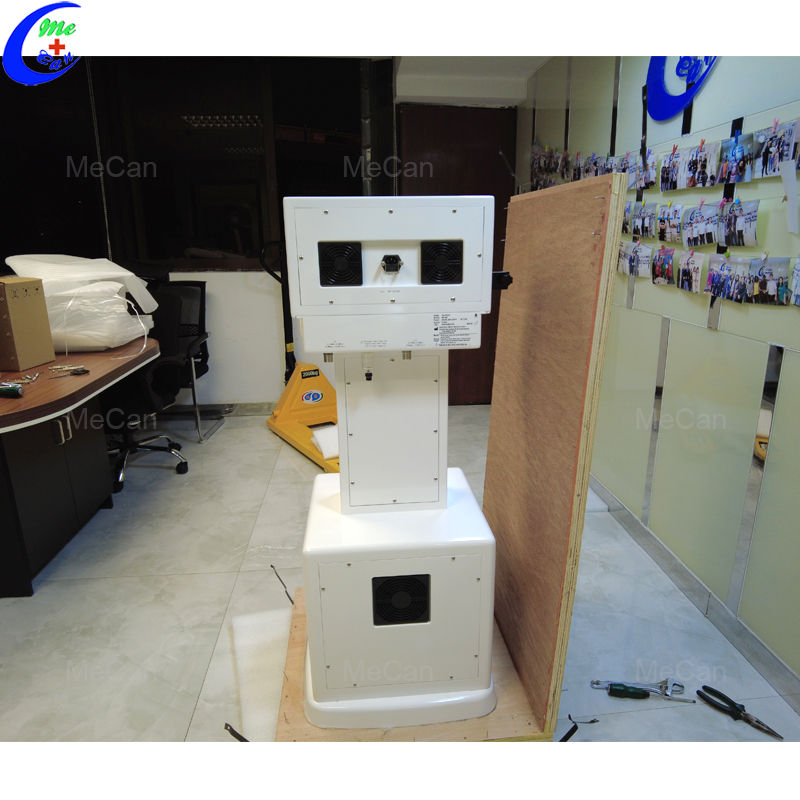

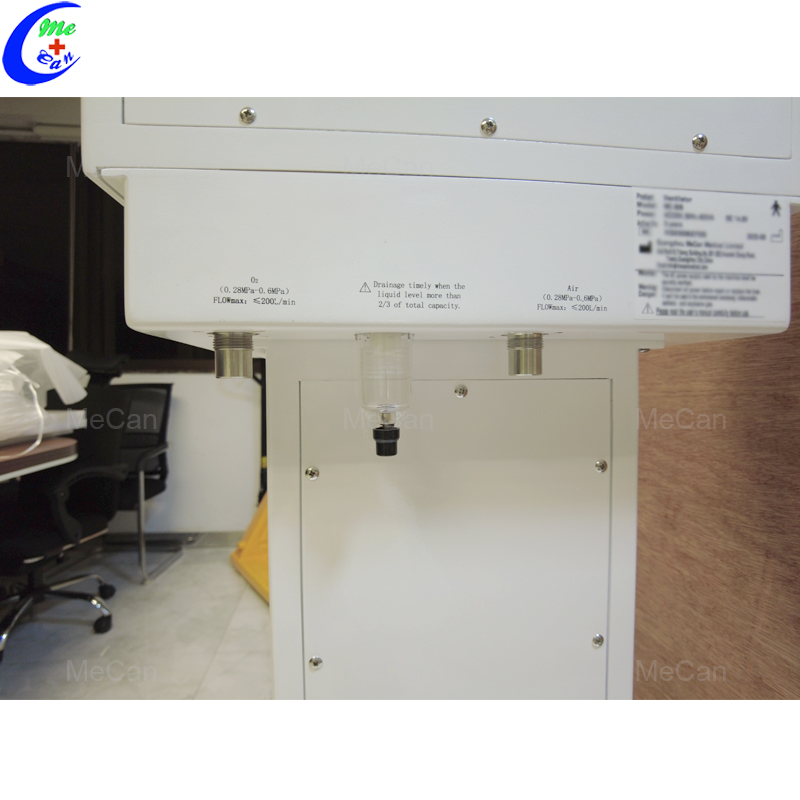

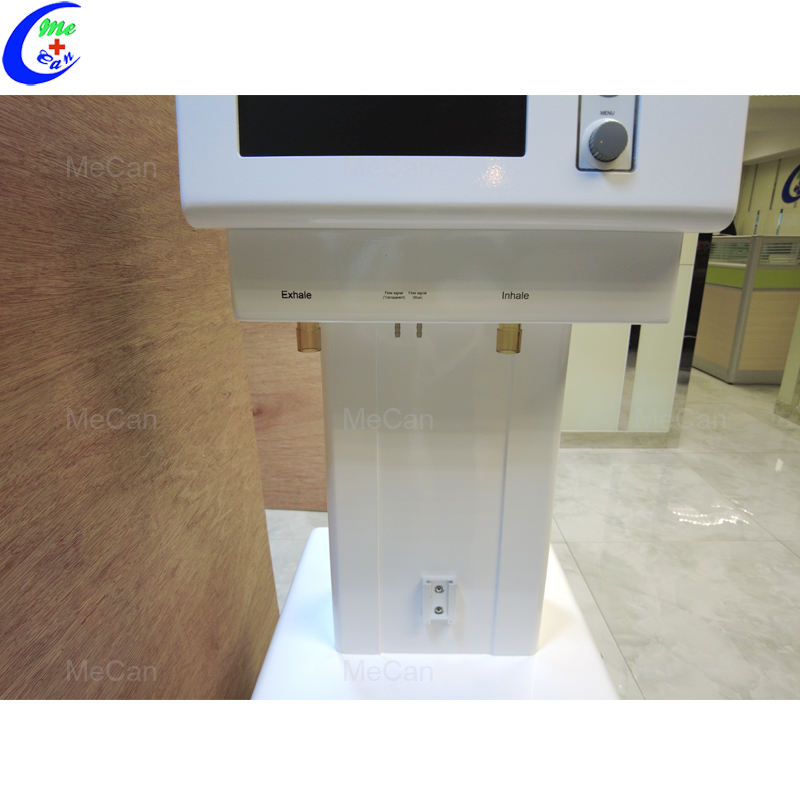

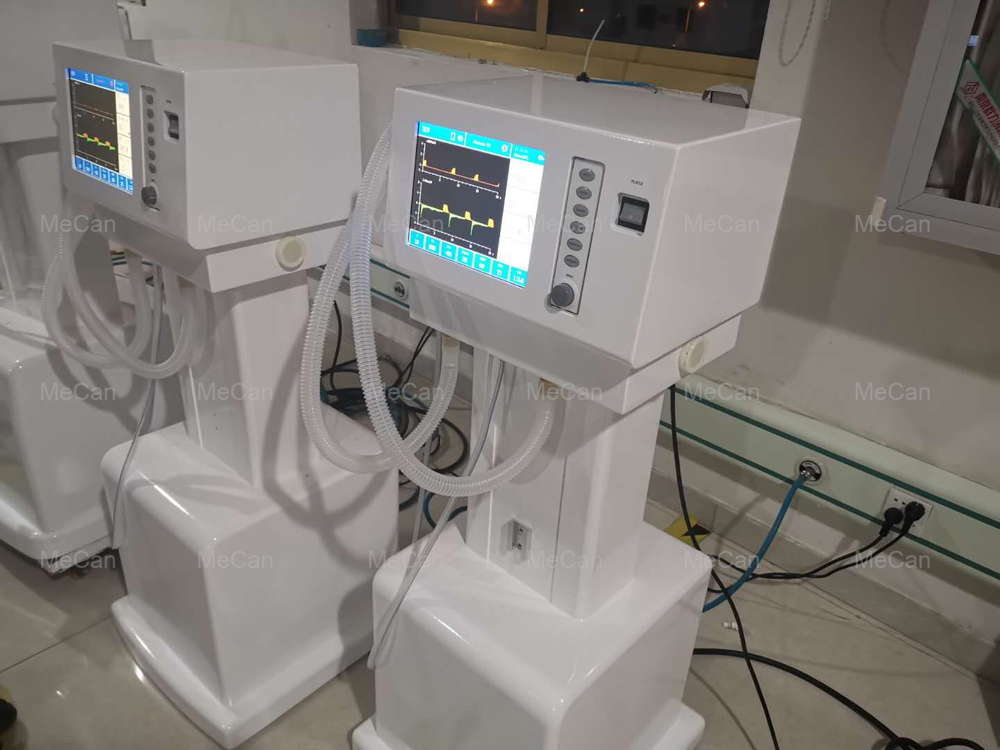

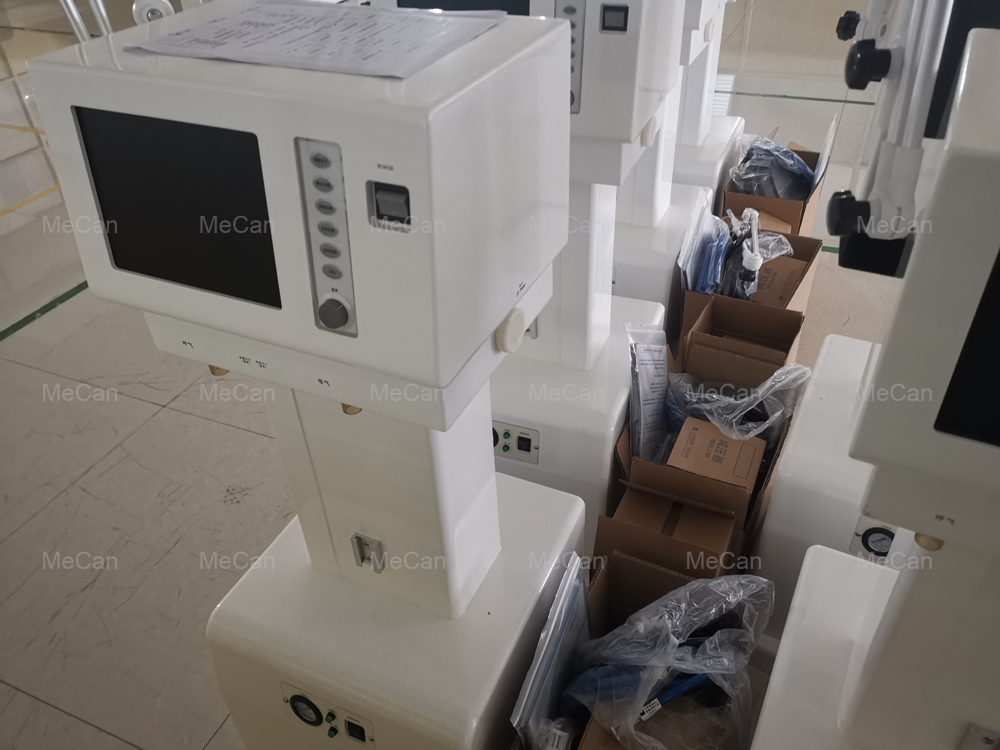

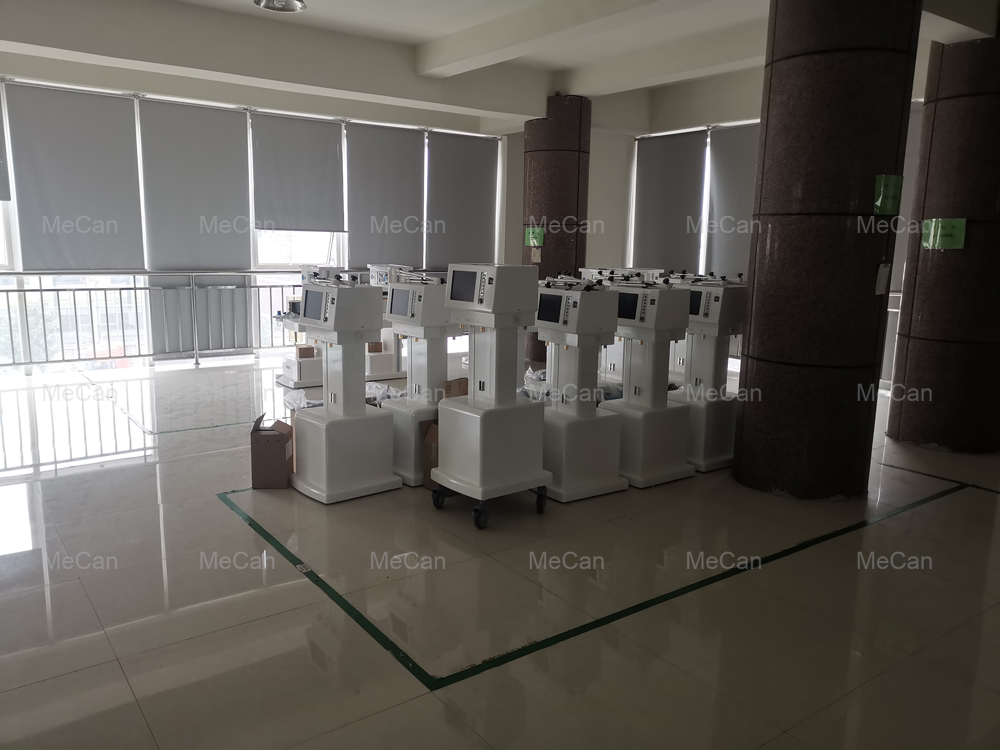

More pictures of our MCV-03B Ventilator:
