MeCan Medical Professional Portable 7 Inch 6 Channel ECG Machine manufacturers,OEM/ODM, customized according to your requirements. It is a six channel digital ECG instrument featuring simultaneous 12-lead signal acquisition. Its features include high-resolution thermal array printing system, high performance single-chip computer and large memory capacity. The advanced features make it ideal for the ECG examination in clinic and hospitals. If you woud like purchase a lot, please contact us!
Availability: | |
---|---|
Quantity: | |

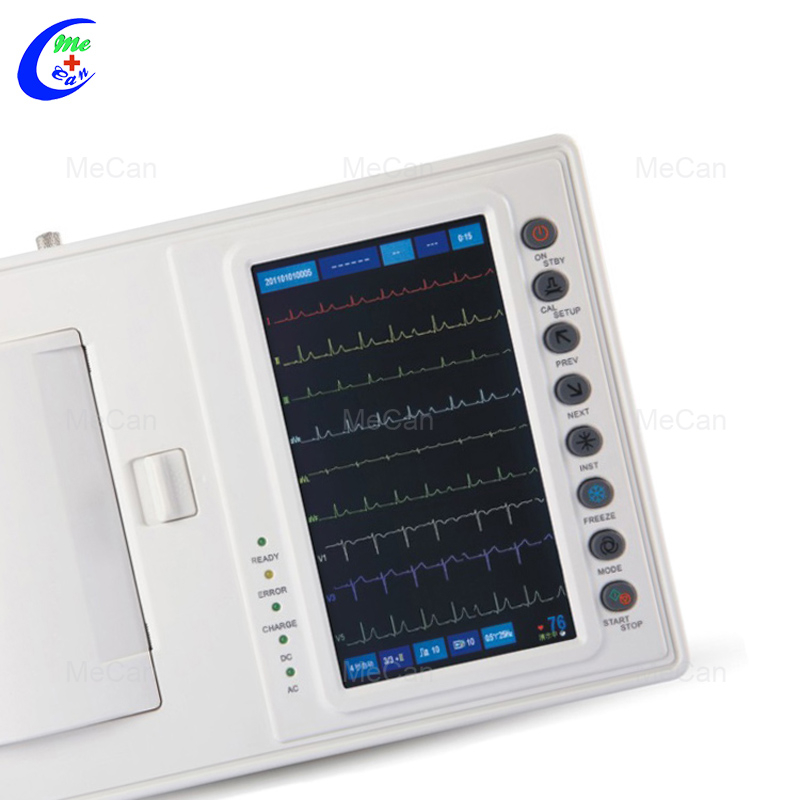

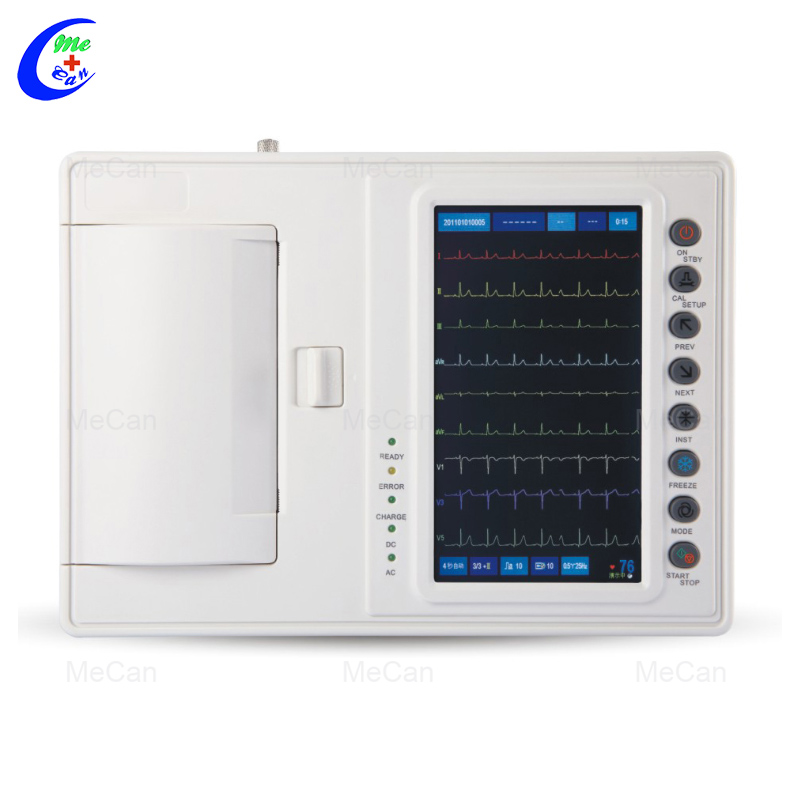

Portable 7 Inch 6 Channel ECG Machine
Model:MCH-1106
1.480*800 7inch touchscreen display
2.Six channel ECG machine with interpretation
3.12-lead ECG simultaneous acquisition
4.Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5.6-channel recording with a rhythm lead
6.Digital filters eliminate EMG, AC, Baseline Drift interference
7.Built in rechargeable Li-ion battery, 3 hours continuous working
8.Adapt 110-240V, 50/60Hz AC power supply
9.250 patients save/replay
10.Built in USB/RS232 interface
Specification:
Lead | 12 leads, Standard or Cabrera, 12 leads simultaneously acquisition |
Input circuit | Floating |
LCD display | 480*800 touchscreen display ECG waveform, operation conditions, Time, Heart-rate |
Safety | IEC class I, type CF |
Sampling rate | 1000 samples/Sec/Channel |
A/D converter | 12 bits |
Recording Mode | automatic, manual, Long Term(60Sec) |
Filter | AC(50Hz or 60Hz, -20dB) |
EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) | |
Drift (0.5Hz,-3dB) | |
CMRR | > 80dB and 100dB(AC filter in use) |
Input circuit current | <0.1uA |
Input Impedance | > 50Mohms |
Time constant | > 3.2S |
Frequency Response | 0.05--150Hz,-3dB |
Noise Level | <15µV |
Sensitivity | 1.25; 2.5; 5; 10;20; 40mm/mV±3% |
Calibration Voltage | 1mV±3% |
Patient Current Leakage | <10uA |
Protection | Protect from defibrillation and pace-making |
Recording mode | Thermal printer; 8dot/mm(Vertical), 40 dot/mm (Horizontal, at 25mm/s) |
Print Speed | 5; 6.25; 10; 12.5; 25' 50mm/s±2% |
Paper size | roll type or Z-folded |
Patient Cable | standard 10 leads |
Power requirements | AV220V/50Hz |
Built-in battery | Li-ion rechargeable battery pack, 11.1V |
Fuse Specification | 2φ5x20mm |

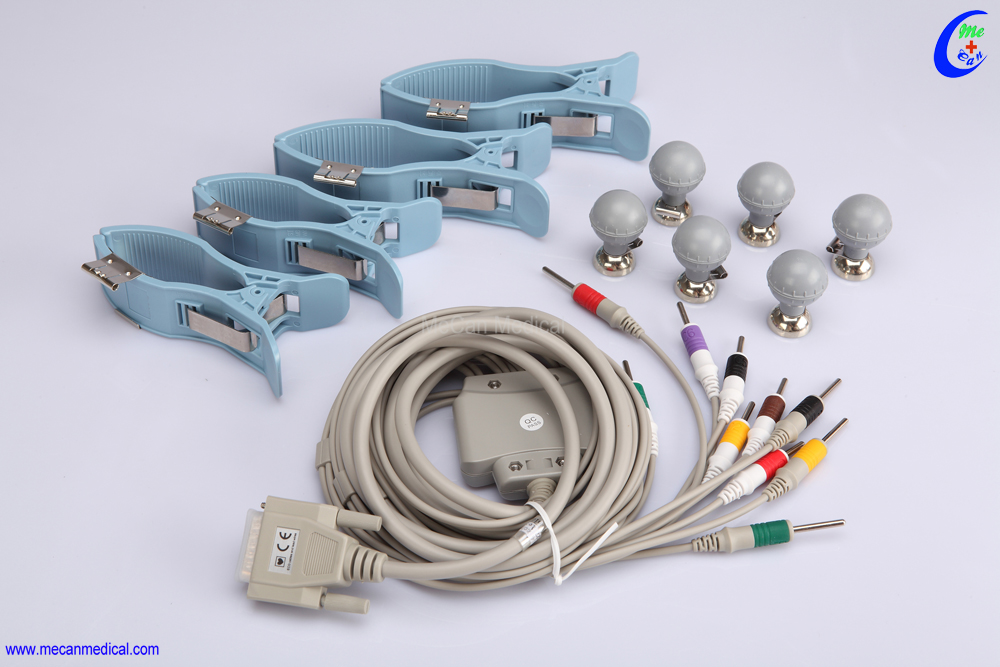

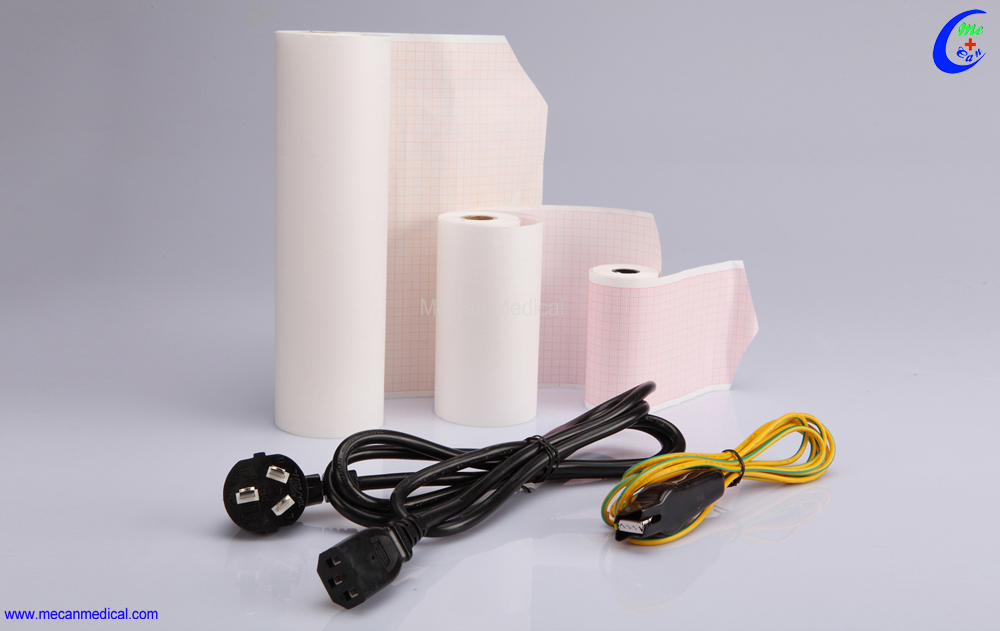

more picetures of MCH-1106 Accessories:
