Best Oxygen System PSA Oxygen Generator Company - MeCan Medical

MeCan Medical Best Oxygen System PSA Oxygen Generator Company - MeCan Medical,More than 20000 customers choose MeCan. PSA (Pressure Swing Adsorption) technology, which is deffirent from traditional cryogenic technology, is going to more and more popular used for air separating. Each gas has a specific adsorption rate when they pass through the vessel filled with molecular sieves (Zeolite molecular sieves) under a swing pressure. If you are interested in it, please contact us in any time!


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Oxygen System PSA Oxygen Generator


Product Description:

The generator produces oxygen with PSA (pressure swing adsorption) technology, which is a time proven oxygen generation method. Oxygen of desired purity at 93% is delivered to oxygen buffer tank for smooth supply of product gas. Oxygen in buffer tank is maintained at 7barg pressure. It is adjustable for your needs downstream through a pressure regulator valve.


1.The device is simple in procedure,compact in structure,small in floor area and minimal in space requirement. Unique patented compacting structure,equipped with automatic compensation when the molecular sieve becomes loose,which extends the life of sieve up to 10 years.

2.The device enjoys excellent working stability and reliability . It boasts excellent safety when working under normal temperature and pressure.The service life of molecular sieve if used and maintained normally may reach 5~8 years.

3.The adsorber is unique in construction.Distribution of air flow is very uniform,so that full use can be made of the molecular sieve.

Working Principle:

    PSA oxygen generator takes 5A zeolite molecular sieve as  adsorbent.The crystal of 5A zeolite molecular sieve is in a cage structure,with well-developed bug holes.There are powerful positive ions and oxygen anions in the bug holes,which make up a molecular sieve with strong polarity, but oxygen and nitrogen are non-polar molecules.When oxygen and nitrogen pass through  5A polar molecular sieve,oxygen and nitrogen produce inductive dipole under the effect of polar molecules;an induction force is production force produced by nitrogen which is easy to be  polarized is far more than that of oxygen.Then nitrogen is  adsorbed preferentially by 5A zeolite molecular sieve and  enriched in the solid phase of the  molecules sieve,while oxygen is enriched in the one-solid phase.This is resultant oxygen.

    Meanwhile 5A molecular sieve is so featured that the volume of nitrogen adsorbed increases when compressed and decreases when  decompressed. .Therefore,nitrogen can be adsorbed by compressing 5A zeolite molecular sieve and desorbed form the sieve by decompressing it. In this way, oxygen can be produced.

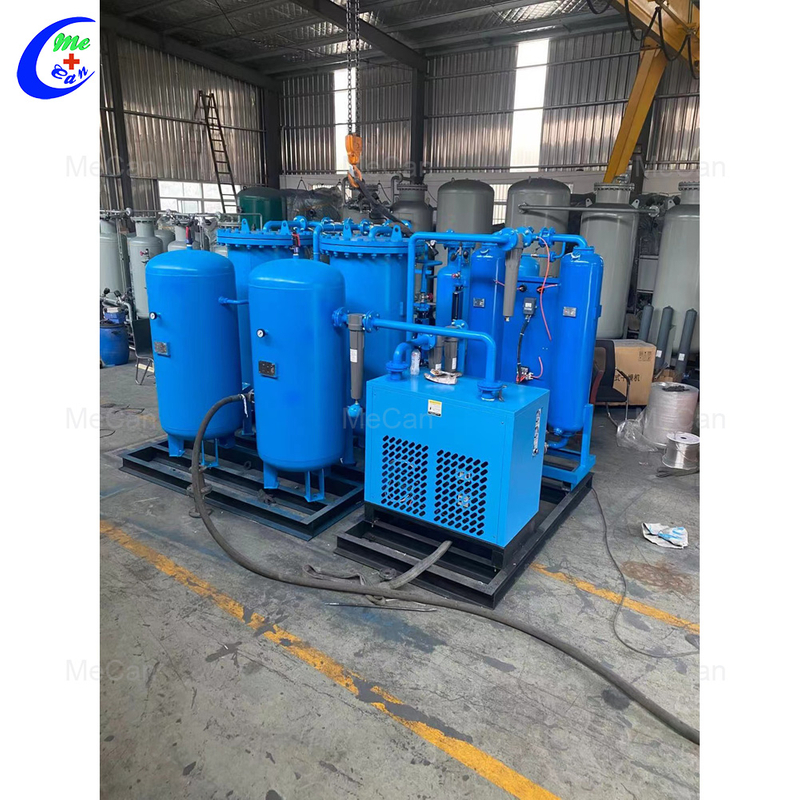

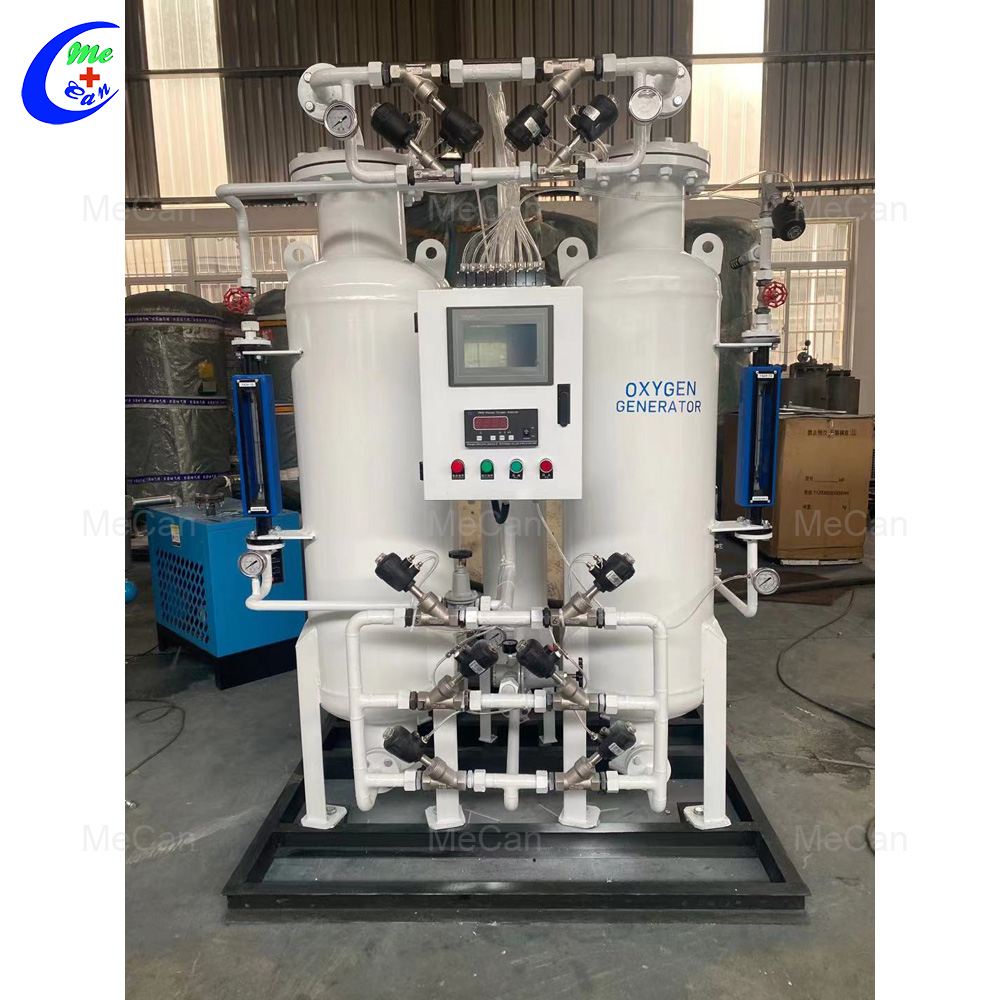

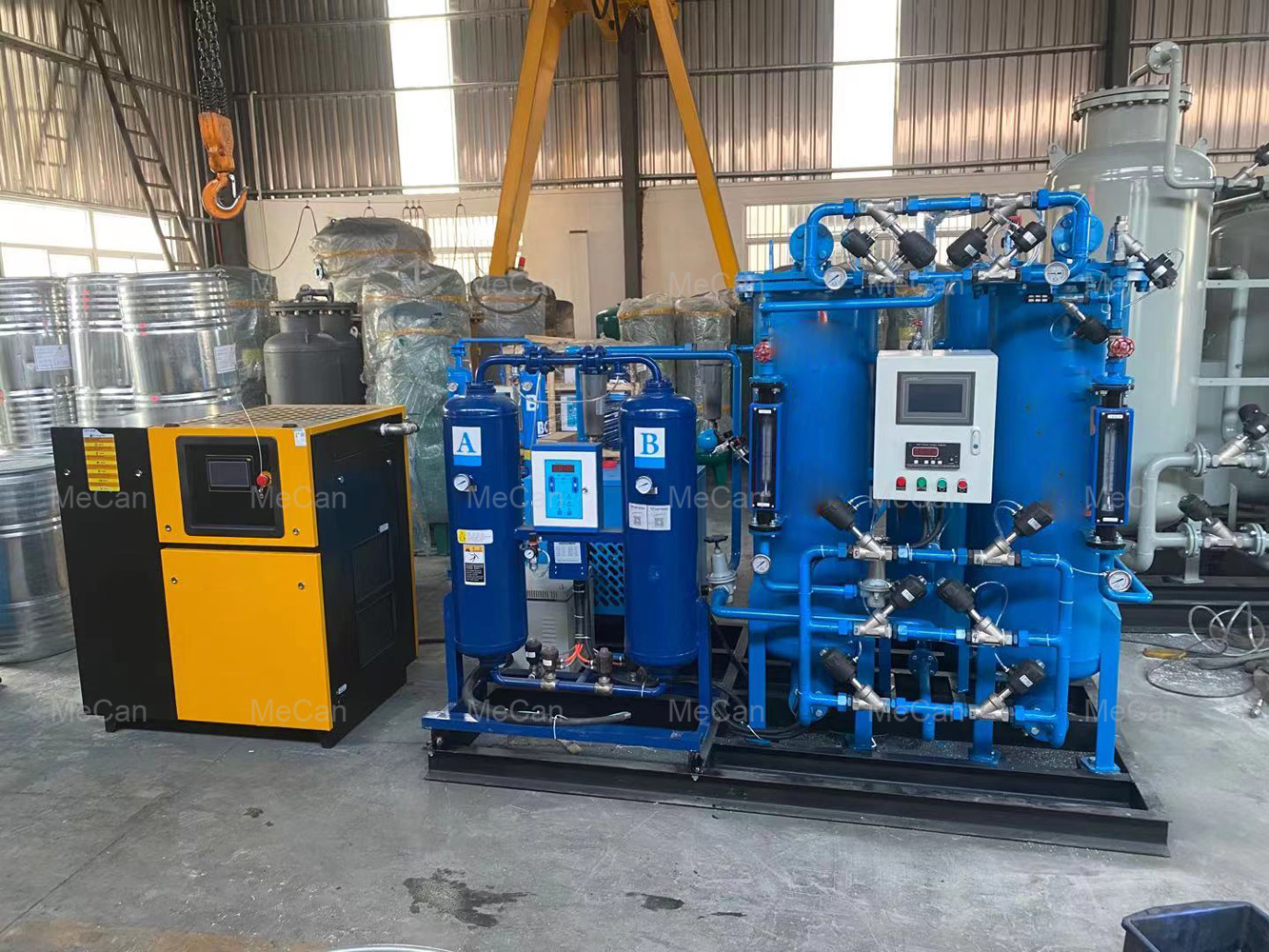

more pictures of our PSA Oxygen Generator:


1.What is your warranty for the products?
One year for free
2.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:  Express:UPS,DHL,TNT,ect (door to door)  United States(3 days),Ghana(7 days),Uganda(7-10 days),Kenya(7-10 days),Nigeria(3-9 days)  Hand carry  Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.  Air freight(from airport to airport)  Los Angeles(2-7 days),Accra(7-10 days),Kampala(3-5 days),Lagos(3-5 days),Asuncion(3-10 days)  Se
3.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.


1.More than 20000 customers choose MeCan.
2.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.OEM/ODM, customized according to your requirements.
