Professional Body Incinerator Cremation Machine manufacturers

MeCan Medical Professional Body Incinerator Cremation Machine manufacturers,MeCan Focus on medical equipments over 15 years since 2006. The cremator machine main burning and post-combustion chamber is built in high-temperature resistant refractory.Through many layers of isolation material as well as recovery of heat, an economic operation can be achieved, as well as a low temperature on the cover plates.Our furnaces have been equipped with post-combustion chamber, which is absolutely essential for reduction of the hydrocarbons present. If you have any questions about this product, please contact us!



Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

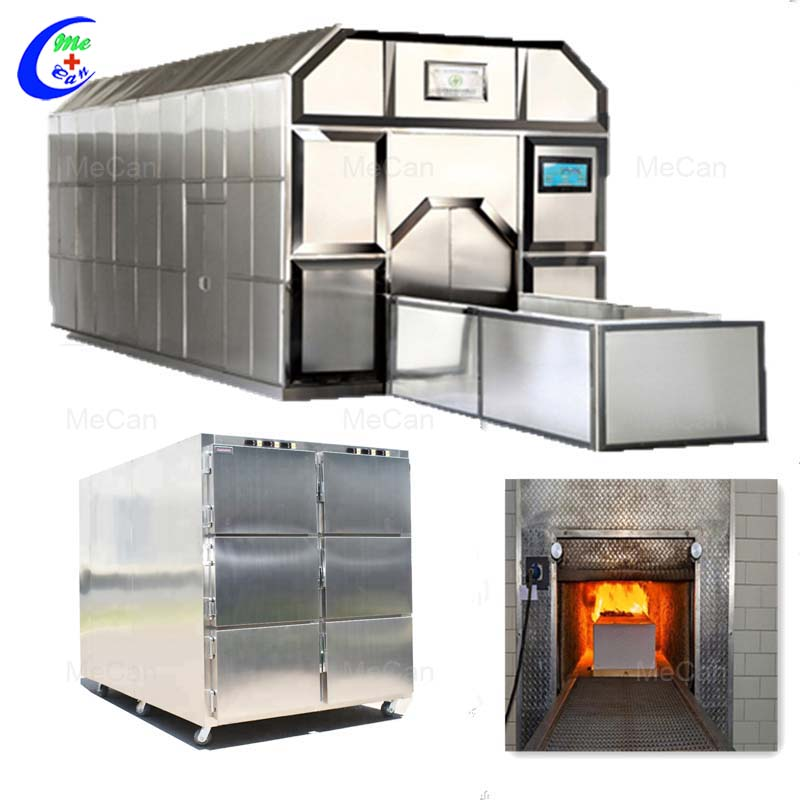

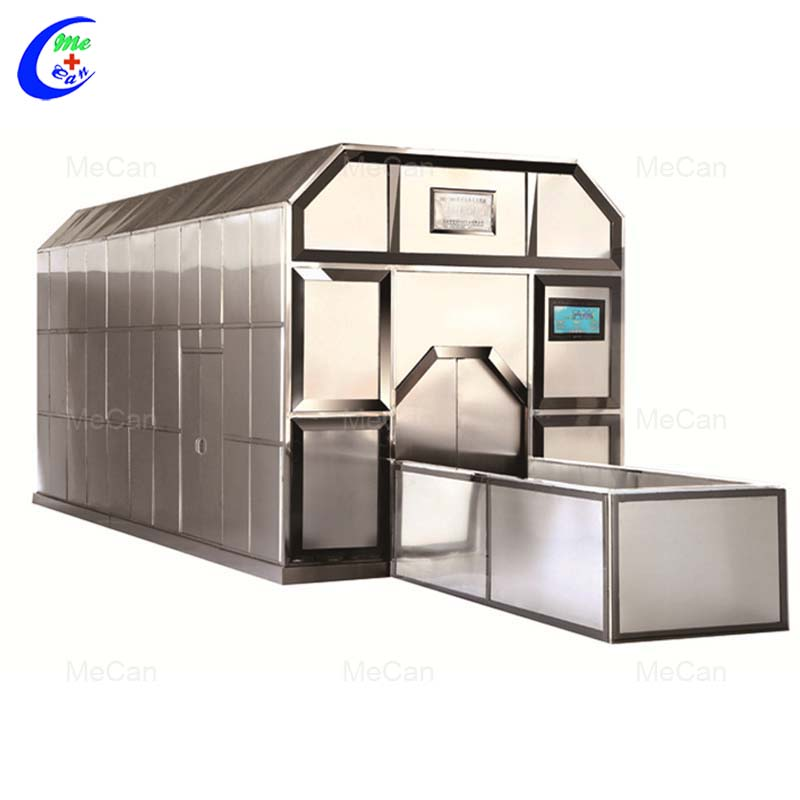

Stainless Steel Cremation incinerator Dead Body Incinerator

Model:MCM-140

Describtion:

The cremator machine main burning and post-combustion chamber is built in high-temperature resistant refractory.Through many layers of isolation material as well as recovery of heat, an economic operation can be achieved, as well as a low temperature on the cover plates.Our furnaces have been equipped with post-combustion chamber, which is absolutely essential for reduction of the hydrocarbons present.


Main Features:

During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc.
As the corpse is placed in a casket or paper container , the container burns down.
Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
Our crematories machine have fourth afterburner to help burn the body completely.


Specification:



Model Name
stainless steel fuel or gas cremation machine cremation furnace for human corpse
Model Number
MCM-140
Material
Stainless and Refractory
Style
Eropean style
Type
Including burning systerm and cold systerm
Control Systerm
Japan Mitsubishi PLC and LCD touch screen or touch switches
Overall Dimensions
12000*2360*2700mm
Transport Creeper Trolley Size
3800*830*800mm
Temp of Primary Combustion Chamber
700-900 cent degree
Hearth Burning Pressure
-5 to -10Pa
Total Power
20kw
Total Weight of Cremator
20T
Total Weight of Carrier
1.2T
Ground Space
9-10m⊃2;
Average Fuel Consumption
3-7kg/case
Average Time
20~35min/case
Exhaust of Harmful Substances
In conformity with ISO14001
Package Details
One unit of cremation machine load 1*40HQ container, around 27 Ton Totally
Delivery
35 to 60 days after deposit
Payment
40%TT in advance,60%TT before shipping

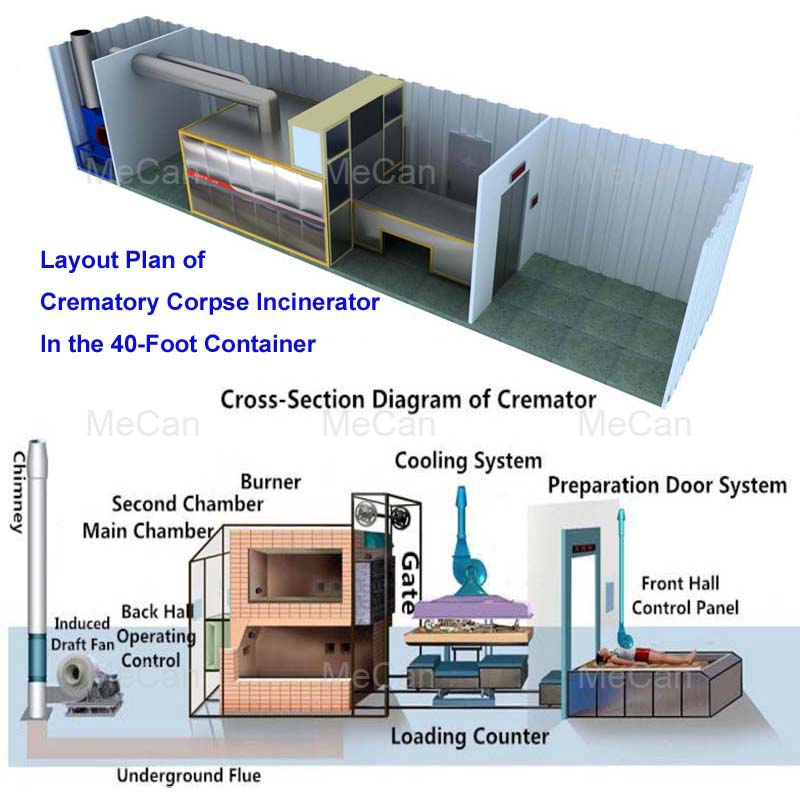

Our cremators adapt the latest combustion technology, four times burning technology ensure the emissions purified.
First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300℃), most smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special construction of the secondary burning chamber.
Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if temperature under 700℃,otherwise above 700℃the high temperature gas and smoke burn itself matched with the suitable amount of oxygen.
Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally before injection into the atmosphere.

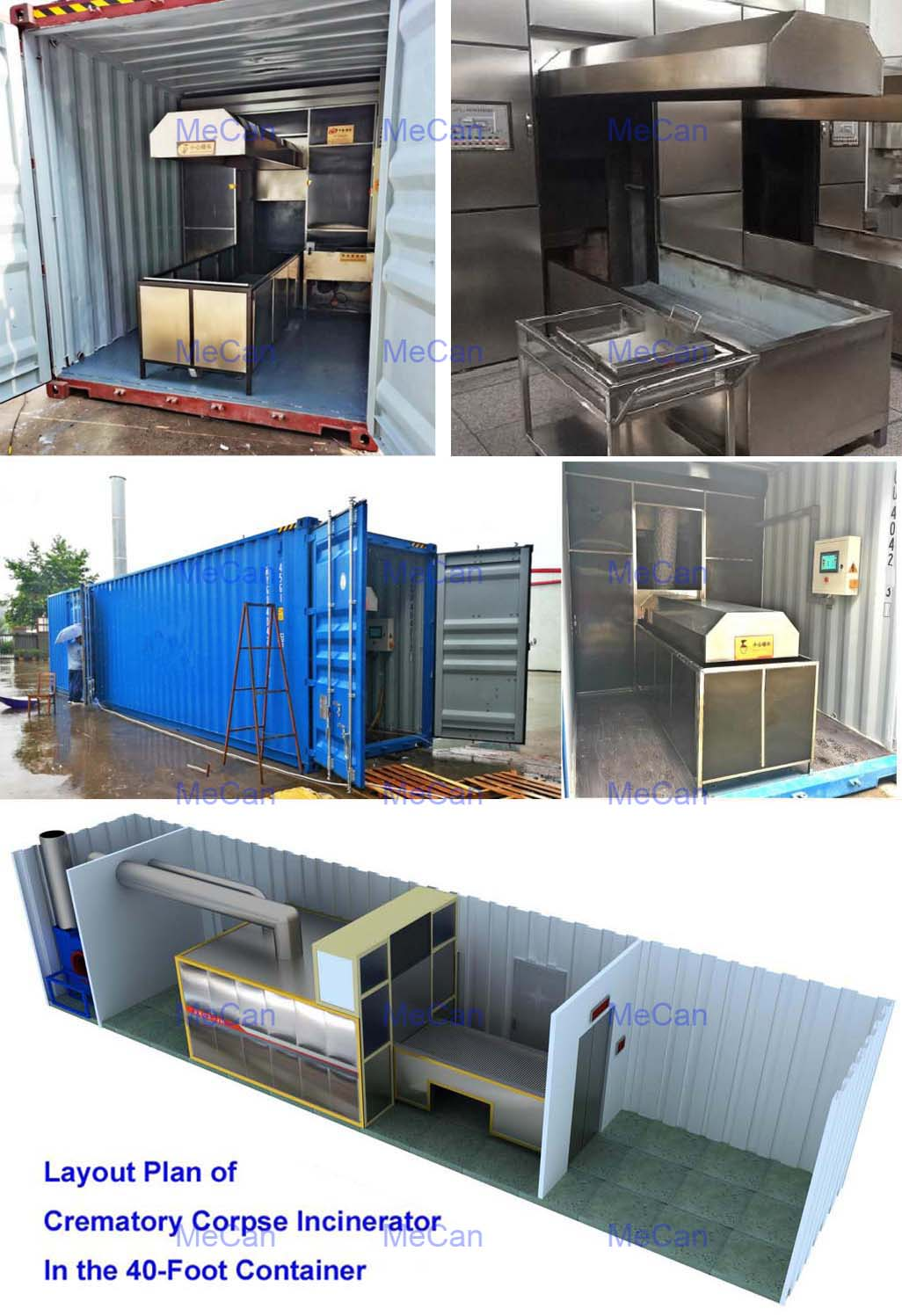

more pictures of our MCM-140 Human Body Incinerator:
