MeCan Medical Professional R.O. Water Purification Machine for Hemodialysis manufacturers, Our Hemodialyse Machine with excellent quality and advanced technology, tested by market and end users, are popular in both domestic and foreign makets, which have been sold to more than 100 cities in Countries and 90 countries and district such as Middle East, Southeast Asia, South America and Afica etc.
Quantity: | |
---|---|

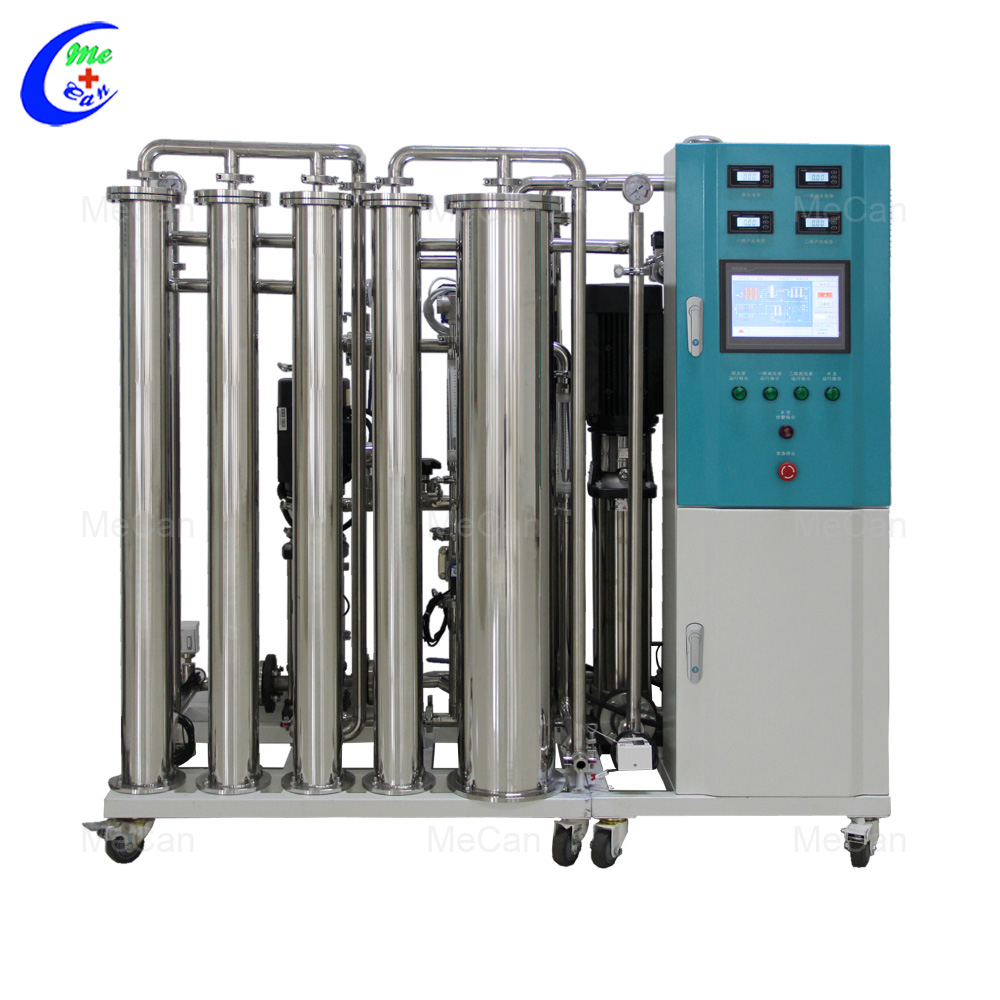

R.O. Water Purification Machine for Hemodialysis
MC-RO Series
Feature:
1.Meets or exceeds U.S. A AMI dialysis water standard and U.S.A SAIO dialysis water requirement.
2.Automatic and manual operation
3.Automatic rinse cycle during standby mode
4.Additional raw water tanks for reliable operation
5.Double pass R.O. ( ultrapure ) product water to meet HDF water quality requirements.
6.Automatic cleaning, disinfection and pure water recycling functions during standby mode to minimize bacteria growth.
8.Seamless R.O. casing to minimize the dead space within the reverse osmosis membranes
9.High quality reverse osmosis membrane, high pressure pumps, UV sterilizers, controllers and other assembly parts.
System components:
Media filters (with automatic flushing device): remove particulate impurities, manganese ions
Activated carbon filter (with automatic flushing device): clear chlorine organics ion
Softening filters (with automatic flushing reproducing apparatus): clear calcium and magnesium ion, reducing raw water hardness
The reverse osmosis hosts (imported reverse osmosis membrane components): removal ions, bacteria, heat,etc.
Constant pressure water supply of pure water supply section (full cycle)
Controller: automatic control system
Working Process:
Source booster pump → sands filter → active carbon filter → water softener → PP filter → high-pressure pump→ RO system →water using points
Water production (L / H) 25 ℃ | the applicable number of beds:
Model | L/h | L×W×H (mm)) | Support beds |
MC-ROI-60 | ≥60 | 600×400×600 | 2 |
MC-ROI-300 | ≥300 | 1650×590×1640 | 9 |
MC-ROI-500 | ≥500 | 1780×590×1640 | 16 |
MC-ROI-600 | ≥600 | 1780×590×1640 | 18 |
MC-ROI-750 | ≥750 | 1980×590×1640 | 24 |
MC-ROI-1000 | ≥1000 | 2080×590×1640 | 32 |
MC-ROI-1250 | ≥1250 | 2080×690×1640 | 40 |
MC-ROI-1500 | ≥1500 | 2480×780×1640 | 48 |
MC-ROI-2000 | ≥2000 | 2480×780×1640 | 64 |
MC-ROI-2500 | ≥2500 | 2880×780×1640 | 80 |
MC-ROII-300 | ≥150 | 1450×690×1300 | 9 |
MC-ROII-500 | ≥300 | 2080×690×1640 | 16 |
MC-ROII-600 | ≥500 | 2480×780×1640 | 18 |
MC-ROII-750 | ≥750 | 2480×780×1640 | 24 |
MC-ROII-1000 | ≥1000 | 2880×780×1640 | 32 |
MC-ROII-1250 | ≥1250 | 2880×780×1640 | 40 |
MC-ROII-1500 | ≥1500 | 2880×780×1640 | 48 |
MC-ROII-2000 | ≥2000 | 3200×780×1640 | 64 |
MC-ROII-2500 | ≥2500 | 3200×780×1640 | 80 |
Triple Pass: It is not just simply added one pass base on double pass but with its special tube design and automatic water distributing system, it could realize the countless times of purification.
It has a durable surface. It has finishes that are resistant to attack from chemicals such as bleach, alcohol, acids or alkalis to some extent.
