Thermal Cycler Real Time Clinical Analytical instruments RT PCR Machine
Model:MCL-PCR01
Features：
1,The new powerful Peltier Technology, fast ramping rate up to 7℃/s.
2,Sample Block Capacity: 48-wells * 2/4 channels. White PCR tubes could be used. In quantitative PCR experiments, white tubes offer the highest sensitivity and shield background.
3,T-Optical™ technology ,reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.
4,Simultaneous detection of wells, not in sequence.

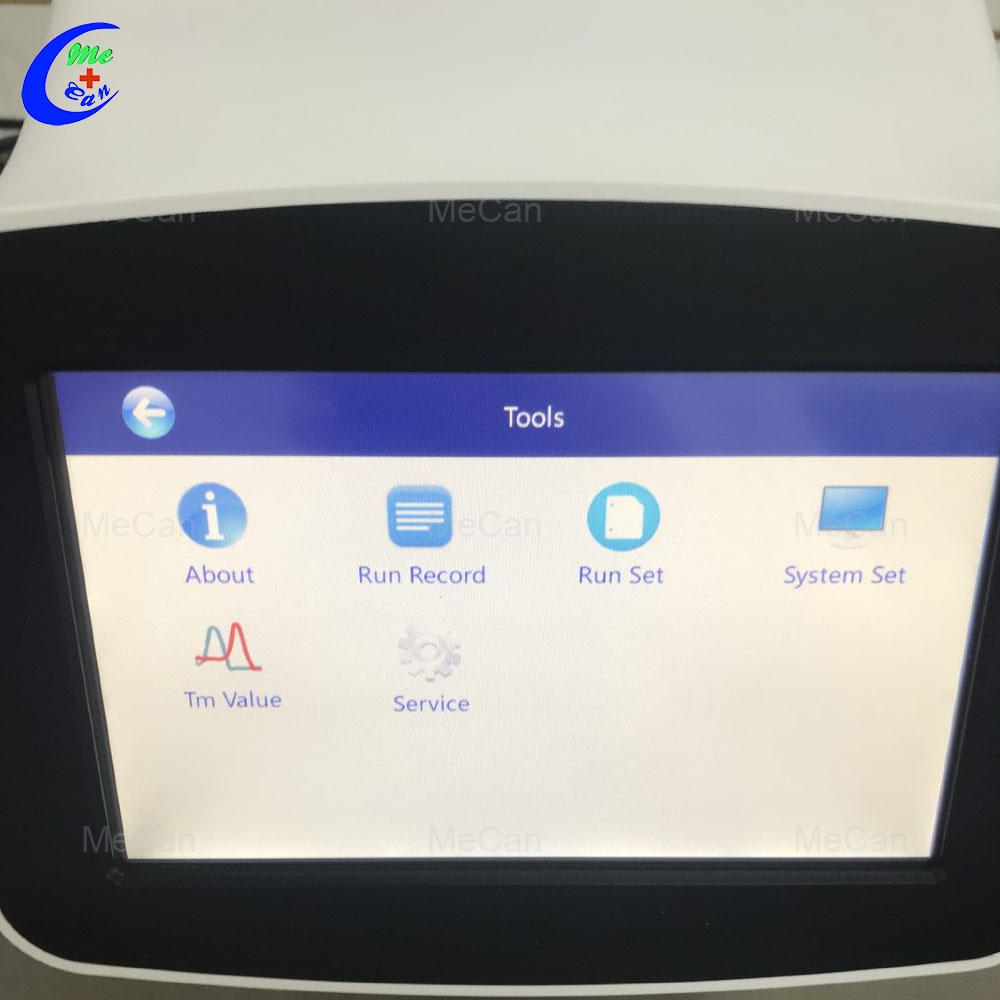

5,Users could view qPCR process and run PCR protocol with self-contained 7' TFT LCD and touch screen.
6,Special designed optical system for qPCR, avoiding more moving parts problems like
overheat ,wear and off center. Not optical fiber based, avoiding break and block.
7,Long life LED lamps to excite fluorescence and detect with SSLP™ CCD imaging technology.
8,Sample wells with temperature gradient function, convenient to optimize PCR conditions.

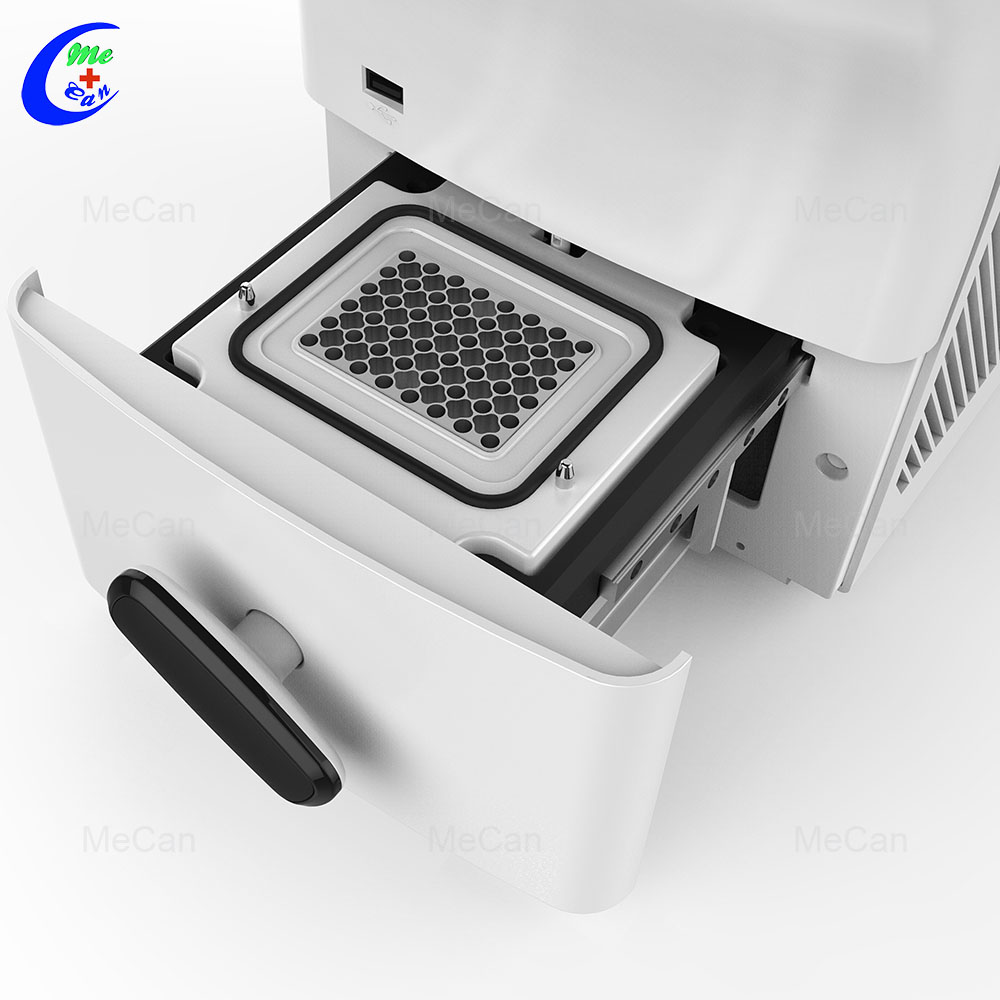

9,The drawer design of sample block, makes it easier to pick and place PCR tubes and plates.
10,The PCR analysis software could be upgraded for free fee.
Fluorescence Detection:
Calibrated Dyes at Factory
Excitation:Long life LED lamps
Detection:CCDs
Channel 1:FAM,SYBR Green
Channel 2:VIC,HEX,JOE,CY3,NED
Channel 3:ROX,TEXAS-RED
Channel 4:CY5
Fluorescence Excitation Range:300 — 800nm
Fluorescence Detection Range:500 — 800nm
Data Export Formats:Excel, TXT
Dynamic Range:1~1010
Sensitivity: ≥1 copy
Other Features:
AC power supply: 100V ~ 240V, 50-60Hz
Consumption: 400W
Dimension(L×W×H): 320×205×380mm
Net Weight: 8.2kgs
Computer Operating Systems: Win7, Win10, Win XP
Parameter:
| Sample Block Capacity | 48-wells * 0.1ml |
| Reaction Volume | 10-50ul (recommend 20 ul) |
| Tubes Option | Low-profile, white or clear PCR tubes or strip of tubes with optical flat cap |
| Heating and Cooling Technology | New powerful Peltier Technology Control Methods: Operated via PC or self-contained touch screen on instrument |
| Block Temperature Range | 0℃~105℃ |
| Max. Heating Rate | 7℃/s |
| Max. Cooling Rate | 5℃/s |
| Temperature Uniformity | ≤±0.2℃ (at 90℃) |
| Temperature Accuracy | ≤±0.1℃ (10 seconds after reach 90℃) |
| Display Resolution | 0.1℃ |
| Heat Lid Temperature Range | 30℃~112℃ |
| Temperature control Mode | Block & Calculated sample |
| Gradient Range | 30℃~100℃ |
| Temp.Differential Range | 1℃~24℃ |
