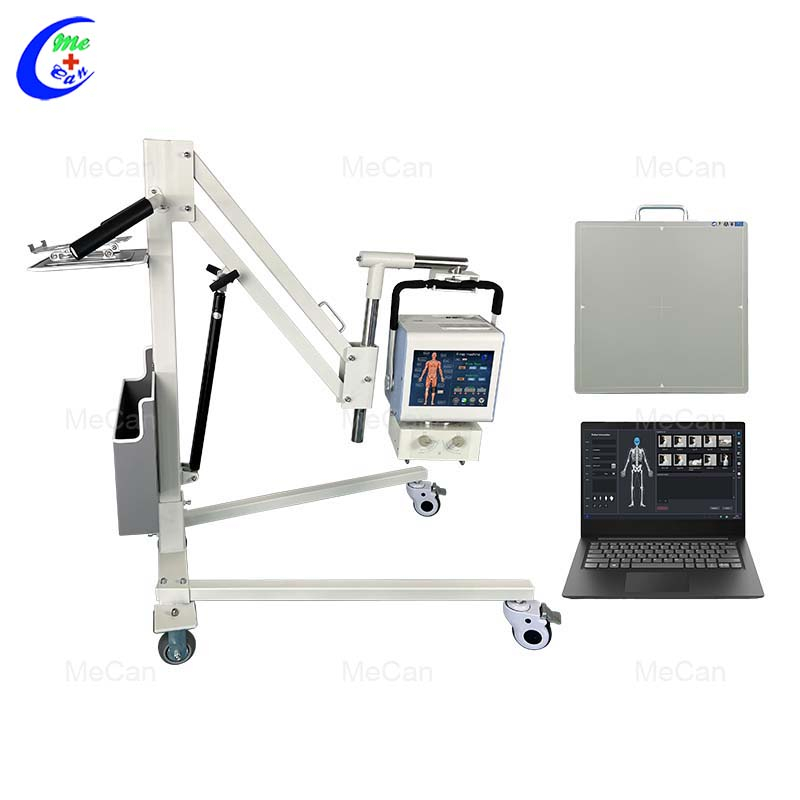

5KW Digital Portable X-ray Unit with Touch Screen

Model: MX-DR050B12

便携+5kwDR 人 (2)

Features of our Portable Digital X Ray Machine:

1.10.4 inch LCD screen

2.14 preset parameters

3.Convenient for doctor

4.Light weight

5.Easy to move

6.Safe with foot brake

7.15CM distance to ground, better trafficability

8. X-ray tube rotation and movement:  Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm

9. OEM/ODM supporting

10. Support 5.6kW and 320mAs exposure.

11. Operator panel seperated as human and veterinary according to different purpose.

Features of 5kw portable x ray machine


The 5kW portable digital high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, animal clinics, etc.

Specifications of our Portable / Mobile X-Ray Machine

Power 5KW
Power Supply Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω)
Working Frequency 30kHz
mA 32-100mA
mAs 0.32-315mAs
KV 40-110kv
Exposure time 0.01-6.3s
Tube focus 1.8*1.8mm
Anode heat capacity 42kHU
Mobile stand MX-MS2
Flat Panel Detector
Image size 17*17 inch (14*17 for (option)
Pixels Matrix 140μm
A/D Conversion 16bits
Spatial Resolution 3.6 Lp/mm
Software Professional Software
Computer R5-5500U/8G/256G

DR system for portable x ray machine

More details of Flat Panel Detector for Human

Test image of our Portable X Ray Machine

Excellent Images of Flat Panel Detector for Human

便携+5kw+人+平板 +胸片架(2)-白底带水印
