Best China Professional Manual Dialysis Chair Blood Collection Chair manufacturers-MeCan Medical Factory Price
Model: MC-PYS

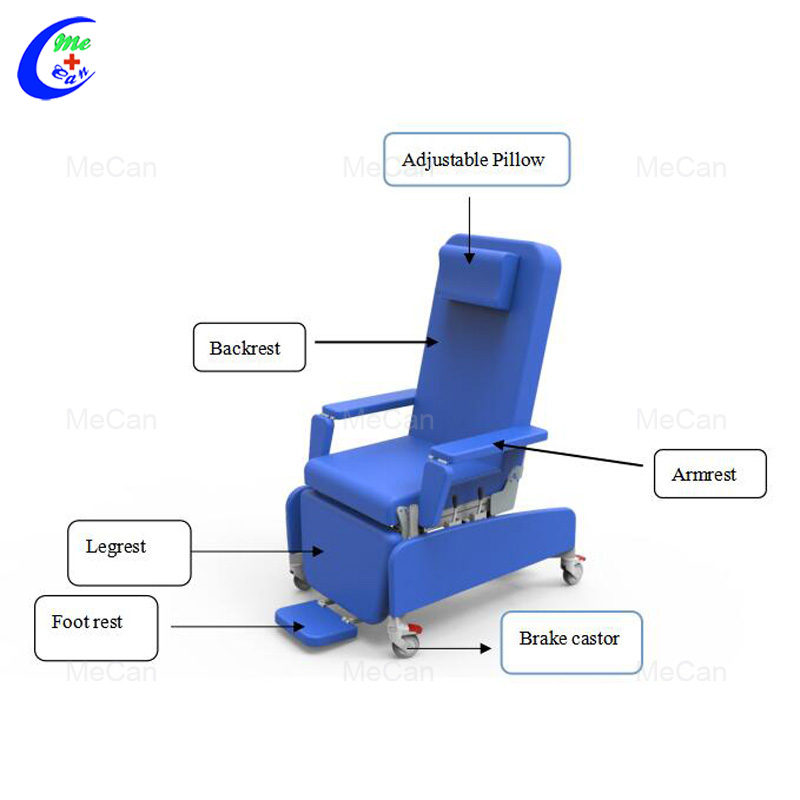

Main Structure
Manual dialysis chair MC-PYS integrates many functions, such as sitting, lying, tilting and reclining. Various positions can be easily realized by adjusting the buttons to meet users' different requirements.
Main Product Features
1. Pneumatic and hydraulic adjustment: using reliable gas spring.
2. Multi-position adjustment: adjusting backrest, legrest and trendelenburg position by gas spring.
3. Humanized design: thoughtful design, fresh color, effectively reduce the tension of patients.
Specification
Model | MC-PYS |
Total Length | 1960 mm±20mm |
Total Width including armrests | 930 mm±20mm |
Seat Width | 600 mm±20mm |
Backrest length | 830 mm±20mm |
Seat length | 520mm±20mm |
Legrest length | 420mm±20mm |
Seat height | 600mm±20mm |
Armrest Dimension | L550*W150*D60mm±20mm |
Height of armrest and seat | 190mm±20mm |
Chassis Dimension | 930mm×750mm±20mm |
Castor | 4xφ100mm swivel castors with separate brakes |
Pillow | 400 mm×230 mm×80 mm±20mm |
Safe Maximum Load | 240 KGS |
Weight | 59 KGS±3KGS |
Food table maximum load | 10KGS |
Backrest Adjustment | (-12° ~ 75°)±5° |
Legrest Adjustment | (-80° ~ 12°)±5° |
Leather | PVC leather |
Cushion | Sponge |
Frame | Q235 steel |
Storage environment | Temperature: -20℃~60℃, relative humidity: 10%~85% |
Operation environment | Temperature: 0℃~35℃, relative humidity: 10%~85% |

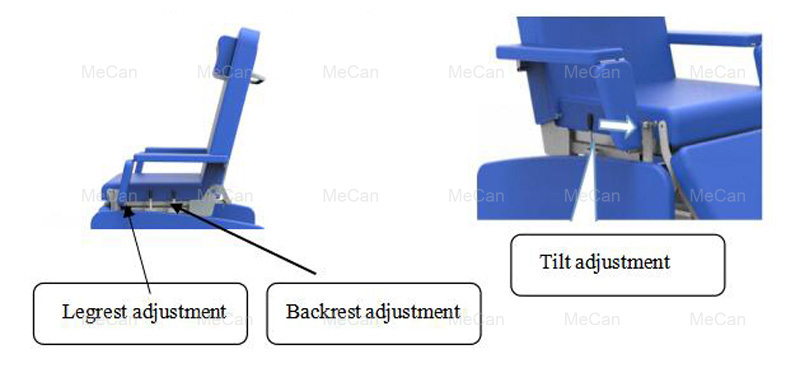

Manual chair position adjustment instructions and show.
1. Backrest adjustment: pull up the handle to adjust the backrest angle; Release the handle and fix the angle position of the backrest.
2. Legrest adjustment: pull up the handle to adjust the legrest angle; Release the handle and fix the angle position of the legrest.
3. Reverse tilt adjustment: pull up the handle to adjust the angle of chair; Release the handle and fix the angle position of the chair.
Note: when operating the manual chair position, it needs the assistance of external forces or changing the position of the center of gravity of the body to achieve the position required by the user.

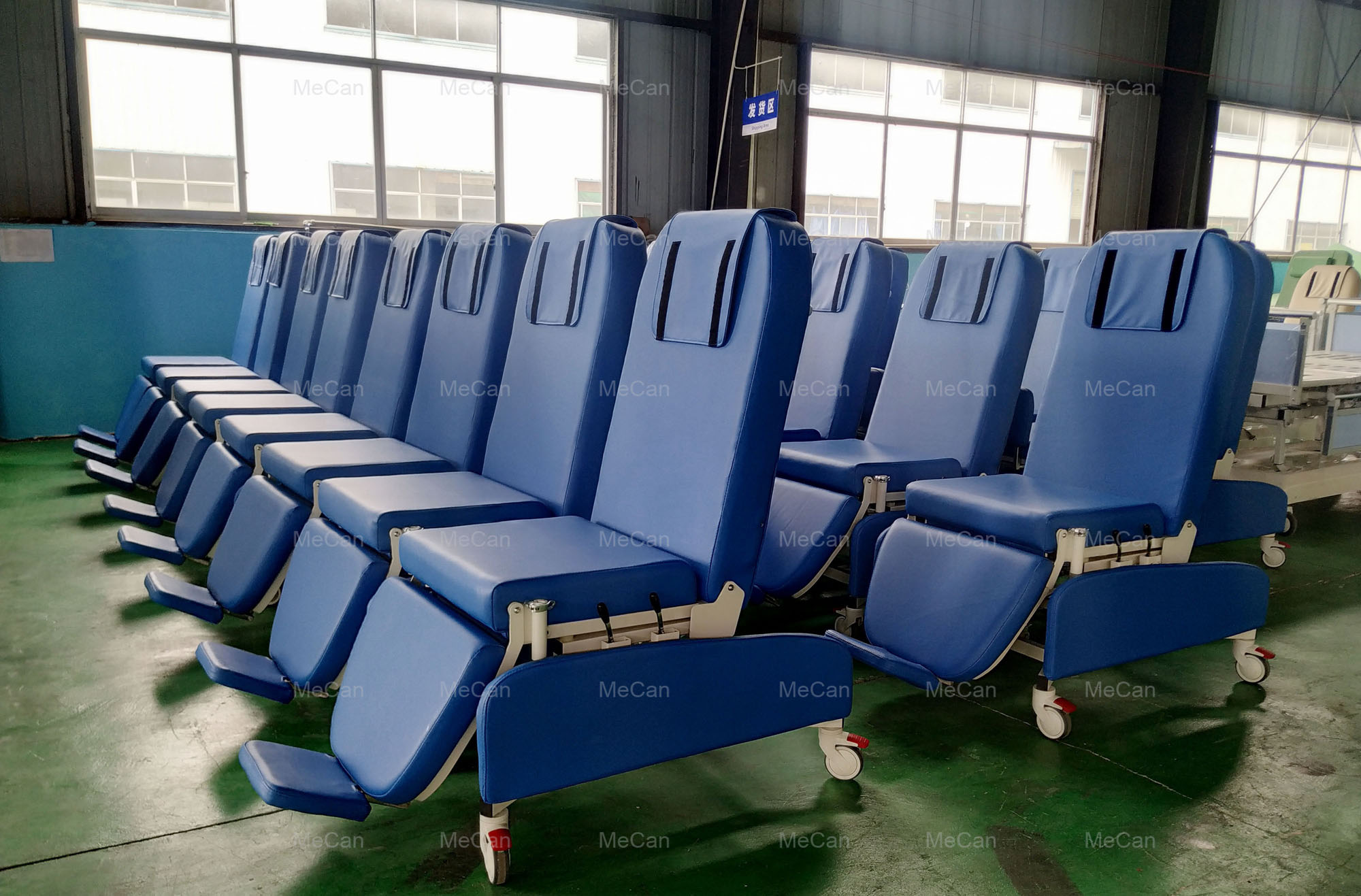

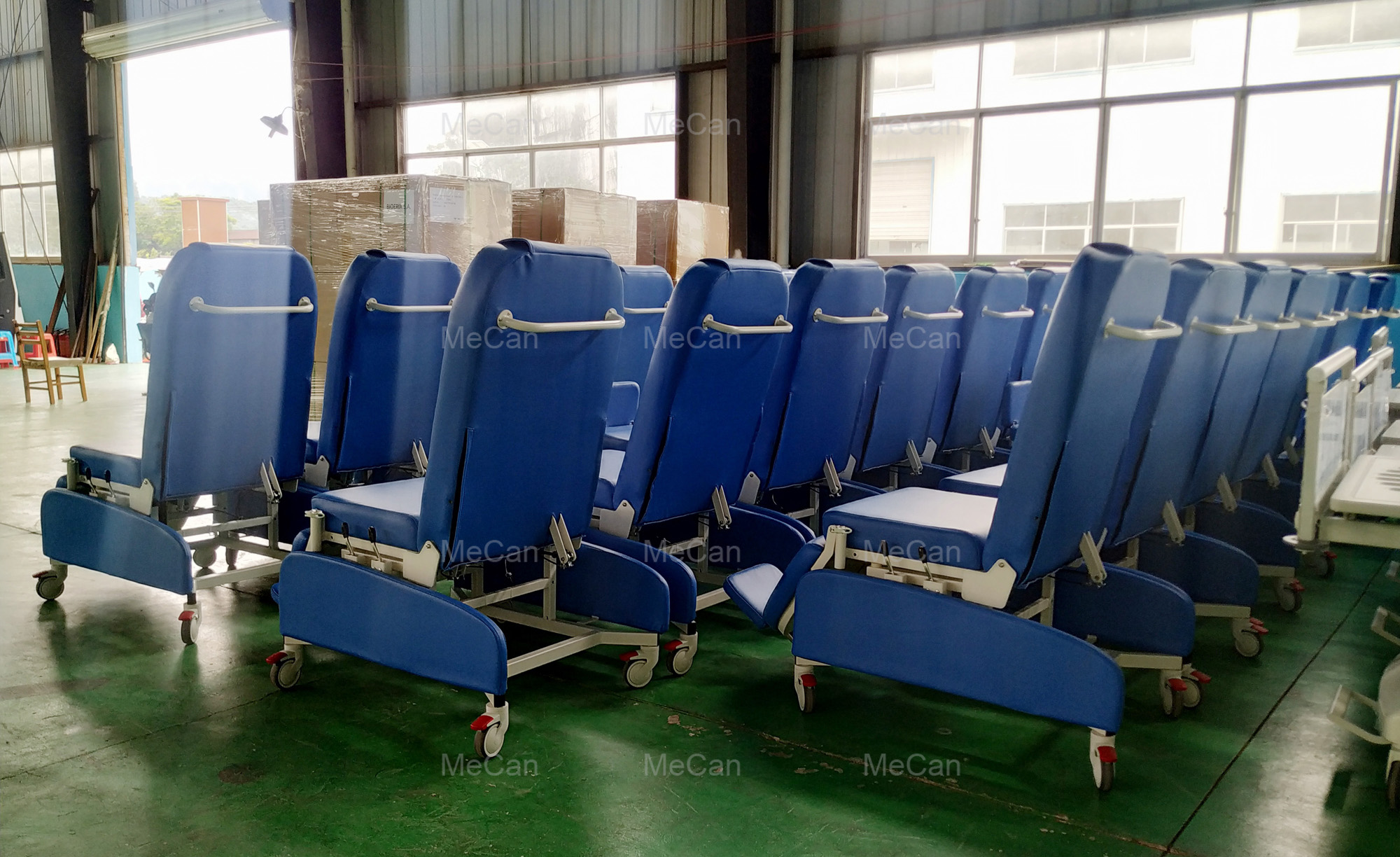

More pictures:
MeCan Medical has been verified by passing various on-site tests. They cover fitting testing, seam strength testing, dry & wet crocking testing, fatigue testing, etc.
