Technical Parameters
| Product | Infusion Pump |
| Infusion mode | Rate mode, Drop mode, Micro mode |
| Infusion accuracy | ±5% |
| Infusion rate range | Normal mode:1~1200ml/h, increment 1 ml/h; |
| Micro mode:0.1-99.9ml/h, increment 0.1ml/h |
| KVO rate | 1-8ml/h |
| Purge/Bolus rate | 300-1200ml/h |
| Volume To Be Infused (VTBI) | 1~9999 ml |
| Air Bubble detection | Ultrasound sensor detection of air bubble |
| Occlusion detection | Occlusion pressure detection adjustable on 3 levels |
| Alarm | Over, Low battery, Air, Occl., AC power failure, Door open, Time waited out, Error, Countdown |
| Displayed information | AC power connection, Power, Volume, Door open, Tube, Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Real |
| time, Infusion rate, VTBI, Volume infused |
| Power supply | AC 100-240V, 50-60Hz |
| Battery | Rechargeable lithium battery, 7.4 V, 2400mAh; |
| Can work continuously for 3.5 hours at the rate of 25ml/h |
| Dimensions | 135x90x135 mm (L×W×H) |
| Weight | ≤1.5Kg |
| Classification | Class II, BF type |
| Waterproof level | IPX3 |

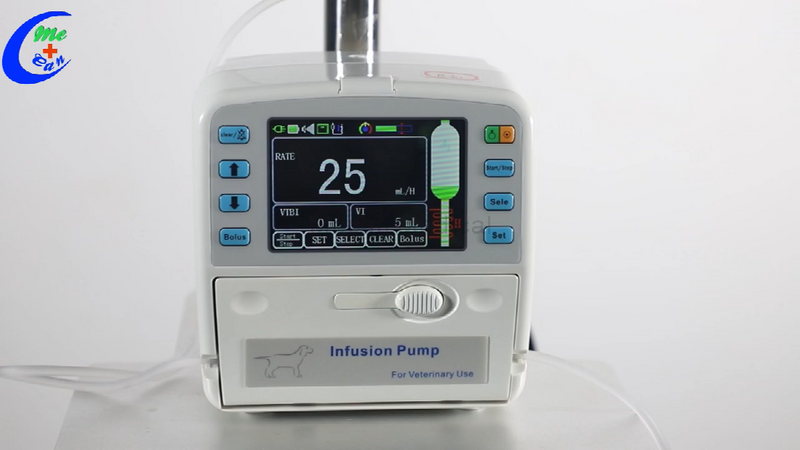

LCD Screen
Bright color and large LCD Touch Screen,it can be display main functions,such as:Start/stop,Setup, Clear,Bolus,Liquid heating,Volume setting,Occlusion grade setting,Trace mode,etc.
IV Pole clip
Each infusion pump all come with a hide type clip.
It can be attached to the IV pole,stretcher,hospital bed,etc.
Liquid heating function(Optinal)
If use our infusion pump in winter season,you can choose the optinal function.
When you use AC power supply,you can touch the N area to activate the liquid heating function.It will be warming the liquid temperature more higher (3-5℃)than the environment temperature.
Apart from this, the offered range is designed with high precision in order to meet the set industry standards.
FAQ
1.What is your warranty for the products?
One year for free
2.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
3.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
Advantages
1.MeCan offer professional service,our team is well-tained
2.OEM/ODM, customized according to your requirements.
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.More than 20000 customers choose MeCan.
About MeCan Medical
Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
