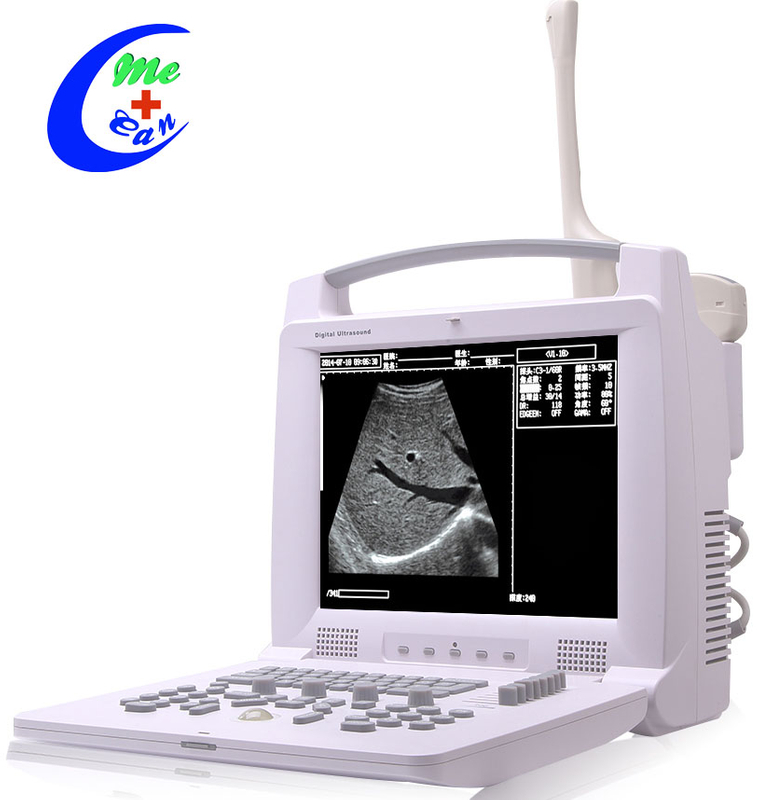

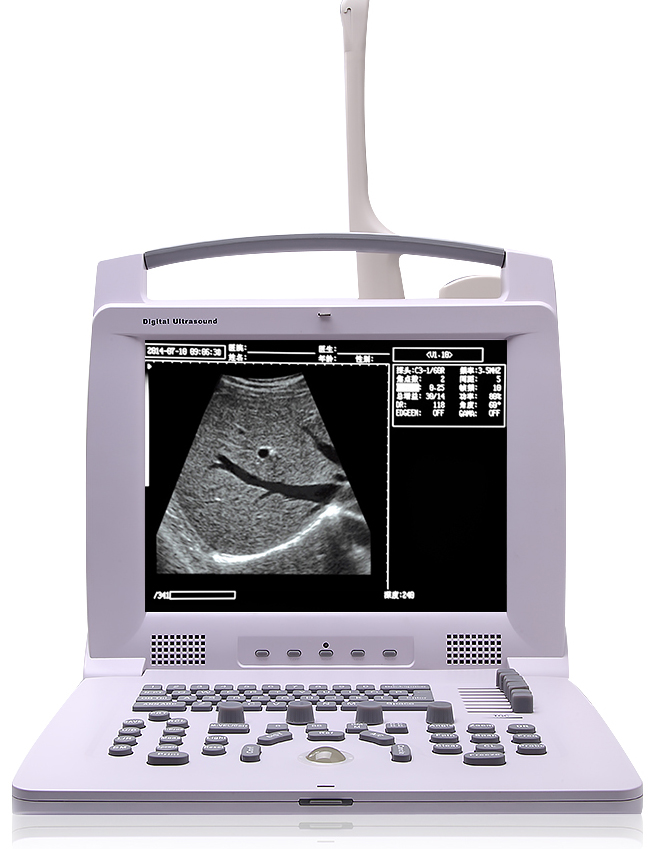

Ultrasound Scanner equipment is a convex linear ultrasound scanning diagnostic system with high resolution. It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF), real-time dynamic aperture (RDA), real-time dynamic receiving apodization, real-time dynamic receiving focusing(DRF), digital frequency scan (DFS),8 segments digital TGC, frame correlation technologies to endue its image with clarity, stability, and high resolution.
Features:
For real-time picture uploading to PC;
2- probe connectors;
Monitor: imported 12 " LCD;
Probe elements: 96;
Power Supply: AV220V±22V, 50MHz±1MHz.
Specifications:
Display depth (mm): 240 (max),16 levels adjustable.
Monitor size:12 inch.
Display mode: B、B+B、B+M、M、4B.
Image gray scale:256 level.
Cine loop: 809 frames (Max).
Image storage: 32 frames.
Scan angle: Adjustable.
Scan depth: 40mm-240mm.
Acoustic power: 2 steps.
Dynamic range: 100dB-130dB.
Image flip: Up/down, left/right, black/white.
Focus position: Adjustable.
Focal space: 5 levels.
Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD.
Notation: Date, time, name. sex, age, doctor, hospital name. Full-screen words edit.
Output report: 2 types.
Posture mark: ≥40.
Video output: PAL-D, VGA.
Standard Configuration:
·Scanner Body: 1pc
·3.5Mhz Convex Probe: 1pc
·Charger with a Set of wires: 1set
·Bottle of USG gel: 1pc
·User Manual: 1pc
Optional:
·5.0MHz Micro-convex Probe
·6.5MHz Transvaginal Probe
·7.5MHz Linear Probe
·Video Printer
·Trolley
The product has compatibility with living tissue or a living system by not being toxic, injurious, or physiologically reactive and not causing immunological rejection.
