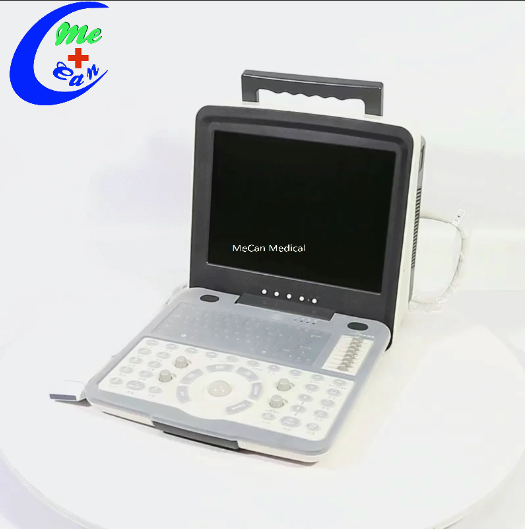

MeCan Medical Customized MCU-D23 Portable Color Doppler Ultrasound manufacturers From China,MeCan offer professional service,our team is well-tained. Every equipments from MeCan gets passed strict quality inspection,and final passed yield is over 99.9%.
Availability: | |
---|---|
Quantity: | |
Doppler Ultrasound is a test that uses high-frequency sound waves to estimate the amount of blood flowing through your arteries and veins, usually those that supply blood to your arms and legs. This can help diagnose and treat various diseases, including blood clots and poor circulation. Doppler ultrasound can be used as part of blood flow studies.
Technical Parameters
Monitor | 12.1” high-resolution LCD |
Image mode | B, BB, 4B, B+M , M, PWD, PwrD, CD, CWD, DirPwr, B+C+D |
Keyboard | digital back-light control and spin button |
Input / Output Interface | USB2.0 , LAN , VGA , RS232 , Video, DICOM3.0 |
Gray scale | 256 |
Scanning lines | |
Dynamic Range | 30dB-75dB |
Maximum frame rate | ≥65/s |
Pseudo-color display | 11 |
Note | body mark and character note, body mark: ≥100 |
Cine loop | ≥100 frame |
Image memory | ≥160G, format BMP/JPG/DCM/TIF |
TGC | ≥8 |
Partial enlarged | ≥ 4 times |
Image processing | 8 frame-related, 6 related to six-speed lines |
Image flip | up and down , left and right , image rotation ( 2B, 4B mode rotated 90 ° ) , black and white |
Sampling frame size, position and color | support B / color consistent width adjustable |
Pulse repetition frequency | 0.5-2khz , 6 adjustable |
Gain | 20dB-48dB , grading adjustable |
Wall filter | 40-500 adjustable |
Noise Reduction | 32 adjustable |
Sample volume | 0.5-10mm adjustable range 20 |
Scan speed | 8 adjustable |
Support synchronous updates automatically trace and spectral inversion Baseline position, spectrum volume and correction angle: adjustable Blood flow measurement velocity: | a) Maximum blood flow velocity measurement: pulse doppler > 2m/s b) Lowest measured blood flow velocity: <2mm /s (non-noise signals) |
Measurement
Mode B (2D) measurement
a) General measurement: distance, perimeter, area, volume, distance narrower radio, area stenosis ratio.
b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
M mode measurements: distance, heart rate.
Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index and heart rate.
Standard Configuration:
Scanner Body : 1pc
3.5Mhz Convex Probe : 1pc
Charger with a Set of Wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc
Optional:
Micro-convex probe
Phased array probe
Trans-virginal probe
Linear probe
3D software
Printer
Puncture frame
