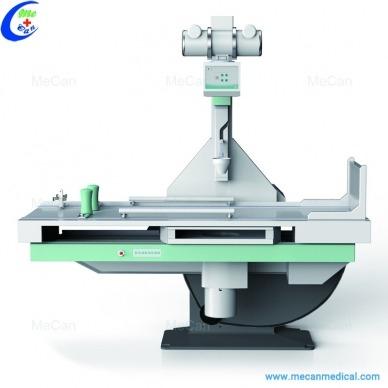

Best 500mA High Frequency Digital Radiography Fluoroscopy X Ray Machine Supplier

MeCan Medical Best 500mA High-Frequency Digital Radiography Fluoroscopy X-Ray Machine Supplier, Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%. OEM/ODM, customized according to your requirements.


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

What is the application of our digital radiography x-ray?

Our digital radiography system has the function of fluoroscopy and spot film radiography, which can be applied for the radiography of the alimentary tract, biliary tract, urinary tract, veins of the lower extremity, and so on. It can also operate on the reposition of fracture and take the corpus alienum under the pattern of fluoroscopy.

What are the features of our digital radiography equipment?

1. Good image clarity and high contrast, easy to identify nidus.

1) Adopt Toshiba image intensifier, enhance grayscale, resolution, and contrast to make the image clearer

2) Equipped with imported CCD camera, easy to accurate diagnose at real-time dynamic observation

3) Progressive input/output medical definition television system, low noise, high resolution, and contrast

4) Imported grid improves X-ray quality, to get the good image quality

5) Tube voltage change in a short time, high accuracy exposure

2. It's simple flexible and convenient to operate.

1) Visual display interface

2) Digital image processing system

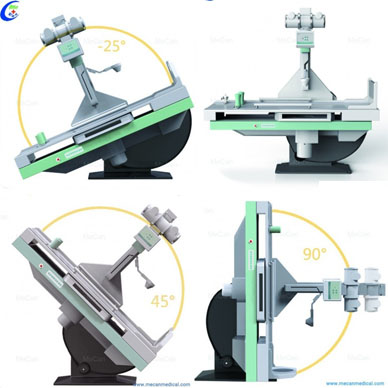

3) Diagnostic table rotating range 90 ° ~ 0 ° ~ -25 °

4) One-button operation handle

5) Bed-control is easy to operate

6) Widely spot film device and imaging system movement range

3. Security

1) Computer program control and remote operation, avoid X-ray radiation hazard

2) Automatic brightness control system (IBS), get the best image in various parts of the body and at the same time, maximize the protection of patients and health care workers

3) The electric multi-leaf limiter, adjust X-ray irradiation range to reduce X-ray radiation hazard

4) Inverter control technology

5) Reliable, high precision angular displacement sensor technology

What is the specification of our digital radiography?

Item Content Parameters
Power supply Voltage 380V±38V
Frequency 50Hz±1Hz
Capacity ≥40kVA
 Internal resistance ≤0.17Ω
X-ray high voltage system Radiography Tube voltage 44kV—125kV, 41 steps
Tube current 32mA—500mA, adjust stepped
Exposure time 0.02s—4s, 21 steps
Fluoroscopy Tube voltage 44kV—110kV, 2kV/step
Tube current 0.5mA—5mA
X-ray tube Model HXD52-30、50/125
Output power Big focus:50Kw
small focus:30kW
Anode thermal capacity 140KJ(180KHU)
Module thermal capacity 1100kJ(1500kHU)
Rotating anode 2800rpm
Focus 2.0mm /1.0mm
Remote diagnosis table Table rotating range 90°~0°~-25°
Table surface Horizontal movement ±110mm
Longitudinal movement of frame and spot film device ≥720mm
Film size 8″×10 ″—14″×17″
Spot film division method Whole film, 2-division film, 3-division film, 4-division film
Control mode Remote control
Soft boot and stay of frequency conversion
Limiter         electric multi-leaf
Grid Grid density: 103L/INCH
Grid Ratio :10:1
focusing distance 120cm
Image system Image intensifier Toshiba 9’’
CCD camera Imported 0.47 mega pixel
Monitor 14’’ Medical high definition monitor, Horizontal center resolution 1000 line, margin 800 line
video bandwidth12.5MHz, 50bit
25 frame/s
Digital image processing system  High definition progressive output
(CCU center control) 8 grades noise reduction

8 images in storage

LIH, mirror image, Negative, OSD

What is the configuration of our digital fluoroscopy x-ray machine?

Item  Quantity
Control console 1
X-ray high voltage generator 1
Cassette type remote diagnosis table 1
9’’ image intensifier 1
Imported 0.47 mega pixel CCD camera 1
Medical high definition monitor 2
X-ray tube 1
Electric multi-leaf limiter 1
High voltage cable 1

What is the packing size of our 500ma digital radiography x-ray?

Item Packing Dimension(mm) NW(Kg) GW(Kg)
1 2175*1390*1476 1206 1361
2 1675*1040*1020 227 317
3 840*420*1085 150 172.5
4 610*500*935 261 280.5

The strength of Guangzhou MeCan Medical Limited is to make a steady progress.


1.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
2.What is your warranty for the products?
One year for free
3.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.


1.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
2.More than 20000 customers choose MeCan.
3.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
4.MeCan offer professional service,our team is well-tained
