Professional Color Touch LCD Screen Semi-Automatic Chemistry Analyzer manufacturers

MeCan Medical Professional Color Touch LCD Screen Semi-Automatic Chemistry Analyzer manufacturers,OEM/ODM, customized according to your requirements. MeCan provide one-stop solutions for new hospitals, clinics, labs, and universities, has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia, Africa, Europe, etc. we can save your time, energy and money.




facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

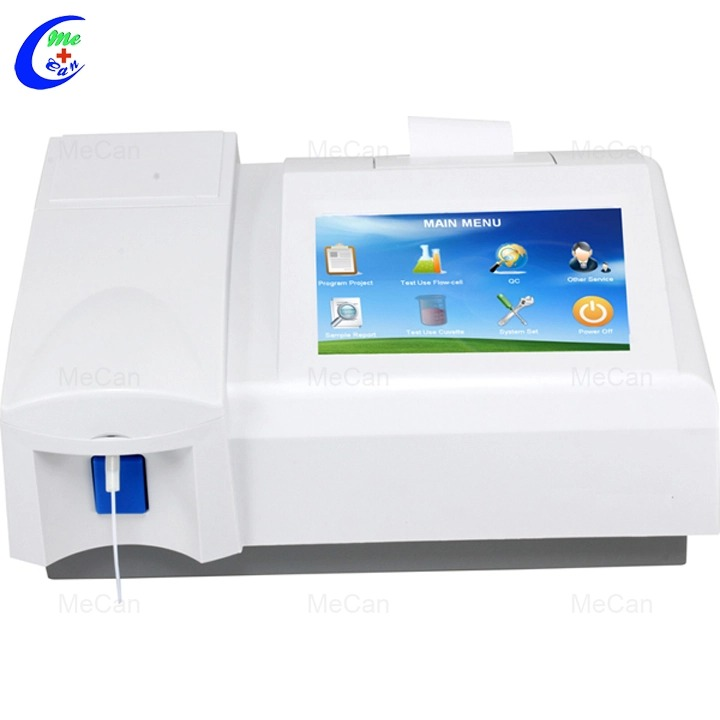

7 Inch Color Touch LCD Screen Semi-Automatic Chemistry Analyzer


• 7-inch Color LCD, Touch screen

• Flow cell and Cuvette test mode compatible

• Real-time curve showing

• 7 wavelength, 90 test item pre-programmed

• Memory for 10,000 sample results

• Light source hibernate function making lamp life longer

• RS232 interface, PC connecting

Usual test list

Liver function: ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3

Renal function: BUN  CRE  UA  URE  CO2-CP  γ-GT

Lipids: T-CHO  TG  HDL-C  LDL-C

Cardiac function: CK  CK-MB  LDH

Immune proteins:IGA  IGG  IGM  C3

Others: GLU  HGB  AMS


Test mode:

Kinetic, End point, Two point, Absorbance


7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position

Wavelength precision:

+2 nm, width≤10nm

Absorbance range:

0~4. 500 Abs

Absorbance precision:

outside 0.0001 Abs , inside 0.00001 Abs

Carry over:

< 1%

Repeatability CV:

< 1%


37C、30C、25C、and others,Precision : +0.1C

Sample volume:

0~3000 uL ( 500uL recommend)

Data Storage:


Quality control curve:

X SD CV% L-J quality control curve for every test item

Flow cell:

32 uL quartz glass, 10 mm


Philips 6V 10W Halogen Lamp with long life


7 inch color LCD


ARM series high speed micro CPU


Internal thermal sensitive printer



Work Environment:

Temperature 0C ~ 40C , Humidity:80%

Power supply:

100~240VAC, 50-60Hz,100VA


340(L)*270(W)* 160(H)


5 kg

With the, it's unnecessary for you to worry about quality problem.


1.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
2.What is your warranty for the products?
One year for free
3.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:  Express:UPS,DHL,TNT,ect (door to door)  United States(3 days),Ghana(7 days),Uganda(7-10 days),Kenya(7-10 days),Nigeria(3-9 days)  Hand carry  Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.  Air freight(from airport to airport)  Los Angeles(2-7 days),Accra(7-10 days),Kampala(3-5 days),Lagos(3-5 days),Asuncion(3-10 days)  Se
