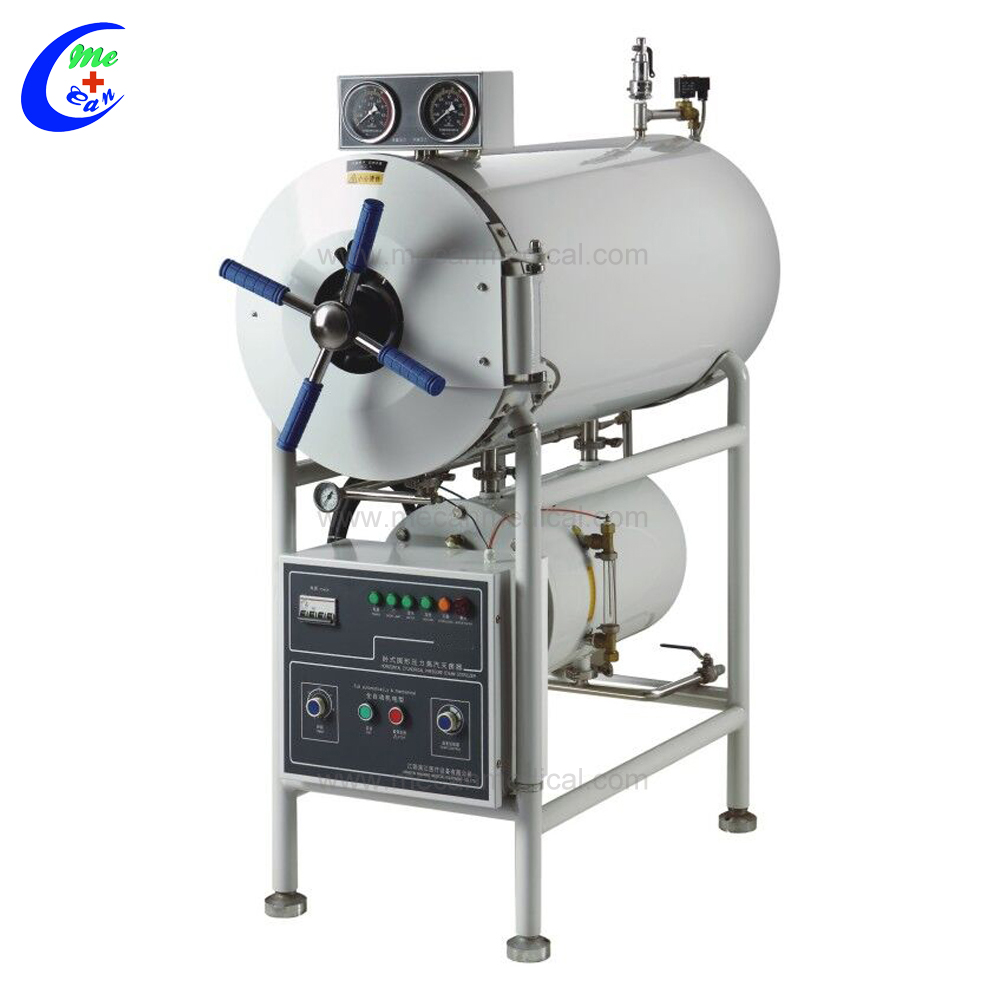

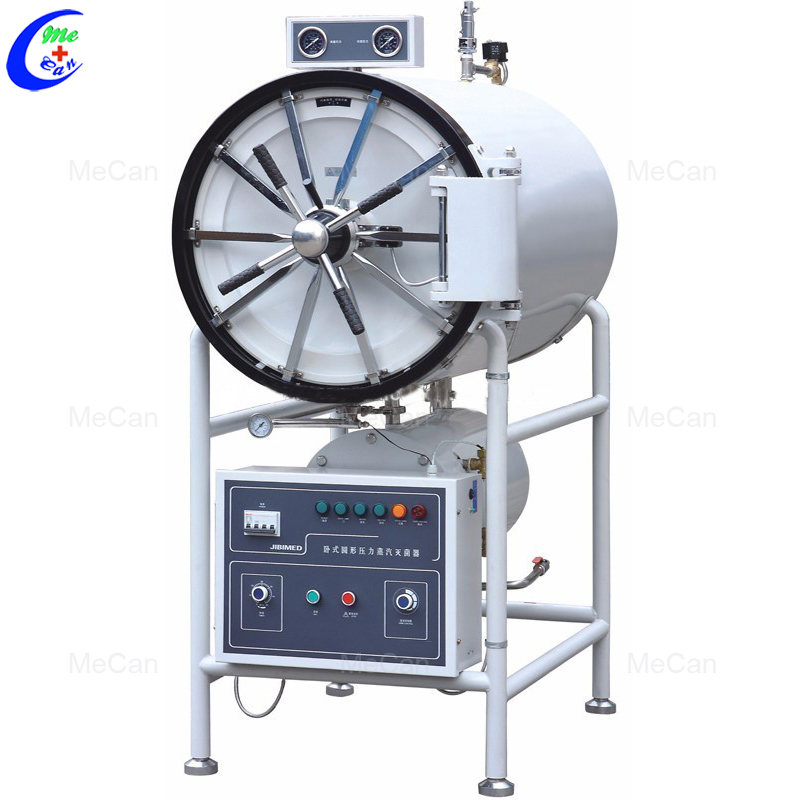

MCS-YDA 150L 200L 300L 400L 500L Large High Pressure Sterilizer Autoclave for Hospital and Laboratory

Model:MCS-150YDA (150L)

            MCS-200YDA (200L)

            MCS-280YDA (280L)

            MCS-400YDA (400L)

            MCS-500YDA (500L)

Technical data:

Sterilizing chamber  volume 150L φ480×850mm 200L φ515×1000mm 280L φ600×1000mm 400L Φ700×1100mm 500L Φ700×1300mm
working pressure 0.22MPa
working  temperature 134℃
Adjustment of temperature 40℃-134℃
Time of sterilization 0-60 min
Time of drying 0-60 min
Heat average ≤± 2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz 18KW/380V 50Hz
Dimension (mm) 1400×600×1300 1400×670×1650 1400×770×1780 1430×880×1830 1800×900×1820
Transport dimension (mm) 1550×750×1850 1560×820×1850 1680×920×2100 1800×1050×2100 1850×1050×2100
 G.W/N.W 320/240 KG 350/260 KG 465/365 KG 530/420 KG 580/470 KG

Characteristics of the 500L Autoclave:

1. Sterilizing course automatic sterilization controlled, easy to operate.

2.With drying function, suitable dressing drying.

3. With over-temperature, over-pressure auto-protectdevice.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water     tank.

6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7. The chamber of the sterilizer is made of stainless steel.

Aplication of Horizontal Autoclave:

The horizontal autoclave, which adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization.

The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing.

This unit is ideal equipment for hospitals, chemical, food, scientific research institutes and other organizations to sterilize surgical instruments, dressings, medicines, culture medium, food, fabric glassed etc.

More detail photos for 150L-500L Autoclave:

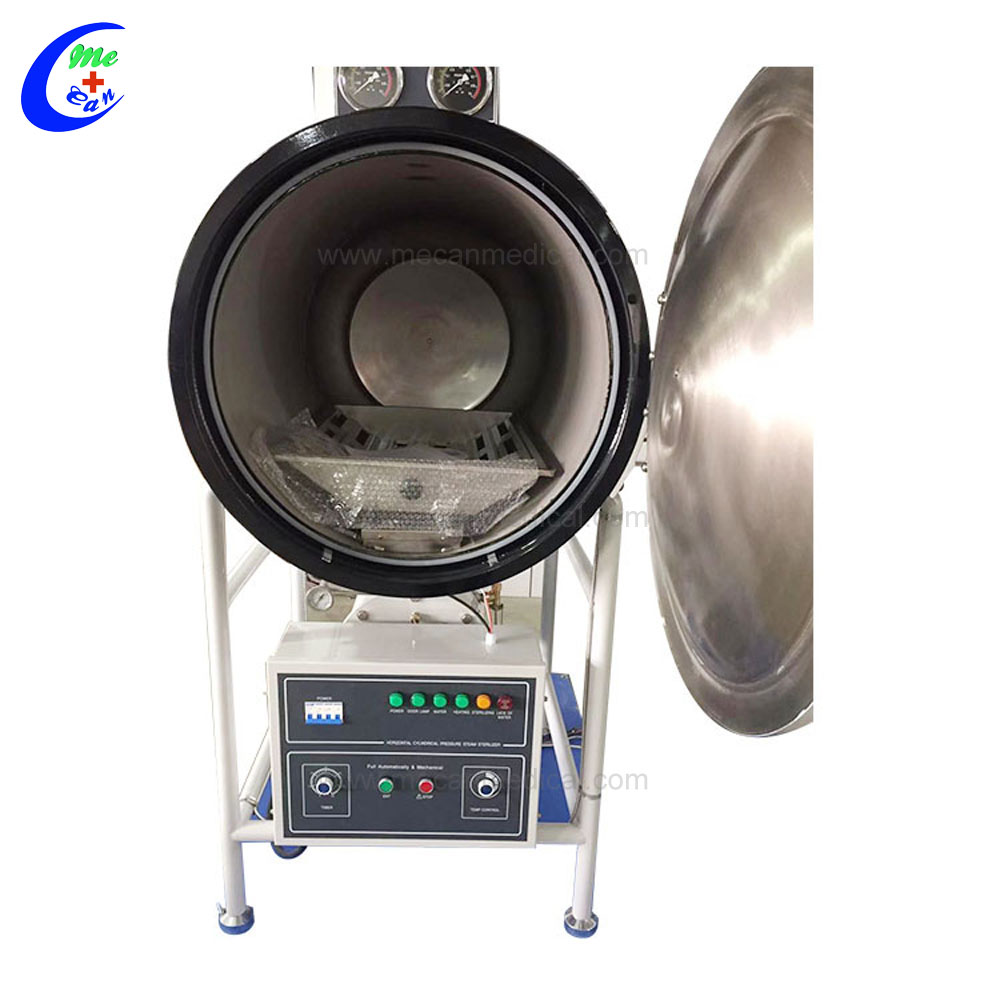

Strainless Steel Chamber and Control Panel:

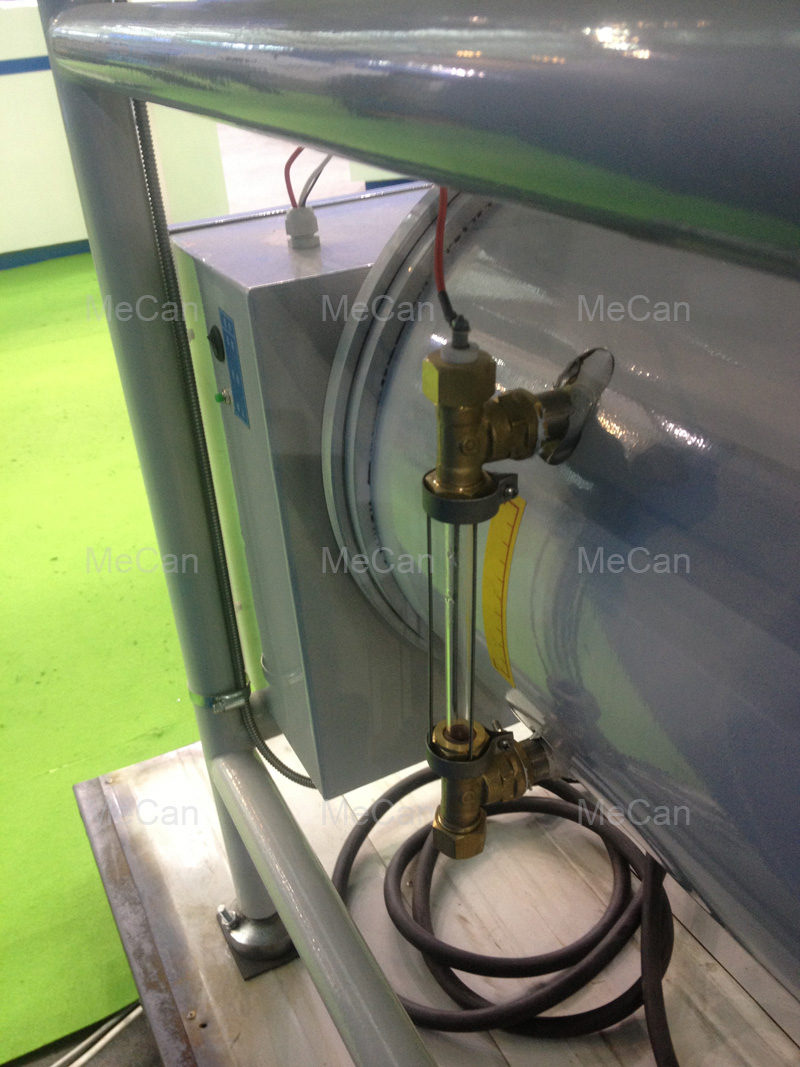

Steam Generator:

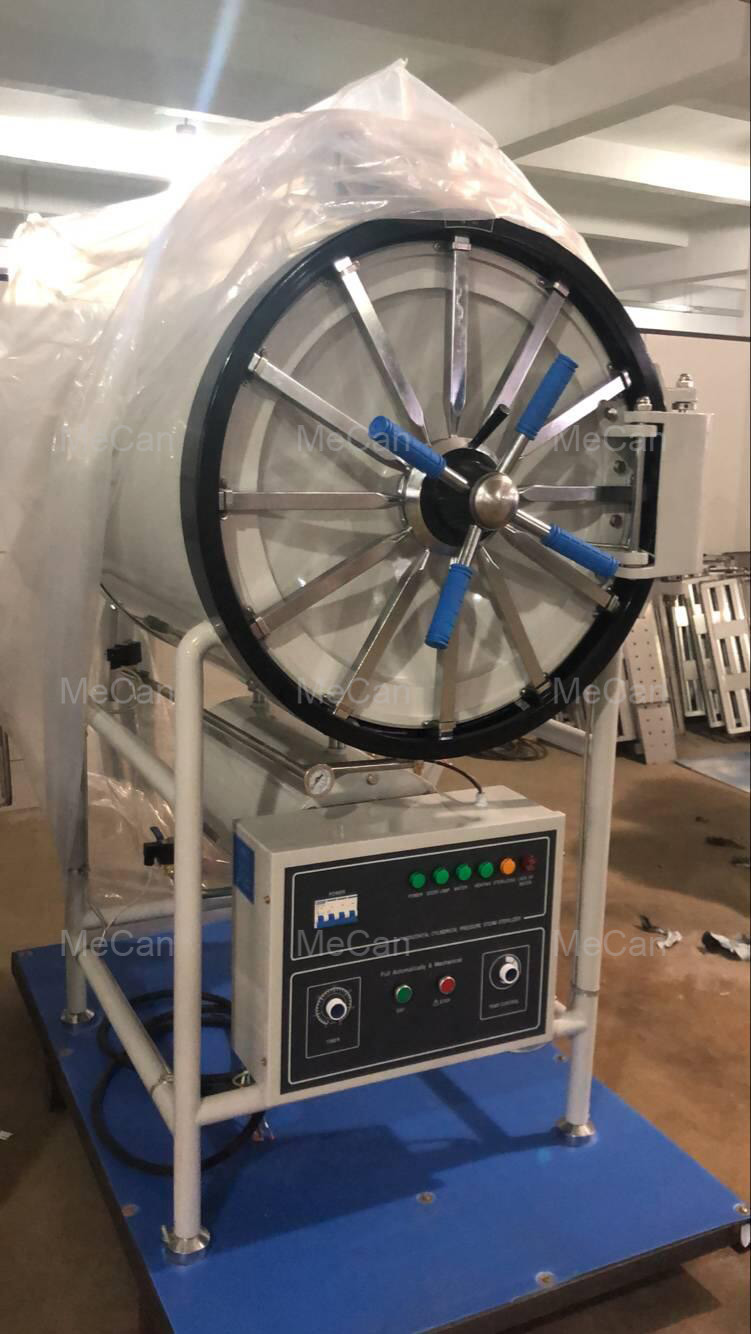

400L Autoclave for the customer from Switzerland

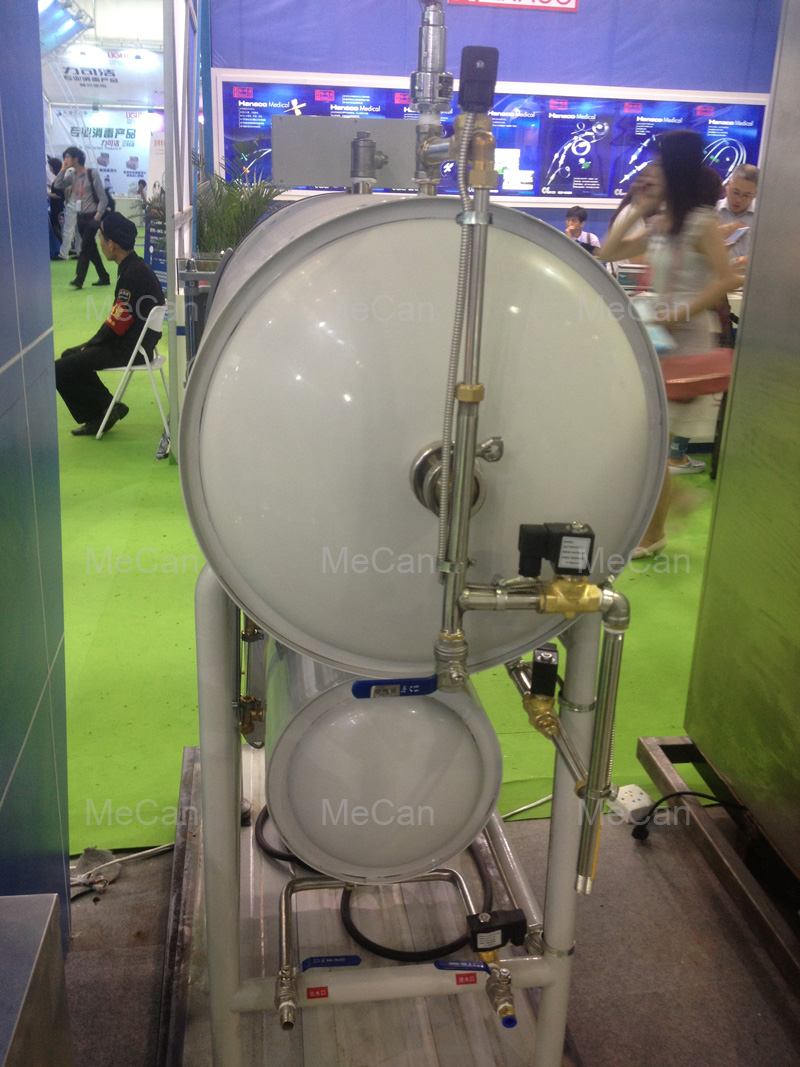

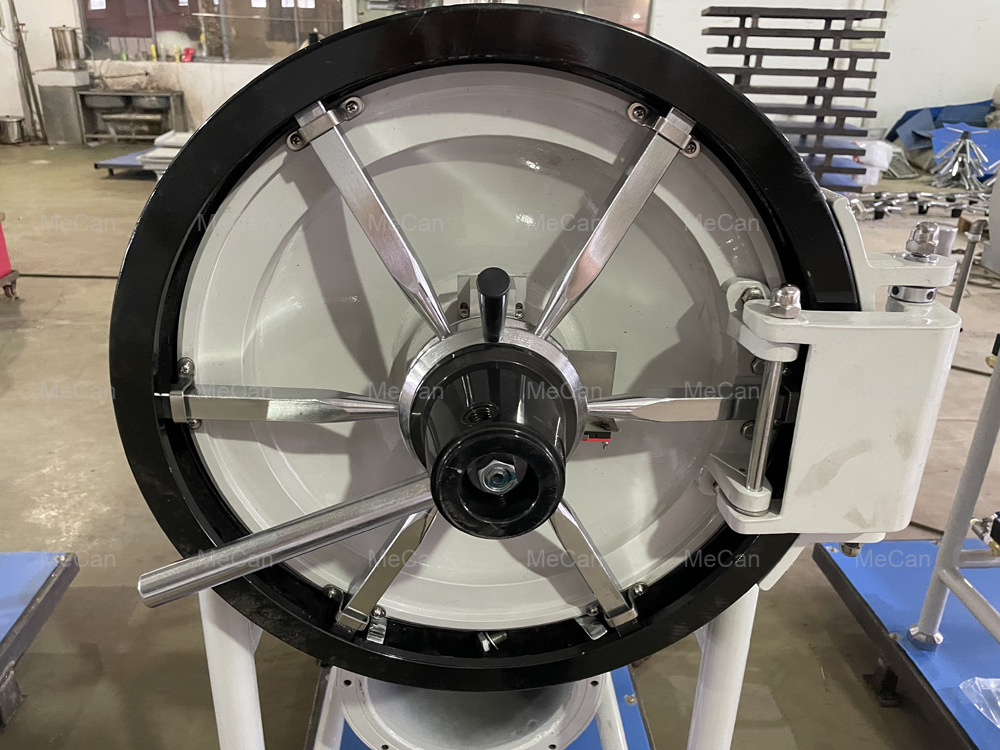

More pictures of our MCS-YDA Sterilizer Autoclave

Package of MeCan Medical Sterilizer Autoclave

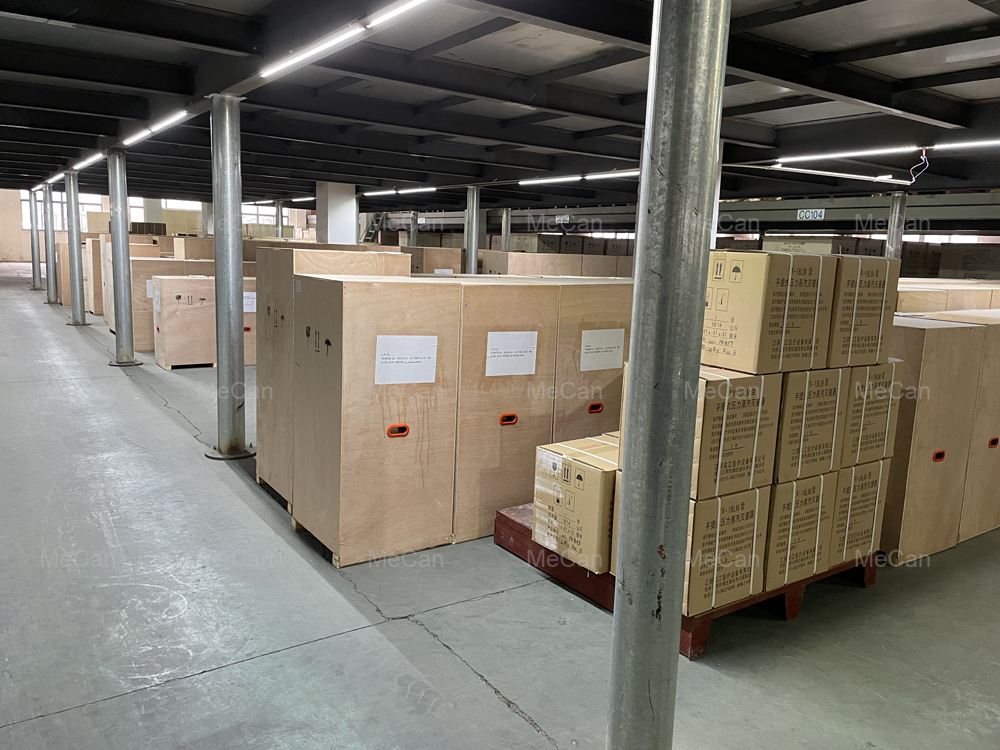

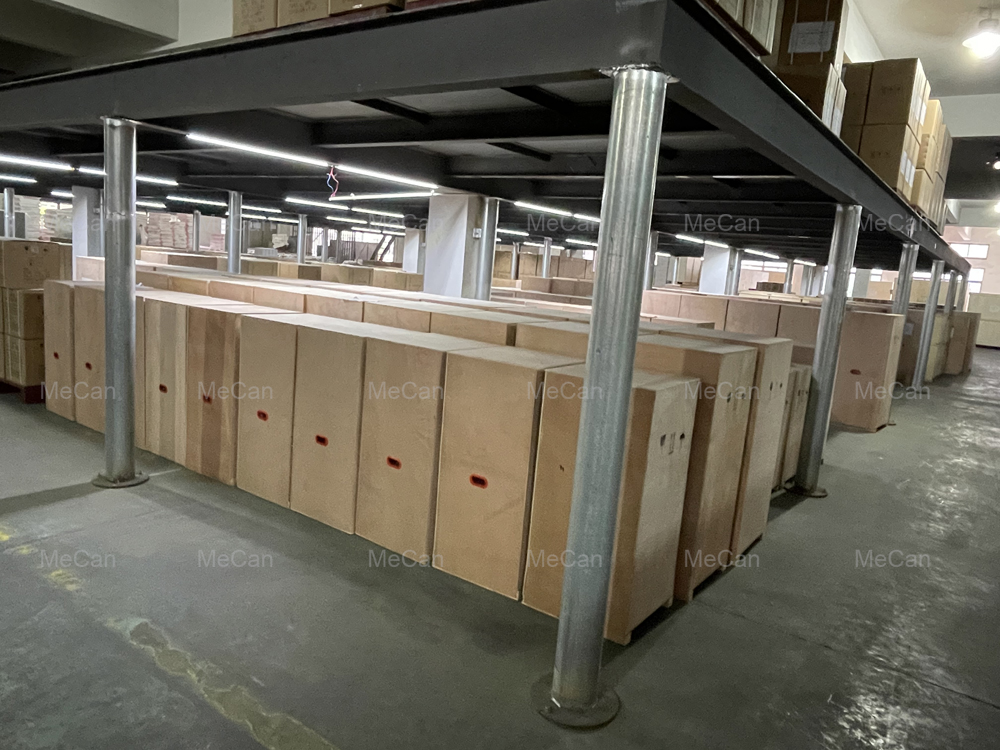

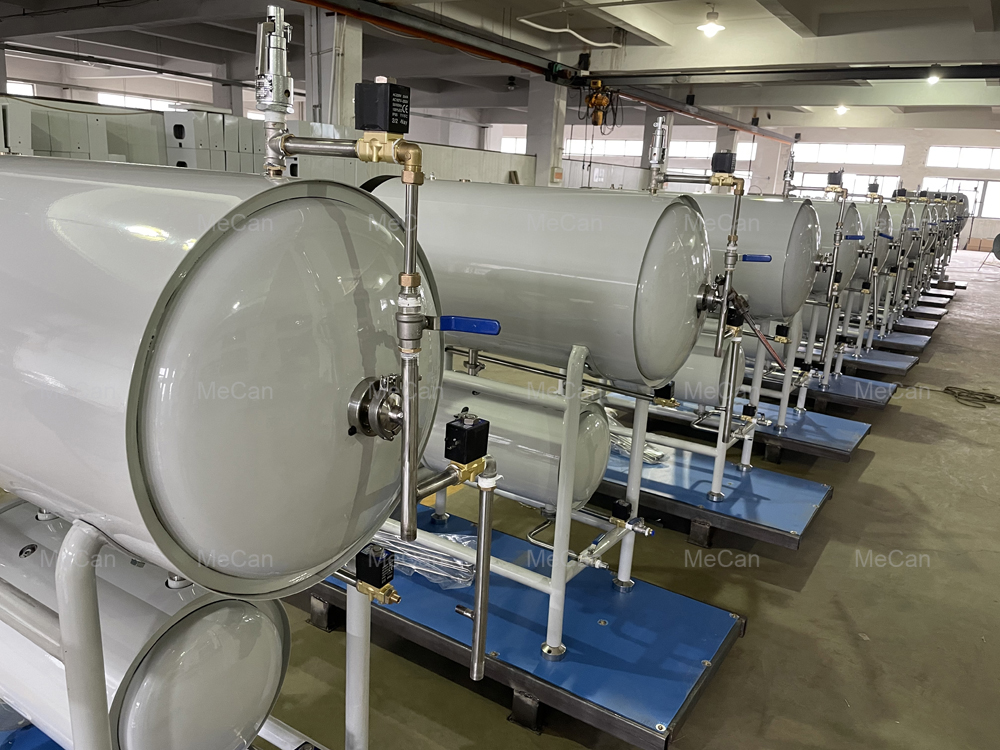

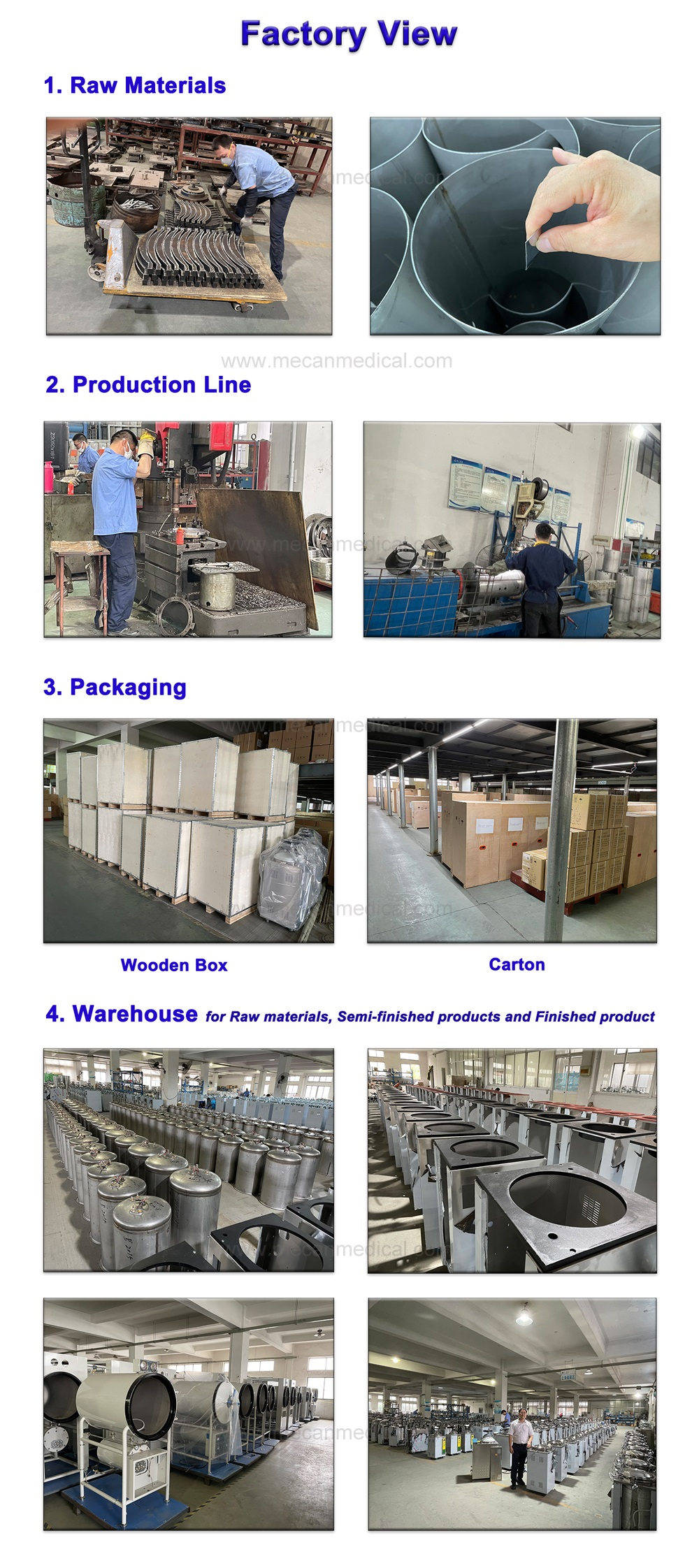

Factory View of MeCan Medical Sterilizer Autoclave
