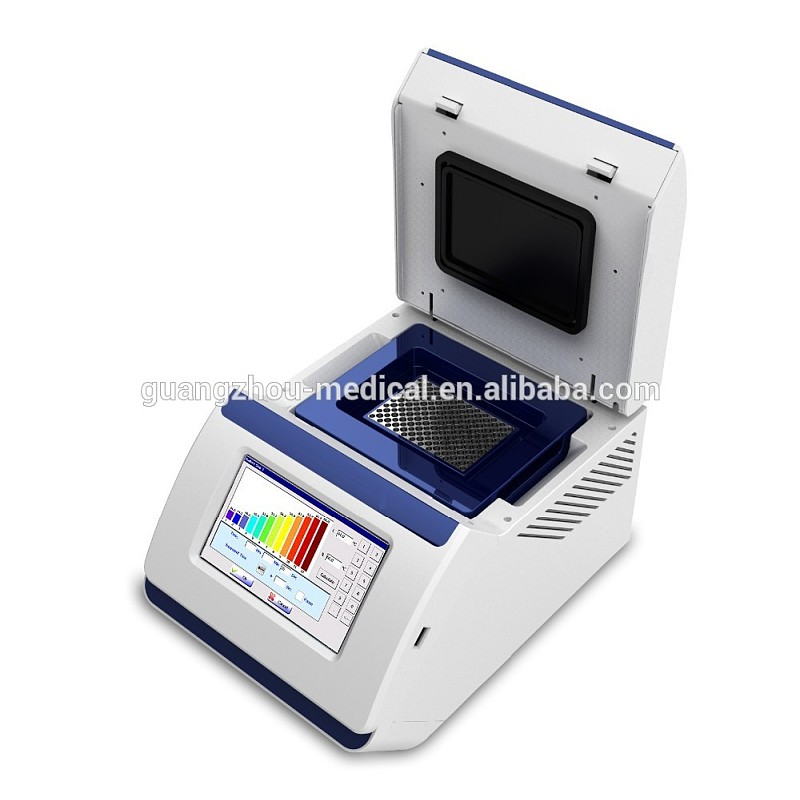

DNA PCR MachineThermal Cycler
Model: MPCR-A100
Main Features:
1.7 Colorful Touch Screen, Graphical Display of Protocols.
2. Effortlessly Interchangeable Modules, Swapped in Seconds without Tools.
3. Durable Premium Pettier Element, Ensure Long Life and High Quality.
4. Large Storage of 10000 Programs on Board, Enhancing Friendly Operation.
5. Update Software through USB Flash Drive.
6. Outstanding Block Temperature Uniformity, Ensuring Best Possible Experimental Results.
7. Global Universal Switch Power (85V-256V), Increasing Safety & Reliability.
Configuration:
Optional Module:
9 6 Module: | 96wells*0.2ml |
9677Module: | 96wells*0.2ml+77wells*0.5ml |
4 8 Module: | 48wells*0.2ml+48wells*0.5ml |
384 Module: | 384wells |
Multi-purpose Module: | 9677 Module + In-situ Adapter |
Temperature
Block Temperature Range: | 0℃~100℃ |
Max.Heating Rate: | 5℃/s |
Max.Cooling Rate: | 4℃/s |
Temperature Uniformity: | ≤±0.2℃(at 95℃) |
Temperature Accuracy: | ≤±0.2℃(35℃-100℃) |
Mode of Temperature Control: | Sim-tube & Block mode |
Ramping Rate Adjustable: | Yes |
Heat Lid
1. Open Method: Innovative Designed Two-in-One (Open/Lift) Lid.
2.Auto Shut-off Heating Function of Lid at Low Temperature (<30℃) of block.
3. Height of Heat Lid: Steplessly Adjustable Lid accommodates all kinds of PCR tubes, strips and plates.
4. Protection for Pressure: Patented technology, alert tone for excessive pressure of heat lid.
5.Heat Lid Temperature Range:30℃-112℃.
Software
Max.30 Steps
1.100 Typical Cycles max. 60,000 nesting cycles.
2.Time/Temp. Increment/Decrement is available for performing Long PCR and Touchdown PCR.
3.Auto Pause; Auto restart after power failure.
4.An Infinite incubation time at low temperature for overnight working.
5.Multi-user log in with password-based authentication prevents from view, copy and alteration of protocols, ensure user’s privacy and safety.
6.Tm calculator automatically calculates the melting and annealing temperature through input two primer sequences, greatly improves work efficiency.

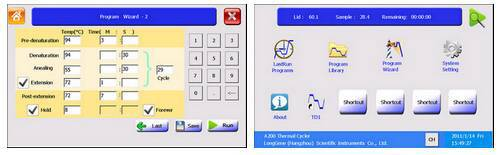

7.Program wizard provides a quick method for creating PCR protocols in a few steps.
8.Display recent run 10 programs for easy access .
9.Get detailed running report, providing objective and precise information for the whole experiment.
10.Effortlessly Combine up to 50 units of A100/200 for remote control and management by computers.
Other Features
1.Wide Range Power Supply 85V-265V, 47-63Hz.
2.Communication Ports: USB2.0, LAN and RS232.
3.Power Consumption: Max.600W.
4.Certificate: ISO 9001:2000, CE, RoHS.
5.Dimension(L×W×H): 362×256×255mm.
6.Net Weight: 7.3kgs.
