Resting ECG: Precise Heart Health Diagnosis & Monitoring

Our Resting ECG offers real-time data on heart function, allowing for early detection of heart conditions and effective management of patient care. By recording the electrical activity of the heart, it provides valuable insights into heart rhythm, rate, and any irregularities that may occur. Whether you are a healthcare provider or an individual concerned about your heart health, our Resting ECG is a reliable tool for monitoring your cardiac well-being.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MCS0182

  • MeCan

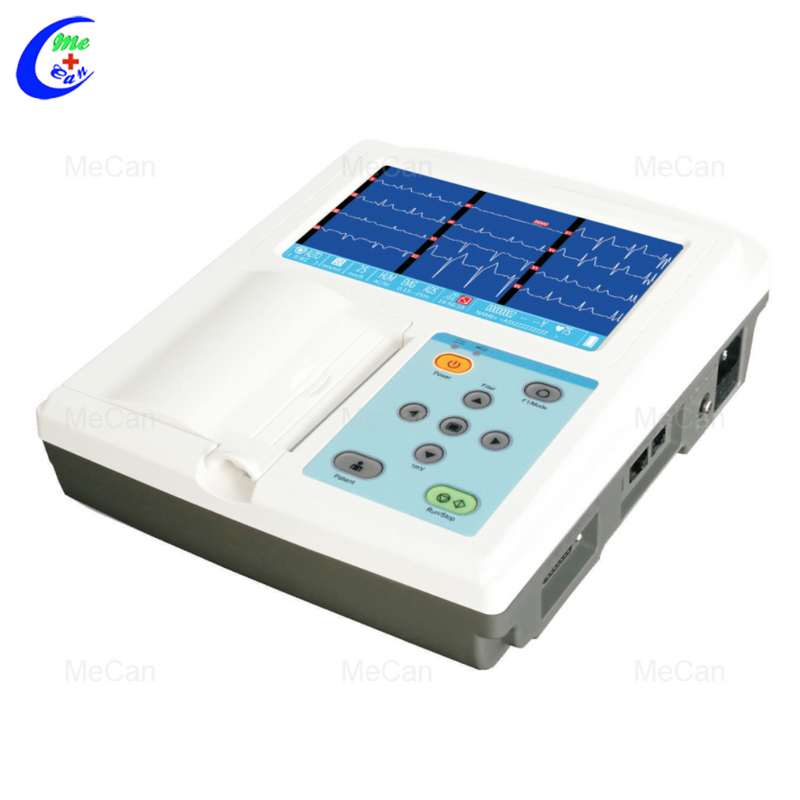

Digital Electrocardiograph

Resting ECG

Model: MCS0182

3 Channel


MCS0182 (2)


● Big color LCD screen to display



● Excellent auto- interpretation function Support USB storage and printing


Product Features

Portable delicate design, easy to cooperate.

Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment. 12 leads synchronously acquisition and record; recording mode 1ch+, 3ch, 3ch+.

Four working modes : Auto / Man / R-R Rhythm / Storage.

800x480 graphic, 7 inch color LCD to display ECG information ( for ECG-5503B ). 800x480 graphic, 7 inch color touch LCD to display and operate ( for ECG-5503G ). 250 patient cases storage and replay for ECG-5503B ( internal SD card is optional ). 400 patient cases storage and replay for ECG-5503G ( internal SD card is optional ). 80mmx20m, roll paper, high resolution thermal printing.

Rechargeable Li-ion battery supports long time continuous work.

Rs232 and USB port support USB flash storage, laser printer printing ( optional ). PC ECG management software is optional.

Measurement : 214mm x 276mm x 63mm, 1.8kgs


Technical Specification


Lead Standard 12 leads Time constant ≥3.2s
Lead acquisition 12bit/32000Hz (synchronously ) Frequency response 0.05~160Hz ( -3db )
Work mode Manual / Auto / R-R Analysis/Storage Noise level ＜15μVp-p
Filter

. AC Filter : 50Hz / 60Hz

. EMG Filter : 25Hz / 45Hz

. Anti-Drift Filter: 0.15Hz (Adaptive)

Inter-channel

interference		 ≤.5mm
CMRR ≥120dB ( with AC Filter ) Sensitivity Auto, 2.5, 5,10,20,40mm/mV (±3%)
Input Circuit

Floating; Protection circuit against

defibrillator effect		 Recording mode

.1ch+, 3ch, 3ch+

.Default Man.Mode is 3ch format

.Default Auto.Mode is 3ch+ format
Input impedance ≥50MΩ Paper speed 6.25, 12.5, 25, 50mm/s (±3%)
Input circuit current ≤0.05μA Paper 80mm x 20m roll thermal paper
Patient current leakage ＜10μA Power supply

AC: 110-230V (±10%), 50/60Hz,,40VA

DC: Rechargeable Li-ion battery,14.4V (2200mAh)
Calibrating voltage 1mV±2%
Voltage tolerance ≥±500mV


MCS0182 (2)MCS0182 (3)

MCS0182 (1)

Package List


Main unit

1set

Grounding cable

1pc

Patient cable

1pc

Fuse

2pcs

Limb electrodes

1set (4pcs)

Paper axis

1pc

Chest electrodes

1set (6pcs)

Printing paper

1roll

Power cable

1pc

Operation manual

1copy
