MeCan Medical China Wireless WIFI Digital Microscope For Apple IOS /Android Smart Phone manufacturers - MeCan Medical,MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
Quantity: | |
---|---|
Place of Origin:CN;GUA
Theory:Video Microscope
Drawtube:Monocular
Brand Name:Mecan
Model Number:MCL-B
MCL-B

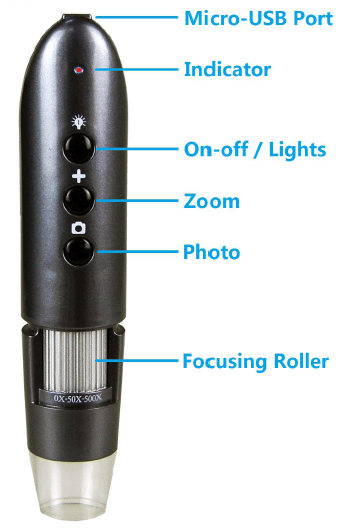

Functions and instructions of the parts
Micro-USB port: when the device power is low, connect the charger to charge the device,then the red indicator is on; When the red indicator goes off, the power become full.It is not recommended to use the equipment during the charging process (it will reduce the service life of the equipment battery).
Power switch/LED lights adjustment: long-press this button for 5 seconds to switch on the device, then green indicator is on and flashing; After 20 seconds, the WIFI function starts. Open your IOS/Android device WIFI and search for a WIFI hotspot named UMW10(unencrypted). The green indicator stops flashing when the connection is successful.In case of connection, press the button to adjust the brightness of the LED lighting.
Status indicator: the green light starts and flashes when the device is turned on, indicating that the device is waiting for the connection. When the WIFI connection is successful, the green light stops flashing. When charging the device, the red light is on, when the battery is full, the red light goes off. When the battery is low, the machine automatically shuts off, and all lights go off.
Digital zoom: click this button to enlarge the picture when the device is connected.
Photo/video: click this button to take a photo and save automatically when the device is connected. Press this button for 5 seconds to enter the video mode. After releasing the key,it stays in the recording mode. Then press this button again for 5 seconds to exit the video mode and automatically save the recording of video in this period. Photos and video are stored on IOS/Android devices and can be viewed with the relevant APP.
Focusing rollers: In case of connection, rotating the roller can adjust the focal length,focus on the shooting object until the clear image is seen.
Spercification
Sensor | high-performance sensor |
Main chip | 24Bit DSP |
Magnification | 200X 500X 800X 1000X 1600X (according to models) |
Photo/video | supported |
Light source | white LEDs |
Static resolution | 1280x720 |
Image resolution | 1280x720 |
Optical Focus | manual |
Digital Focus | supported 5X |
CD | contains Android APP, User Manual |
Support systems | Android 4.0 and above, IOS 8.0 and above |
Battery | 1400mah |
Charge time | 6 hours |
Working time | 4 hours |
Power supply | Micro-USB (5V DC) |
Product color | Silver Gray |
Main dimensions | 160mm (length) 33mm (outer diameter) |
Image of skin inspection

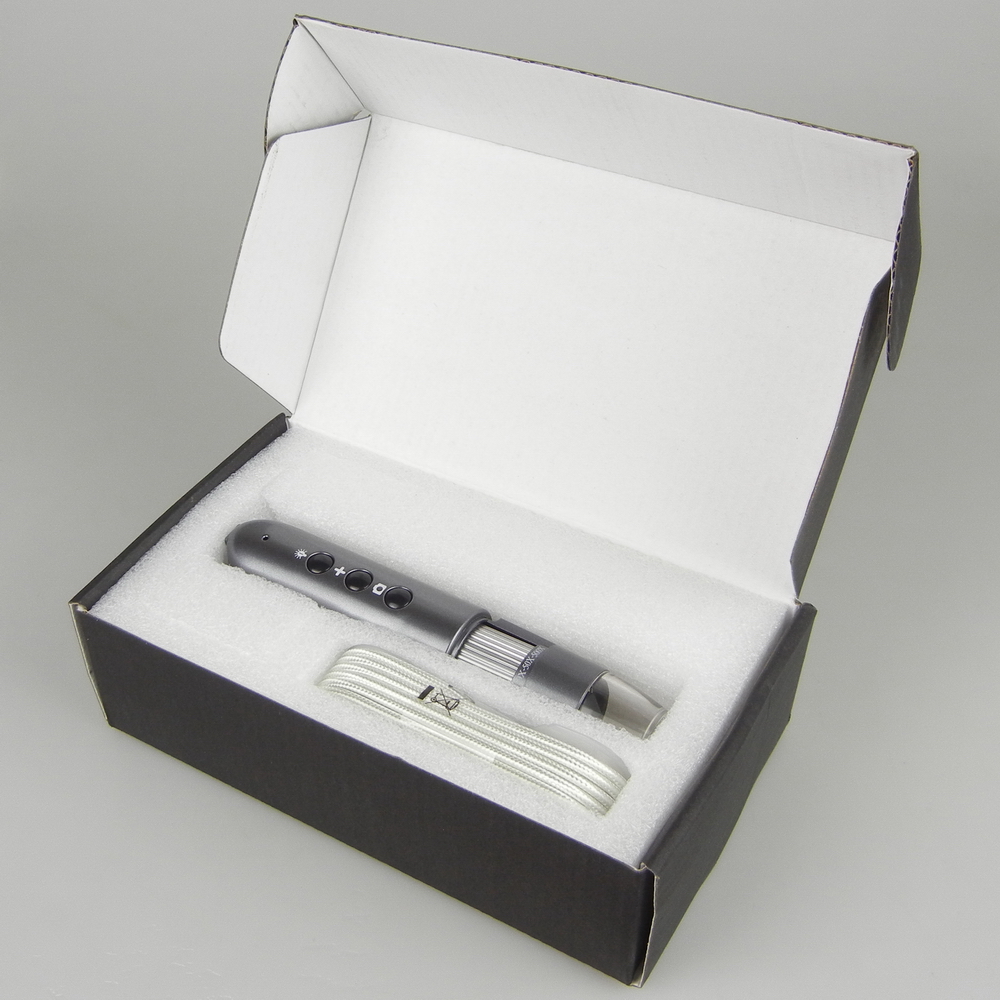

Package
