- Place of Origin:CN;GUA
- Theory:Video Microscope
- Brand Name:MeCan
- Model Number:MCE- YZ5G

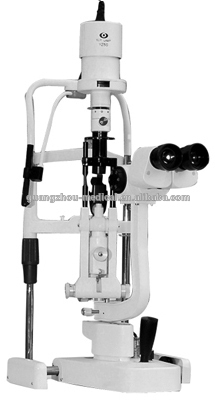

YZ5G Cheaper Slit Lamp microscope for sale
Model: MCE-YZ5G

Product descripition
The product with complete function and advanced design is well received in domestic and abroad market.
Characteristics:
·Professional digital camera is more sensitive to the changes of patient’s eyes, even the smallest changes.
·14mm aperture provides broader and clearer field of view.
·Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
·All the Optical lenses are moistureproof, mildewproof and anti-reflected treated.
bulb provides the low heating, high brightness and even lighting.
·Five-step drum magnification for eyepiece. Sclera vein could be observed under the 40x magnification
·Excellent optical performances and long span usage.
·Anti-ultraviolet radiation filter ensures patient’s safety during examination.
·All the joints can be connected by accessories with international standards.
Specifications:
Microscope Type | Galilean stereoscopic microscope |
Objective Magnification | Five-step Drum Magnification |
Eye Piece | 12.5x |
Magnifications (Field of View) | 6x(φ33mm),10x(φ22.5mm),16x(φ14mm),25x(φ8.8mm),40x(φ5.5mm) |
Pupil Distance | 55mm~75mm |
Diopter Adjustment | -5D~+3D |
Slit Width | 0mm~14mm adjustable( slit is round when the slit width is 14mm) |
Slit Height | 1mm~14mm adjustable |
Slit Angle | 0°~180°adjustable |
Slit Inclination | 5°,10°,15°,20° |
Diameter of Light Spot | φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm |
Filter | Heat Absorption, Grey, Red Free, Cobalt Blue |
Input Voltage | AC220V±22 V;AC110V±11 V |
Electrical Safety Standard | Executive Standard: IEC601-1,Class I,Type B |
Packing Volume | 720mmx495mmx480mm |
Total Weight | 24Kg |
Optional Accessories | Applanation Tonometer,Measuring Eye Piece ,Trihedron Lens,Gonioscope,Funduscope,Aspheric Lens,Teaching Tube |
