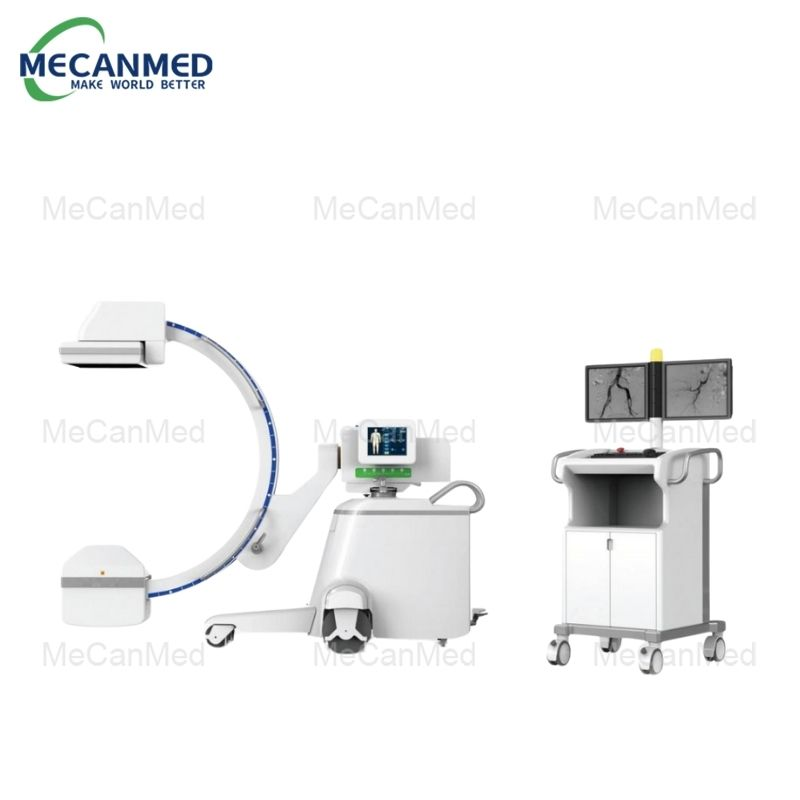

25kW Mobile FPD C-arm System

Model：MCI0031

Professional-Grade Mobile C-arm System for Interventional & Orthopedic Procedures

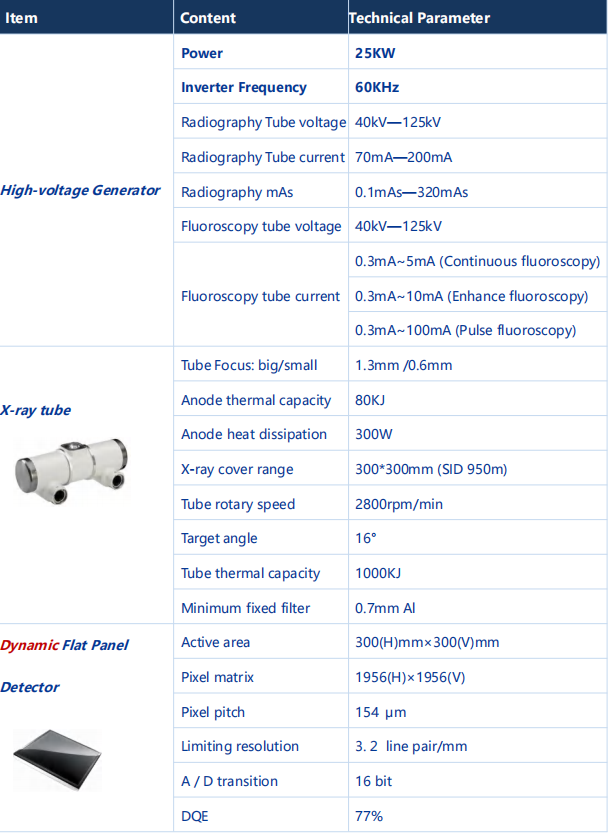

The 25kW Mobile FPD C-arm System delivers exceptional imaging performance through its 30×30cm flat panel detector (FPD) and 25kW high-frequency generator, making it ideal for vascular, orthopedic, and interventional surgeries.

Key Features of Our Mobile C-arm System

1. High-Performance FPD Imaging

• 30×30cm Flat Panel Detector: distortion-free imaging

• 77% DQE (Detective Quantum Efficiency): Superior signal-to-noise ratio for soft tissue visualization

• 3.2LP/mm Resolution: Captures fine anatomical details critical for spinal and vascular procedures

2. Powerful 25kW Generator

• 60kHz High-Frequency Inverter: Stable output for obese patients and dense tissue imaging

• 1000kJ Tube Capacity: Supports prolonged fluoroscopy during complex interventions

• Pulse Fluoroscopy (0.3-100mA): Balances image quality with dose reduction

Clinical Applications of FPD C-arm System

• Vascular Interventions: DSA for embolizations and stent placements

• Orthopedic Surgery: Real-time guidance for spinal fusions and fracture reductions

• Tumor Ablation: Precision imaging for TACE and RF procedures
