MX-VDR056A12
MeCan
5.6KW Vet Portable DR X Ray System
Model: MX-VDR056A12
With a powerful 5.6kW and 320mAs exposure, the 5.6KW Vet Portable DR X Ray System ensures that you get high-quality, clear images for accurate diagnosis. The operator panel is separated for different purposes, including human and veterinary use, ensuring ease of use and convenience for the veterinarian. The 5.6KW Vet Portable DR X Ray System is the perfect choice for veterinary professionals who demand flexibility, accuracy, and convenience in their diagnostic equipment.
Features of 5.6KW Vet Portable DR X Ray System
1.10.4 inch LCD screen
2.16 preset parameters
3.Convenient for doctor
4.Light weight
5.Easy to move
6.Safe with foot brake
7.15CM distance to ground, better trafficability
8. X-ray tube rotation and movement:
Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm
9. OEM/ODM supporting
10. Support 5.6kW and 320mAs exposure.
11. Operator panel seperated as human and veterinary according to different purpose.
Specification of our Portable DR X Ray System:
Power | 5.6KW |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MX-MS2 |
Flat Panel Detector | |
Image size | 17*17 inch (14*17 for option) |
Pixels Matrix | 140μm |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Software |
Computer | R5-5500U/8G/256G |

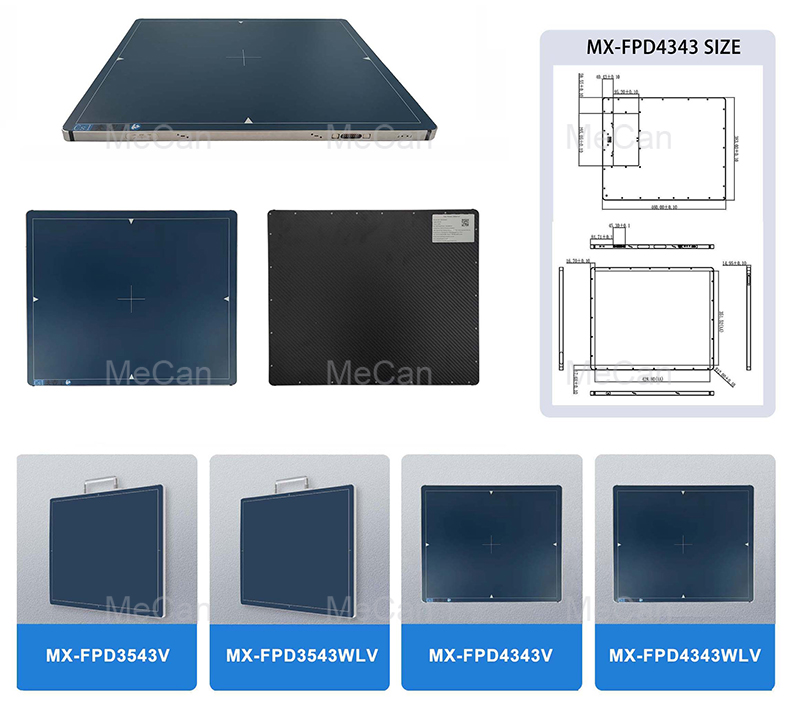

Kinds of Vet Flat Panel Detector for Human can be optional
Parameter | MX-FPD3543V | MX-FPD3543WLV | MX-FPD4343V | MX-FPD4343WLV |
Type | a-Si+ Csl | |||
Image size | 35*43cm | 35*43cm | 43*43cm | 43*43cm |
14*17 inch | 14*17 inch | 17*17 inch | 17*17 inch | |
Pixel pitch(µm) | 140µm | |||
Pixels Matrix | 2560*3072 | 2560*3072 | 3072*3072 | 3072*3072 |
A/D(bit) | 16bit | |||
spatial resolution | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm |
Weight | 3.0kg | 3.0kg | 3.7kg | 4.5kg |
Dimensions (cm) | 38.3*46*1.5 | 38.3*46*1.5 | 46*46*1.5 | 46*46*1.5 |
Water tightness | IP54 | IP54 | IP54 | IP54 |
Battery stand by | No | 7H | No | 7H |
wireless | No | yes | No | yes |

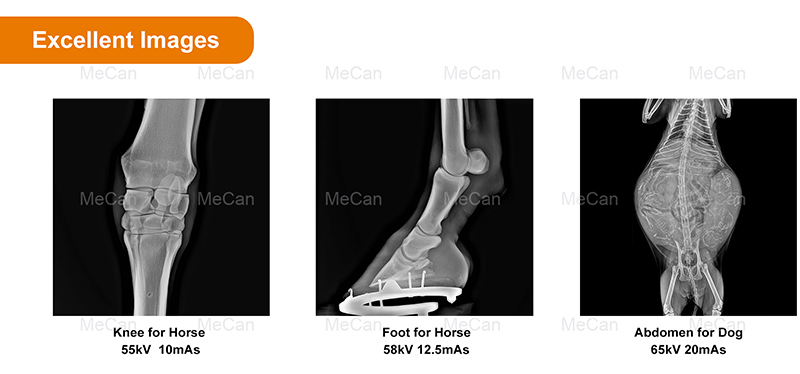

Test image of our Mobile DR X Ray Machine
MeCan Medical is the specialty manufacturer for medical x ray machine, we have 5kw portable x ray unit, 5.6kw portable ray x machine, 5kw portable DR and 5.6kw portable DR, 20KW, 32KW 50KW, 65KW medical x ray machine for human, 20KW, 32KW Vet x ray machine, and we can do the OEM/ODM for you.
