5.6kW Vet Portable X Ray Machine

The 5.6kW Vet Portable X-Ray Machine is mainly applied to orthopedic hospitals and animal hospitals, with a 10.4-inch LCD screen and 16 preset parameters, this system is designed to provide convenience to the veterinarian during examinations.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MX-V056A12

  • MeCan

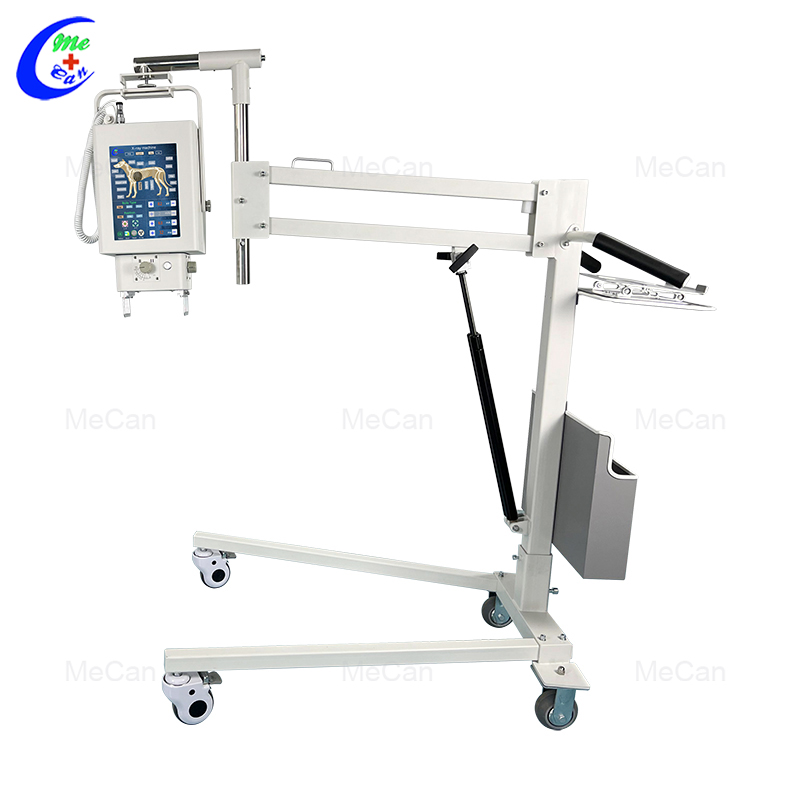

5.6kW Vet Portable X Ray Machine

Model: MX-V056A12

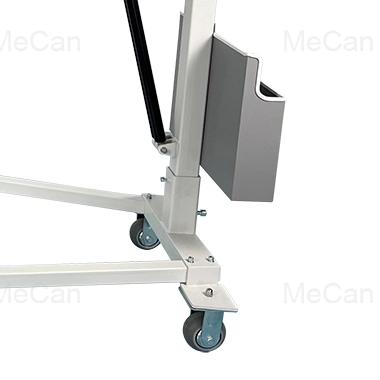

机架+机头 狗


Features of 5.6KW Vet Portable DR X Ray System

1.10.4 inch LCD screen

2.16 preset parameters

3.Convenient for doctor

4.Light weight

5.Easy to move

6.Safe with foot brake

7.15CM distance to ground, better trafficability

8. X-ray tube rotation and movement:

Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm

9. OEM/ODM supporting

10. Support 5.6kW and 320mAs exposure.

11. Operator panel seperated as human and veterinary according to different purpose.

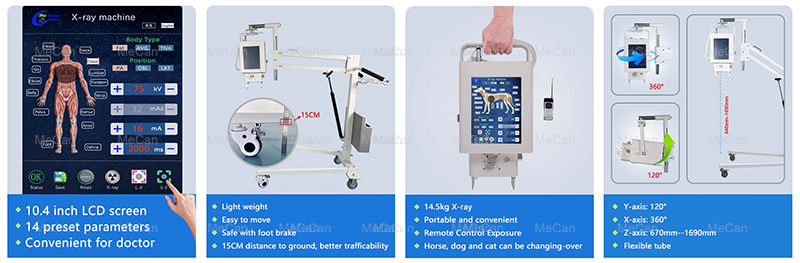

Features of 5.6KW Touch Screen Portable Digital X Ray Machine for vet


Specification of our Portable DR X Ray System:

Power

5.6KW

Power Supply

Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω),

Working Frequency

80-200KHz

mA

32-100mA

mAs

0.1-320mAs

KV

40-125kv

Exposure time

2ms-10000ms

Tube focus

1.8*1.8mm

Anode heat capacity

42kHU

Mobile x ray stand

MX-MS2

Flat Panel Detector

Image size

17*17 inch (14*17 for option)

Pixels Matrix

140μm

A/D Conversion

16bits

Spatial Resolution

3.6 Lp/mm

Software

Professional Software

Computer

R5-5500U/8G/256G

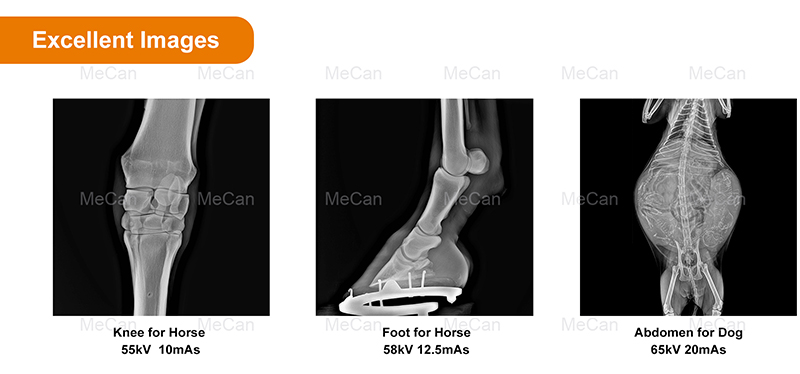

Test image of our Mobile DR X Ray Machine

Excellent Images of Wired Flat Panel Detector for Animal


FAQ：
1. Is 5.6kW Vet Portable X Ray Machine equipped with a flat panel detector?

This machine is not equipped with a flat-panel detector. If you want to buy a flat-panel detector and the machine, you can click here. If you only want to buy a flat-panel detector, you can also click here.


2. How big is the screen of 5.6kW Vet Portable X Ray Machine?

This machine is equipped with a 10.4inch touchable LCD screen.


3. What does OEM specifically customize?

You can customize your exclusive LOGO on the software
