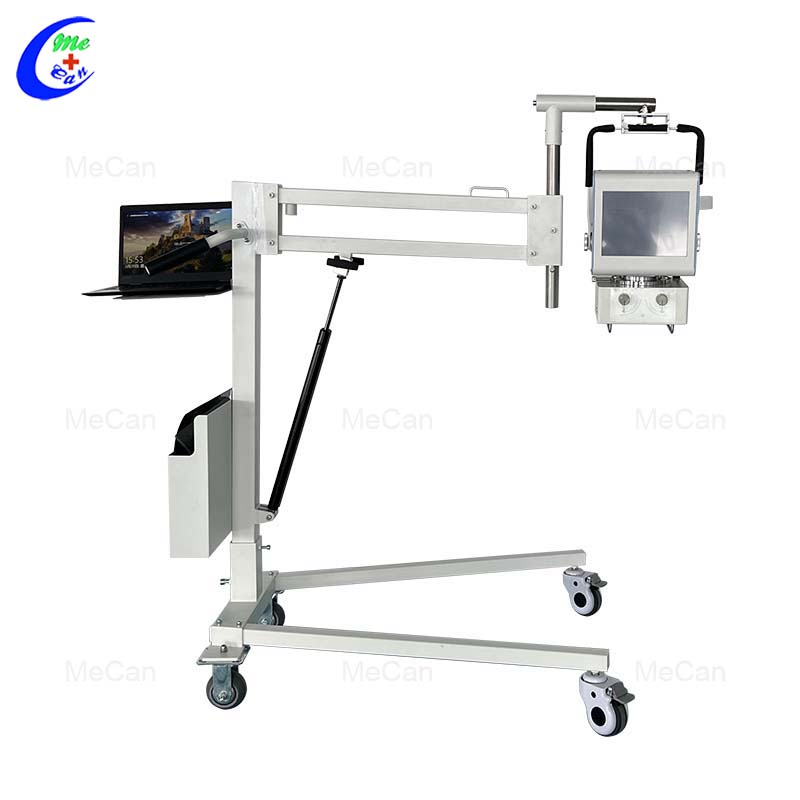

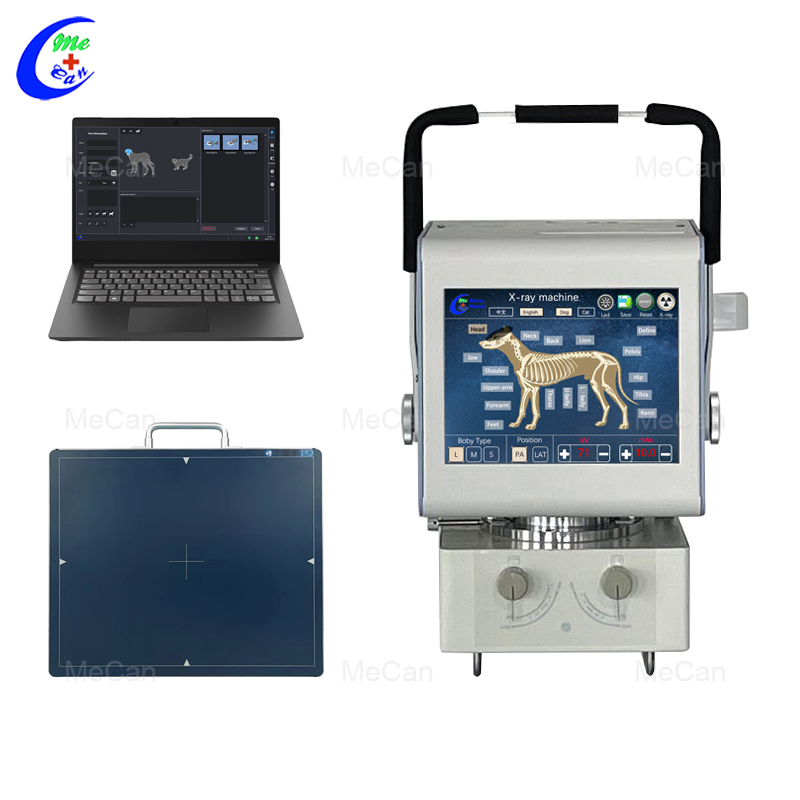

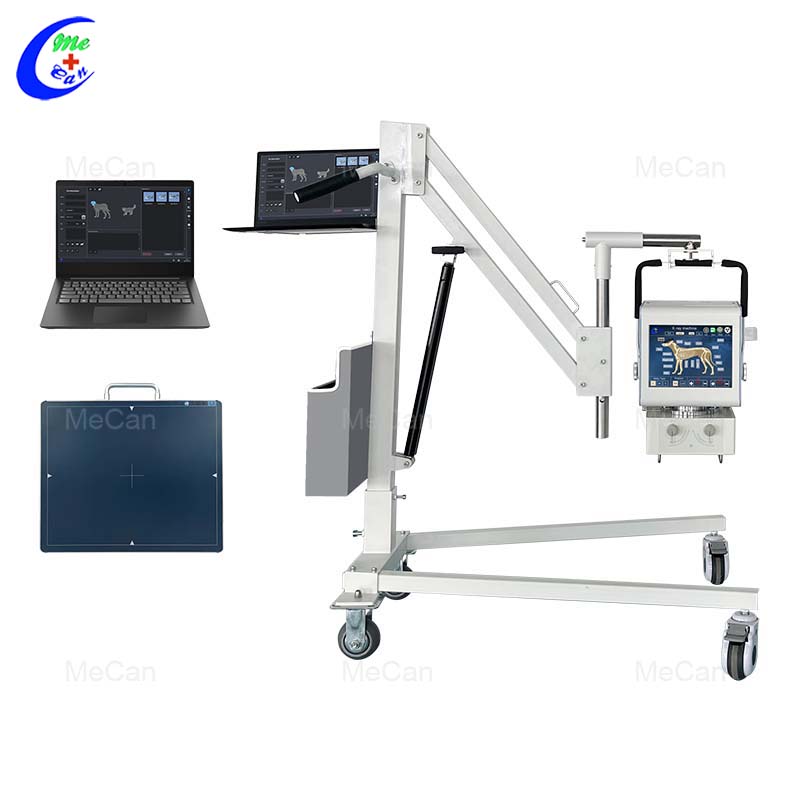

5kW Vet Portable DR with Touch Screen

The 5kW Vet Portable DR with Touch Screen is a compact and lightweight medical device that is designed for use in various settings, including field operation sites, battlefields, stadiums, and veterinary clinics. It is particularly suitable for extremities check, which includes the imaging of arms, legs, hands, and feet.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MX-VDR050B12

  • MeCan

5kW Vet Portable DR with Touch Screen

Model: MX-VDR050B12

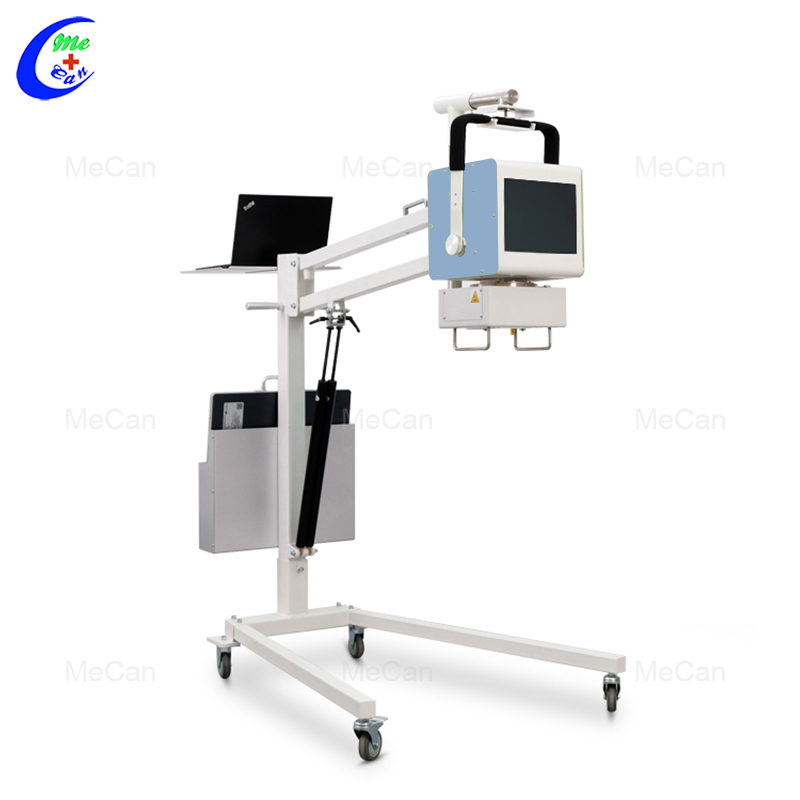

X-Ray Machine Portable



Application of Vet Portable DR

The Vet Portable DR is a compact and lightweight medical device that is designed for use in various settings, including field operation sites, battlefields, stadiums, and veterinary clinics. It is particularly suitable for extremities check, which includes the imaging of arms, legs, hands, and feet.


Features of 5kW Vet Portable DR with Touch Screen with Touch Screen

1.10.4 inch LCD screen

2.16 preset parameters

3.Convenient for doctor

4.Light weight and easy to move

5.High precision control in tube voltage & current;

6.Safe with foot brake

7.15CM distance to ground, better trafficability

8.Tube Angle: Y-axis: 120°, X-axis: 360°, Z-axis: 670mm-1690mm

9.Self-protection & auto-diagnosis available when malfunction occurs

10.OEM/ODM supporting

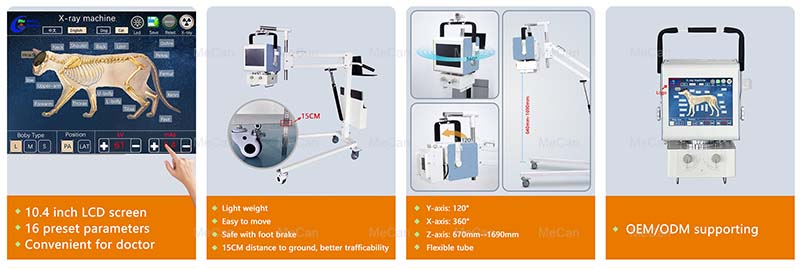

Features of Vet Portable DR


Specifications


Power

5kw

Power Supply

Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω)

Working Frequency

30kHz

mA

32-100mA

mAs

0.32-315mAs

KV

40-110kv

Exposure time

0.01-6.3s

Tube focus

1.8*1.8mm

Anode heat capacity

42kHU

Mobile x ray stand

MX-MS2

Flat Panel Detector


Image size

17*17 inch (14*17 for (option)

Pixels Matrix

140μm

A/D Conversion

16bits

Spatial Resolution

3.6 Lp/mm

Software

Professional Veterinary Software

Computer

R5-5500U/8G/512G



Operation interface of 5KW Vet Portable DR

Touch screen of 5kw portable x ray machine for cat

5KW Vet Portable DR Touch screen for Cat

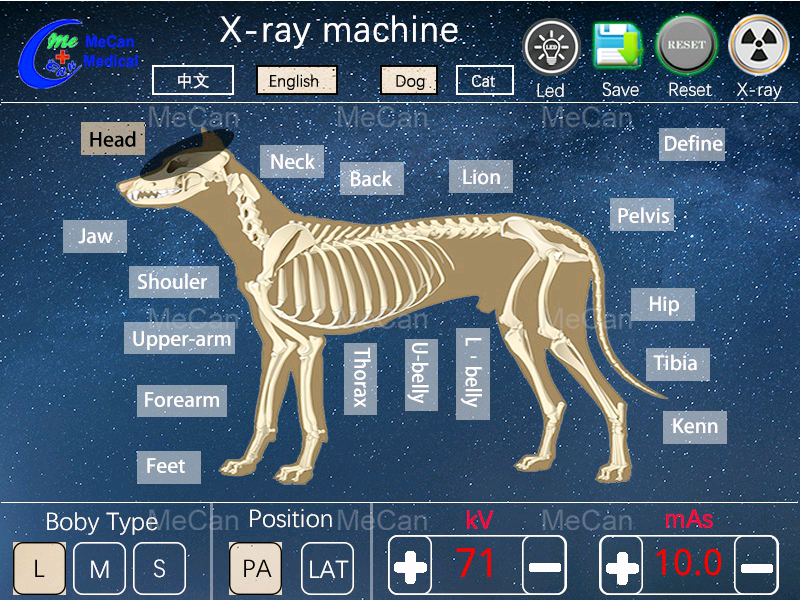

Touch screen of 5kw portable x ray machine for dog

5KW Vet Portable DR Touch screen for Dog


Many kinds of Veterinary Flat Panel Detector for optional:

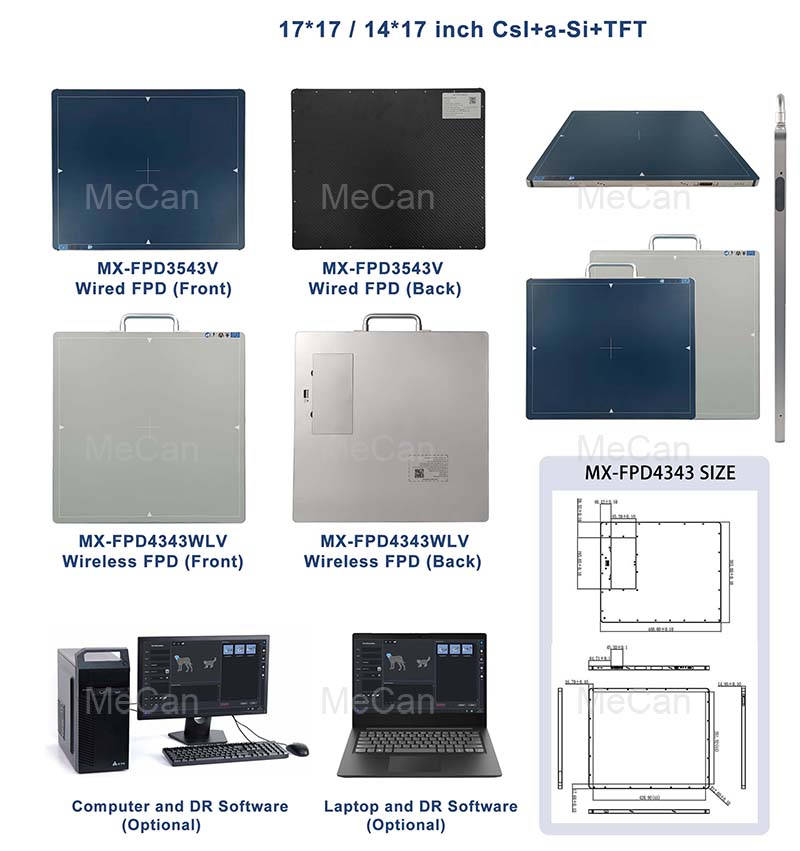

More details of Flat Panel Detector for animals



Parameter

MX-FPD3543V

MX-FPD3543WLV

MX-FPD4343V

MX-FPD4343WLV

Type

a-Si+ Csl

Image size

35*43cm

35*43cm

43*43cm

43*43cm

14*17 inch

14*17 inch

17*17 inch

17*17 inch

Pixel pitch(µm)

140

Pixels Matrix

2560*3072

2560*3072

3072*3072

3072*3072

A/D(bit)

16bit

spatial resolution

3.6 LP/mm

3.6 LP/mm

3.6 LP/mm

3.6 LP/mm

Weight

3.0kg

3.0kg

3.7kg

4.5kg

Dimensions (cm)

38.3*46*1.5

38.3*46*1.5

46*46*1.5

46*46*1.5

Water tightness

IP54

IP54

IP54

IP54

Battery stand by

No

7H

No

7H

Wireless

No

Yes

No

Yes

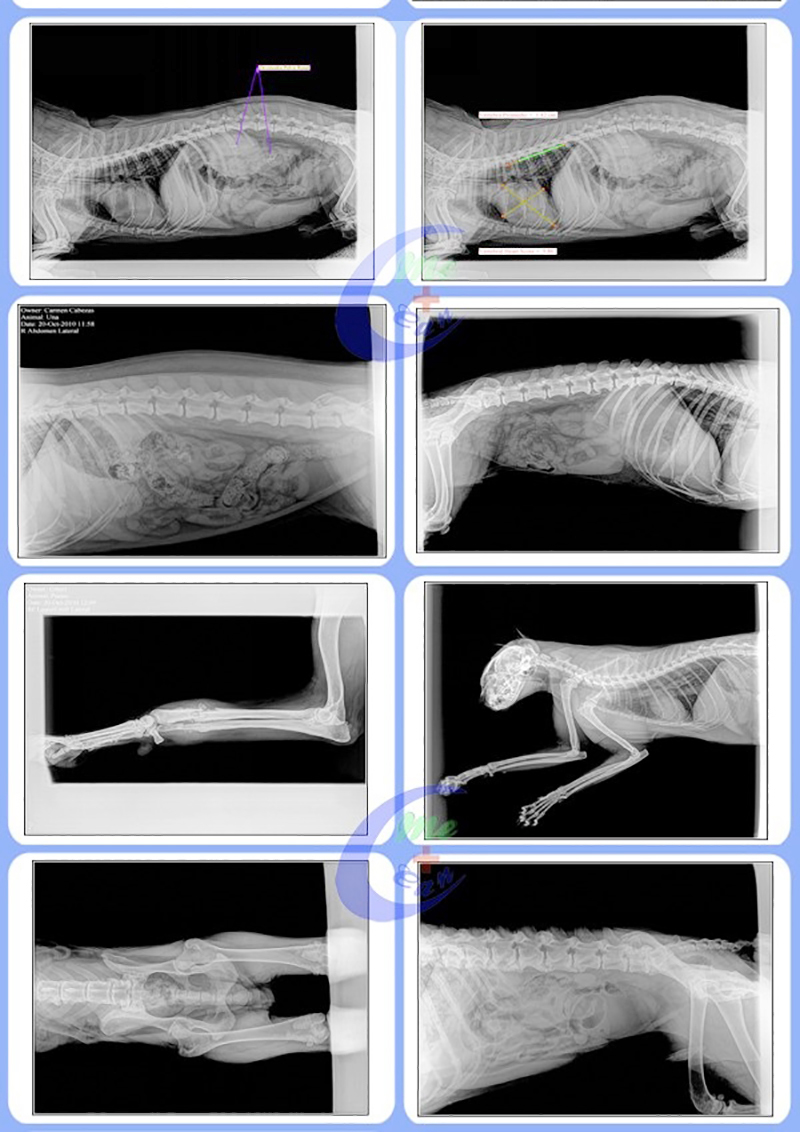

Excellent Test images of our Digital Portable Veterinary DR System

Test images for vet digital x ray machine
