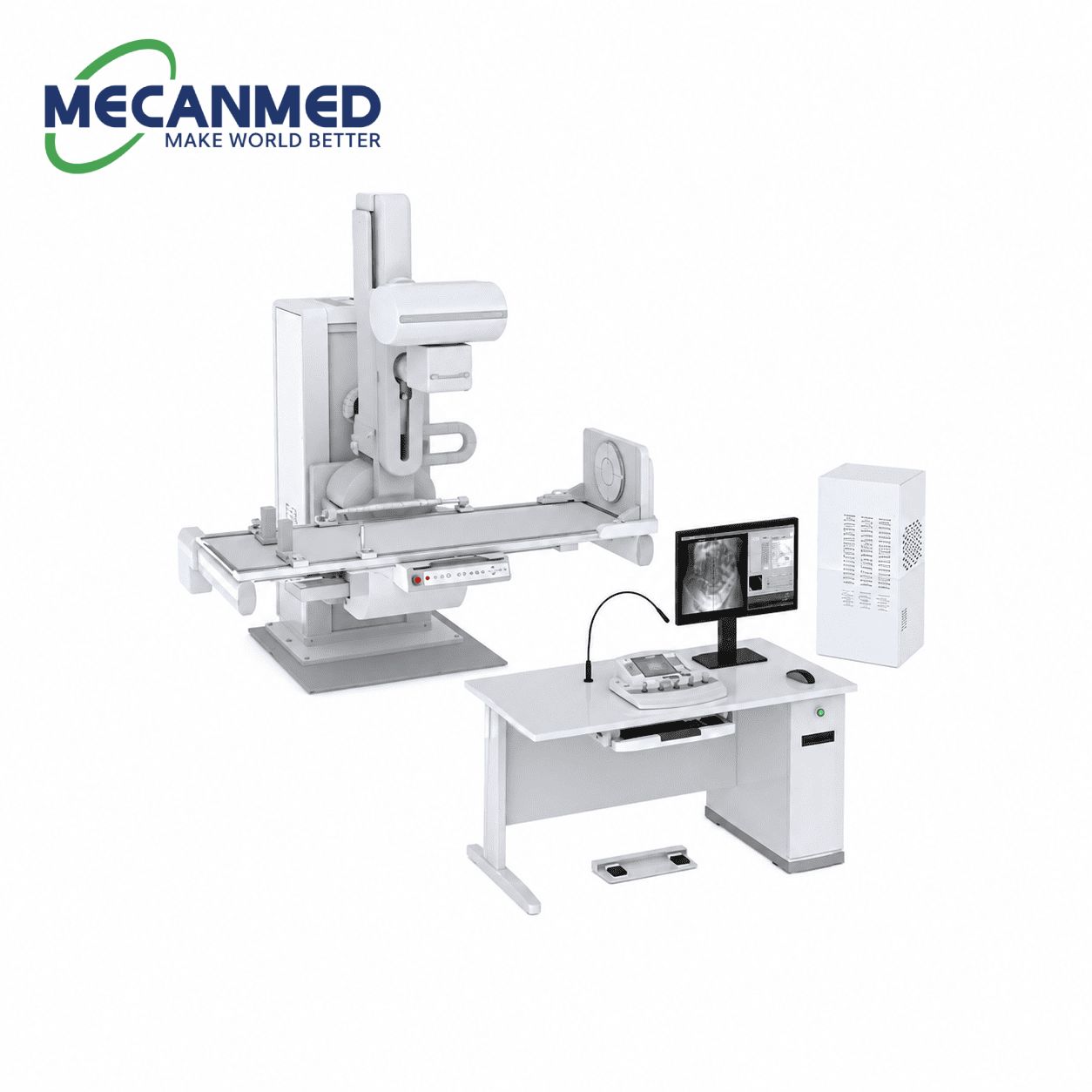

84kW 1000mA Digital Radiography & Fluoroscopy System

Product Overview



A digital radiography and fluoroscopy system combines conventional X-ray radiography with real-time dynamic imaging in one platform. It is designed for radiology departments that perform routine examinations as well as fluoroscopic and contrast-enhanced studies.



The MCI0043 Dynamic Digital Radiography & Fluoroscopy System integrates digital radiography, digital fluoroscopy, digital angiography and digital spot imaging. Its large dynamic flat panel detector supports both static and real-time image acquisition, allowing different examination workflows to be completed on the same system.



The system also provides flexible mechanical positioning for different anatomical regions and examination positions. An integrated workstation supports image acquisition, post-processing, transmission and reporting. Optional functions such as AEC, DAP monitoring and image stitching can be added for different examination workflows.



Clinical Applications



The MCI0043 supports a broad range of radiographic and fluoroscopic examinations across general radiology and related clinical departments.



Clinical Application	Typical Use

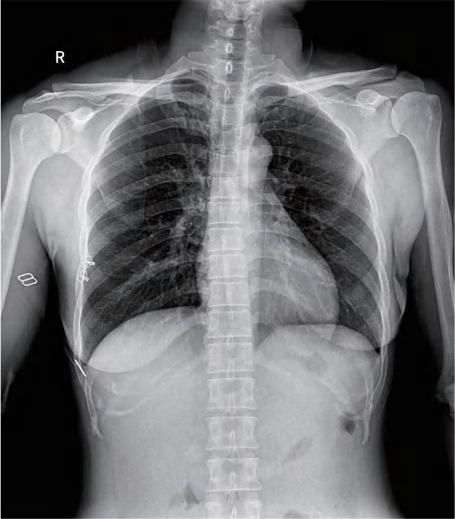

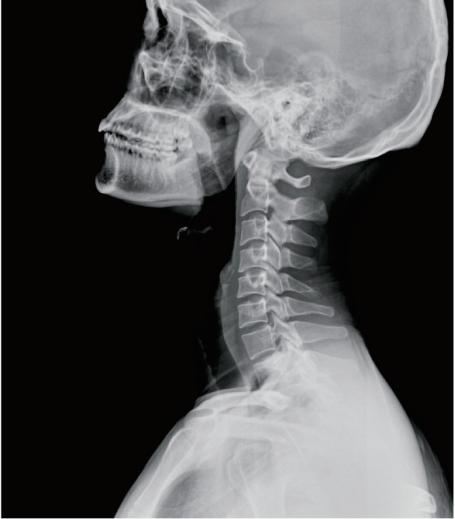

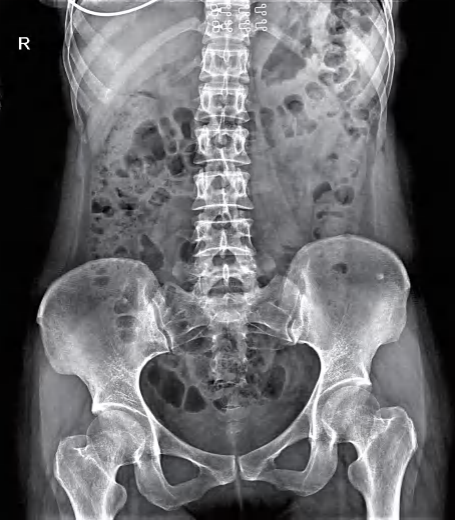

General Digital Radiography	Routine radiography of the chest, spine, pelvis, extremities and other anatomical regions
Digital Fluoroscopy	Real-time dynamic examination of the chest, abdomen and other anatomical areas

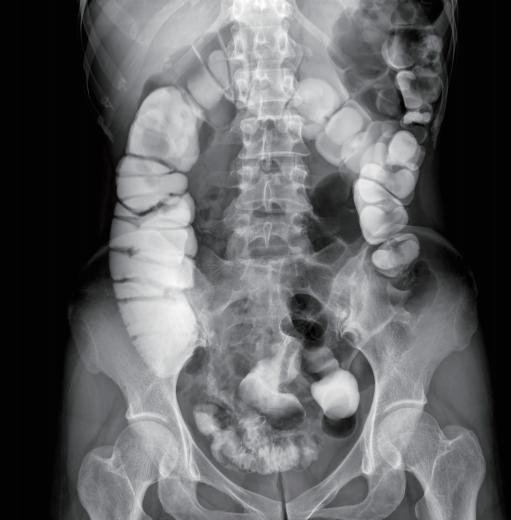

Gastrointestinal Contrast Studies	Esophagography, upper gastrointestinal contrast and other gastrointestinal examinations
Urological Imaging	Fluoroscopic and contrast examinations such as IVP and related urinary tract studies
Gynecological Imaging	Contrast and fluoroscopic procedures such as hysterosalpingography
Digital Spot Imaging	High-definition spot image acquisition during dynamic observation or image playback.
Orthopedic Imaging	Routine skeletal imaging and special-position radiography
Long-Length Imaging	Full-spine and full-lower-limb panoramic imaging when the optional image stitching function is configured



Core Features



1. High-Power Generator for Radiography and Fluoroscopy



The system uses an 84 kW high-frequency X-ray generator with a 550 kHz inverter frequency. Radiographic output covers 40–150 kV with tube current from 10–1000 mA. Fluoroscopy operates from 40–125 kV, with separate current ranges for continuous and pulsed fluoroscopy.

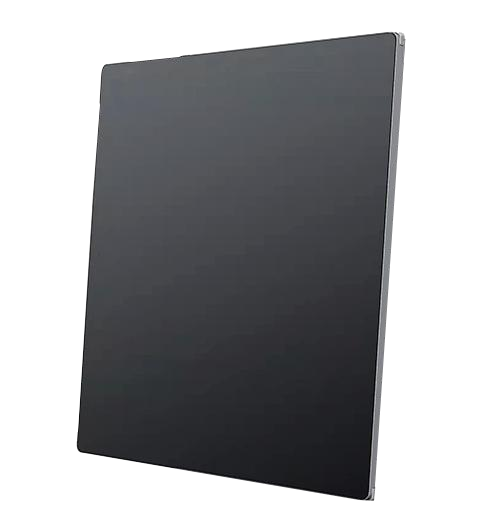

2. 17" × 17" Dynamic Flat Panel Detector



A large 427 × 427 mm dynamic flat panel detector provides a 3072 × 3072 pixel matrix, 139 μm pixel pitch and 16-bit A/D conversion. The detector supports dynamic acquisition at up to 30 fps for real-time fluoroscopic observation as well as static radiographic imaging.



The 427 × 427 mm active area provides a wide field of view for both static and dynamic imaging.

3. Radiography and Dynamic Imaging on One Platform



The system combines digital radiography, digital fluoroscopy, digital angiography and digital spot imaging. During dynamic observation or image playback, high-definition spot images can be captured for closer evaluation of selected areas.

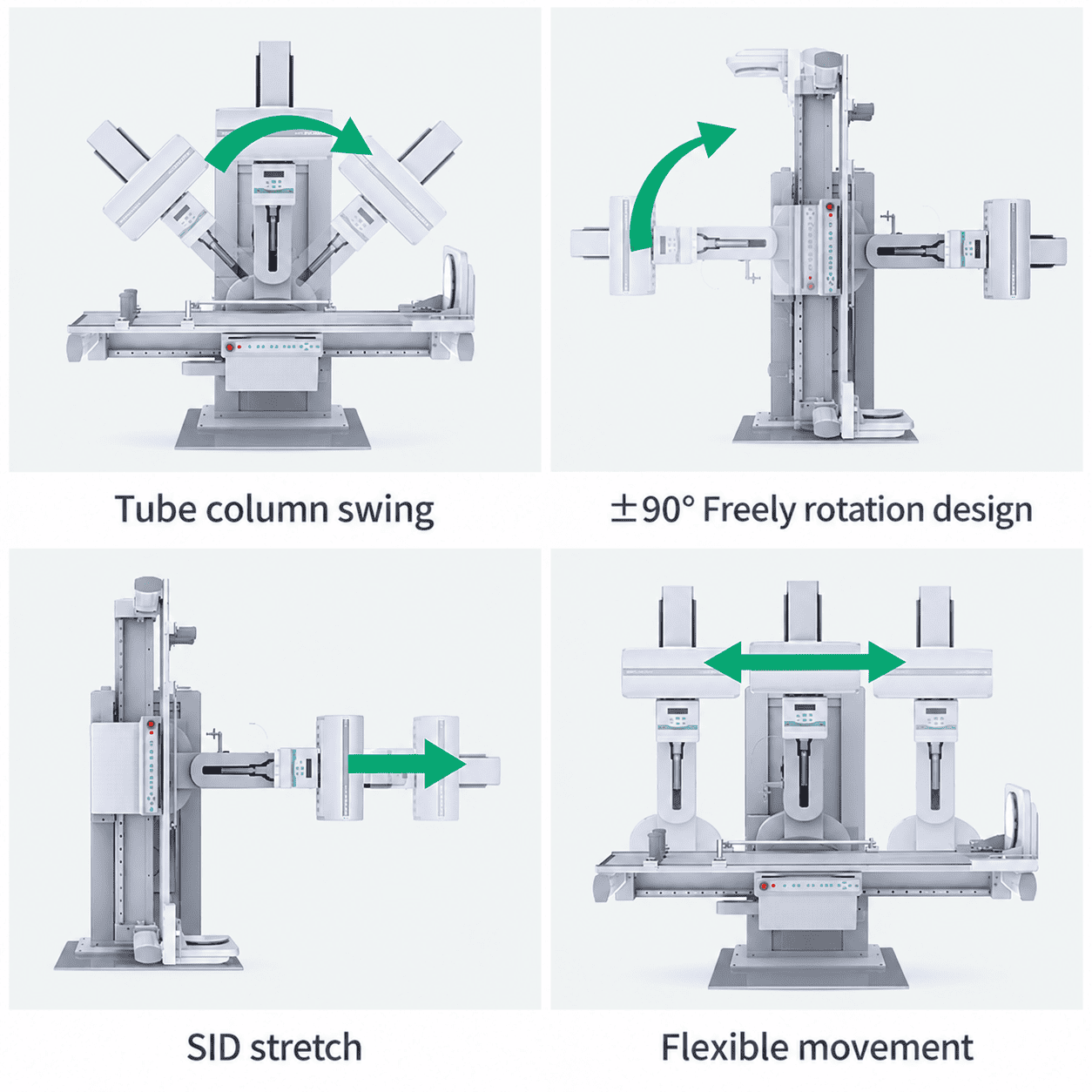

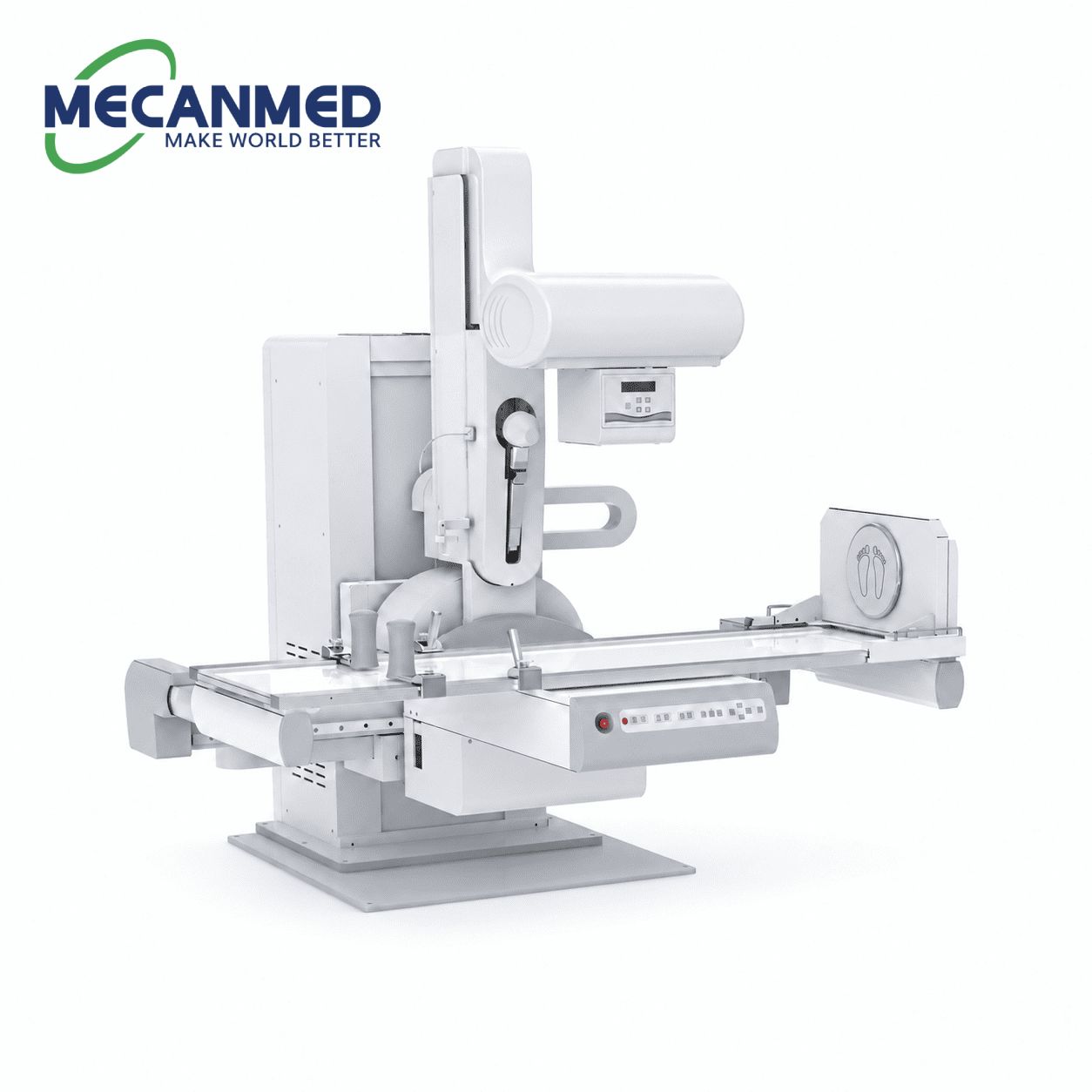

4. Flexible Multi-Dimensional Positioning



The system provides flexible mechanical movement to support different examination positions and anatomical regions.



l Tube Column Swing
The X-ray tube column can swing from -45° to +45°, providing additional positioning flexibility for examinations of different anatomical regions.



l ±90° Table Rotation
The examination table can rotate vertically from -90° to +90°, allowing the system to accommodate both horizontal and upright imaging positions.



l Adjustable SID
The source-to-image distance (SID) can be adjusted from 1000 to 1800 mm, providing greater flexibility for different radiographic examinations.



l Flexible Lateral Movement
The detector supports 320 mm lateral movement, allowing the imaging field to be repositioned across different anatomical areas without frequent patient repositioning.

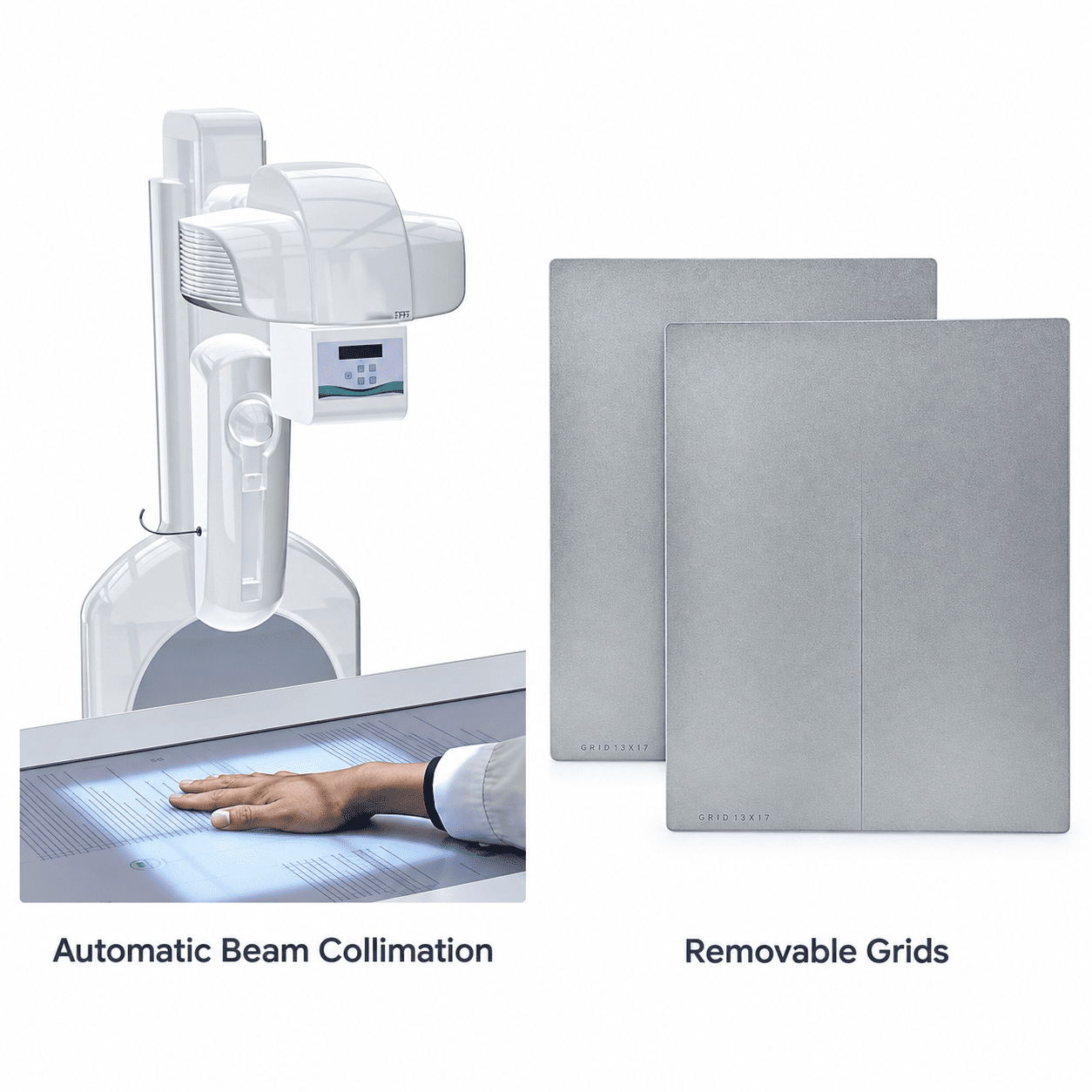

5. Automatic Beam Collimation & Removable Grids



The automatic electric collimator allows the imaging field to be adjusted according to the selected examination and body position. This helps simplify positioning and reduces the need for repeated manual beam-field adjustment.



The system is equipped with two high-density grids, which can be removed when grid-free imaging is required for applicable low-dose examinations.

6. Integrated Image Acquisition and Processing Workstation



The workstation integrates patient registration, exposure control, image acquisition, image processing, transmission and reporting. Image processing tools include image enhancement, window width and level adjustment, image cropping and other processing functions.



For system connectivity, a DICOM 3.0 interface supports integration with compatible medical imaging workflows.



7. Expandable Functions for Different Clinical Workflows



The MCI0043 can be configured with several optional functions. AEC automatically controls exposure time according to the examination conditions. DAP monitoring records examination dose information, while image stitching supports panoramic imaging of the full spine or lower limbs. Optional configurations also include an LCD touchscreen workstation and a specialized surgical/proximity console.



Technical Specification



Category	Parameter	Specification
Power Supply	Voltage	380 V ±38 V
	Frequency	50 Hz ±10 Hz
	Capacity	≥125 kVA
	Internal Resistance	≤0.17 Ω
X-ray Generator	Power	84 kW
	Inverter Frequency	550 kHz
	Radiography Tube Voltage	40–150 kV
	Radiography Tube Current	10–1000 mA
	Exposure Time	1–10000 ms
	Radiography mAs	0.1–1000 mAs
	Fluoroscopy Tube Voltage	40–125 kV
	Continuous Fluoroscopy Current	0.5–10 mA
	Pulsed Fluoroscopy Current	5–20 mA
X-ray Tube	Focal Spot	0.6 mm / 1.2 mm
	Anode Heat Capacity	420 kJ / 600 kHU
	Anode Speed	9700 rpm at 180 Hz / 2700 rpm at 50 Hz
	Target Angle	12°
Dynamic Flat Panel Detector	Active Area	427 × 427 mm
	Pixel Matrix	3072 × 3072
	Pixel Pitch	139 μm
	A/D Conversion	16 bit
	Limiting Resolution	≥3.7 lp/mm
	Energy Range	40–150 kVp
	Dynamic Acquisition	Up to 30 fps
Collimator	View Light	LED
	Brightness	>100 lux
	Visible Light Time	5–45 s adjustable
	Filtration	≥1 mm Al
Mechanical Movement	Table Vertical Rotation	+90° to -90°
	Vertical Movement	1300 mm
	Table-to-Ground Lifting Range (Optional)	550–1350 mm
	Lateral Movement	320 mm
	SID	1000–1800 mm
	Tube Swing	+45° to -45°
Connectivity	Interface	DICOM 3.0
Optional Functions	AEC	Optional
	DAP Monitoring	Optional
	Image Stitching	Optional
	LCD Touchscreen Workstation	Optional
	Specialized Surgical / Proximity Console	Optional
