Advanced Portable DR System with 5.6kW Power And Touch Screen Control

The 5.6kw Portable DR X Ray System is a highly specialized and advanced medical device that is primarily designed to cater to the needs of orthopaedic hospitals and animal hospitals. This portable system is specifically developed to provide a quick and efficient X-ray imaging solution for patients who cannot be easily transported to a conventional X-ray room
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MX-DR056A12

  • MeCan

Advanced Portable DR System with 5.6kW Power and Touch Screen Control

Model: MX-DR056A12


DR056A1Portable DR System is specifically engineered to meet the unique requirements of orthopedic hospitals and animal hospitals, where patients may be immobile or require specialized care. With its compact design and portable functionality, the system can be easily transported to the patient's location, allowing for fast and accurate X-ray imaging without the need for the patient to be moved.




MX-DR056A12 5.6KW Portable Digital Radiography



Features of 5.6KW Touch Screen Portable Digital X Ray Machine

1.10.4 inch LCD screen

2.14 preset parameters

3.Convenient for doctor

4.Light weight

5.Easy to move

6.Safe with foot brake

7.15CM distance to ground, better trafficability

8. X-ray tube rotation and movement:

Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm

9. OEM/ODM supporting

10. Support 5.6kW and 320mAs exposure.

11. Operator panel seperated as human and veterinary according to different purpose.

Features of 5.6KW Touch Screen Portable Digital X Ray Machine


Specification of our Portable DR X Ray System:

Power

5.6KW

Power Supply

Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω),

Working Frequency

80-200KHz

mA

32-100mA

mAs

0.1-320mAs

KV

40-125kv

Exposure time

2ms-10000ms

Tube focus

1.8*1.8mm

Anode heat capacity

42kHU

Mobile x ray stand

MX-MS2

Flat Panel Detector


Image size

17*17 inch (14*17 for option)

Pixels Matrix

140μm

A/D Conversion

16bits

Spatial Resolution

3.6 Lp/mm

Software

Professional Software

Computer

R5-5500U/8G/256G


Many kinds of Flat Panel Detector for Human can be optional

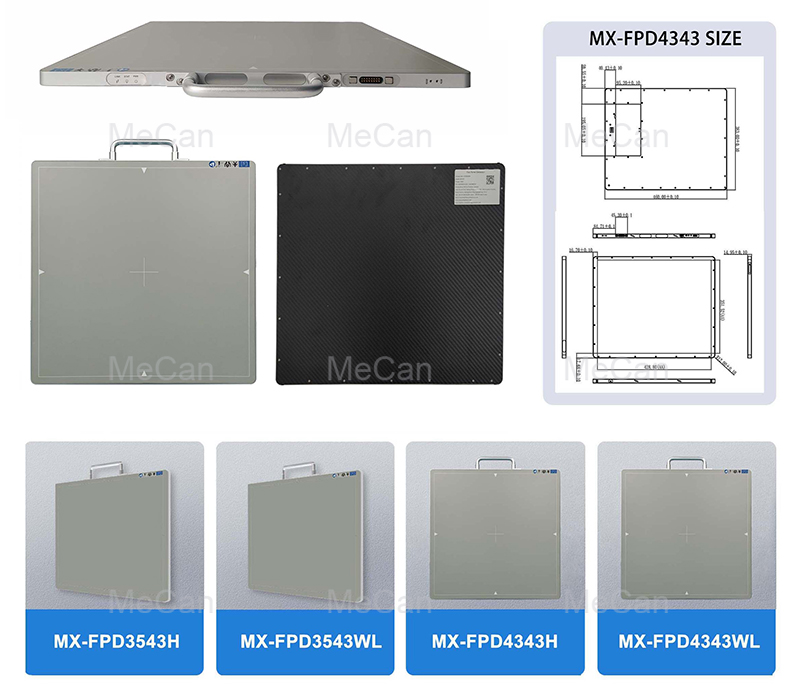

More details of Flat Panel Detector for Human-1


Parameter

MX-FPD3543H

MX-FPD3543WL

MX-FPD4343H

MX-FPD4343WL

Type

a-Si+ Csl

Image size

35*43cm

35*43cm

43*43cm

43*43cm

14*17 inch

14*17 inch

17*17 inch

17*17 inch

Pixel pitch(µm)

140µm

Pixels Matrix

2560*3072

2560*3072

3072*3072

3072*3072

A/D(bit)

16bit

spatial resolution

3.6 LP/mm

3.6 LP/mm

3.6 LP/mm

3.6 LP/mm

Weight

3.0kg

3.0kg

3.7kg

4.5kg

Dimensions (cm)

38.3*46*1.5

38.3*46*1.5

46*46*1.5

46*46*1.5

Water tightness

IP54

IP54

IP54

IP54

Battery stand by

No

7H

No

7H

wireless

No

yes

No

yes

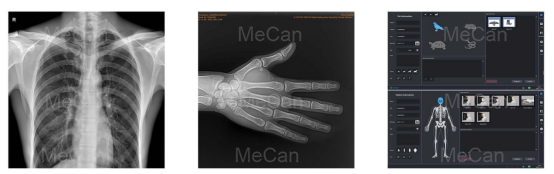

Test image of our Mobile DR X Ray Machine

Test image of Mobile DR X Ray Machine


MeCan Medical is the specialty manufacturer for medical x ray machine, we have 5kw portable x ray unit, 5.6kw portable ray x machine, 5kw portable DR and 5.6kw portable DR, 20KW, 32KW 50KW, 65KW medical x ray machine for human, 20KW, 32KW Vet x ray machine, and we can do the OEM/ODM for you.
