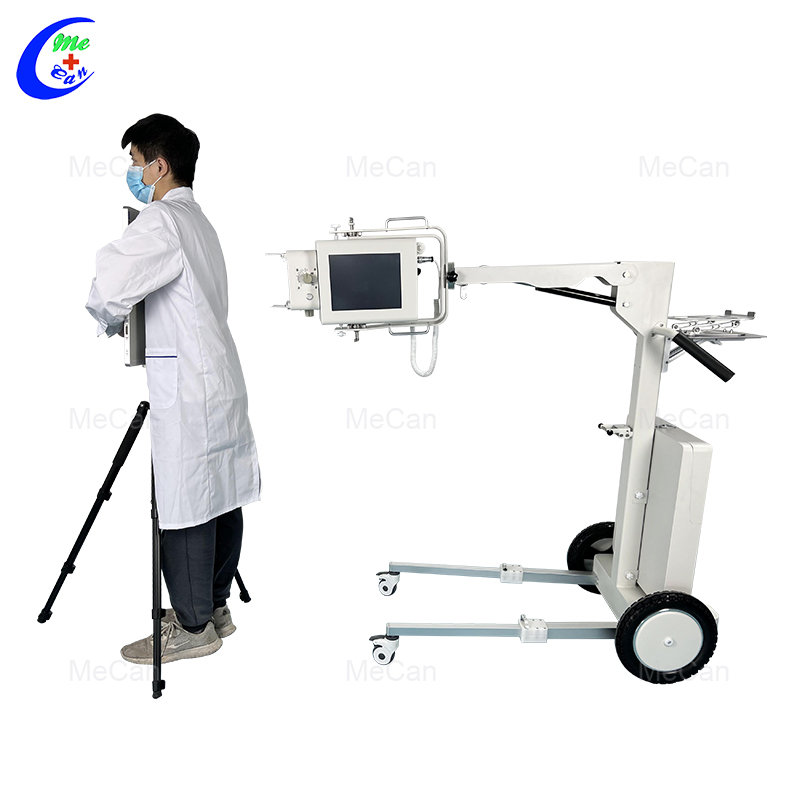

Intuitive Imaging: The 5.6KW Loadable DR X-Ray System with Touchscreen Interface
Model: MX-DR056A13
The 5.6kw Portable DR X Ray System is a highly specialized and advanced medical device that is primarily designed to cater to the needs of orthopaedic hospitals and animal hospitals. This portable system is specifically developed to provide a quick and efficient X-ray imaging solution for patients who cannot be easily transported to a conventional X-ray room.

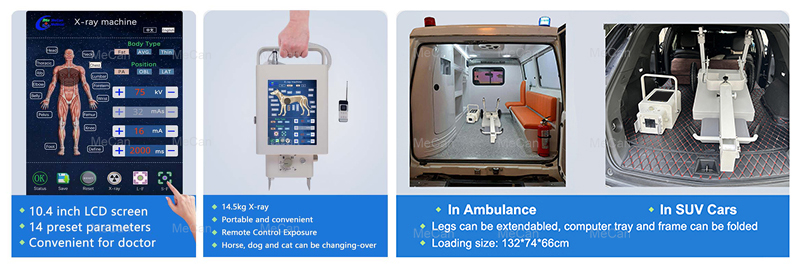

Features of 5.6KW Loadable DR X Ray System with touch screen:
1. 10.4 inch LCD screen
2. 14 preset parameters
3. Support 5.6kW and 320mAs exposure.
4. Soft switching technology, switching frequency is up to 200KHz.
5. Operator panel seperated as human and veterinary according to different purpose.
6. Convenient for doctor
7. 14.5kg X-ray
8. Portable and convenient
9. Remote Control Exposure
10. Horse, dog and cat can be changing-over
11. Legs can be extendabled, computer tray and frame can be folded, the loading size: 132*74*66cm, it is can be loaded in the Ambulance and SUV Cars.
Specification of our Portable DR X Ray System:
Power | 5.6KW |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MX-MS3 |
Flat Panel Detector | |
Image size | 17*17 inch (14*17 for option) |
Pixels Matrix | 140μm |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Software |
Computer | R5-5500U/8G/256G |

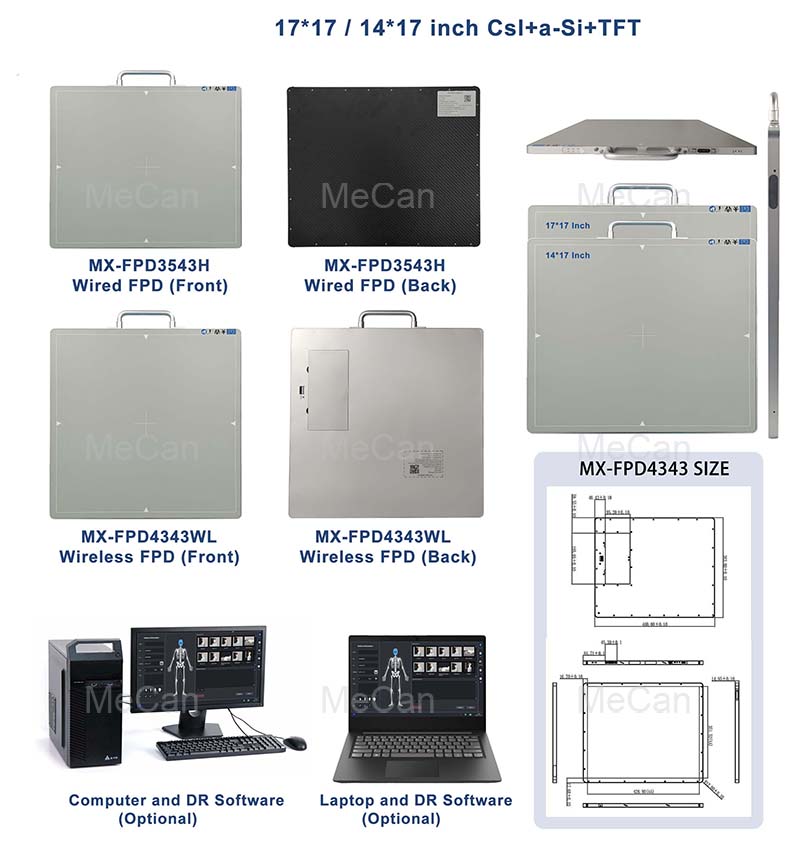

Many kinds of Flat Panel Detector for Human can be optional:
Parameter | MX-FPD3543H | MX-FPD3543WL | MX-FPD4343H | MX-FPD4343WL |
Type | a-Si+ Csl | |||
Image size | 35*43cm | 35*43cm | 43*43cm | 43*43cm |
14*17 inch | 14*17 inch | 17*17 inch | 17*17 inch | |
Pixel pitch(µm) | 140µm | |||
Pixels Matrix | 2560*3072 | 2560*3072 | 3072*3072 | 3072*3072 |
A/D(bit) | 16bit | |||
spatial resolution | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm |
Weight | 3.0kg | 3.0kg | 3.7kg | 4.5kg |
Dimensions (cm) | 38.3*46*1.5 | 38.3*46*1.5 | 46*46*1.5 | 46*46*1.5 |
Water tightness | IP54 | IP54 | IP54 | IP54 |
Battery stand by | No | 7H | No | 7H |
wireless | No | yes | No | yes |
Test image of our Mobile DR X Ray Machine
Overall, the 5.6kw Portable DR X Ray System is a highly advanced and versatile medical device that is specifically designed to meet the needs of orthopaedic hospitals and animal hospitals. Its portability, high-quality imaging capabilities, and advanced digital radiography technology make it an indispensable tool for medical professionals in these fields.
By the way, MeCan Medical is the specialty manufacturer for medical x ray machine, we have 5kw portable x ray unit, 5.6kw portable ray x machine, 5kw portable DR and 5.6kw portable DR, 20KW, 32KW 50KW, 65KW medical x ray machine for human, 20KW, 32KW Vet x ray machine, and we can do the OEM/ODM for you.
