digital x ray machine

MeCan Medical China Mobile X Ray Machine Portable X-Ray Machine for Human manufacturers - MeCan Medical,OEM/ODM, customized according to your requirements. The Machine portable digital high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, animal clinics, etc.


The organization keeps on the procedure concept "scientific management, high quality and efficiency primacy, purchaser supreme for Change for the better! is our slogan, which means "A better world is before us, so let's enjoy it!" Change for the better! Are you ready?

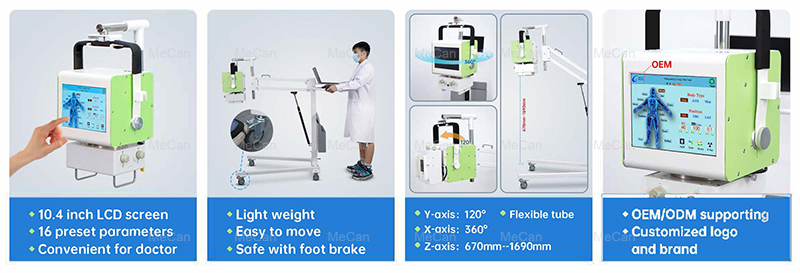

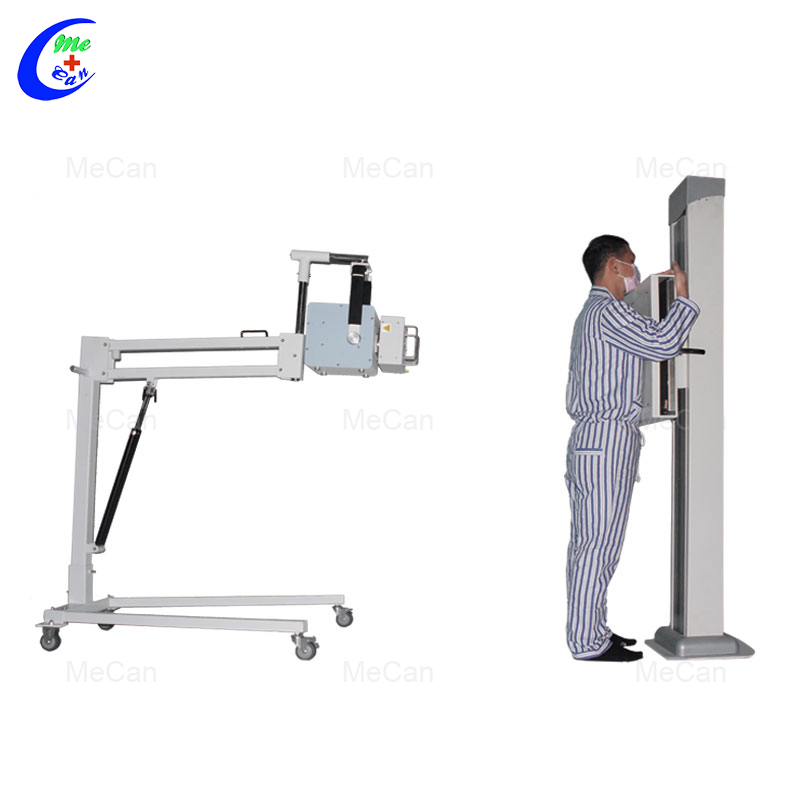

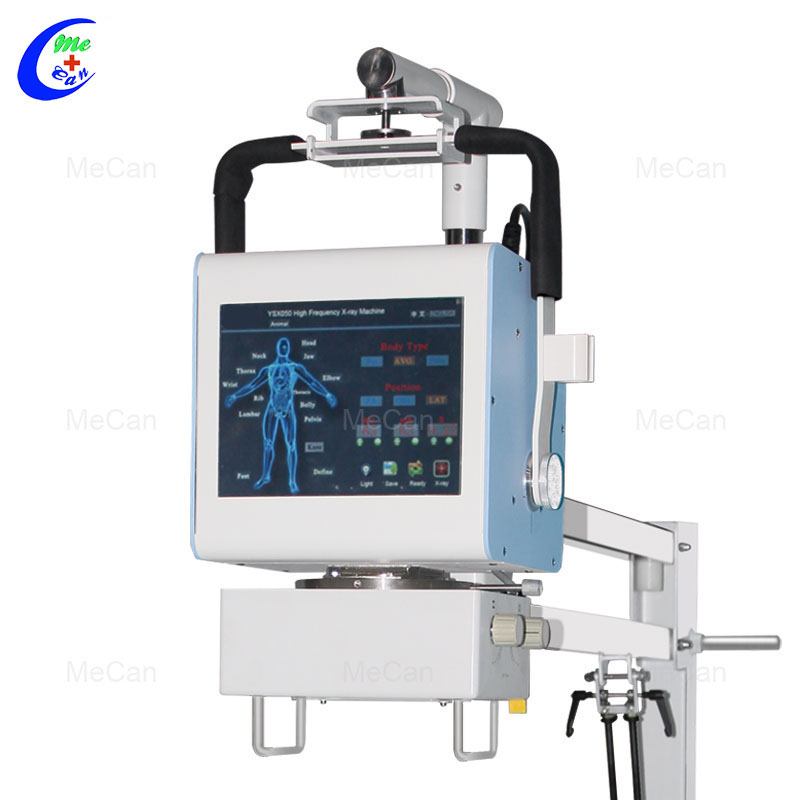

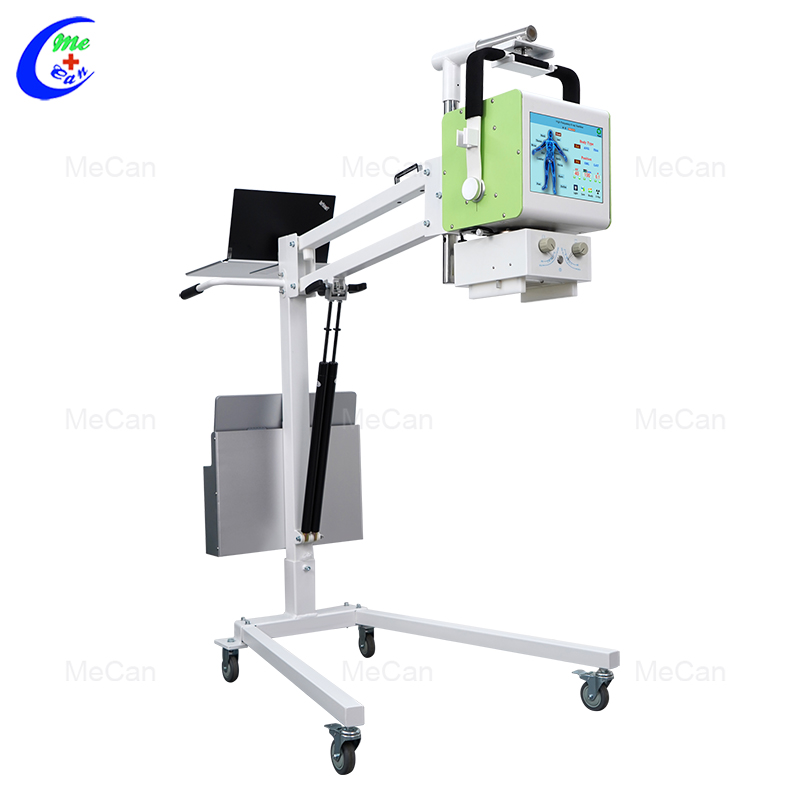

Mobile X Ray Machine Portable X-Ray Machine for Human



1) Simple & light structure;

2) LED digital display;

3) Anatomical memories for selection program;

4) Double-loop (analog & digital) high precision control mode;

5) High precision control in tube voltage & current;

6) Self-protection & auto-diagnosis available when malfunction occurs.


Max output power  5kW
Power supply  AC220V士10%, 50/60Hz士1Hz
Power  220V/50Hz
Max mA  32-100 mA
mAs range  0.32~315mAS
kV range  40kV~110kV
Exposure time  0.01 ~6.3s
X-ray tube focus 1.8*1.8mm
Heat capacity 42kHU
Generator frequency  30kHz

Flat-Panel Detector:

Project 14*17 inch 17*17 inch
Flat panel detector type TFT amorphous selenium direct imaging Direct imaging of cesium iodide amorphous silicon
Imaging area 14*17 inch 17*17 inch
Pixel resolution 2560*3072 3072*3072
Pixel size 140um 140um
Imaging time <5 seconds <5 seconds
A/D conversion 16bits 16bits
spatial resolution 3.6lp/mm 3.6lp/mm
Flat panel detector size (w * L * h) 383*460*15mm 460*460*15mm
Communication mode Wired, wireless (optional) Wired, wireless (optional)

The 5kW portable digital high frequency x-ray unit is mainly suitable for extremities check.

Outstanding images of 5KW Digital Portable X-Ray Machine

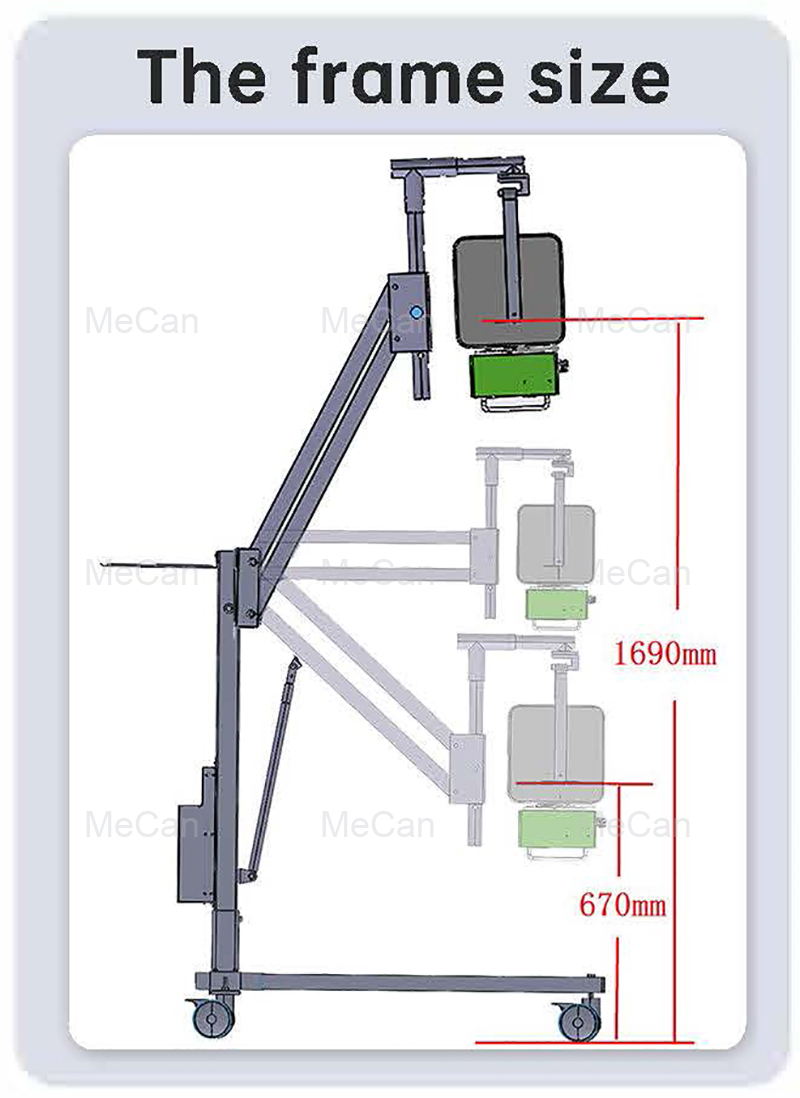

The frame size of 5KW Digital Portable X-Ray Machine


1.What is your warranty for the products?
One year for free
2.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
3.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:  Express:UPS,DHL,TNT,ect (door to door)  United States(3 days),Ghana(7 days),Uganda(7-10 days),Kenya(7-10 days),Nigeria(3-9 days)  Hand carry  Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.  Air freight(from airport to airport)  Los Angeles(2-7 days),Accra(7-10 days),Kampala(3-5 days),Lagos(3-5 days),Asuncion(3-10 days)  Se


1.More than 20000 customers choose MeCan.
2.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.MeCan offer professional service,our team is well-tained

Gaining purchaser gratification is our company's aim eternally. We're going to make great initiatives to create new and top-quality products, satisfy your exclusive prerequisites and supply you with pre-sale, on-sale and after-sale solutions for digital x ray machine, The product will supply to all over the world, such as: Hongkong, Uzbekistan, We've been proud to supply our products and solutions to every auto fan all around the world with our flexible, fast efficient services and strictest quality control standard which has always approved and praised by customers.
