• Place of Origin:CN;GUA

• Model Number:500III/IIIA/IIIB/IIIC

• Brand Name:Mecan

• Type:First-Aid Devices

• Instrument classification:Class II

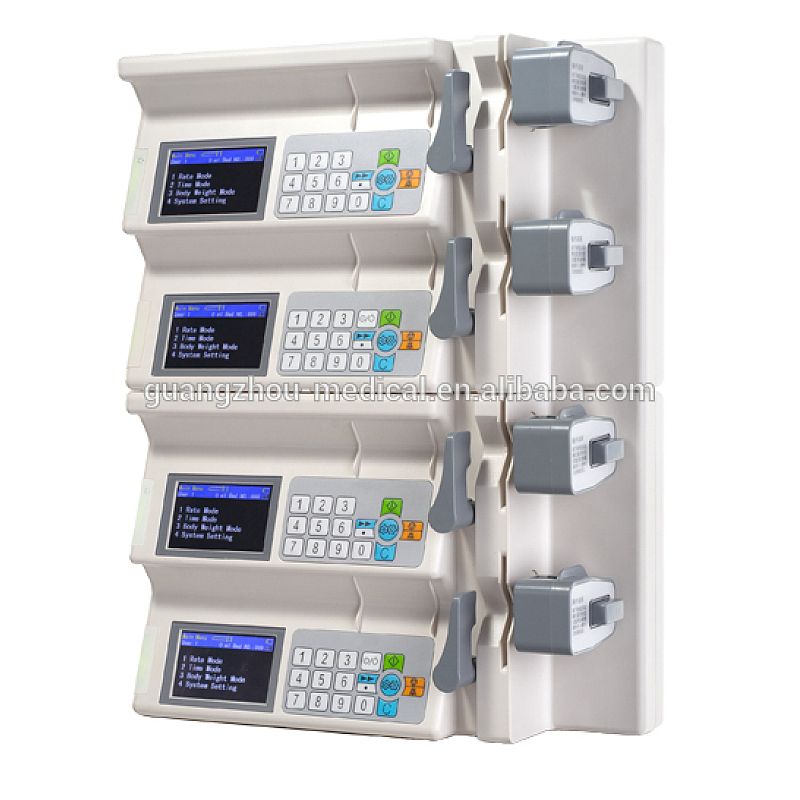

  MC500III/IIIA/IIIB/IIIC Multi-channel Syringe Pump







Features:
Four operating modes – Rate Mode, Time Mode, Body Weight Mode and Link Mode
Multiple modes for operators to choose
Multiple drugs can be injected sequentially under Link Mode
Multi-channel pumps with a wide range of flow rates
Applicable to both adults and children, in normal and emergency cases



Built-in double CPU
Each CPU can serve as backup for the other, guaranteeing the stability of the system and the safety of patients even when one CPU breaks down
Extreme flexibility in the use of syringes
Almost all brands of standard syringes can be applied and automatically recognized by the module to save your cost and time



Powerful alarm system with both audible and visible alarm signs

Embedded pressure sensor for occlusion detection
Multiple alarm signs to alert operators
Wireless linkage with infusion supervision system
Greatly reduces workload and turnaround time and ensures the safety of patients
Seven-item protection design
Water-proof, moisture-proof, anti-interference, anti-shock, anti-collision, anti-corrosion, anti-high & low temperature
Wide-input power supply
Suitable for a broad range of circumstances and countries





Technical Specifications
Technical Descriptions
Syringe Type 5, 10, 20, 30, 50 ml
Operating Mode

1) Flow rate mode, rate range: 0.1 - 1500.0 ml/h for 500III, maximum injection rate value depends on different modules

2) Time mode, time range: 1 - 2000 min

3) Body weight mode, weight range: 0.1 - 300.0 kg; drug limit: 0.1 - 999.9 mg; volume range: 0.1 - 999.9 ml

4) Link mode

Flow Rate Range 5 ml syringe : 0.1 ml/h - 100ml/h; 10 ml syringe : 0.1 ml/h - 200ml/h; 20 ml syringe : 0.1 ml/h - 400ml/h; 30 ml syringe : 0.1 ml/h - 600ml/h; 50 ml syringe : 0.1 ml/h - 1500ml/h

Accumulated Injection Volume 0.1 - 999.9 ml

Accuracy ± 5%

KVO Rate On/Off; On: 0.1 - 5.0 ml/h

Bolus Rate 5 ml syringe : 100 ml/h; 10 ml syringe : 200 ml/h; 20 ml syringe : 400 ml/h; 30 ml syringe : 400 - 600 ml/h; 50 ml syringe : 600 - 1500 ml/h



Display
Screen 3.2 inch color TFT screen
Information Mode, Rate, Accumulated injection volume, Syringe size, Battery capacity, Bed No., AC power indicator, Battery charge indicator
Alarm Type
OVER, NEAR, Occlusion, Syringe disengaged, Pump stuck, No AC power supply, Low battery, Serious low battery, Abnormal 1/2/3/4
Battery
Type 7.4 V, 1600 mAh lithium polymer battery
Life More than 2 hours’ continuous running (5 ml/h); Rechargeable
Environment
Temperature 5 - 40 ℃ for operating; -40 - 50 ℃ for storage
Air Pressure 86 - 106 kPa for operating; 50 - 106 kPa for storage
Humidity 20 % - 80 % for operating; 10 % - 95 % for storage
Others
Dimension320 mm(L) × 110 mm(D) × 200 mm(H) for SK-500III
Weight 3.4 kg for 500III; 7.0 kg for 500IIIA; 10.4 kg for 500IIIB; 14 kg for 500IIIC;
Power Supply 100 - 240 VAC, 50/60 Hz
Fuse T 2A 250 V
Shell Material ABS plastic
Software Language English
