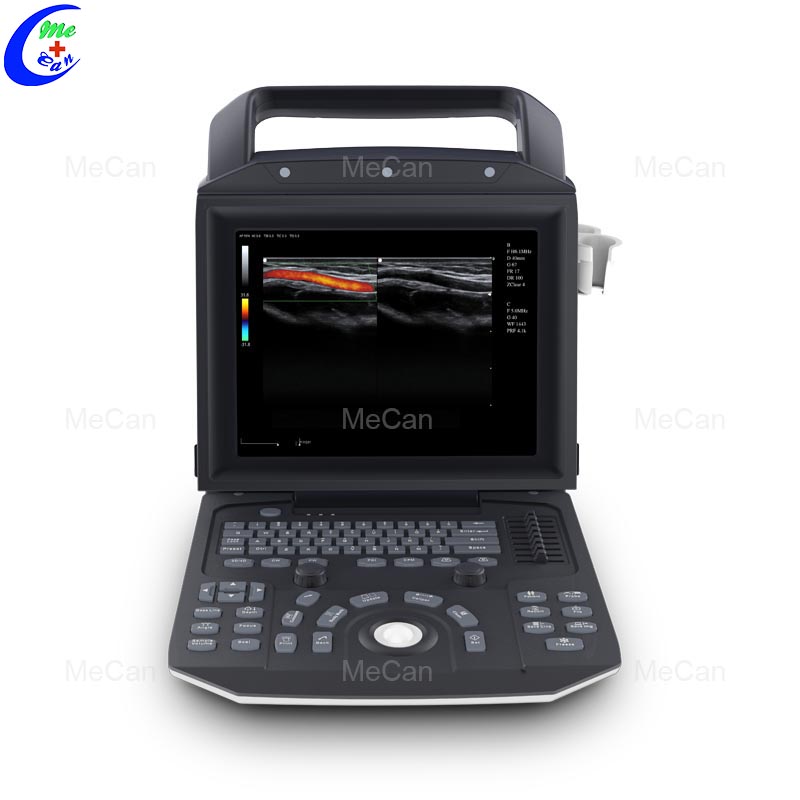

• 3D 4D Color Doppler Ultrasound Machine

• Model:  MCU-CD001

MCU-CD001 provides remarkable performance in Abdomen, Gynecology, Obstetric, Cardiology, Small parts (Breast, Testes, Thyroid, etc.) ,Urology, Musculoskeletal and Peripheral vascular.

A variety of imaging modes brings a comprehensive clinical application.

- B Steer, CW, EFOV, PDI, DPDI

- Auto IMT, TSI, THI, SRI, SCI, FCI, Biopsy function ould be your first choice.



Features

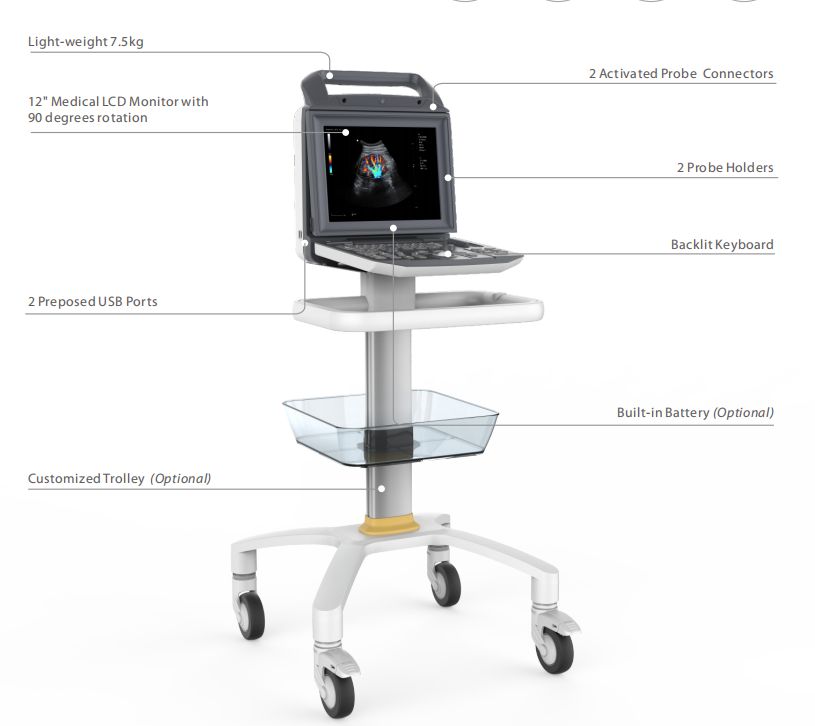

1.12.1 inch high resolution LED monitor with 90°rotation.

2.Two activated transducer connectors.

3.2D,CFM,M, PW,CW, CMM.

4.THI, SRI, TSI,TCI , EFov, HR flow, B-steer.

5.Standard Auto IMT measurement.

6.Support local and global amplification.

7.Support PW auto track and auto calculation.

8.Preposed USB ports, supporting multi-data transmission.

9.Color focus automatic tracking, Dual Live and Multi-synchronization technologies.

10.Multiple pregnancies measurement, Fetal growth curve, OB table are standard configured.

Technologies

uSeed Platform

MCU-CD001 facilitates accurate diagnosis based on uSeed metadata beamforming imaging technology platform. This brand-new platform is developed by CPU + GPU heterogeneous computing technology. The imagesin uSeed platform are saved as metadata for postprocessing.



Pulse Inverse Harmonic Imaging PIHI

PIHIreducesthe distortion generated by the fundamental wave, and greatly improve the signal-to-noise ratio.



Speckle Reduction Imaging

SRI technology significantly reduces the unwanted speckle, provides enhanced tissue boundary and tissue echo for confident clinical diagnosis.



Spatial Compound Imaging

SCI provides better contrast resolution, reduces the speckle noise and smoothes the imaging of homogeneous tissue.



Specifications

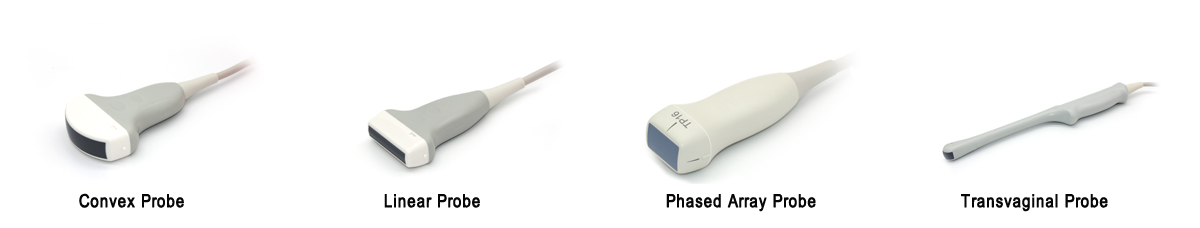

Transducers:

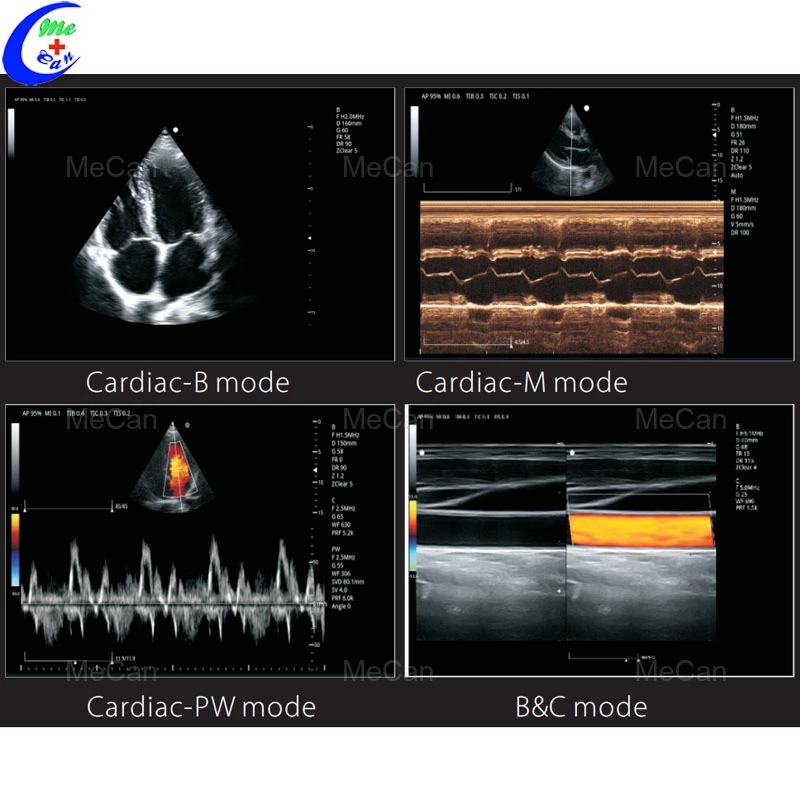

Test Image:
