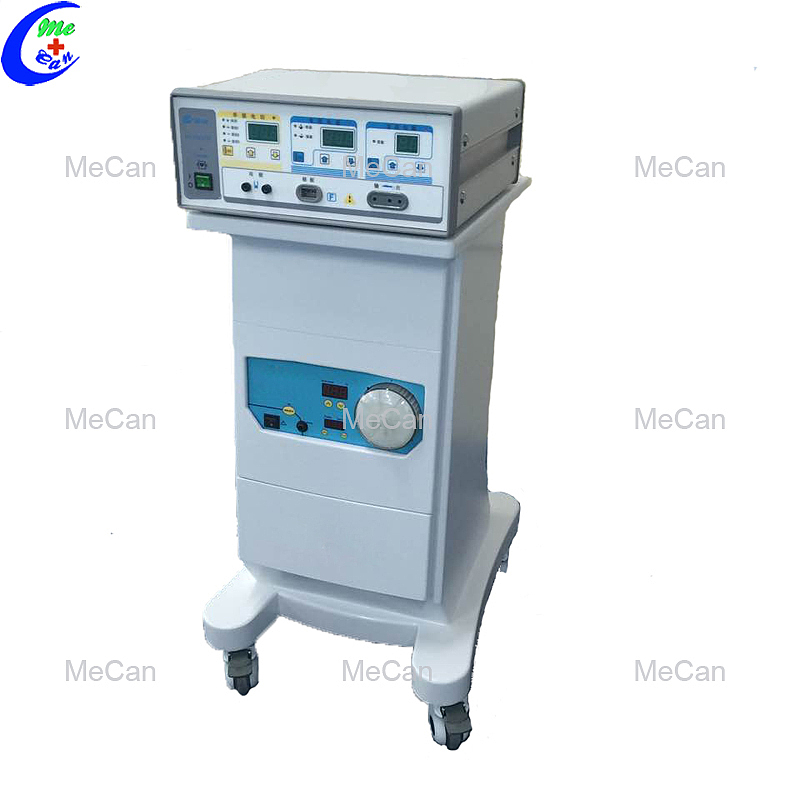

Surgical LEEP Electrosurgical Generator

(Seven working modes)

Parameters of the Surgical LEEP Electrosurgical Generator:

1. Highest power: 200W



2. Seven working modes: pure cut, blend1, blend2, blend3, spray coag, forced coag, bipolar coag.



3. Microcomputer control, three-way power output, with different audible and visual indication during the process of outputting.



4. 2000(LEEP) generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.



5. Dealing with some kinds of pathological changes in obstetric and gynecology,   for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.



6. Different electrodes have different effects in coagulation.



7. An optional smoke evacuation system is available.



8. Particular illuminating ESU pencil can increase the clarity of wound healing.



Technical Specifications of the MCS-ECU34 Surgical LEEP Electrosurgical Generator:



Power: 220V±22V, 50Hz±1Hz(110V±11V,50/60Hz)



Operating frequency: 512KHz



Power rating: 880VA±10%



Seven working modes of the Surgical LEEP Electrosurgical Generator:



Monopolar Cut:



a) Cut1 (pure cut): 1W~200W( Load 800Ω)



b) Cut2 (Blend1): 1W~150W(Load 800Ω)



c) Cut3 (Blend2): 1W~100W (Load 800Ω)



d) Cut4 (Blend3): 1W~80W(Load 800Ω)



Monopolar Coag:



d) Coagulation1(Spray Coag): 1W~120W( Load 800Ω)



e) Coagulation2(Forced Coag): 1W~80W( Load 800Ω)



Bipolar:

f) Bipolar coagulation: 1W~50W ( Load 100Ω)



Power Consumption of the Surgical LEEP Electrosurgical Generator:

Less than 880VA(Cutting function 200W)

Surgical Smoke Evacuation  Parameter

blowing rate: 100 l/min @ 6mm tube

Noise:<60dB(A)



Start Control: Manus/Foot/Synchronize



Suction Adjust: 10%-100%



Stop delay time: 0-60s



AC Power: AC90~250V, 50Hz



Power consumption: < 350W



Filter Characteristics: 99.999% @ 0.1-0.2μm



Active Carbon: 97% @ 1 year



Packing List



Illuminating ESU Pencil:          5pcs



Electrosurgical Pad:               10pcs



Electrosurgical pad cable:      1pc



Footswitch:                             1set



Bipolar Forceps and cable:     1set



Vaginaldilator:                         1pc



Electrodes:                              10pcs
