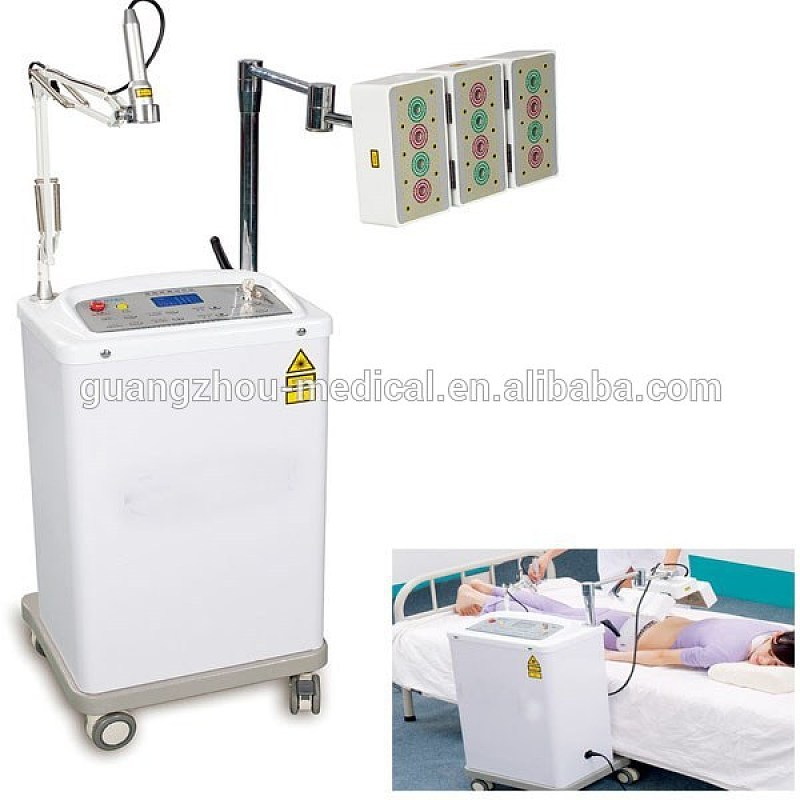

Intelligent pain Therapeutic Apparatus





Technical parameters

• Rated input power is 45 VA

• One channel of triple array output, one channel of point-like output

• the length of point-like radiator: 160mm,outside diameter: 22mm

• the wavelength of point-like radiator: 810nm+5%

• the point-like radiator output power: 0-500mw

• triple array radiator: 375mm x 205mm x 60mm

• Stair-shaped wavelength: 980/810nm±5%

• Area array output power:

        Wavelength 980nm the output power:0~200mw(adjustable)

        Wavelength: 810nm the output power:0-500mw (adjustable)

• treatment time: 0-99min (adjustable)

Product performance

• The stair-shaped wave treatment meets the treatment requirement.

• The triple array radiator is easy to operate,it can treat multiple body parts;

• It is applied to treat large area skin disease

• The point-like radiator is used for acupuncture point treatment.

• Multi section movable arm, which can make the radiator more flexible and easy to use.

• The machine has a key switch,when you turn the key switch 90 clockwise, the treatment will start.

• The machine has emergency switch.
