MeCan Medical Best Quality 32KW Animal Digital Radiography System Veterinary Digital X Ray Machine Factory,More than 20000 customers choose MeCan, we are very professional and we will provide the best service to you.
Availability: | |
---|---|
Quantity: | |
MX-VDR320A10
MeCan Medical
32KW Animal Digital Radiography System Veterinary Digital X Ray Machine
Model: MX-VDR320A10
Our 32KW Veterinary Digital X Ray Machine is high frequency and high voltage. It is used to take digital radiography of different veterinaries of different body parts, applied in pet radiography hospitals, clinics.

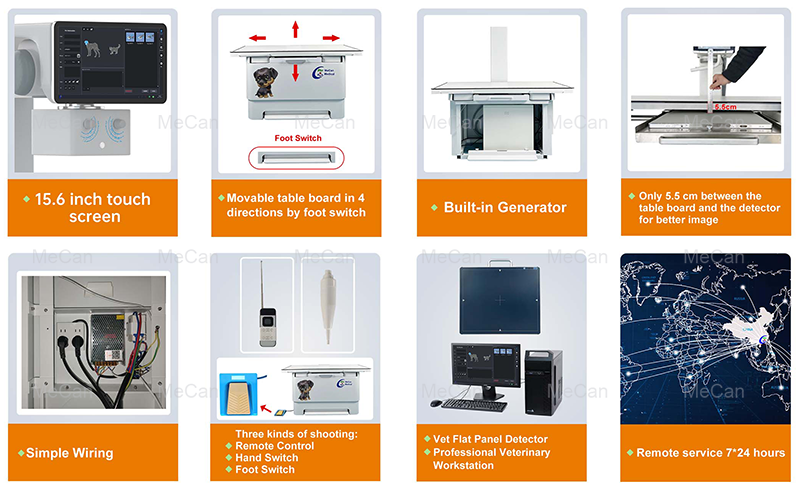

Features of digital veterinary x ray machine:
1. The height is less than 2 meters to meet the needs of small rooms.
2. After placing the tablet, the SID is greater than 1 meter to ensure that the 17*17 inch image is complete.
3. The 5.5cm extreme focus screen distance is much smaller than the national standard 10cm standard, which can make clearer image.
4. Fully enclosed design effectively prevent rats from entering.
5. High-quality anti-double bed panel, high-end, clean and beautiful appearance, acid and alkali corrosion resistance, low ray blocking rate.
6. The foot switch controls the four-way floating structure of the bed surface, which can move 44cm left and right, and can move 25cm back and forth.
7. Load-bearing plate + magnetic front cover structure, built-in generator, save space and install quickly.
Specification digital veterinary x ray machine:
Model | MX-VDR056A10 | MX-VDR056A15 | MX-VDR200B10 | MX-VDR320A10 |
Power | 5.6kW(touch screen) | 5.6kW(li-battery) | 20kW | 32kW |
Power Supply | Single-phase 220V 50/60HZ (wire diameter>4mm2,internal resistance<;0.5Ω) | |||
Working Frequency | 80-200kHz | 30kHz | 400KHz | |
mA | 32-100mA | 10-320mA | 10-400mA | |
0.1-320mAS | 1-320mAS | 1-400mAS | ||
KV | 40-125 | 40-125kv, 1kv step | ||
Exposure time | 0.02-10S | 0.03-6.3S: 1ms step | ||
Tube focus | 1.8*1.8mm | 0.6-0.6/1.2*1.2mm | ||
X-ray tube | 7239EX/7242EX/HX711O(option) | |||
Anode rotating speed&heat capacity | fixed anode | 2800prm/140kHU | ||
X-ray tube | Width 70cm, length140 or 120 cm, optional urinary trough of the table | |||
Vet Flat Panel Detector | 17*17 inch (14*17 for option) | |||
Pixels Matrix | 140um | |||
A/D Conversion | 16bits | |||
Spatial Resolution | 3.6 Lp/mm | |||
Software | Professional Veterinary Software | |||
Computer configuration | CPU: I5, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |

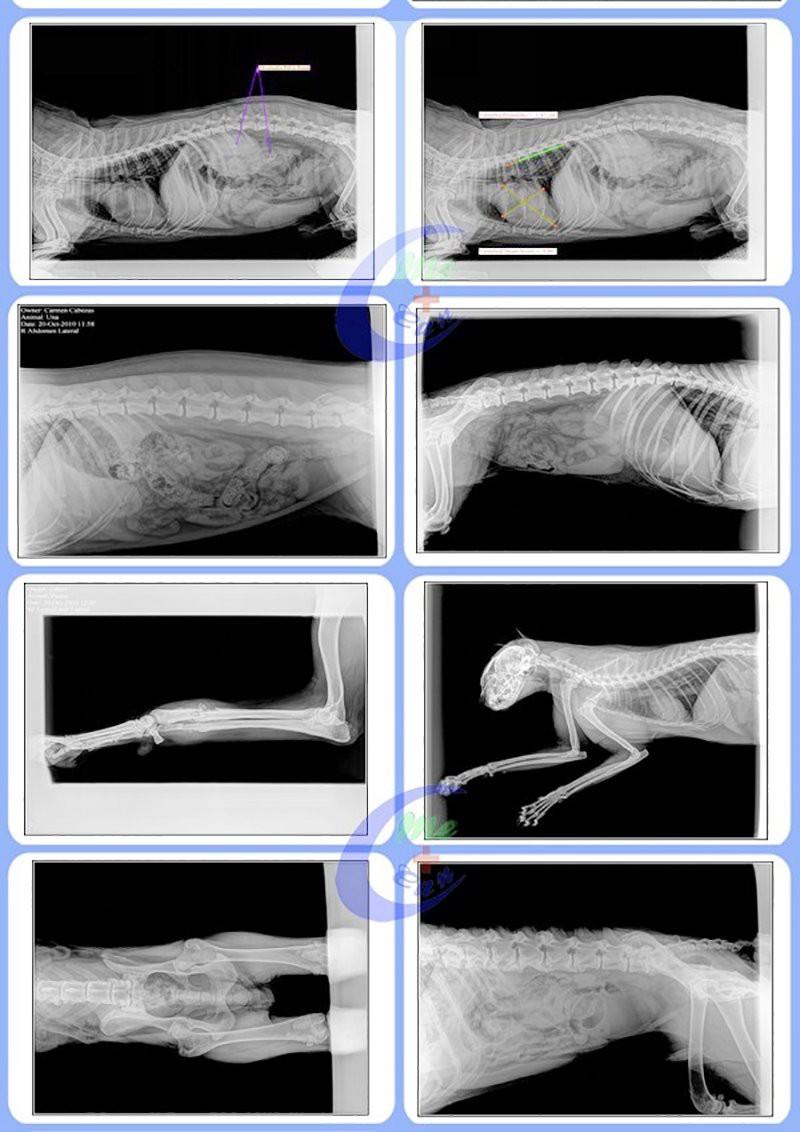

Test Images of Vet Digital X-Ray Machine

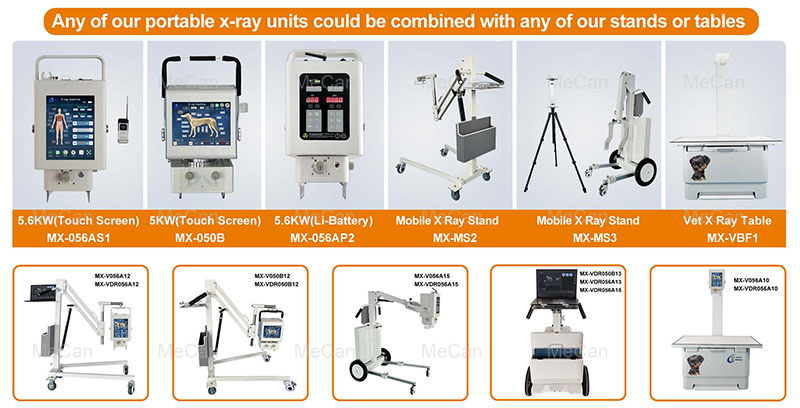

Any of our portable X-ray units could be combined with any of our stands or tables:
