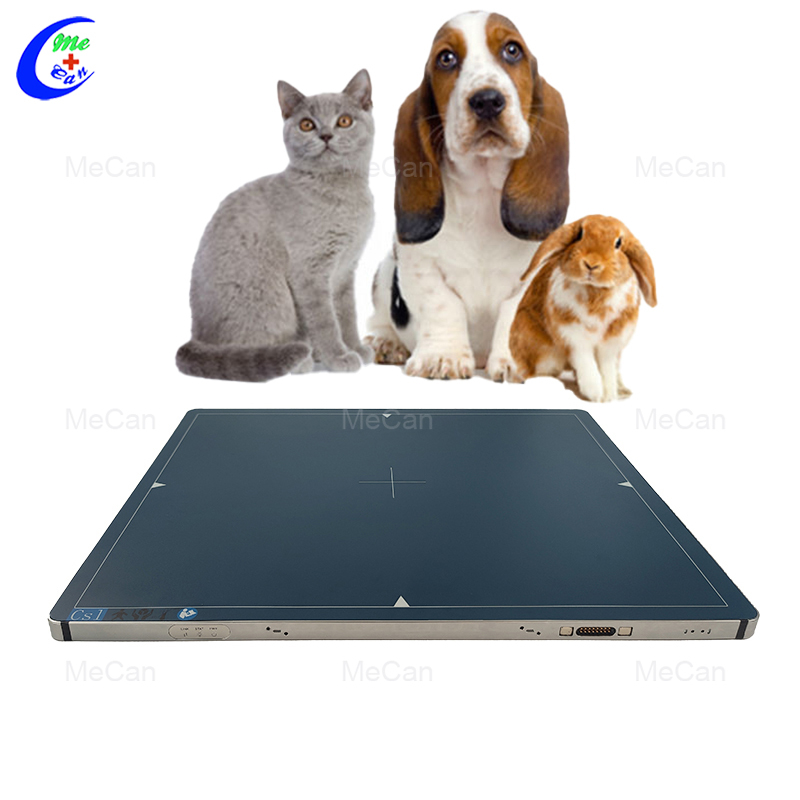

High Quality Pet Veterinary Flat Panel Detector with Good Price
Model: MX-FPD4343V
Vet flat-panel detectors are a class of solid-state x-ray digital radiography devices similar in principle to the image sensors used in digital photography and video. They are used in both projectional radiography and as an alternative to x-ray image intensifiers (IIs) in fluoroscopy equipment.
Flat Panel Detector for Animal
Parameter | MX-FPD3543V | MX-FPD3543WLV | MX-FPD4343V | MX-FPD4343WLV |
Type | a-Si+ Csl | |||
Image size | 35*43cm | 35*43cm | 43*43cm | 43*43cm |
14*17 inch | 14*17 inch | 17*17 inch | 17*17 inch | |
Pixel pitch(µm) | 140µm | |||
Pixels Matrix | 2560*3072 | 2560*3072 | 3072*3072 | 3072*3072 |
A/D(bit) | 16bit | |||
spatial resolution | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm |
Weight | 3.0kg | 3.0kg | 3.7kg | 3.7kg |
Dimensions (cm) | 38.3*46*1.5 | 38.3*46*1.5 | 46*46*1.5 | 46*46*1.5 |
Water tightness | IP54 | IP54 | IP54 | IP54 |
Battery stand by | No | 7H | No | 7H |
wireless | No | yes | No | yes |
More details of Vet Flat Panel Detector
Test images of our digital wired x ray panel detector:
