MeCan Medical Best Medical Equipment Trolley Color Doppler Ultrasound Machine Company - MeCan Medical, Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%. Applications:Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal. If you are interested in the Ultrasound Machine, please contact us anytime.
Quantity: | |
---|---|

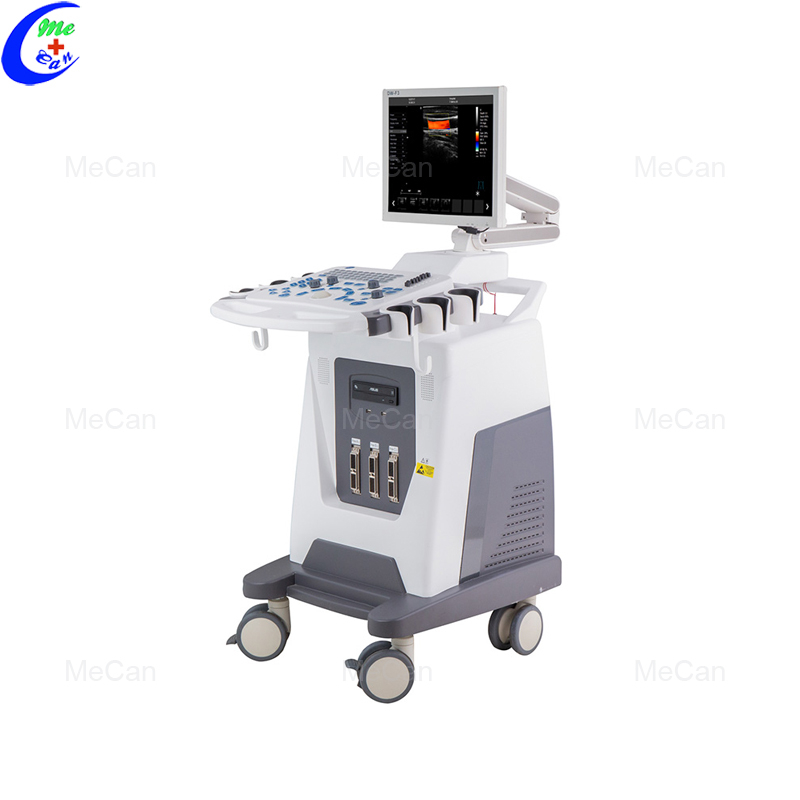

Medical Equipment Trolley Color Doppler Ultrasound Machine
Model:MCU-CD026
Features:
1.Ultrasonic host operating system: Windows operating system
2.Applications:Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
3.Probes:Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volume probe
4.Applications and report:Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.
5.carotid artery intima measurement thickness(IMT)
6.Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
7.Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.
Specification:
Display | 17 inch LED medical display |
Probe connector | 3 active |
Operation interface | English (more languages as option) |
Display mode | B、B+B、4B、B+M、M、C、PW、B/C、B/C/PW、B/PW |
Focus | 4 segments |
Body mark | ≥57 |
Image processing | Up/Down, Left/Right, Angular variation, Reverse |
Measurement | Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed. |
Application | Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight. |
Character display | Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing) |
Cine loop | ≥ 600 frames, continuous playback or view one by one. |
Storage | Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device |
Gray scale | 256 levels |
Puncture guide | Available |
Gravel positioning | Available |
Dynamic range | 0-270dB |
TGC control | 8 segments |
Pre-processing | Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on. |
Post-processing | Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pu lse repetition frequency) and so on. |
Blind zone | ≤4mm |
Max display depth | 320mm |
Geometric accuracy | horizontal ≤ 5%, vertical ≤ 5% |
Resolution | lateral ≤ 2mm, axial ≤ 1mm |
External interface | HDMI, USB, DICOM 3.0 |
Display magnification | 16 kinds |
Frame rate | 5-1016fps |
Scanning range | 5% - 100% |
Gain adjustment | Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15 |
Image optimization | 6 level adjustable |
Smoothing | 8 level adjustable |
Edge enhancement | 8 level adjustable |
PRF | 16 level adjustable |
Gray scale curve | 16 level adjustable |
Acoustical power | 15 level adjustable |
Hard Disc Storage | 120G SSD |
More picturres of the MCU-CD026 Color Droppler Ultrasound Scanner:
Medical Equipment Trolley Color Doppler Ultrasound Machine
Model:MCU-CD026
Features:
1.Ultrasonic host operating system: Windows operating system
2.Applications:Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
3.Probes:Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volume probe
4.Applications and report:Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.
5.carotid artery intima measurement thickness(IMT)
6.Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
7.Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.
Specification:
Display | 17 inch LED medical display |
Probe connector | 3 active |
Operation interface | English (more languages as option) |
Display mode | B、B+B、4B、B+M、M、C、PW、B/C、B/C/PW、B/PW |
Focus | 4 segments |
Body mark | ≥57 |
Image processing | Up/Down, Left/Right, Angular variation, Reverse |
Measurement | Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed. |
Application | Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight. |
Character display | Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing) |
Cine loop | ≥ 600 frames, continuous playback or view one by one. |
Storage | Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device |
Gray scale | 256 levels |
Puncture guide | Available |
Gravel positioning | Available |
Dynamic range | 0-270dB |
TGC control | 8 segments |
Pre-processing | Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on. |
Post-processing | Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pu lse repetition frequency) and so on. |
Blind zone | ≤4mm |
Max display depth | 320mm |
Geometric accuracy | horizontal ≤ 5%, vertical ≤ 5% |
Resolution | lateral ≤ 2mm, axial ≤ 1mm |
External interface | HDMI, USB, DICOM 3.0 |
Display magnification | 16 kinds |
Frame rate | 5-1016fps |
Scanning range | 5% - 100% |
Gain adjustment | Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15 |
Image optimization | 6 level adjustable |
Smoothing | 8 level adjustable |
Edge enhancement | 8 level adjustable |
PRF | 16 level adjustable |
Gray scale curve | 16 level adjustable |
Acoustical power | 15 level adjustable |
Hard Disc Storage | 120G SSD |
