Are you considering adopting a dry electrolyte analyzer for your hospital, clinic, or laboratory, or planning to replace a traditional wet chemistry system?This guide addresses the most common questions we've gathered from clinics and distributors, directly tackling your concerns about cost, ease of use, and accuracy. We'll clear up the confusion around the dry vs wet electrolyte analyzer debate, explain the core dry electrolyte analyzer working principle, detail the standard electrolyte analyzer test list, and show you why a robust POCT electrolyte analyzer is the strategic choice for point-of-care settings. Read on to find clear, practical answers.
What is a Dry Electrolyte Analyzer?
A dry electrolyte analyzer is a compact, often portable diagnostic device designed for point-of-care testing. The “dry” in its name refers to its core technology: it utilizes disposable test cards with all necessary chemical reagents pre-packaged and dried within a self-contained cartridge. This innovative dry electrolyte analyzer design fundamentally eliminates the need for liquid reagents, complex tubing, and daily maintenance. It is purpose-built for scenarios demanding rapid results and operational resilience—such as hospital emergency rooms, critical care units, remote clinics, or even field medicine—where stable laboratory infrastructure, consistent power, or dedicated space may be limited. Leading brands like MECANMED have refined this technology, proving that a well-engineered dry electrolyte analyzer is a reliable and indispensable tool in modern medical diagnostics.

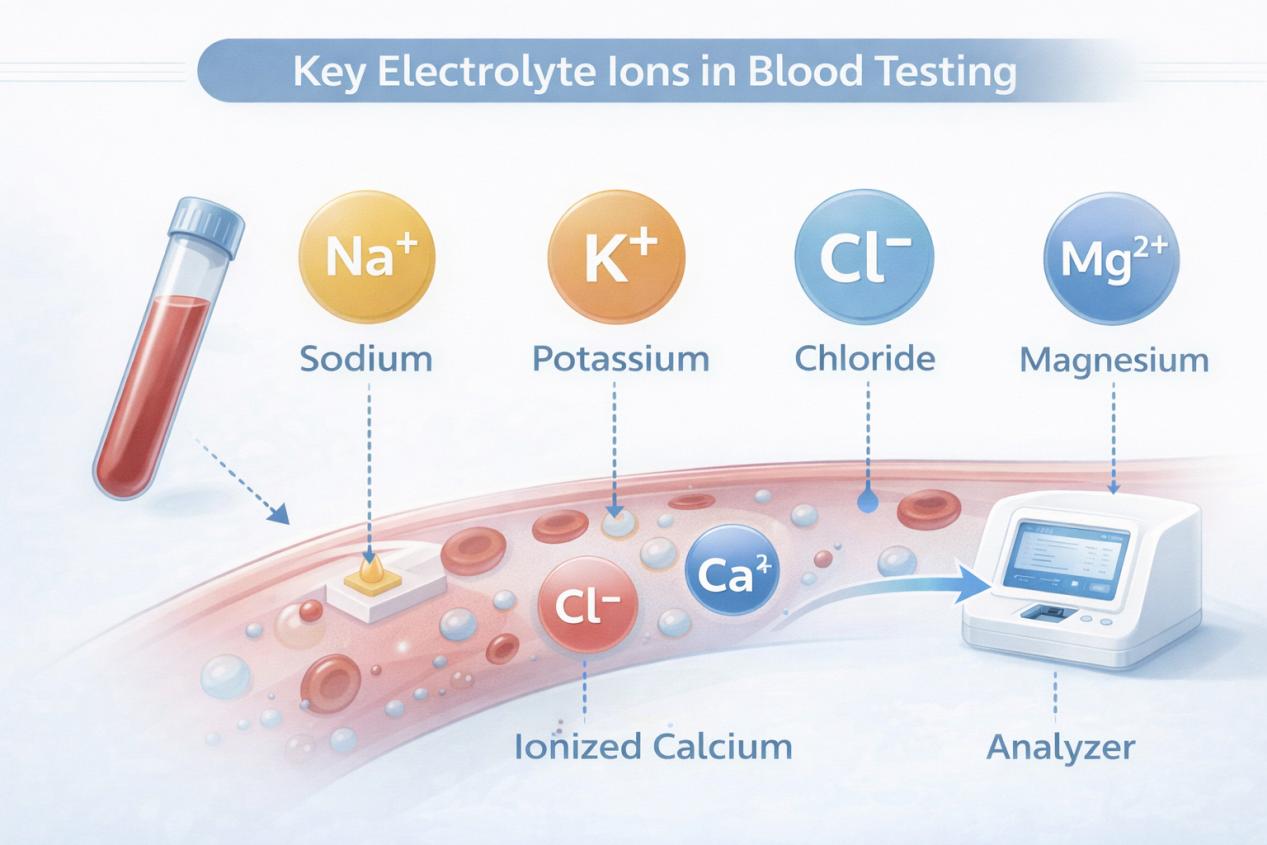

What Does a Dry Electrolyte Analyzer Measure?
Dry electrolyte analyzers measure key ions in blood that are essential for maintaining fluid balance, nerve function, and cellular activity. The most common parameters include sodium, potassium, and chloride.
Parameter |
Clinical Significance |
Sodium (Na⁺) |
Fluid balance and nerve function |
Potassium (K⁺) |
Cardiac and muscle activity |
Chloride (Cl⁻) |
Acid-base balance |
Ionized Calcium (optional) |
Neuromuscular function |

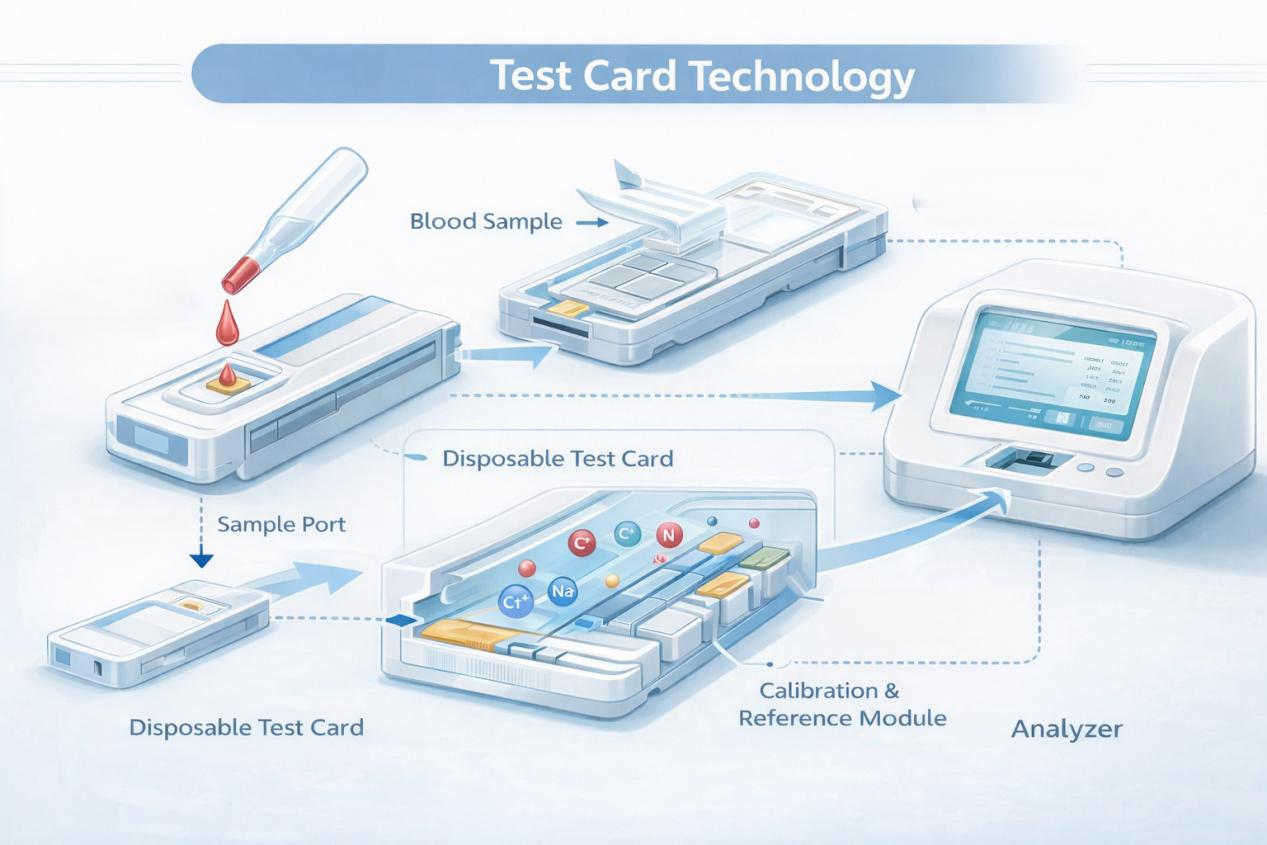

How Does a Dry Electrolyte Analyzer Work?

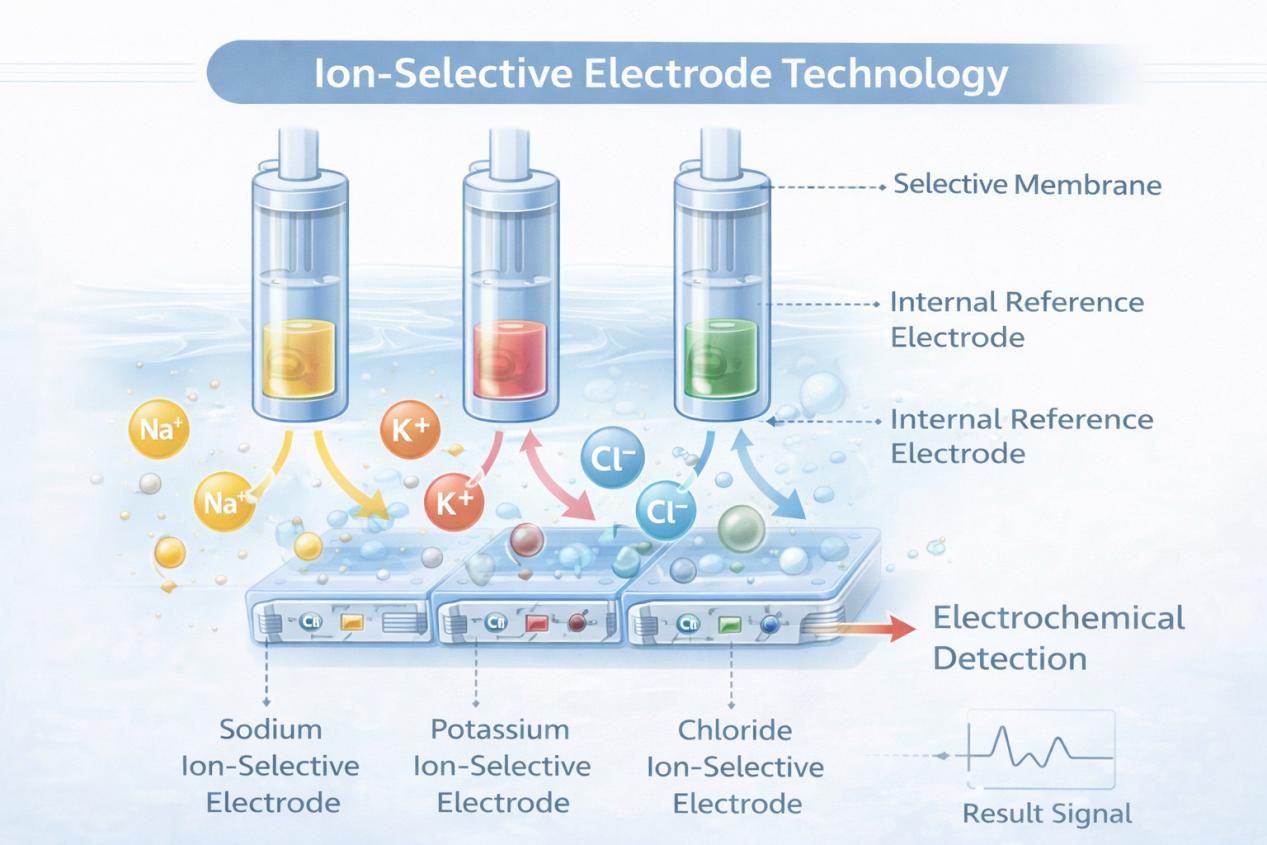

Dry electrolyte analyzers typically use ion-selective electrode (ISE) technology integrated into disposable reagent cards.
The testing process generally includes three steps:
1. Sample Loading
A small volume of whole blood, serum, or plasma is applied to the test card.
2. Plasma Separation and Ion Detection
The system separates plasma and measures electrolyte concentration using ion-selective electrodes.
3. Automated Result Calculation
The analyzer converts electrical signals into electrolyte concentrations and displays results within minutes.
Dry vs Wet Electrolyte Analyzer: The Definitive Comparison
Electrolyte analyzers are commonly categorized into dry electrolyte analyzers and wet electrolyte analyzers, based on the type of reagent system used for testing. While both technologies rely on ion-selective electrode (ISE) measurement principles, their operational design and maintenance requirements differ significantly.
Wet electrolyte analyzers use liquid reagents that circulate through internal tubing and reaction chambers. These systems are traditionally used in central laboratories with high testing volumes, where automated maintenance and reagent management are already integrated into laboratory workflows.
In contrast, dry electrolyte analyzers utilize pre-packaged dry reagent cards or slides. The reagents are embedded within the disposable test cartridge, eliminating the need for liquid reagent reservoirs, tubing systems, or daily cleaning procedures. This design simplifies operation and reduces maintenance requirements, making dry systems particularly suitable for point-of-care testing (POCT) environments.
Because of their compact structure and simplified workflow, dry electrolyte analyzers are widely used in emergency departments, intensive care units, small laboratories, and remote healthcare facilities where rapid results and operational reliability are critical.
Feature |
Dry Electrolyte Analyzer |
Wet Electrolyte Analyzer |
Reagent Type |
Dry reagent card or slide |
Liquid reagents |
Maintenance |
Minimal maintenance |
Requires regular cleaning and calibration |
System Design |
Compact, portable |
Typically larger benchtop systems |
Testing Environment |
POCT, ER, clinics, remote labs |
Central laboratories |
Workflow Complexity |
Simple, cartridge-based |
More complex fluidic system |
Risk of Contamination |
Lower |
Higher due to liquid reagent handling |
Which System Is Better?
Neither technology is universally superior; the appropriate choice depends on clinical workflow, testing volume, and operational environment.
Dry electrolyte analyzers are generally preferred for rapid testing, decentralized healthcare settings, and facilities seeking low-maintenance solutions, while wet analyzers remain common in high-throughput laboratory environments where large sample volumes are processed daily.

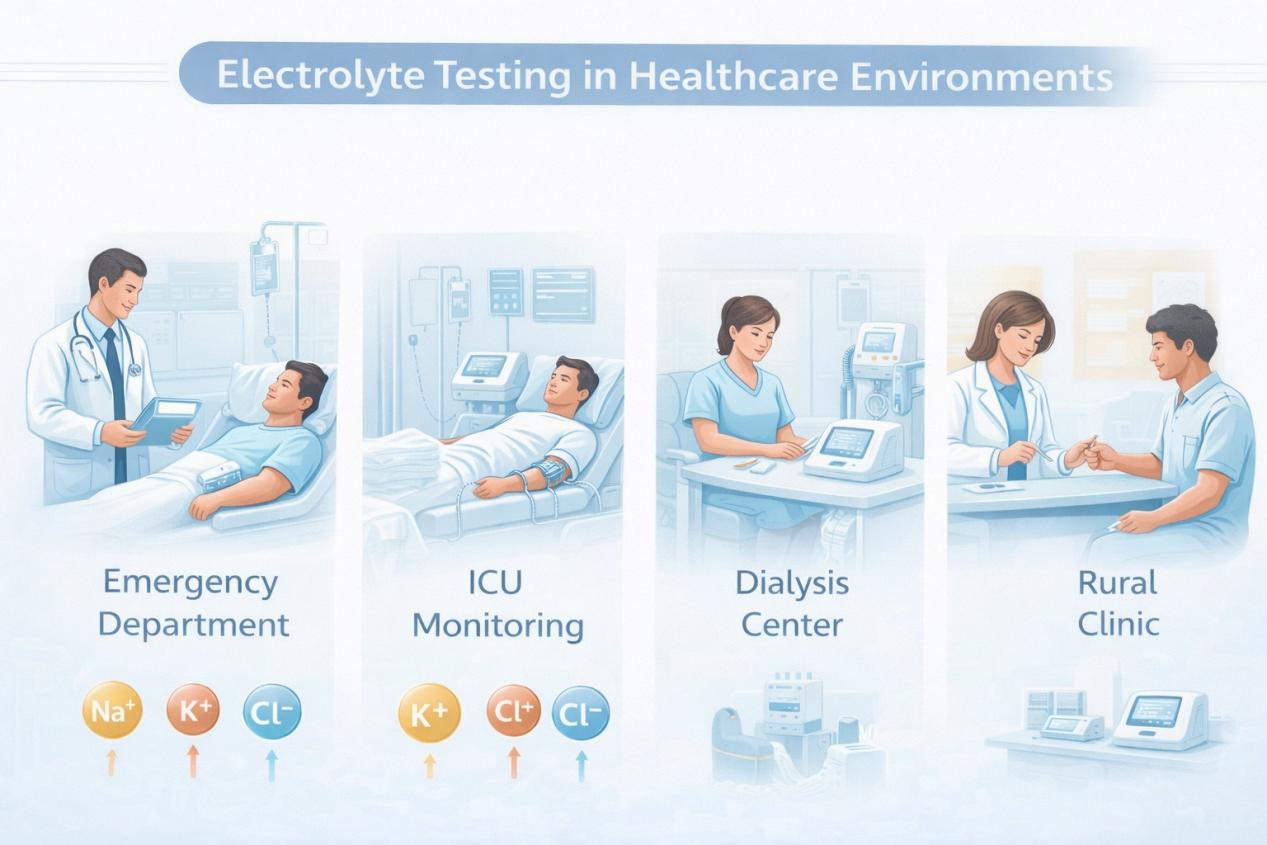

Application Scenarios: Where the Dry Analyzer is Indispensable
The dry electrolyte analyzer is not a one-size-fits-all solution; it is the definitive tool for specific, demanding environments. Its value becomes undeniable in scenarios such as:
Hospital Emergency Rooms (ER) & Intensive Care Units (ICU): Where seconds count in diagnosing dehydration, electrolyte imbalance, or drug toxicity.
Ambulances & Mobile Medical Units: Bringing critical lab testing to the patient during transport or in field rescue operations.
Resource-Limited & Rural Clinics: Operating in areas with frequent power outages, limited technical staff, or challenging environmental conditions (high heat, humidity).
Dialysis Centers: Requiring immediate, pre- and post-dialysis potassium monitoring for patient safety.
Low-Volume Physician Office Labs (POLs) & Pharmacies: Where running a large, wet-chemistry system is economically and logistically impractical.
What unites these diverse settings? They all prioritize speed, operational resilience, and simplicity over sheer testing volume. The dry electrolyte analyzer excels precisely because it is designed for these constraints: its battery backup conquers power instability; its minimal maintenance and intuitive operation overcome staff turnover; its rapid, reliable results enable swift clinical decisions. For professionals operating in these high-stakes, resource-conscious environments, choosing a dry electrolyte analyzer from a proven brand like MECANMED isn’t just an equipment purchase—it’s a strategic decision for reliable, on-demand diagnostics.

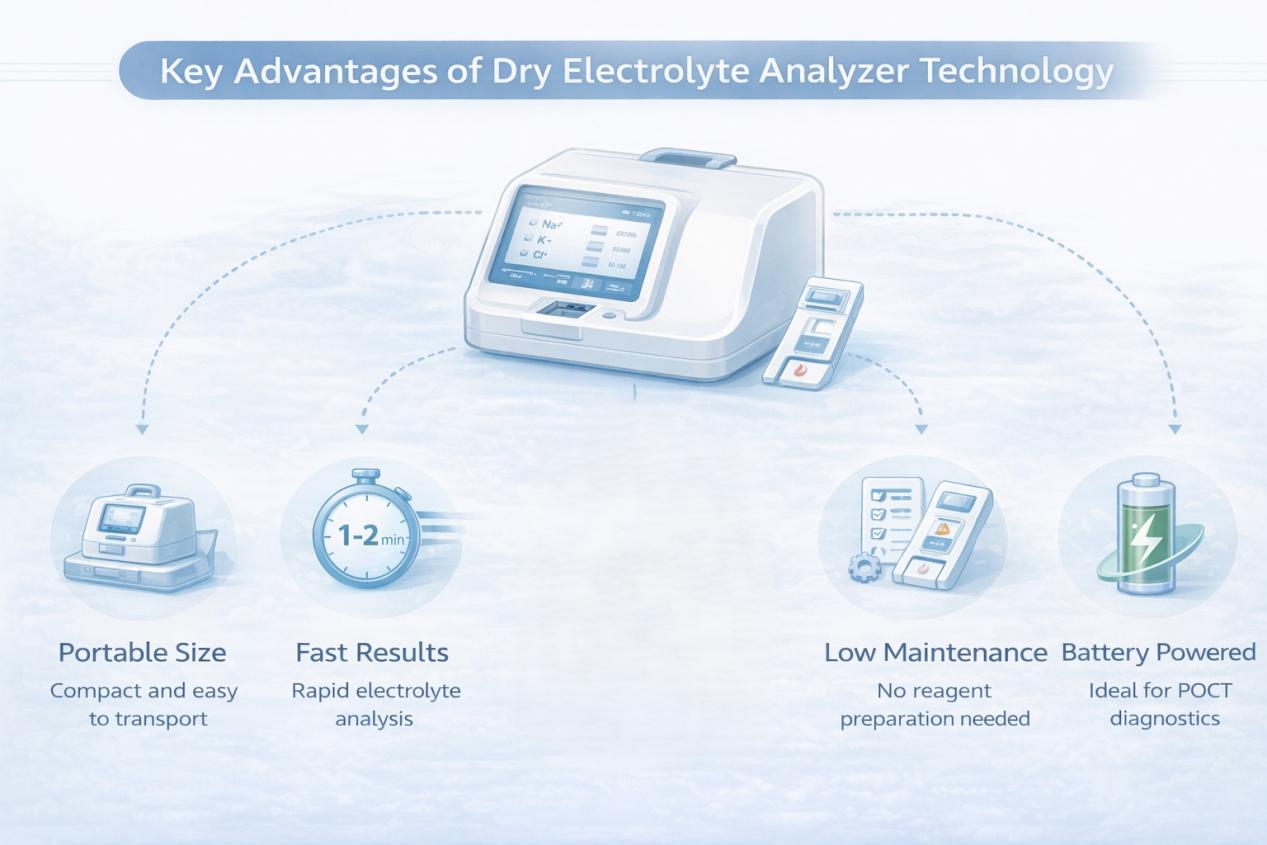

Typical Features of a Modern Dry Electrolyte Analyzer

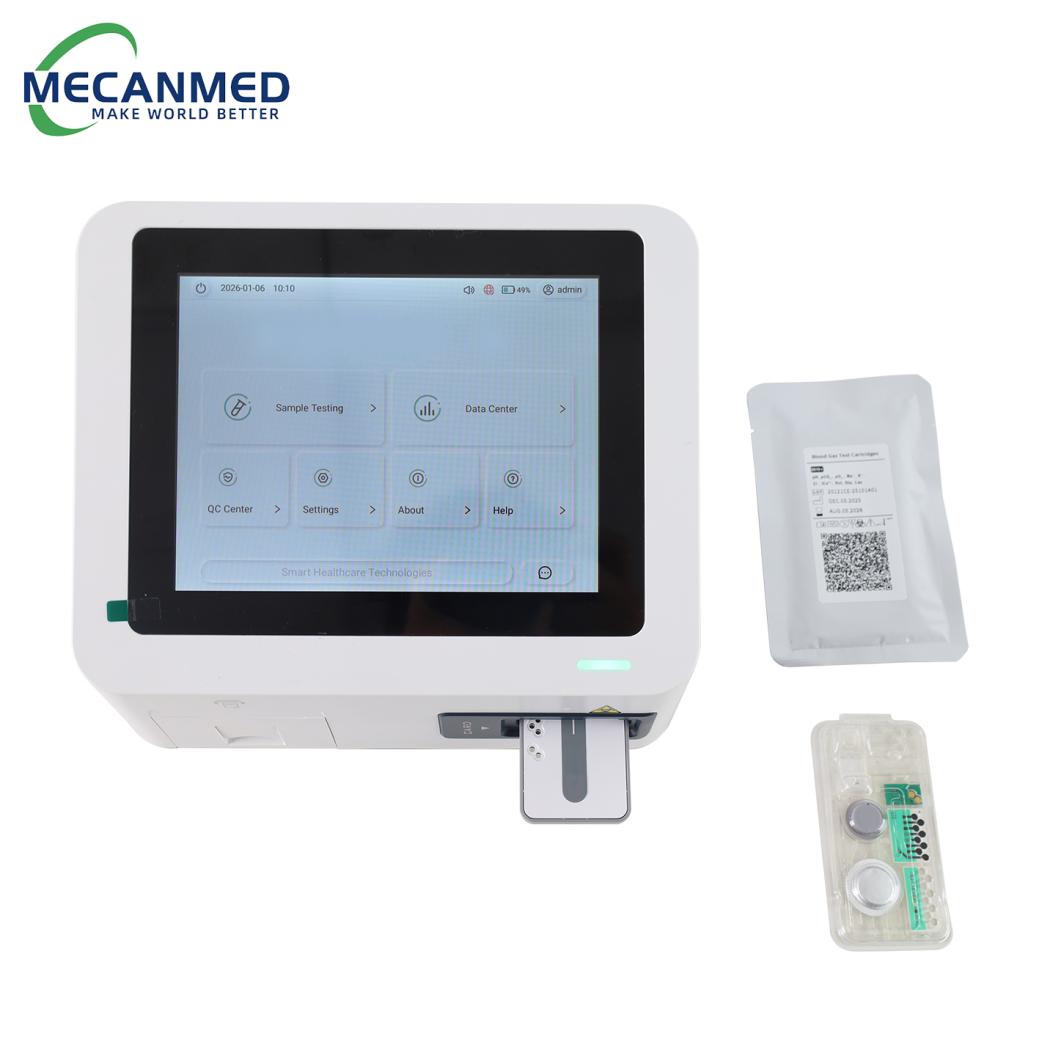

Devices designed for challenging markets, like the MECANMED dry electrolyte analyzer series, exemplify the modern dry electrolyte analyzer:
True Dry-Chemistry Cards: No liquid reagents to spill or degrade.
Portable & Battery-Powered: Ensures operation during blackouts.
Minimal Maintenance: The core advantage. No pumps or tubing to clean.
Intuitive Interface: Reduces training time significantly.
Direct Whole Blood Testing: Eliminates the need for a centrifuge.
When selecting a POCT electrolyte analyzer, these features are non-negotiable for success in tough conditions. Selecting a dry electrolyte analyzer with these features is crucial for success in markets like the Philippines or across Africa.
Frequently Asked Questions (FAQ)
Q: How accurate are dry electrolyte analyzers compared with wet systems?
A: Modern dry electrolyte analyzer devices use the same ISE principle as central labs. Each card is factory-calibrated, ensuring lab-comparable results. The dry electrolyte analyzer working principle guarantees clinical-grade accuracy.
Q: What’s the cost-benefit?
A: While per-test cost is higher, the Total Cost of Ownership (TCO) for a dry electrolyte analyzer is often lower in low-volume settings. You save on maintenance, labor, waste disposal, and downtime. This makes the POCT electrolyte analyzer a cost-effective solution.
Q: What’s the most common issue?
A: Pre-analytical errors (e.g., insufficient sample) cause most alerts. The instrument itself is highly reliable, and most alerts are related to pre-analytical sample issues. Proper training mitigates this.
Q: Can it connect to an LIS?
A: Yes. Most dry electrolyte analyzer models offer connectivity (USB, Bluetooth) for data transfer, enhancing traceability.
Conclusion & Next Steps
The dry electrolyte analyzer is a strategic solution for decentralized healthcare. Its simplicity and robustness resolve the core pain points highlighted in the dry vs wet electrolyte analyzer debate. It brings critical testing to the point of care, especially where traditional labs cannot function. The analyzer's working principle ensures quality, while its design ensures unwavering uptime. For decentralized healthcare environments, dry electrolyte analyzers often provide a more practical and reliable solution.
For a reliable POCT electrolyte analyzer built for real-world conditions, consider solutions from experienced brands. A dry electrolyte analyzer like those from MECANMED is designed to be a workhorse, turning clinical challenges into routine diagnostics.
If you would like to learn more about selecting the right electrolyte analyzer for your laboratory or clinic, our team can provide technical specifications, application guidance, and deployment recommendations.
[Contact us for a detailed specs sheet, a sample clinic-site TCO analysis, and a practical operator training checklist tailored for high-turnover staff.]
