What Is a Dry Blood Gas Analyzer and How Does It Work?
A dry blood gas analyzer is a diagnostic device that measures critical parameters, like pH, oxygen (pO₂), carbon dioxide (pCO₂), and electrolytes, using dry-phase chemistry sealed ins
ide disposable cartridges.
Unlike traditional analyzers that rely on internal pumps and liquid reagents, dry analyzers operate without moving parts. Blood is applied to a cartridge, where chemical sensors react with analytes and convert signals into clinical values.
This closed, self-contained system minimizes maintenance and enables rapid, point-of-care testing in emergency rooms, ICUs, and field settings. To fully understand the benefits of dry analyzers, it’s important to look at both their design and their working principle, which this guide breaks down step by step.
Clinical Relevance of Blood Gas Testing in Acute and Critical Care
Blood gas testing is critical in emergency and intensive care medicine, where rapid insight into a patient's physiological status can determine immediate life-saving actions.
In settings like the ICU, trauma bay, operating room, or emergency department, clinicians rely on blood gas results to guide ventilation adjustments, oxygen therapy, intubation decisions, and fluid or electrolyte management. The ability to assess a patient’s respiratory function and acid-base balance within minutes makes blood gas analysis a core tool in high-acuity care.
Once the sample is collected, the analyzer provides a panel of both measured and calculated values. Most systems report 10 directly measured parameters, including pH, partial pressure of carbon dioxide (pCO2), partial pressure of oxygen (pO2), bicarbonate (HCO3-), oxygen saturation, and lactate.
Depending on the analyzer, additional values such as sodium, potassium, and calcium may also be measured. Up to 24 calculated results are typically generated automatically, supporting a broader clinical picture without additional testing.
What Is a Dry Blood Gas Analyzer?

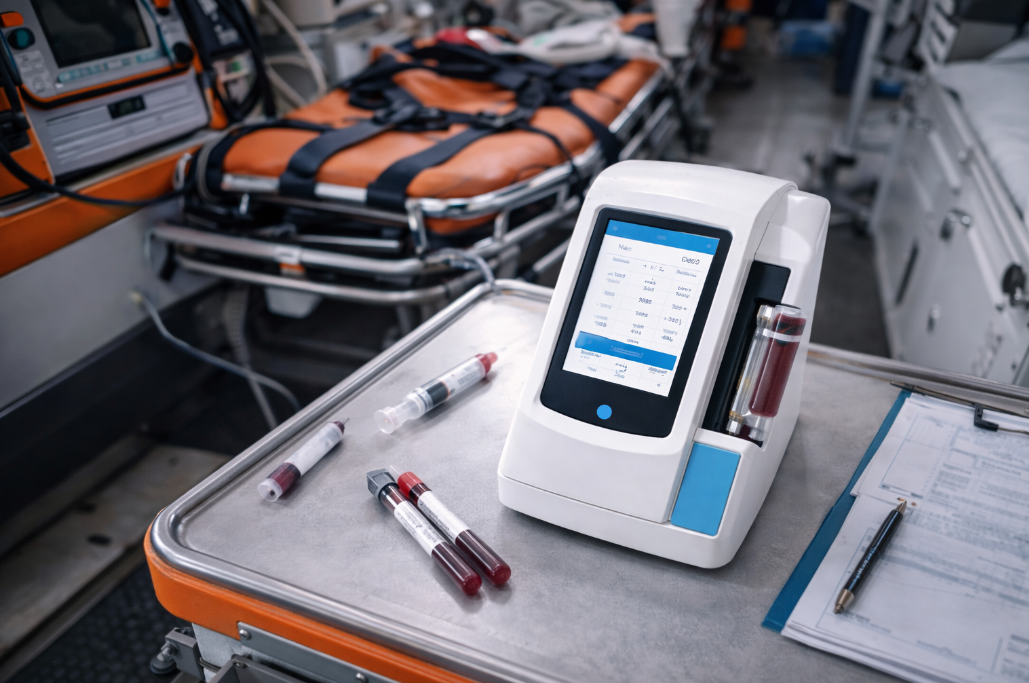

A dry blood gas analyzer is a diagnostic device that performs blood gas testing using dry chemistry technology. This means all required reagents are embedded in solid-phase layers within disposable cartridges.
Unlike traditional analyzers that rely on liquid reagents stored in internal reservoirs, these systems operate without fluidic pathways, pumps, or tubing.
l Each cartridge contains sealed, pre-calibrated chemical sensors that activate upon contact with whole blood.
l The analytes measured typically include pH, pCO₂, pO₂, and electrolytes like sodium, potassium, and chloride.
l Some advanced models support hematocrit, glucose, or lactate, depending on cartridge configuration.
l Sample volumes are low (typically 100-150 µL), and results are delivered within 4±1 minutes.
Such a dry chemistry blood gas analyzer format significantly reduces maintenance and eliminates the risk of cross-contamination. It also allows deployment in non-laboratory environments, including bedside, transport, and field settings.
One example of this dry chemistry, cartridge based design is the MCL0698 Blood Gas Analyzer, a model frequently used in point-of-care and emergency settings.
How Dry Blood Gas Analyzers Work
To understand the dry blood gas analyzer working principle, it requires familiarity with its internal sensor structure, signal processing, and reagent design.
In practical terms, this workflow is the same across most modern dry analyzers, including compact systems like the MCL0698, which are designed to minimize manual steps at the point of care.
Step 1: Just Apply the Sample
You only need a small drop of arterial blood (100–150 µL). No tubes, no complex prep, just apply the sample to a single-use cartridge. The device handles the rest automatically.
Step 2: Testing Starts Instantly
As soon as the blood enters the cartridge, it reacts with built-in dry chemicals that detect key values like pH, oxygen, CO₂, and electrolytes. There’s no need for liquid reagents or moving parts, which means fewer errors and no mess.
Step 3: No Calibration, No Delays
Each cartridge is pre-calibrated during manufacturing, so the analyzer delivers accurate results without daily setup. There’s no need for manual checks, which saves you time and reduces the chance of error.
Step 4: Fast, Accurate Results in Minutes
Within 2 to 3 minutes, you get clinically reliable numbers in the right units, ready to act on. Most systems even run automatic quality checks before displaying results, so you can trust what you see.
Step 5: Discard and Move On
Once the test is done, just toss the cartridge. Everything, including the blood sample and chemicals, stays contained. There’s nothing to clean, and the analyzer is ready for the next patient immediately.
Dry vs Wet Reagent Blood Gas Analyzers – Key Differences for Clinical Use
While both systems offer accurate results, dry blood gas analyzers, such as the MCL0698, are designed for speed, mobility, and minimal maintenance. The table below outlines the differences and helps identify which system best fits your clinical environment.
Category |
Dry Blood Gas Analyzer |
Wet Reagent Blood Gas Analyzer |
Maintenance & Calibration |
No daily calibration needed; each cartridge is pre-calibrated and self-contained, saving time in busy care settings |
Requires regular calibration, daily quality checks, and staff training to maintain accuracy |
Portability & Form Factor |
Compact and portable, easily used bedside, in ambulances, or remote clinics |
Large and fixed, best suited to central lab installations |
Reagent Storage & Shelf Life |
Cartridges are stable at room temperature with long shelf life, ideal for variable environments |
Liquid reagents need refrigeration and expire faster, requiring inventory control |
Test Menu Coverage |
Offers essential parameters (pH, pCO₂, pO₂, key electrolytes); perfect for urgent care decisions |
Broader menu with co-oximetry and metabolites, best for full lab panels |
Clinical Use Cases |
Ideal for emergency rooms, ICUs, field teams, and facilities without full labs; supports real-time decisions |
Better for high-volume labs with stable infrastructure and trained lab staff |
Throughput & Scalability |
Designed for on-demand, moderate volume testing in flexible locations |
Optimized for continuous, high-volume workflows within hospitals or lab networks |
Risk of Error & Contamination |
Single-use cartridges eliminate carryover, reduce infection risk, and simplify training |
Fluid lines and internal tubing increase risk of clogs, contamination, or inconsistent results |
Application of Dry Analyzers in Emergency and Critical Care Settings
Dry blood gas analyzers are designed around these needs, and systems such as the MCL0698 Blood Gas Analyzer illustrate how this design translates into real world use.
l Emergency Departments
Emergency care prioritizes rapid decision-making with minimal setup. In these settings, dry analyzers support immediate testing by eliminating calibration steps and reagent preparation.
The MCL0698 completes analysis in approximately 4±1 minutes using arterial or venous whole blood, allowing clinicians to assess acid–base status, oxygenation, and lactate early in the treatment process without delaying intervention.
l Intensive Care Units
ICU monitoring requires consistent performance across repeated measurements. The MCL0698 performs automatic self calibration before each test and applies a dual quality control system, supporting stable results during long term patient management.
By measuring 10 parameters and calculating up to 24 additional values in a single run, it reduces the need for frequent sampling while maintaining clinical coverage.
l Operating Rooms and Perioperative Care
During surgical procedures, testing must integrate smoothly into constrained workflows. Dry analyzers operate independently of centralized laboratory systems, and the compact design of the MCL0698 allows placement near the point of care.
Its sealed cartridge process limits handling steps, supporting timely intraoperative assessment without interrupting surgical flow.

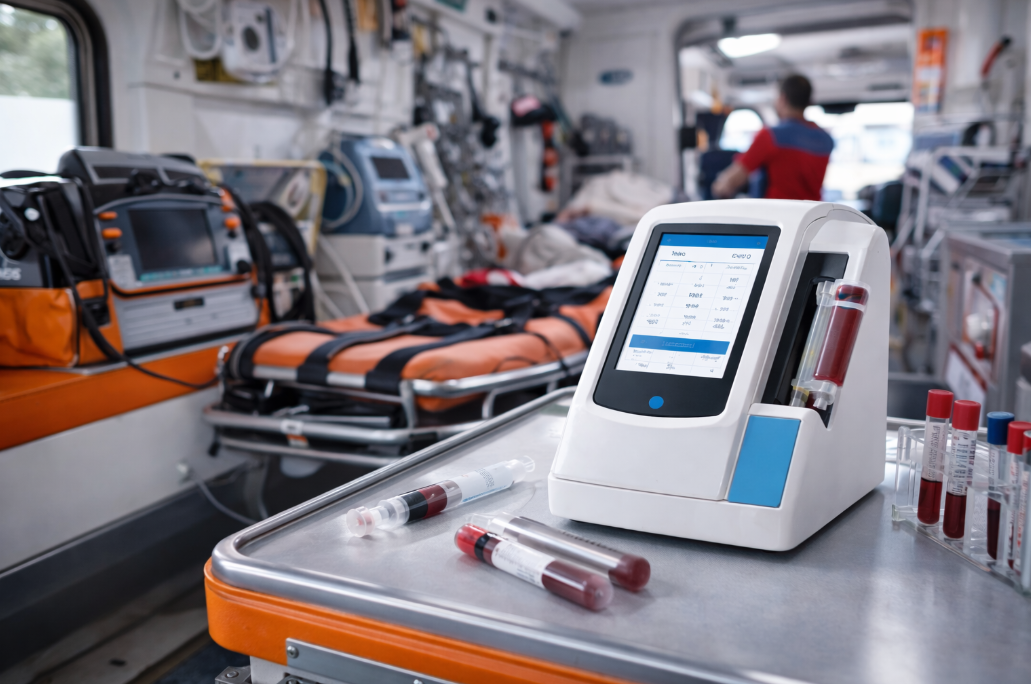

l Transport, Rural, and Mobile Care
In transport and decentralized settings, access to power, refrigeration, and laboratory infrastructure is often limited. The MCL0698 weighs 3.0±0.5 kg, includes a built in rechargeable battery, and uses room temperature stable cartridges.
These characteristics allow blood gas testing to be performed reliably in ambulances, rural clinics, and field environments where traditional analyzers are impractical.
Use Considerations for Dry Blood Gas Analyzers
Dry analyzers are highly effective in urgent care settings when matched with the right clinical use case. Below are key considerations for optimal use:
l Focused Test Menu
Designed for speed and simplicity, dry analyzers prioritize core blood gas and electrolyte values. Extended diagnostics may still require lab-based systems.
l Cost Per Test
Cartridge-based pricing is predictable. In moderate-volume settings, lower maintenance and faster workflows often balance the per-use cost.
l Storage Requirements
Cartridges are room-temperature stable but must be stored correctly and rotated before expiration, standard in most clinical inventory systems.
l Designed for Rapid Results, Not Trend Analysis
Ideal for point-of-care and emergency testing. Not intended for high-throughput batch processing or long-term data trending.
How to Evaluate Fit in a Dry Blood Gas Analyzer
Choosing a diagnostic system is about clinical alignment. If your environment prioritizes time-sensitive interventions, low infrastructure, or mobile deployment, then your testing solution must reflect those priorities.
The practical value of a dry blood gas analyzer lies not just in its speed, but in how it reshapes testing workflows: fewer steps, fewer variables, and faster action. Models like the MCL0698 aren’t just alternatives to lab-based systems; they represent a different category of decision-making: one designed for situational clarity, not laboratory scale.
Before selecting a device, define what your setting demands. That answer will determine whether a dry analyzer belongs at the center of your care strategy. For facilities considering a dry analyzer, reviewing models like the MCL0698 can offer a practical starting point in aligning diagnostic tools with clinical realities.
