Product Description
Discover our advanced flat panel detector, your key to precision imaging. With high-resolution imaging capabilities, our x-ray flat panel detector ensures accurate and detailed diagnostics, making it an indispensable tool in veterinary clinics, medical imaging centers, and research institutions. Our customized solutions cater to both veterinary and medical applications, providing reliable performance that enhances quality control processes.
|

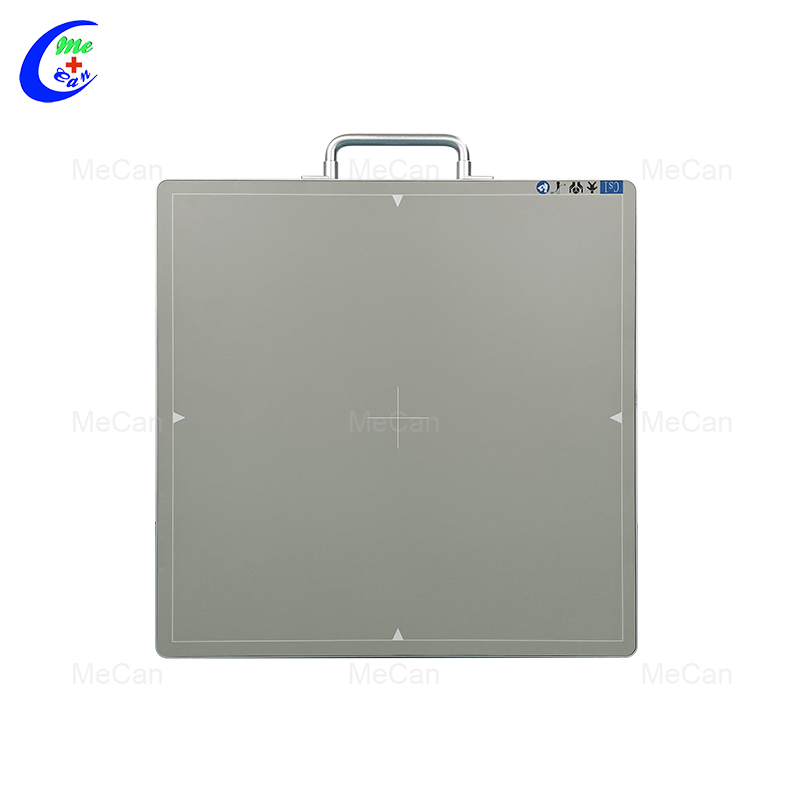

More Picture of Flat Pannel Detector

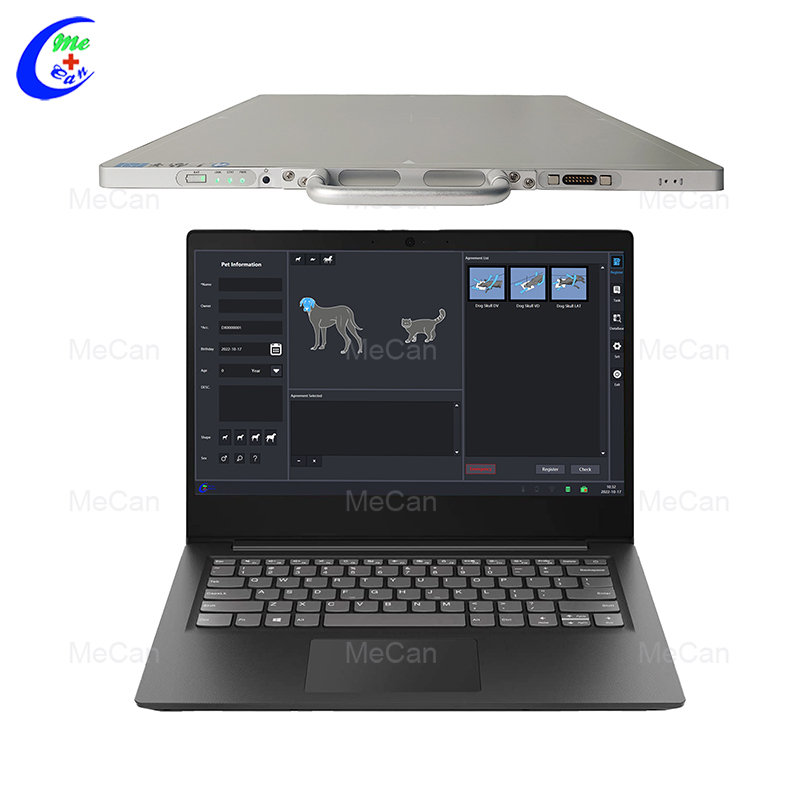

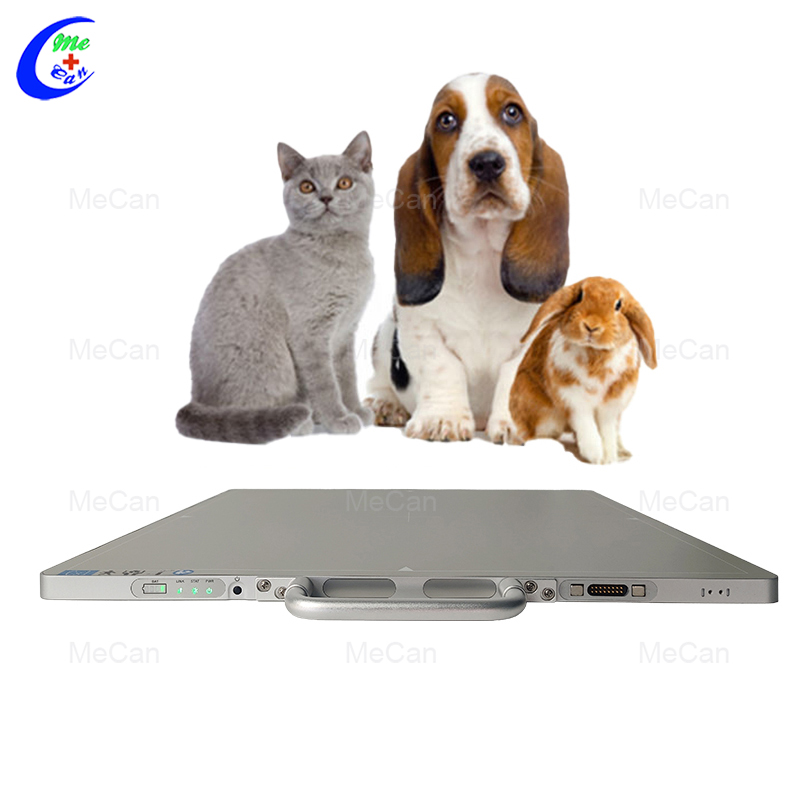

Use for Veterinary clinics

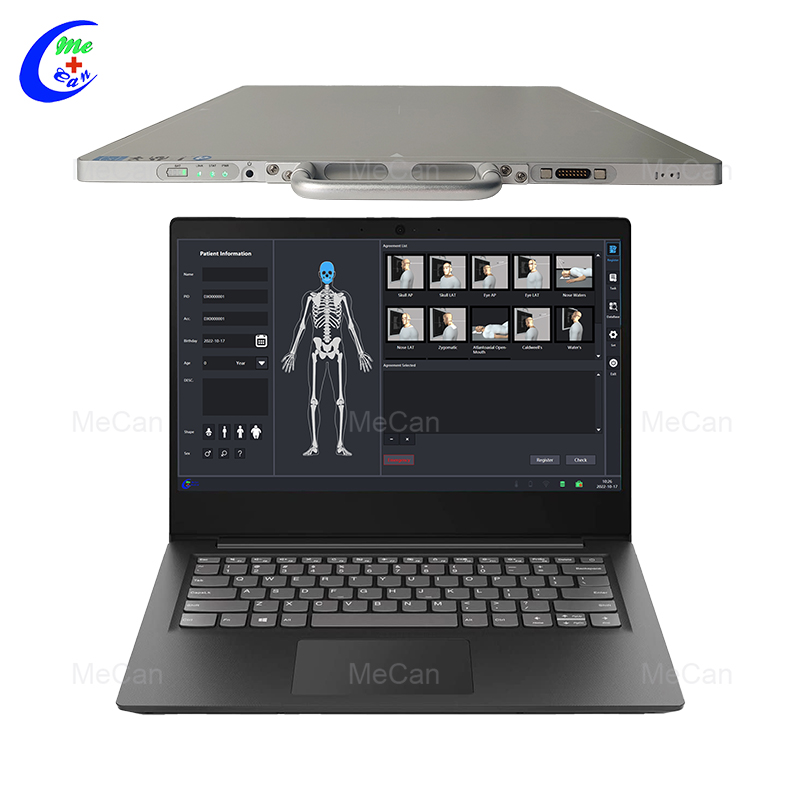

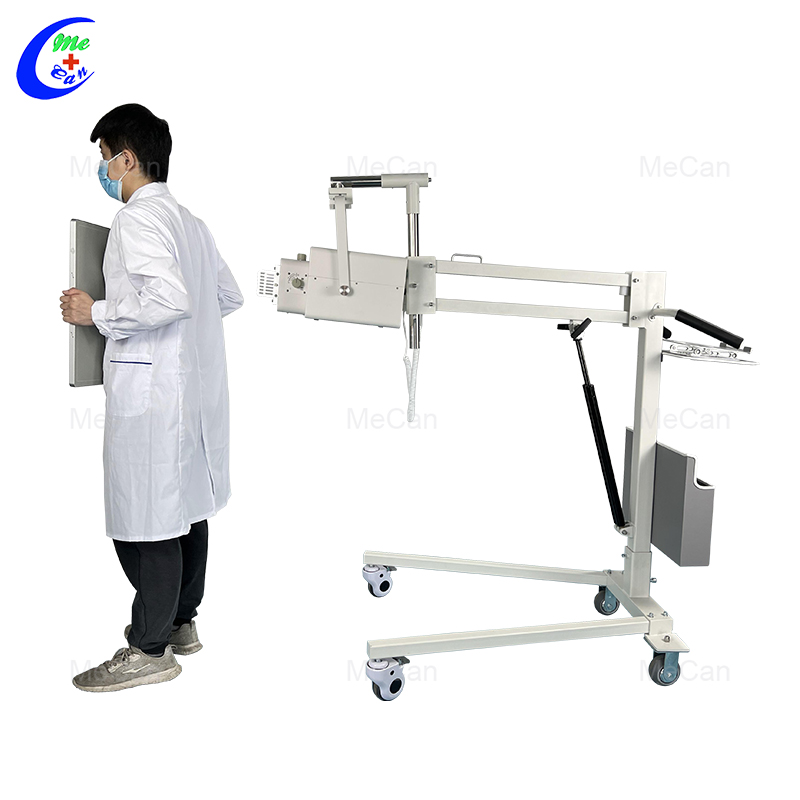

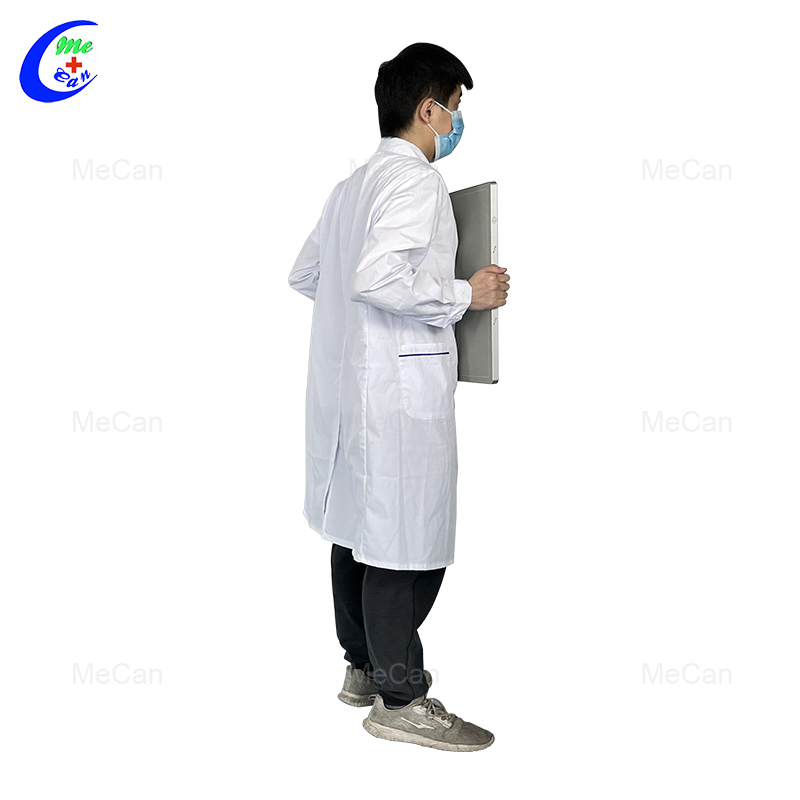

Use for Medical Field

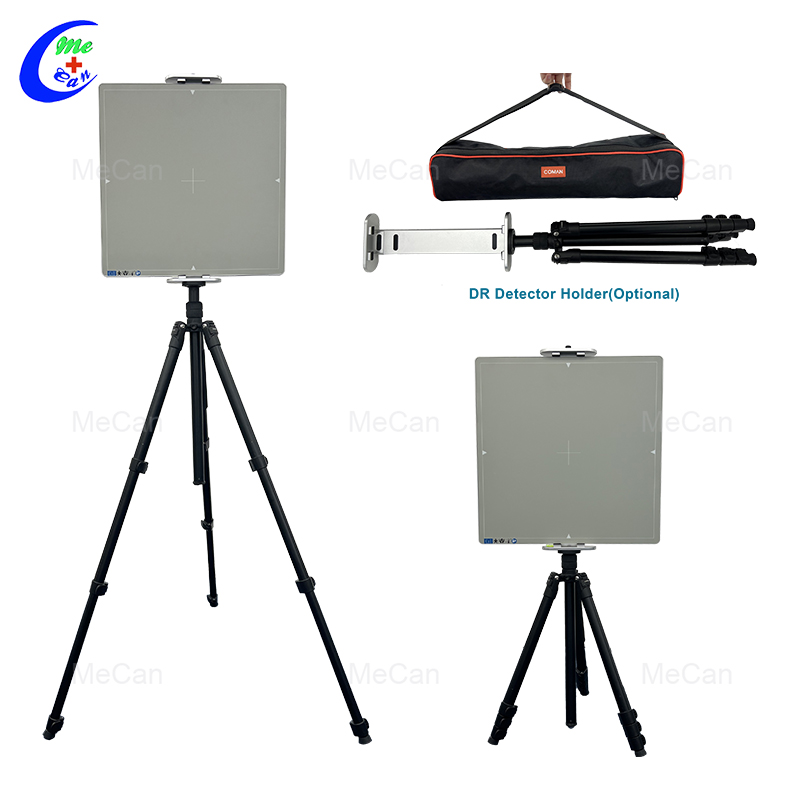

Use with portable Stand
|
Key Features About X-ray Flat Pannel Detector:
1. High-resolution imaging for accurate diagnostics
Capture intricate details for precise diagnostics.
2. Versatile Applications
Tailored solutions for veterinary and medical fields.
3. Cutting-Edge Technology
Advanced x-ray technology for non-destructive testing.
4. Reliable performance enhancing quality control processes
Consistent results that elevate quality control processes.
|
Technical parameters about FPD
Parameter | MX-FPD3543H | MX-FPD3543WL | MX-FPD4343H | MX-FPD4343WL |
Type | a-Si+ Csl |
Image size | 35*43cm | 35*43cm | 43*43cm | 43*43cm |
14*17 inch | 14*17 inch | 17*17 inch | 17*17 inch |
Pixel pitch(µm) | 140µm |
Pixels Matrix | 2560*3072 | 2560*3072 | 3072*3072 | 3072*3072 |
A/D(bit) | 16bit |
spatial resolution | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm |
Weight | 3.0kg | 3.0kg | 3.7kg | 3.7kg |
Dimensions (cm) | 38.3*46*1.5 | 38.3*46*1.5 | 46*46*1.5 | 46*46*1.5 |
Water tightness | IP54 | IP54 | IP54 | IP54 |
Battery stand by | No | 7H | No | 7H |
wireless | No | yes | No | yes |
|
Elevate Your Imaging Experience:
Experience imaging at its finest with MeCan's x-ray flat panel detector technology. Contact us now to delve deeper into our innovative solutions that are primed to meet your specific needs.
|
Applications:
Our flat panel detectors are highly versatile and find exceptional utility in:

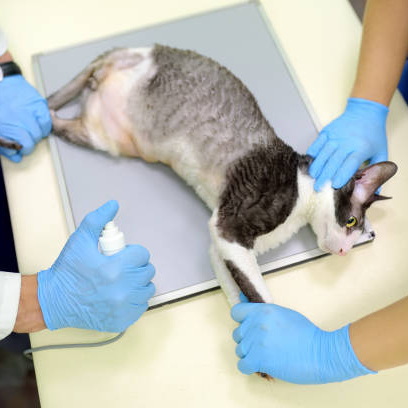

1）Veterinary clinics and hospitals
2）Medical imaging centers
3）Research institutions
