In Stock Invasive ICU Ventilators with Compressor VG70
Model:VG70

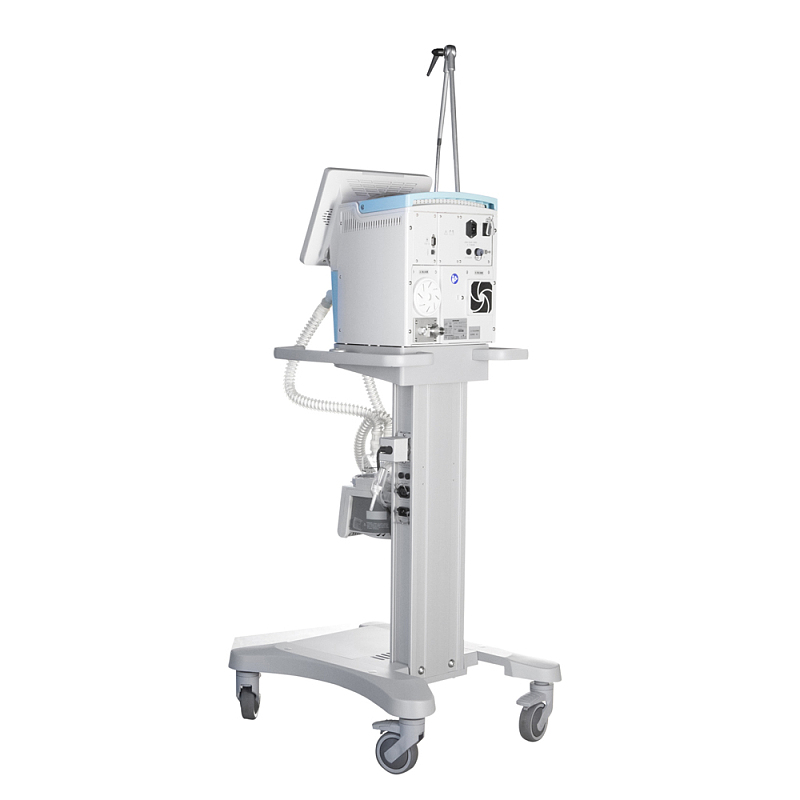

Superior Mobile ICU ventilator VG70
• Comprehensive ICU ventilator including BIVENT and PRVC
• Compact, big capacity battery, no air compressor, intra-hospital mobility

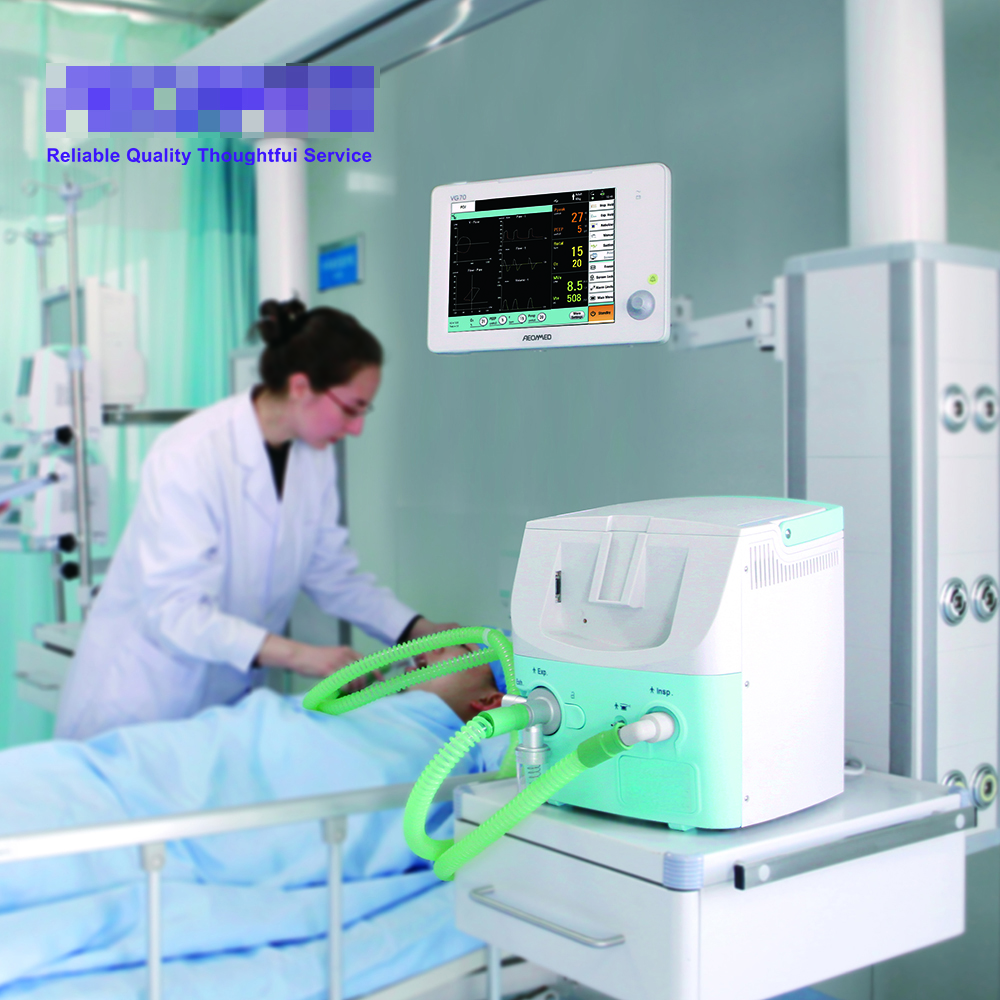

• Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Cost Effective Solution
• Unique metal-based, autoclavable, heated exhalation valve
• Built-in flow sensor, non-consumable design
• Upgradeable ventilation system software, with an available USB port
An Optimal Combination of Invasive and Noninvasive Ventilator
As noninvasive ventilation is used increasingly in a wide range of clinical situations, we offer a dual solution. VG70 combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU.
| Ventilation Settings |
|
| Ventilation Modes | • VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY • SIMV (VCV)+PSV, SIMV (PCV)+PSV, SIMV (PRVC)+PSV |
| • SPONT/CPAP+PSV |
| • BIVENT/APRV +PSV (optional) |
| • NIV/CPAP, NIV-T, NIV-S/T |
| Enhancements | • Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction • Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment |
| Parameters |
|
| Tidal volume (VT) | 20-2000ml |
| Respiratory rate (RR) | 1 to 80 bpm |
| Inspiratory time (Ti) | 0.2 to 9 s (adult), 0.2 to 5 s (pediatric) |
| Inspiratory flow (Flow) | 0 to 100 L/min (pediatric), 0 to 180L/min (adult) |
| Inspiratory pressure (Pinsp) | 5 to 70 mbar (or cmH2O) |
| Inspiratory pressure limit (Pmax) | 80 mbar (or cmH2O) |
| PEEP | 0 to 35 mbar (or cmH2O) |
| Tslope | 0 to 2 s |
| O2 concentration (FiO2) | 21 to 100 Vol% |
| Trigger sensitivity | 0.5 to 20 L/min (Flow trigger), |
| -20 to 0 mbar (or cmH2O) (Pressure trigger) |
| I/E ratio | 1/10 to 4/1 |
| Apnea alarm time | 10-60 seconds |
| Monitoring | • Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2) |
| • Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi • Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop |
| Alarms | Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low, VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low, End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection, Flow sensor error, Gas supply, Electrical supply & battery failure, Exhalation obstruction, Apnea backup for low frequency alarm |
| Dimensions (WxDxH) | 375mm x 395mm x 430mm |
| Weight | 17kg (37.5lbs) |
| Screen | 12.1"TFT color touch screen |
