Best Quality Medical Laboratory Equipment Open Reagent 3 Diff Auto Hematology Analyzer Factory

MeCan Medical Best Quality Medical Laboratory Equipment Open Reagent 3 Diff Auto Hematology Analyzer Factory,OEM/ODM, customized according to your requirements, we are very professional and we will provide the best service to you.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Type:Blood Analysis System

  • Place of Origin:CN;GUA

  • Instrument classification:Class II

  • Warranty:1 year

  • After-sale Service:Online Technical Support

  • Brand Name:MeCan

  • Model Number:MCL-KT-6300

Medical Laboratory Equipment Open Reagent 3 Diff Auto Hematology Analyzer price

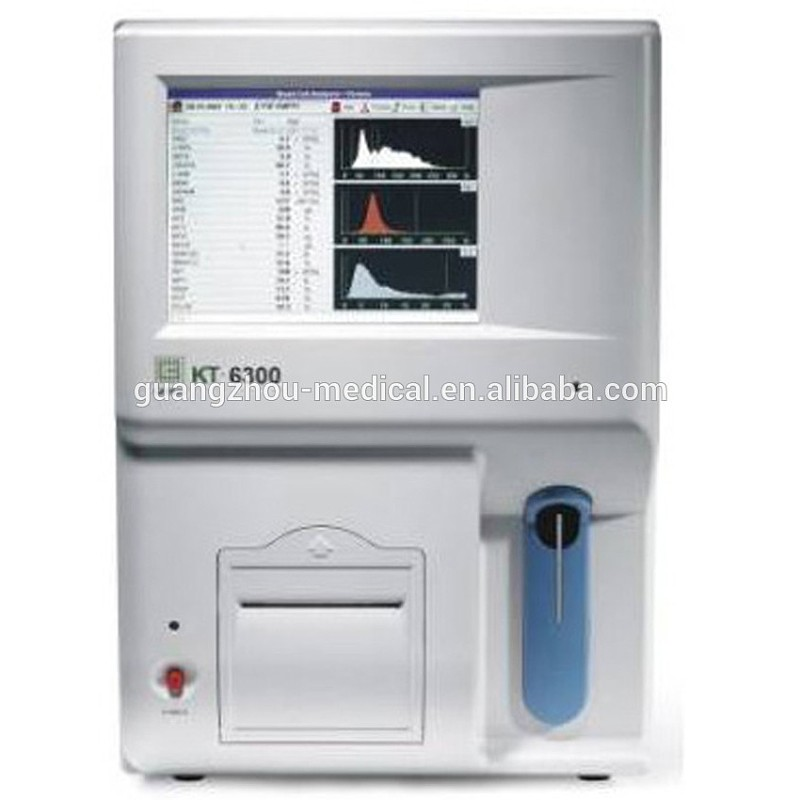

3 Diff Auto Hematology Analyzer

Model: MCL-KT-6300

KT-6300 Auto Hematology Analyzer.jpg

Performance of the Hematology Analyzer:


Precision,   CV











Carry over



Specifications of the Hematology Auto Analyzer:

Net weight: 18Kg

Language: English

Test channel: two channels

Throughput: 60 samples/hour


Test flow: fully auto and the blood don’t need dilute or other process

Parameter: 3 part differentiation of WBC,20 parameters + 3 histograms

Test principle: electrical resistance for counting and SFT method for HGB


Clot clear: high voltage burn and high pressure flush

Sample volume: 9.8μl peripheral blood or venous blood

QC mode: X,X-R,X-B,L-J, auto draw and print QC figure


Reagent: provide original reagent

Reference range type: newborn,children,male,female and universal

Memory: save more than 30000 sample’s detail results including histograms


Display: Large colour LCD, show all parameters and histograms at same screen

Input and output: keyboard,mouse,Parallel Port,RS232 serial port, can be connected to computer

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control


Printer: Inner thermal printer,can be connected to external computer and printer

Working Environment: Temperature:18°C~35°C;Humidity:40%RH-80%RH


Voltage: AC 175 V~265V,Auto adapt according to the input voltage

Dimension: 300 mm×400 mm×440mm(L×W×H)


Test Parameter of the Hematology Analyser:


WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT


WBC Histogram RBC Histogram PLT Histogram


Technical Parameter of the Hematology Equipment:


Sample volume: normal mode: 9.8μl, dilution mode: 20μl

Aperture diameter: WBC: 100μ m, RBC,PLT: 70μ m


Throughput: 60 samples/hour

Clot clear: high voltage burn and high pressure flush
