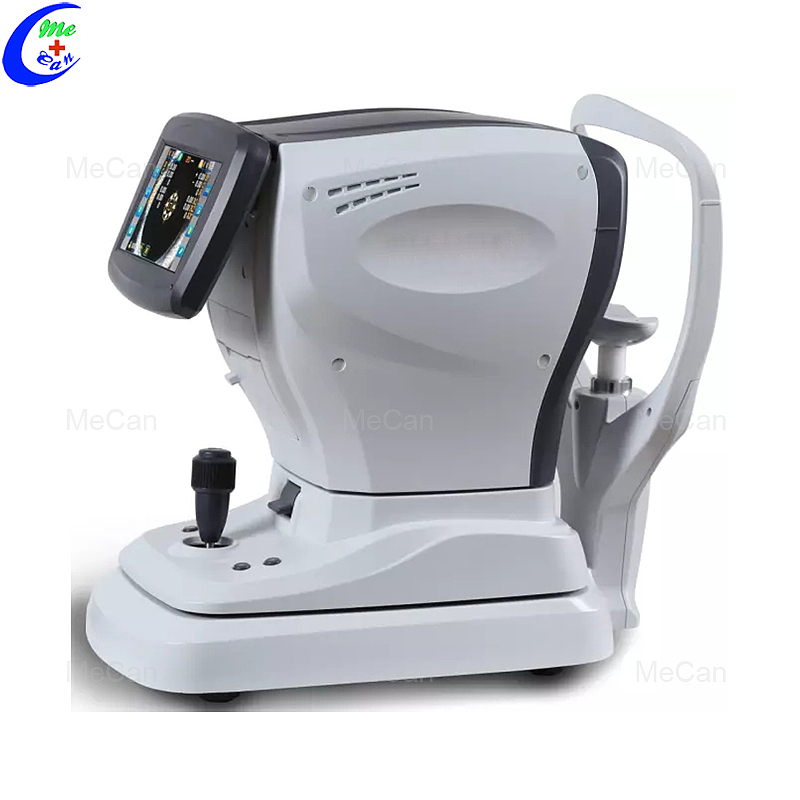

MeCan Medical Best Ophthalmic Optical Digital Autorefractometer Autorefractor Keratometer Company - MeCan Medical,OEM/ODM, customized according to your requirements, we are in it more than 15 years, we are very professional and we will provide the best service to you.
Quantity: | |
---|---|
Place of Origin:CN;GUA
Model Number:MC-KR-9600
Brand Name:Mecan
Type:Ophthalmic Optical Equipments
Instrument classification:Class II
Model: MC-KR-9600
1. Fashion and compact design.
2. Adopt the ARM Cortex-A8 processor provides faster measurement.
3. Advanced refraction measurement technology, image analysis more entirely, enable the reliable measurement result and optimize date consistency.
4. Automatic identification the best measurement position for keratometry,avoid the operating error and enable the accurate Keratometry measurement.
5. IOL function available.
6. Adopt the ARM Cortex-A8 processor, which makes the measurement more faster and a accurate. The touch screen provides friendly user interface, and make the operation more convenient.
Measurement mode | K/R | Refraction/ Keratometry measurement |
REF | Refraction measurement | |
KER | Keratometry measurement | |
Refraction measurement
| Vertex Distance | 0.0, 12.0, 13.75, 15.0mm |
Sphere | -25.00~+22.00DD(0.12/ 0.25D step)(VD=12mm) | |
Cylinder | 0.00~±10.00D(0.12/0.25 step) | |
Axis | 0~180°(1°step) | |
Pupil Distance | 10~85mm | |
Minimum measurable pupil diameter | 2.0mm | |
Target | Automatic fogging target | |
Keratometry Measurement
| Curvature radius | 5~10mm(0.01mm step) |
Refractive power | 33.75D~67.50D(0.12/0.25D step) | |
Cylindrical power | 0.00~15.00D(0.12/0.25 step) | |
Axis | 0~180°(1°step) | |
Corneal diameter | 2.0~12.00mm | |
Hardware specification | Monitor | 7.0inch Color LCD |
Printer | Thermal printer with easy loading and auto cutter | |
Power saving | 5/15 minutes | |
Data output | RS232/Bluetooth | |
Power supply | AC100~240V, 50/60 HZ,50W | |
Dimensions/Weight | 262(W)*487(D)*467(H)mm/17.5kg |
