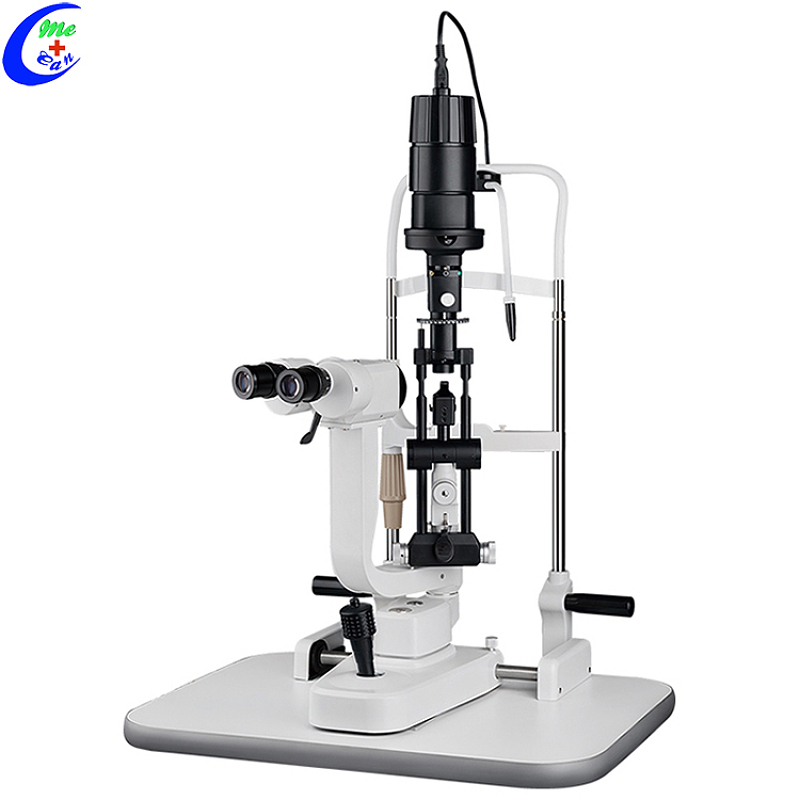

MeCan Medical Best Quality Ophthalmic Slit Lamp Two Magnification Slit Lamp Microscope Factory,OEM/ODM, customized according to your requirements, we are in it more than 15 years, we are very professional and we will provide the best service to you.
Quantity: | |
---|---|
Type:Ophthalmic Optical Equipments
Place of Origin:CN;GUA
Instrument classification:Class II
Brand Name:MeCan
Model Number:MCE-66
2 magnifications with 10x ,16x field of view ,can get the distinct image ,also , with new illumination system and the bigger light spot diameter,slit width reaches 14 mm,can better observe the eye situation
Microscope | Microscope Type | Converging stereoscope microscope |
Magnification selection | two steps magnifications | |

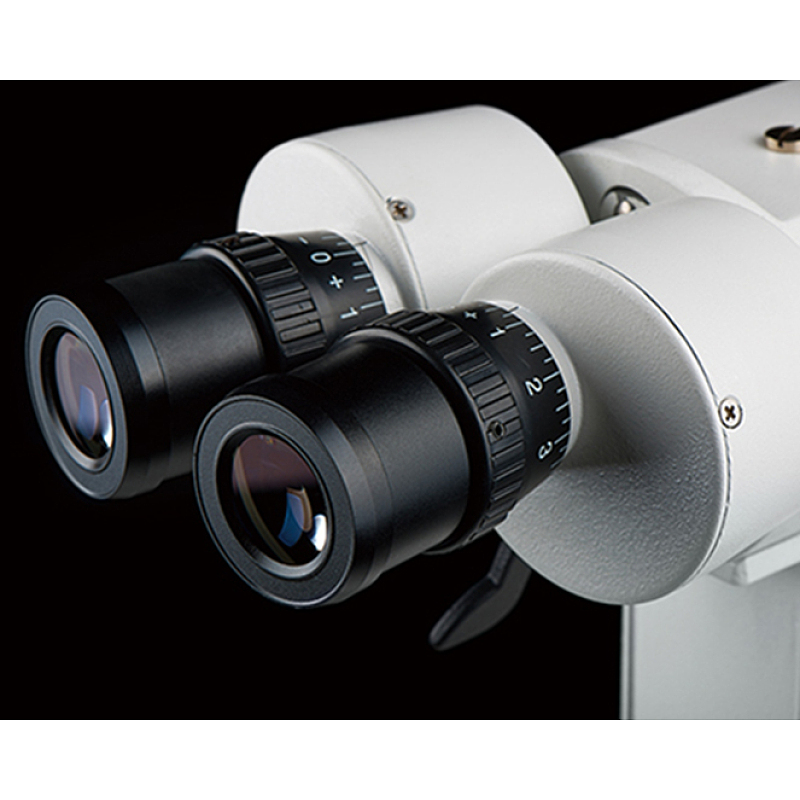

Eyepiece | 10X | |
Magnification Ratio(Field of view) | 10X(18mm),16X(14.5mm) | |
Pupillary Adjustment | 50mm ~ 82mm | |
Diopter Adjustment | +- 5D | |
Base | Side Shift | 110mm |
Depth shift | 90mm | |
Height shift | 30mm | |
Chin rest | Height Shift | 80mm |
Fixation Target | Red LED | |
Illumination system | Slit Width | 0 ~ 14mm Continuous ( at 14mm , slit becomes a circle ) |
Slit Height | 0 ~ 14mm Continuous | |
Slit Angle | 0° ~ 180° adjustable | |
Slit Inclination | 0° ~ 23 ° | |
Diameter of Light Spot | Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous | |
Filter | Heat Absorption , Grey ,Red-Free , Cobalt Blue | |
Illumination Bulb | 12v 50w halogen lamp | |
Power | Input Voltage | 110V / 220V AC |
Frequency | 50 / 60 HZ | |
Power Consumption | 68 VA | |
Weight and Size | Gross Weight | 18kg |
Dimension | 690mm(L) × 440mm(W) × 420mm (H) |
