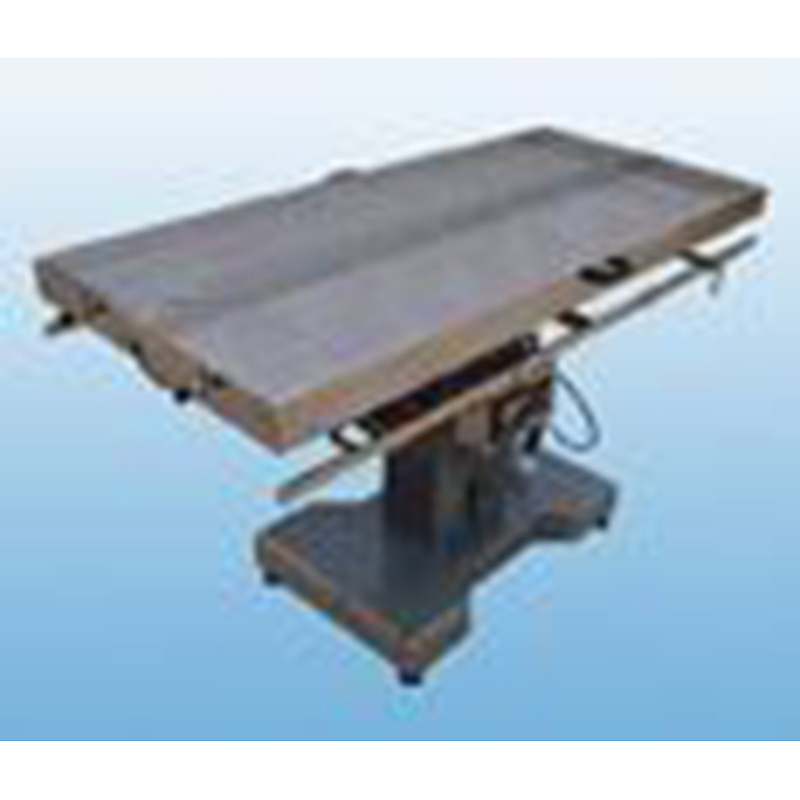

The sturdy DWV-III animal operating table is available for the operations of many animals such as pigs, dogs, and sheep and so on. And its reasonable and excellent machinery and credible performance make it facile and applied.
Product introduction
1. The temperature of the table-board is available from the indoor temperature to the 50 degree centigrade.
Before the operation, 20 minutes warm-up is needed for the ordered temperature.
2. The table-board is hydraulic-lifted.
3. The right-and-left gradient is 15°, regulated by the manual machinery system.
4. The fore-and-aft gradient is 45°, regulated manually.
5. The table is designed with reasonable machinery, credible performance and simple operation.
6. The lowest height of the table-board is 820mm, and the highest is 930mm
Engineer Parameters
1) Table height: 820mm to 930mm
2) Table size:1400mm×650mm
3) Table gradient: ±15°
4) The V-top: 0 to 45°
5)Temperature: 0-50°C
Installation and Use
1) Put the table-board on top of the table base, plug into the pin, then it can be put into use.
2) When using the tray, the screw should be screwed down.
3) When adjusting the height, stepping on the pedal gently, then the table-board goes up; stepping on the pedal to the lowest and pressing the table-board gently, then it comes down.
4) The tilting mechanism works when circumgyrating the handwheel.
5) The 4 supporting screws should be locked to the groud when assembling the table. The casters will make it flexible when the screws are unlocked.
6) During the operation, the slide bar should be adjusted to the right place and fixed first, and the animal would be fastened then. If the pothook is needed, it can be inserted into the side pipe and fixed.
7) Please stop stepping firmly, if the resistance is too strong during the ups and downs,
8) Please read the manual introduction before operation.
9) Please clean the table-board after using.
Surgery Table Veterinary

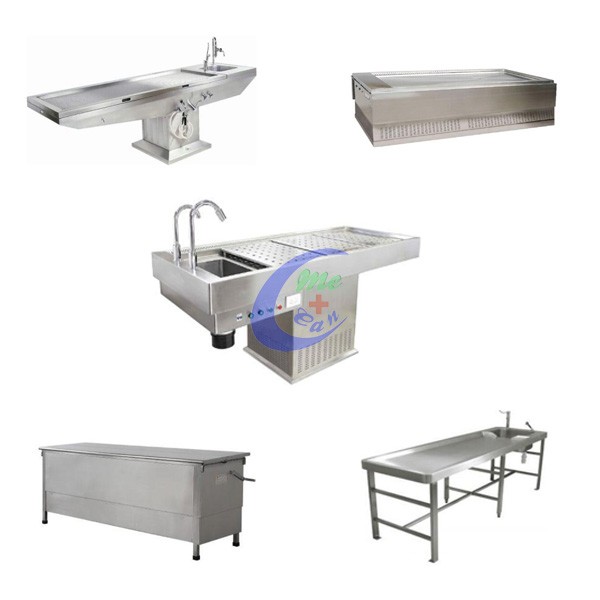

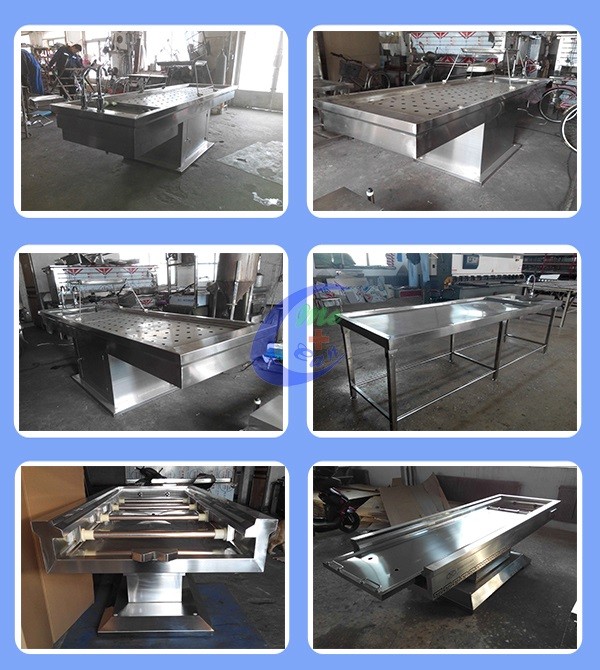

More detail of Autopsy table
