Quality High Quality Trolley Digital HD Video Colposcope for Gynecology

Model:MCG-CO-02


Product Configuration

 *  Colposcope Camera(without back screen)

 *  Vertical stand

 *  Software(With foot-switch and Built-in Capturing Card)

 *  Host Computer and LCD Screen

 *  Printer

 *  Trolley


Features:

1.High Resolution CCD

    (1)1/4” high resolution colorful digital CCD camera with 550 TV lines.

    (2)Video output.

    (3)Fast auto-focus and manual focus control.

    (4)White balance auto-adjusted

2.Unique Light Source Design

    With adjustable super cold LED light source, brightness can be adjusted;

3.Stand

    With vertical stand, the height can be adjusted and locked freely.

4.Unique Foot Switch

    With unique-designed foot switch , more convenient to take pictures.

5.Control Handle

    With control handle , easy to adjust the focal length, zoom in/out ,red light ,white-balance, freezing picture, light brightness etc;

6.Integrated Computer Imaging, Data Management and Analysis Function

    (1)The true color image output function;

    (2)With Chinese, English , Vietnamese, Spanish and Russian language;

    (3)Timing of acetic acid and iodine reaction tests;

    (4)With 175 pictures for diagnosis;

    (5)Contains standard case report template, convenient for edit and print the report with real color pictures.

    (6)Case report can be searched and back-up copied.

    (7)Abundant image data can be stored ;

7.LCD Screen(On the Back of Camera)-Optional

    2.5” LCD screen, Real-time dynamic images can be observed


Specification:

Safety Classification
Photographic Device II
Operation Mode
Intermittent Load, Continuously Operate
Power Supply
AC220V±10%,50Hz±2%.
Rated Power
200VA
Working Environment
Temp:5~40℃
Transportation and Storage Environment
Temp:-40~55℃
Relative Humidity:≤85%
Relative Humidity:≤95%
Atmosphere:700~1060hpa
Atmosphere:500~1060hpa
Weight
NW:33kg GW:55kg
Photographic Device
Power Supply
DC 12V
Imaging Sensor
1/4”CCD
Scanning System
PAL; NTSC(Optional)
Pixel
795(H)×596(V)(PAL);811(H)×508(V)(NTSC)
Horizontal Resolution
550TVL
Minimum Illumination
0.2Lux(Color)
Magnification
x352times (Optically x22;Digitally x16)
Focusing
Auto/Manual
Auto
White- Balance
Yes
Optional
2.5” LCD Screen
LED
Light Source
Illumination
More Than 1200LUX(Within working distance)
Irradiated Surface Temperature
Lower Than 41℃
Computer
CPU:≥2.7GHz;RAM:≥1G;Hard disk:≥250G
LCD Screen
19”LCD 1024×768 Screen
Printer
HP True color ink jet printer
Working Distance
200~400mm
Software Operating Environment
WIN 7/8

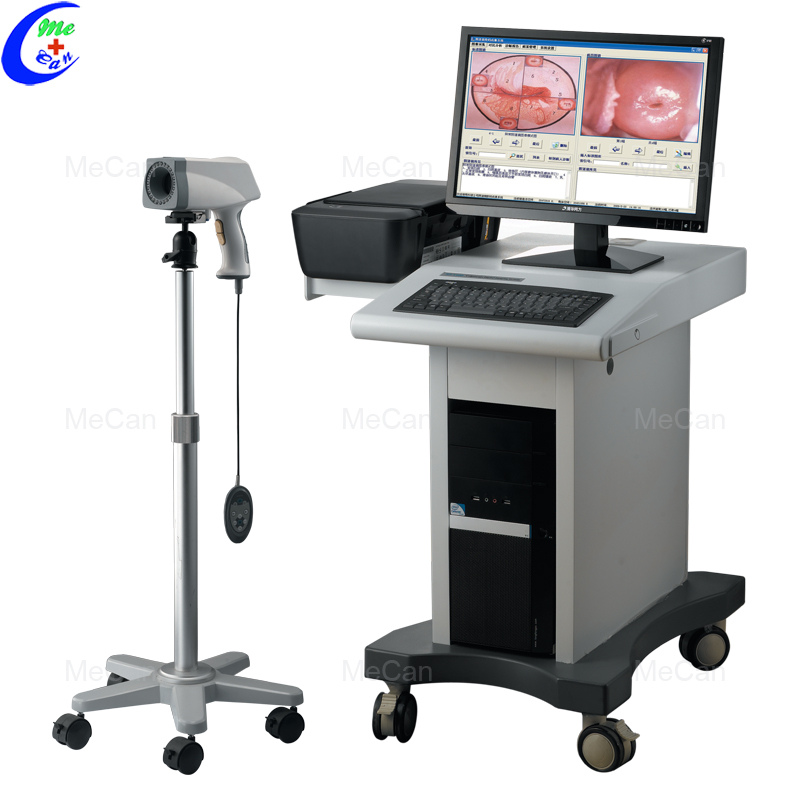

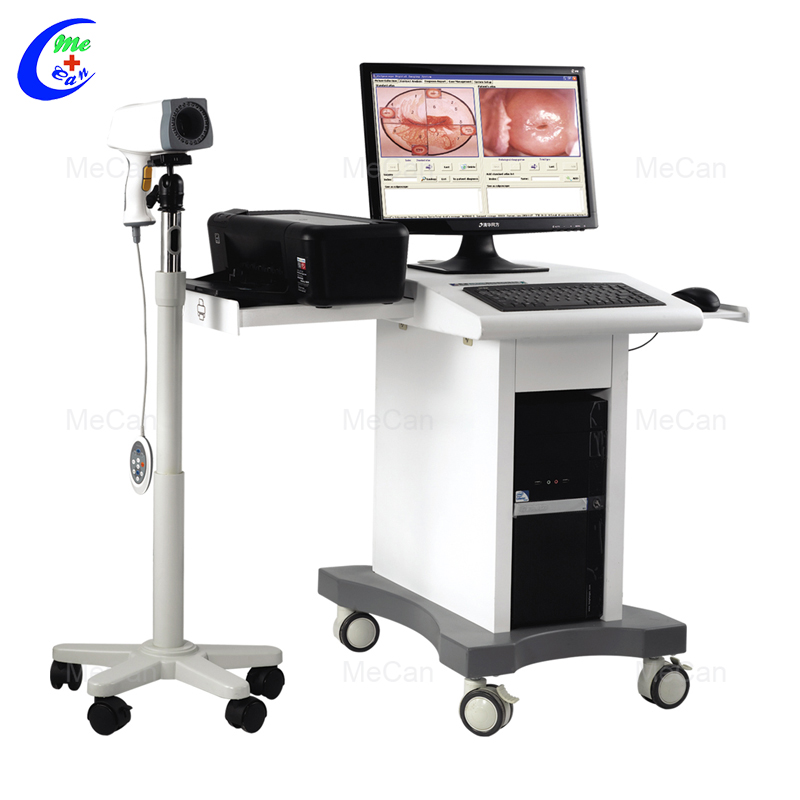

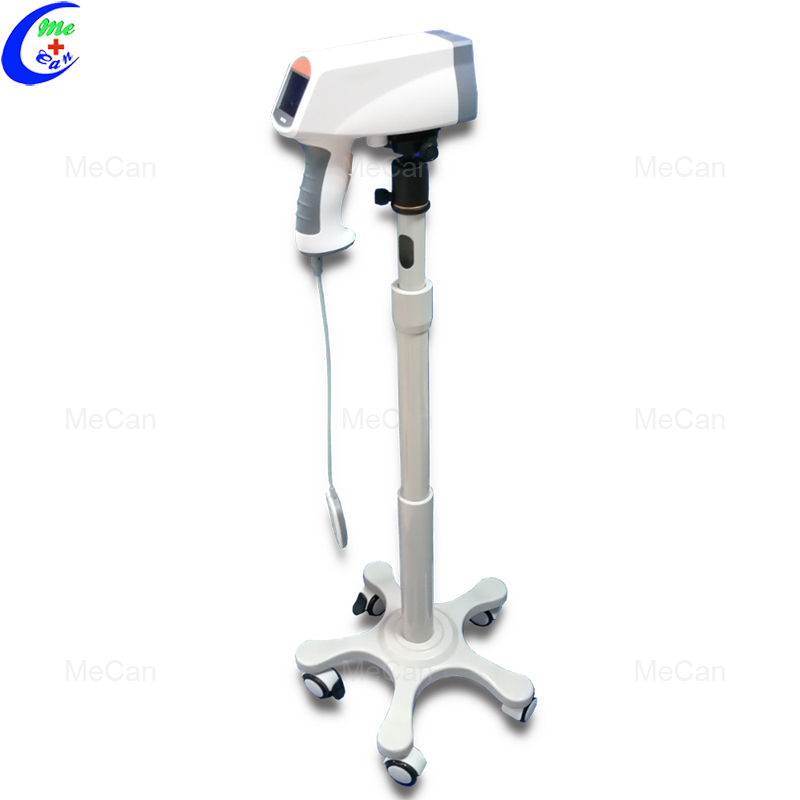

More pictures of the MCG-CO-02 Video Colposcope for Gynecology:
