MeCan Medical Professional Comprehensive Refractometer View Tester, Manual Phoropter Ophthalmic Equipment manufacturers,More than 20000 customers choose MeCan, we are in it more than 15 years, we are very professional and we will provide the best service to you.
Quantity: | |
---|---|
Place of Origin:CN;GUA
Brand Name:Mecan
Model Number:MC-VT-8
Type:Ophthalmic Optical Equipments

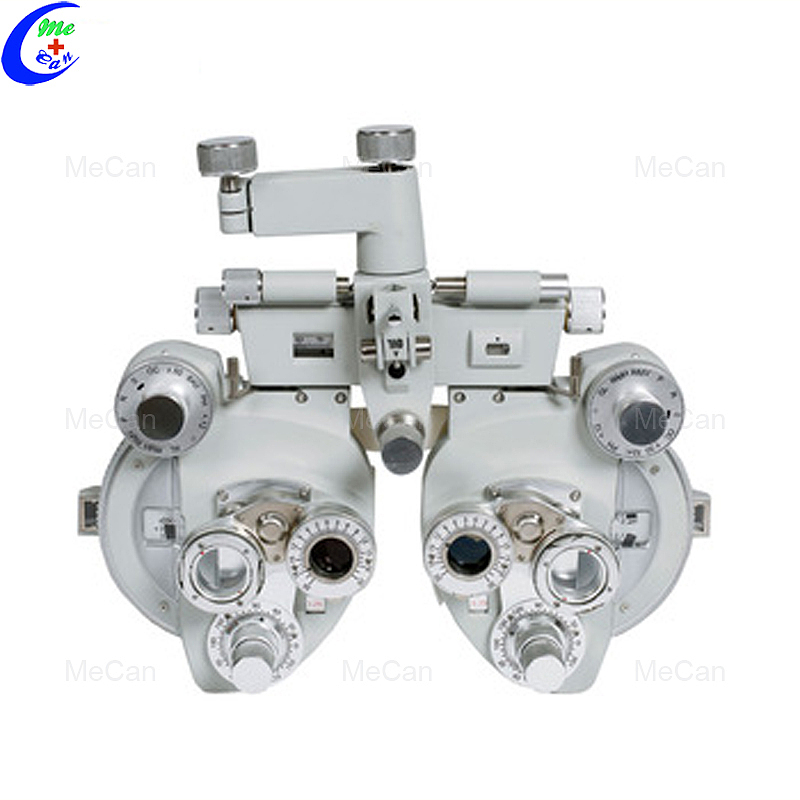

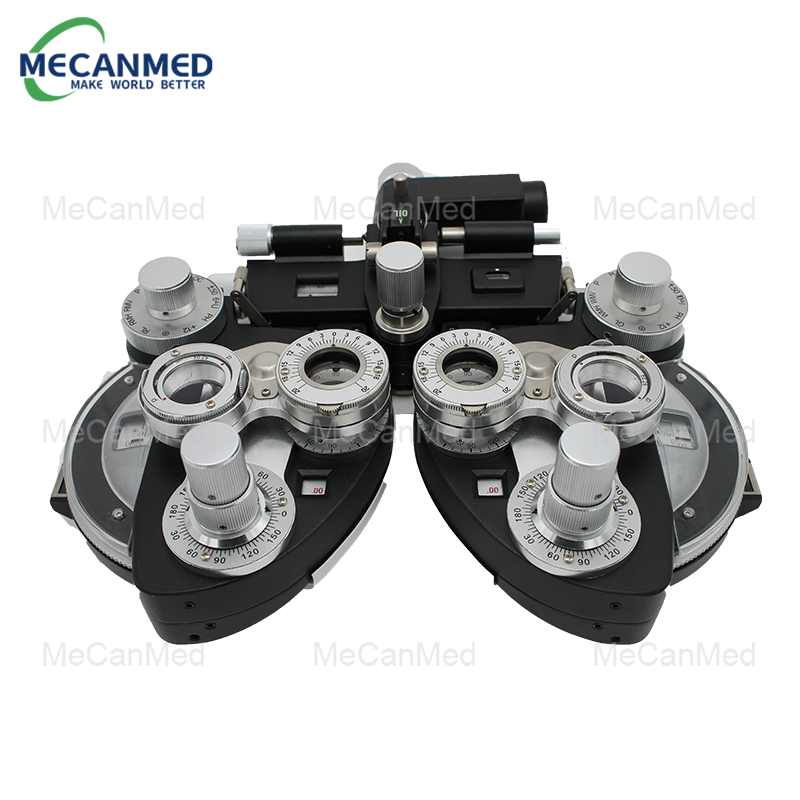

Comprehensive Refractometer View Tester, Manual Phoropter Ophthalmic Equipment
Model: MC-VT-8
1. Equipped with comprehensive measuring functions, it provides SPH, CYL, AXIS and pupil distance optometry
2. Durable and easy to operate
3. Easily and intuitively read the sphere focal scale value
4. High eco-friendly materials
5. Design fitting the face curve and no stimulation
6. Easy to take and clean
7. Free switch between the cross-cylindrical lens and the rotary prism
8. When rotating risk is turning by sphere,it can make sphere power adjust 3.00D for big scope.
9. It is designed expediently and smartly for particular cross cylinder.Supporting supplementary lens could increase scope of measurement.

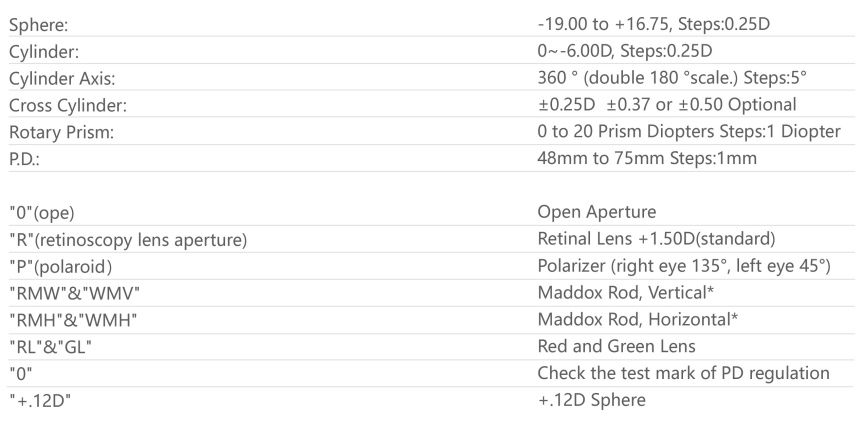

Sphere | Range:-19.00~+16.75m-1 Step: 0.25m-1, 3.00m-1 | ||
Cylinder | Range: 0.00~-6.00m-1(Measuring Range With Accessories0.00~-8.00m-1) Step: 0.25m-1 | ||
Cylinder Axis | Range: 0~180°, Step:5° | ||
Distance of Optical center (also known as Pupil) | Range: 50~75mmStep: 1mm | ||
Sight Switch | Range:∞~380mm (distance of Optical center is64mm) | ||
Front Chin Test | Range: 0~16mm | ||
Distance (from cornea vertex to the lens surface) | 16mm | ||
Standard Accessories Lens | two pieces of Auxiliary Cylinder -2.00m-1 and -0.12m-1 respectively | ||
Standard Accessories | one piece of M2 Hexagon wrench , one piece of a Myopia Standard Card, two piece of Myopia Standard Card , one piece of standard card holder , a dust cover | ||
Auxiliary Lens | “O”:Open aperture “R”:Retinoscope lens “R”:Retinoscope lens “R”:Retinoscope lens *Lens of +1.50m-1 ,It is suit for the distance of 67 centimeters “P”:Polaroid * it is used for examining the dioptric balance of eyes , Implicit strabismus and stereo vision “RMV”:Red Vertical maddox *Be used to examine Implicit strabismus “RMH”:Red horizontal maddox *Be used to examine Implicit strabismus “WMV”:Plane Vertical Maddox *Be used to examine Implicit strabismus “WMH”:Plane horizontal maddox *Be used to examine Implicit strabismus “RL”:Red lens *Be used to examine eye function, Blending function and Implicit strabismus “GL”:Green lens *Be used to examine eye function, Blending function and Implicit strabismus “+”:Test mark of optical center adjustment “+.12”:Dioptric of the Spherical Lens is +0.12m-1 *Be used for the semi-adjustment of sphere lens, 0.25m-1 “PH”:1mmPinhole lens *Be used to exclude visual non-refractive errors of the tested eye “6ΔU”:6ΔBottom-up prism *Be used to examine the rotating prism with the detection of nearly horizontal squint “10ΔI”:10ΔBottom-up prism *Be used to examine the rotating prism with the detection of nearly horizontal squint “±0.50”:Cross-cylindrical lens *Be used to examine the corrected dioptric of the Presbyopia and spherical lens “OC”:Black lens | ||
size | 338(L)×99(W)×292(H)mm | ||
NW | about 5kg |
