A PCR machine is a laboratory device that uses precise temperature cycling to facilitate the Polymerase Chain Reaction, enabling the rapid amplification of specific DNA or RNA sequences for analysis. By automating the heating and cooling phases required for denaturation, annealing, and extension, a modern PCR machine provides the consistency and speed necessary for clinical and research applications.
Understanding the underlying technology of these machines is crucial for laboratory managers, researchers, and medical professionals looking to optimize their diagnostic workflows. From the intricacies of Peltier heating elements to the advanced optics of real-time systems, the engineering behind DNA amplification is both complex and fascinating. This article provides a comprehensive exploration of PCR technology, its mechanical components, and its diverse applications in the global medical industry.
Article Structure Overview
| Section | Summary |
| How a PCR Machine Works | An explanation of the three-step thermal cycling process (denaturation, annealing, and extension) that allows for exponential DNA growth. |
| Core Components of PCR Technology | A technical breakdown of the heating blocks, Peltier elements, and sensors that ensure thermal uniformity and precision. |
| Types of PCR Machines and Their Uses | A comparison between standard thermal cyclers, Real-Time (qPCR) systems, and Digital PCR (dPCR) technologies. |
| The Importance of Thermal Uniformity | Analysis of why temperature consistency across all wells is the most critical factor for reliable SEO-optimized laboratory results. |
| Applications in Modern Diagnostics | How PCR technology is utilized in infectious disease testing, oncology, and forensic identification. |
| Maintenance and Optimization Tips | Best practices for calibrating and maintaining PCR equipment to ensure long-term accuracy and performance. |
How a PCR Machine Works
The fundamental operation of a PCR machine involves cycling through three distinct temperature zones to facilitate DNA denaturation, primer annealing, and enzymatic extension, resulting in the exponential replication of target genetic material.
At the heart of the process is the thermal cycle. During the first phase, denaturation, the PCR machine heats the reaction mixture to approximately 94 to 98 degrees Celsius. This high temperature breaks the hydrogen bonds between the two strands of the DNA double helix, resulting in two single-stranded DNA templates. Precision at this stage is vital, as insufficient heat will fail to separate the strands, while excessive heat can damage the heat-stable polymerase enzyme.
The second phase is annealing, where the temperature is lowered to between 50 and 65 degrees Celsius. This allows short DNA sequences called primers to bind to their complementary sequences on the single-stranded DNA templates. The exact temperature depends on the melting temperature of the primers used. A high-quality PCR machine must be able to reach and stabilize at this specific temperature rapidly to prevent non-specific binding, which can lead to inaccurate results or "noise" in the data.
Finally, the extension phase occurs, usually at 72 degrees Celsius. This is the optimal temperature for the DNA polymerase (typically Taq polymerase) to synthesize a new DNA strand by adding nucleotides to the primers. As the cycle repeats, the number of DNA copies doubles each time. To better understand the financial investment required for this technology, you can explore details regarding What Is A PCR Machine and Its Cost to evaluate the budget required for high-performance units.
The Mechanics of Exponential Growth
Cycle 1: 2 copies
Cycle 10: 1,024 copies
Cycle 30: Over 1 billion copies
Core Components of PCR Technology
The technical excellence of a PCR machine relies on its internal hardware, primarily the Peltier heating elements, the silver or aluminum thermal block, and the sophisticated control software that manages rapid temperature transitions.
The most critical component is the Peltier element, a solid-state active heat pump which transfers heat from one side of the device to the other against the temperature gradient. This allows for both heating and cooling from a single source, enabling the PCR machine to change temperatures in seconds. The speed at which these transitions occur—known as the "ramp rate"—directly determines the overall efficiency and throughput of the laboratory. High-end machines often feature gold-plated silver blocks to maximize thermal conductivity.
Sensors and microprocessors form the "brain" of the device. These components monitor the block temperature in real-time, adjusting the power to the Peltier elements to prevent temperature overshooting or undershooting. Modern systems utilize multiple sensors across the block to ensure that every sample well experiences the exact same thermal conditions. For facilities looking to upgrade their hardware, selecting a reliable PCR machine supplier ensures access to the latest sensor technology and robust engineering.
The heated lid is another essential yet often overlooked component. By maintaining the lid at a temperature slightly higher than the maximum block temperature (usually around 105 degrees Celsius), the machine prevents the evaporation and condensation of the reaction mixture on the tube caps. This ensures that the concentrations of the reagents remain constant throughout the 30 to 40 cycles, which is critical for the chemical balance of the reaction.
Key Hardware Features
Thermal Block: Typically holds 96 or 384 wells.
Ramp Rate: The speed of temperature change (measured in °C/s).
Accuracy: How close the block temperature is to the setpoint.
Uniformity: The temperature consistency across all wells.
Types of PCR Machines and Their Uses
Modern molecular biology utilizes three primary categories of PCR technology: Gradient PCR for optimization, Real-Time PCR (qPCR) for quantification, and Digital PCR for absolute precision in rare allele detection.
Standard Thermal Cyclers are the most common type used in basic research and education. These machines are designed for "end-point" PCR, meaning the results are analyzed after the cycles are finished, usually via gel electrophoresis. A variation of this is the Gradient PCR machine, which allows the user to set different temperatures across the block during a single run. This is incredibly useful for determining the optimal annealing temperature for new primers, saving hours of trial-and-error testing.

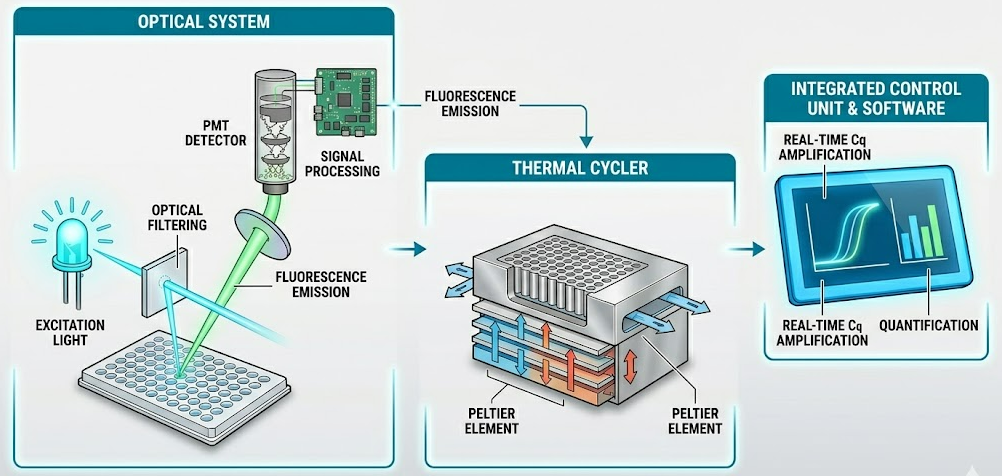

Real-Time PCR (qPCR) machines represent a significant technological leap. These devices include an integrated optical system (lasers or LEDs and detectors) to monitor the fluorescence of the DNA samples during the amplification process. This allows for "quantitative" analysis, where researchers can determine exactly how much of a specific DNA sequence was present in the original sample. This technology is the gold standard for viral load testing and gene expression studies. Understanding the price and specifications of PCR units is essential when deciding between a standard cycler and an advanced qPCR system.
Digital PCR (dPCR) is the latest evolution, offering absolute quantification without the need for a standard curve. The sample is partitioned into thousands of tiny droplets, and the PCR reaction happens in each one. By counting the number of "positive" versus "negative" droplets, the machine provides a highly accurate count of DNA molecules. This is particularly useful for detecting rare mutations in liquid biopsies or environmental samples where the target DNA is present in very low concentrations.
Comparison of PCR Technologies
| Feature | Standard PCR | Real-Time PCR (qPCR) | Digital PCR (dPCR) |
| Detection | End-point | Real-time | End-point (Absolute) |
| Quantification | Qualitative | Relative/Quantitative | Absolute |
| Sensitivity | Moderate | High | Ultra-High |
| Complexity | Low | Moderate | High |
The Importance of Thermal Uniformity
Thermal uniformity refers to the consistency of temperature across all wells of the PCR block, a critical factor that ensures every sample in a 96-well plate amplifies at the same rate and yields reproducible results.
If one corner of the thermal block is even 0.5 degrees Celsius cooler than the center, the DNA in those wells may not denature completely, or the primers might bind non-specifically. This leads to "well-to-well variation," which can ruin an entire experiment or, worse, lead to a false negative in a clinical diagnostic setting. Manufacturers of high-quality PCR machine models invest heavily in precision machining and multi-zone heating to mitigate these risks and provide edge-to-edge uniformity.
Advanced software algorithms are used to compensate for the "edge effect," where wells on the perimeter of the block lose heat faster than those in the middle. By controlling different Peltier zones independently, the machine can pump more heat to the edges to maintain a flat thermal profile. When researching equipment, it is beneficial to look at a high-quality PCR machine catalog to compare how different brands handle thermal management and block calibration.
Reproducibility is the cornerstone of science. Whether a test is performed in London or Shanghai, the PCR machine must deliver the same thermal performance. This is why international standards and regular calibration are mandatory for clinical labs. A machine with poor uniformity will produce inconsistent "Ct" (cycle threshold) values in qPCR, making it impossible to accurately quantify viral loads or genetic markers across different runs or laboratories.
Factors Affecting Uniformity
Block Material: Silver is superior to aluminum for heat distribution.
Peltier Quality: High-grade Peltiers offer longer lifespans and more consistent heating.
Sensor Placement: Multiple sensors provide better feedback for the control loop.
Applications in Modern Diagnostics
The application of PCR technology spans across infectious disease identification, oncology for cancer marker detection, and forensic science, where it is used to create DNA profiles from minute biological samples.
In the realm of infectious diseases, the PCR machine has become an indispensable tool. It allows for the detection of pathogens like HIV, Hepatitis, and respiratory viruses with much higher sensitivity and speed than traditional culture methods. Because the machine can detect the presence of the viral genome directly, it can identify an infection long before the patient develops an immune response or symptoms, allowing for earlier intervention and better public health management.
Oncology is another field benefiting deeply from this technology. PCR is used to detect specific genetic mutations associated with certain types of cancer. This allows for "personalized medicine," where doctors can choose the most effective treatment based on the genetic profile of the tumor. For those curious about the technology's role in healthcare, reading about the cost and utility of PCR systems provides insight into how hospitals balance cutting-edge tech with operational budgets.
Forensic science relies on PCR to amplify DNA from crime scenes, such as a single hair or a drop of blood. By targeting specific areas of the human genome that vary between individuals (STRs), forensic scientists can create a unique DNA fingerprint. This technology has revolutionized the legal system, providing powerful evidence for both convictions and exonerations of the wrongly accused.
Major Application Sectors
Clinical Diagnostics: Pathogen testing and prenatal screening.
Food Safety: Detecting GMOs or foodborne pathogens like Salmonella.
Environmental Science: Monitoring microbial populations in soil or water.
Research: Cloning, sequencing, and gene expression analysis.
Maintenance and Optimization Tips
To ensure the longevity and accuracy of a PCR machine, laboratories must implement strict maintenance protocols, including regular block cleaning, lid calibration, and professional thermal validation.
Contamination is the greatest enemy of PCR. Even a single molecule of DNA from a previous run can be amplified, leading to false-positive results. Therefore, the thermal block of the PCR machine should be cleaned regularly with specialized DNA-removing solutions or 10% bleach followed by ethanol. It is also important to ensure that tubes are sealed correctly to prevent sample leakage into the wells, which can corrode the block surface and interfere with thermal transfer.
Regular calibration is also essential. Over time, the Peltier elements may degrade, leading to slower ramp rates or decreased thermal uniformity. Professional calibration services use a "multiprobe" system to measure the temperature of several wells simultaneously during a mock run. This confirms that the machine is still operating within the manufacturer's specified tolerances. For labs looking for robust equipment with easy maintenance profiles, consulting a specialized PCR equipment provider can help in selecting models designed for heavy-duty use.
Software updates should not be ignored. Manufacturers often release firmware updates that improve the temperature control algorithms or add new features to the user interface. Keeping the machine's software up to date ensures that you are benefiting from the latest optimizations in thermal management. Additionally, always use high-quality PCR consumables (tubes and plates), as thin-walled plastics are specifically designed to facilitate the rapid transfer of heat from the block to the reaction mixture.
Maintenance Checklist
Daily: Wipe down the exterior and check the heated lid.
Weekly: Inspect wells for debris or leakage; clean the block.
Monthly: Run a self-diagnostic test if available in the software.
Annually: Professional thermal validation and calibration.
Conclusion
The technology of the PCR machine is a masterclass in precision engineering and molecular chemistry. By providing a controlled environment for the exponential amplification of DNA, these devices have unlocked the secrets of the genetic code and provided the tools necessary to fight global pandemics, treat cancer, and solve crimes. As we move toward more integrated and digital systems, the core principles of thermal cycling remain as relevant as ever.
For laboratories and medical facilities, choosing the right PCR technology is a balance of speed, accuracy, and cost-effectiveness. Whether it is a basic thermal cycler for educational purposes or an advanced real-time system for critical diagnostics, understanding the mechanics behind the machine is the first step toward achieving reliable and impactful results. The future of PCR technology promises even faster results, greater portability, and higher sensitivity, continuing its role as a cornerstone of scientific progress.
