China Comprehensive Refractometer View Tester Manual Phoropter Ophthalmic Equipment manufacturers - MeCan Medical

MeCan Medical China Comprehensive Refractometer View Tester Manual Phoropter Ophthalmic Equipment manufacturers - MeCan Medical,MeCan Focus on medical equipments over 15 years since 2006, we are in it more than 15 years, we are very professional and we will provide the best service to you.


Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Brand Name:Mecan

  • Model Number:MCE-400

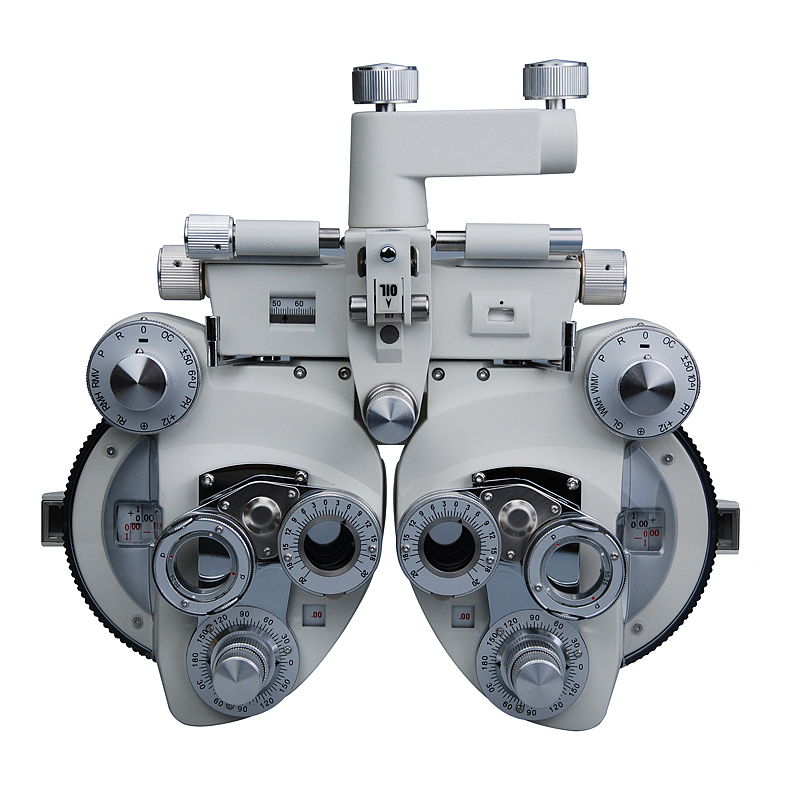

Comprehensive Refractometer View Tester, Manual Phoropter Ophthalmic Equipment



Model: MCE-400



Product Description

What is feature of our phoropter ophthalmic equipment?

1. Equipped with comprehensive measuring functions, it provides SPH, CYL, AXIS and pupil distance optometry
2. Durable and easy to operate

3. Easily and intuitively read the sphere focal scale value
4. High eco-friendly materials
5. Design fitting the face curve and no stimulation
6. Easy to take and clean
7. Free switch between the cross-cylindrical lens and the rotary prism

8. When rotating risk is turning by sphere,it can make sphere power adjust 3.00D for big scope.

9. It is designed expediently and smartly for particular cross cylinder.Supporting supplementary lens could increase scope of measurement.



What is the technical specification of our phoropter?

Sphere
Range:-19.00~+16.75m-1 Step: 0.25m-1, 3.00m-1
Cylinder
Range: 0.00~-6.00m-1(Measuring Range With Accessories0.00~-8.00m-1) Step: 0.25m-1
Cylinder Axis
Range: 0~180°, Step:5°
Distance of Optical center (also known as Pupil)
Range: 50~75mmStep: 1mm
Sight Switch
Range:∞~380mm (distance of Optical center is64mm)
Front Chin Test
Range: 0~16mm
Distance (from cornea vertex to the lens surface)
16mm
Standard Accessories Lens
two pieces of Auxiliary Cylinder -2.00m-1 and -0.12m-1 respectively
Standard Accessories
one piece of M2 Hexagon wrench , one piece of a Myopia Standard Card, two piece of Myopia Standard Card , one piece of standard card holder , a dust cover
Auxiliary Lens
“O”:Open aperture

“R”:Retinoscope lens

“R”:Retinoscope lens

“R”:Retinoscope lens

*Lens of +1.50m-1 ,It is suit for the distance of 67 centimeters

“P”:Polaroid

* it is used for examining the dioptric balance of eyes , Implicit strabismus and stereo vision

“RMV”:Red Vertical maddox

*Be used to examine Implicit strabismus

“RMH”:Red horizontal maddox

*Be used to examine Implicit strabismus

“WMV”:Plane Vertical Maddox

*Be used to examine Implicit strabismus

“WMH”:Plane horizontal maddox

*Be used to examine Implicit strabismus

“RL”:Red lens

*Be used to examine eye function, Blending function and Implicit strabismus

“GL”:Green lens

*Be used to examine eye function, Blending function and Implicit strabismus

“+”:Test mark of optical center adjustment

“+.12”:Dioptric of the Spherical Lens is +0.12m-1

*Be used for the semi-adjustment of sphere lens, 0.25m-1

“PH”:1mmPinhole lens

*Be used to exclude visual non-refractive errors of the tested eye

“6ΔU”:6ΔBottom-up prism

*Be used to examine the rotating prism with the detection of nearly horizontal squint

“10ΔI”:10ΔBottom-up prism

*Be used to examine the rotating prism with the detection of nearly horizontal squint

“±0.50”:Cross-cylindrical lens

*Be used to examine the corrected dioptric of the Presbyopia and spherical lens

“OC”:Black lens

size
338(L)×99(W)×292(H)mm
NW
about 5kg





Click here to get price!!!



Ophthalmic Equipment

Why choose us ?

phoropter

How to contact us ?
Clickrefractometer to contact us now !!!



phoropter ophthalmic equipment

Guangzhou MeCan Medical Limited controls quality of  from material of .

FAQ

1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
3.What is your warranty for the products?
One year for free

Advantages

1.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
2.MeCan Focus on medical equipments over 15 years since 2006.
3.MeCan offer professional service,our team is well-tained
4.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.

About MeCan Medical

Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
