How to Choose the Right Patient Monitor for your Needs: A Comprehensive Guide

Views: 0     Author: Site Editor     Publish Time: 2023-08-08      Origin: Site


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Looking for the perfect patient monitor to meet your needs? Our comprehensive guide has got you covered. Discover the key factors to consider when selecting a patient monitor and ensure optimal performance. Don't miss out on this ultimate guide that will help you make an informed decision.

Selection points:

1. Patient monitor display material: LCD-LED (TFT) - CRT-OLED, touch screen or keypad, etc.

2. Patient monitor parameters: in addition to the standard 6 parameters, other optional parameters of demand

3. The object of monitoring: general department, obstetrics special, emergency transport, neonatal special, etc.

1. Classification of Patient Monitors

Structure Multi-parameter Patient Monitor Simultaneous monitoring of electrocardiogram, respiration, temperature, blood pressure, blood oxygen, pulse rate and other parameters
Semi-modular Patient Monitor Composed of discrete detachable physiological parameter modules and a patient patient monitor mainframe, plug-in modules are available upon request.
Function Center Monitoring System Simultaneous monitoring of multiple patients, automatic recording of various abnormal physiological parameters and medical records
Fetal Monitor FHR Infant Heart Rate, TOCO Contraction Pressure, AFM Fetal Movement
Fetal & Maternal Monitor

FHR Infant Heart Rate,TOCO Contraction Pressure

AFM fetal movement, NIBP non-invasive pressure

MECG maternal electrocardiographic signal, MECG maternal electrocardiographic signal, MECG maternal electrocardiographic signal

MSpO2 mean oxygen saturation TEMP temperature
Anesthesia Depth Monitor

Depth of Anesthesia Index (CSI)

Analgesia Index (AI)

Burst suppression ratio (BSR)

Electromyographic Signal (EMG)

Signal Quality (SQI)
Vital Signs Monitor NIBP Non-Invasive Blood Pressure
SPO2 oxygen saturation

2. Structure Classification-Multi-parameter Patient Monitor

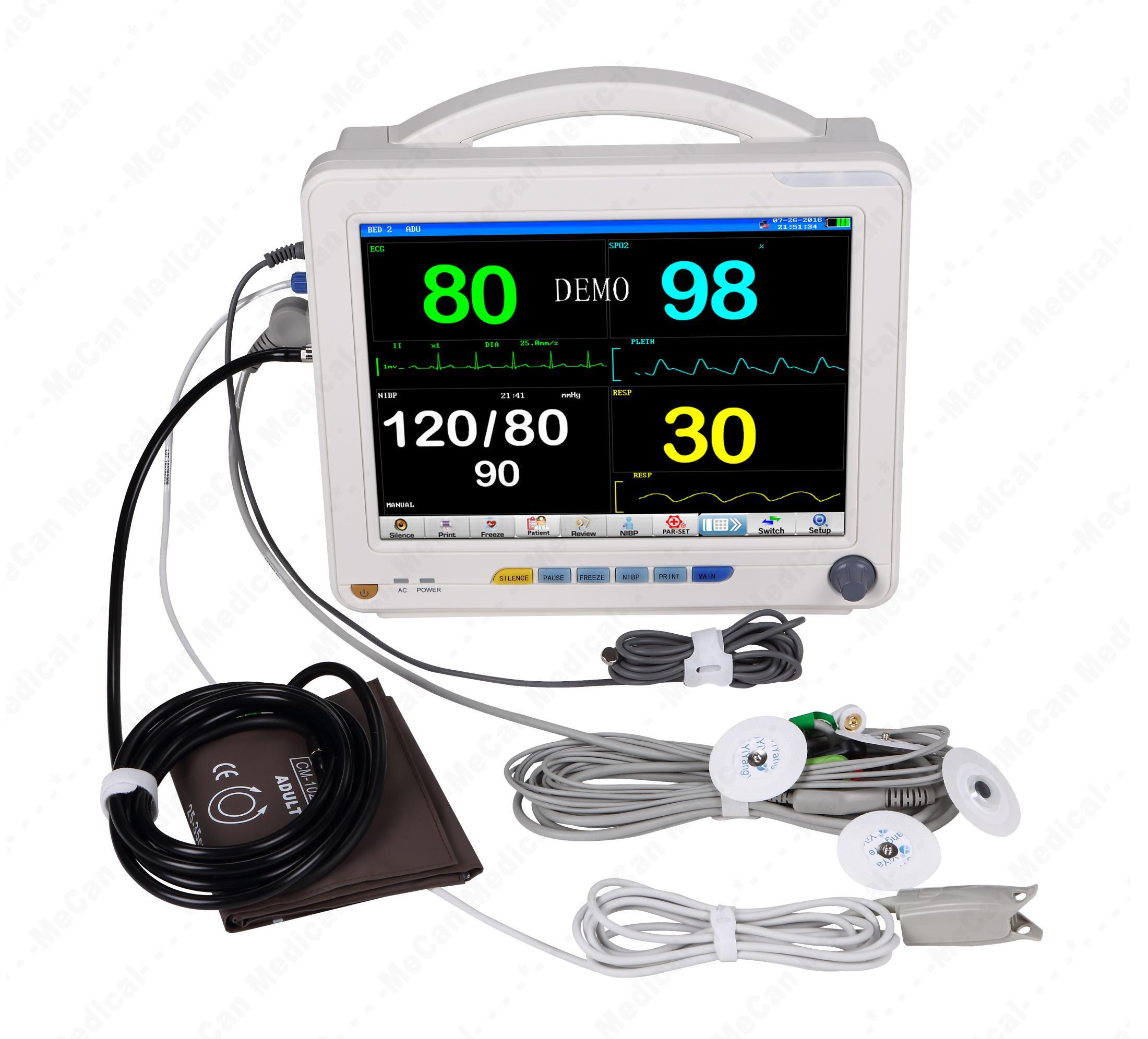

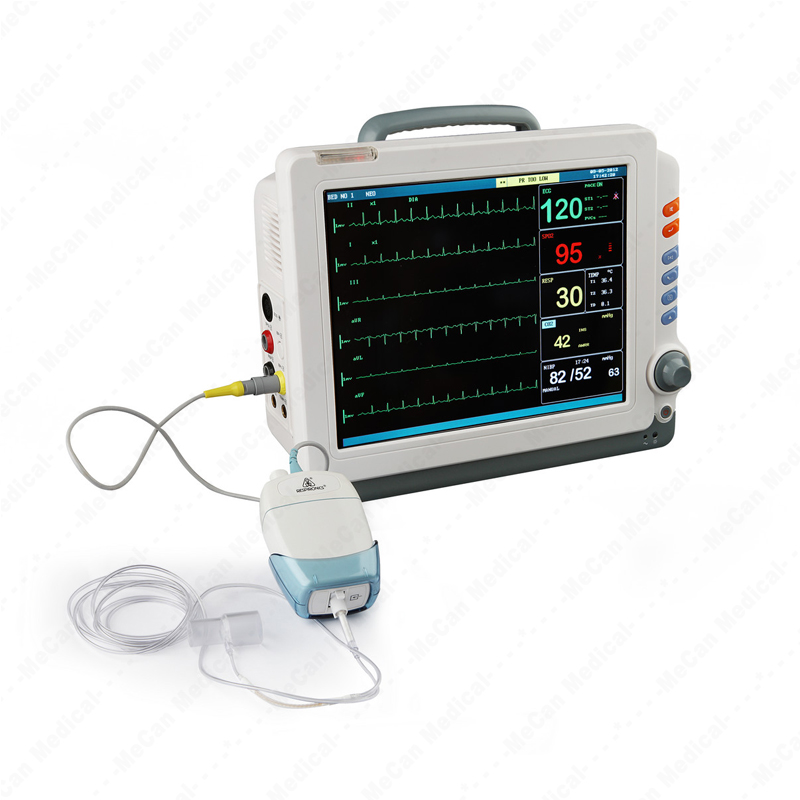

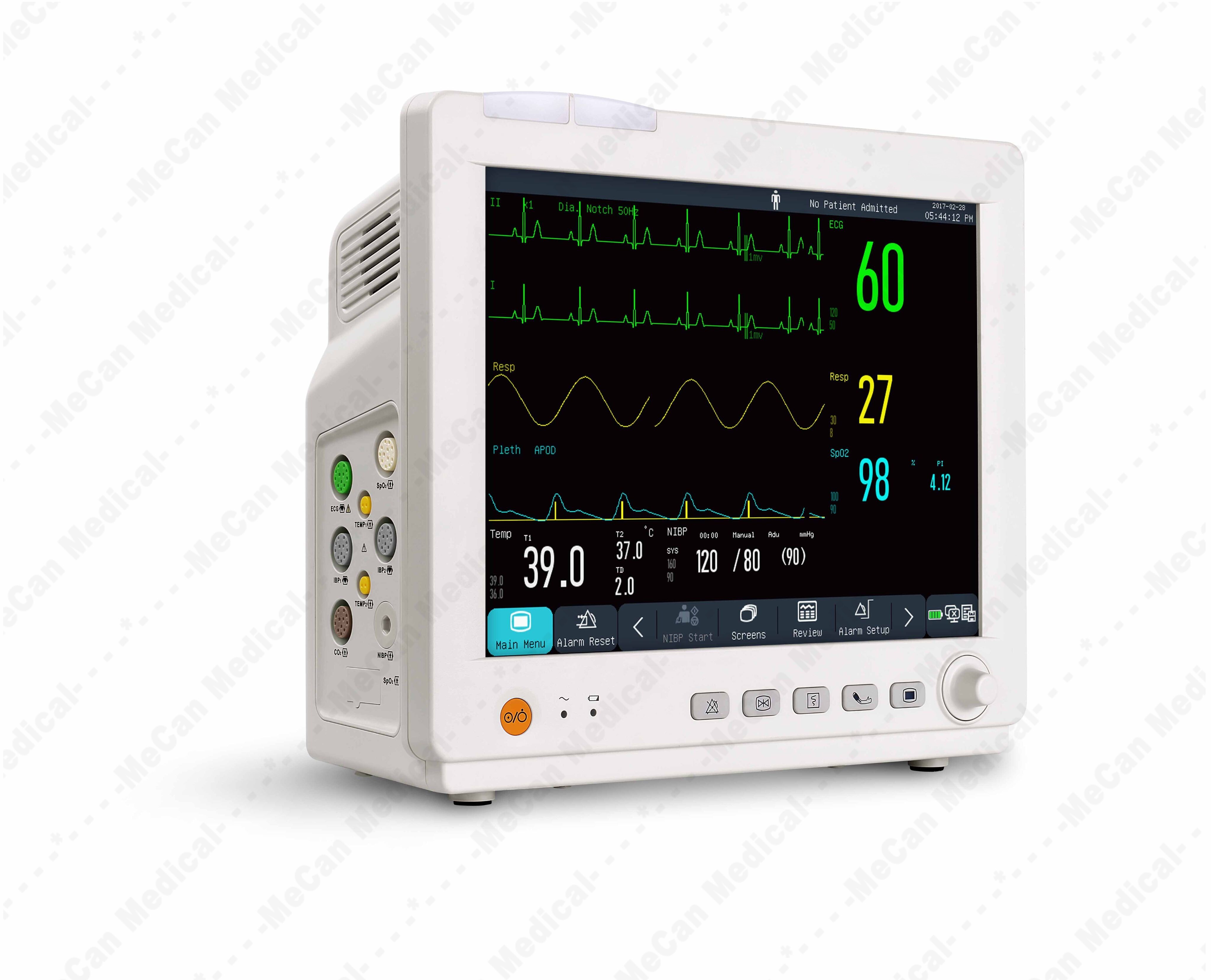

Multi-parameter Patient Monitor MSC0022 Multi-parameter Patient Monitor MCS0031 Multi-parameter Patient Monitor STAR8000F
Model MSC0022 MCS0031 STAR8000F
Liquid Crystal Display 12.1" TFT Colour screen, 800 x 600 high resolution 12.1-inch TFT color LCD 12.1" TFT LCD Screen,touch screen
Size Available 8″,12.1",15” 5inch, 8inch, 12inch, 15inch, 2.8inch color TFT+LED,  total about 7inch 12.1" , 8.4", 10.4", 15", 17", 4.3-inch
Standardized Parameters ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature ECG+NIBP+SPO2+TEMP+PR/HR+RR 5-lead ECG, Comen SpO2, NIBP, TEMP, RESP, PR,
Optional Parameters Nellcor SpO2, EtCO2, IBP, TEMP-2,Thermal Recorder, Wall Mount, Trolly,Central station, Printer IBP, Printer, touch screen,

Masimo/Nellcor SpO2, Recorder,EtCO2, 2-IBP,

Suntech NIBP, Nurse Call,

Synchronous Defibrillation,

ECG Analog Output
Battery Report MSDS, Sea and Air Transportation Report MSDS, Sea and Air Transportation Report

MSDS, Sea and Air Transportation Report

Veterinary use or not Yes Yes /

3. Structure Classification-Semi-modular Patient Monitor

Semi-modular Patient Monitor NC8 NC10 NC12  Semi-modular Patient Monitor


Model: NC8/10/12

Parameters include: ECG, NIBP, SpO2, RESP, Dual TEMP

Parameter modules available: COMEN/Masimo ETCO2 mainstream/bypass, IBP, C.O.

4. Functional Classification-Center Monitoring System

Center Monitoring System Semi-modular Patient Monitor STAR8800

Model: STAR8800

Single screen can display monitoring information of 32 bedside machines

Dual screen can observe 64 units at the same time, supporting up to 128 units.

Fetal patient monitor, multi-parameter patient monitor can be mixed to form a centralized monitoring system.

Supports 15 languages, including Chinese, English, French, German, Italian and Spanish.

5. Functional Classification-Fetal Monitor

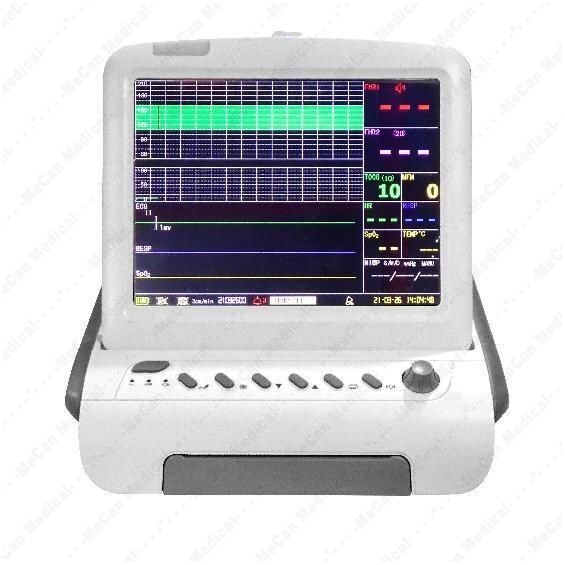

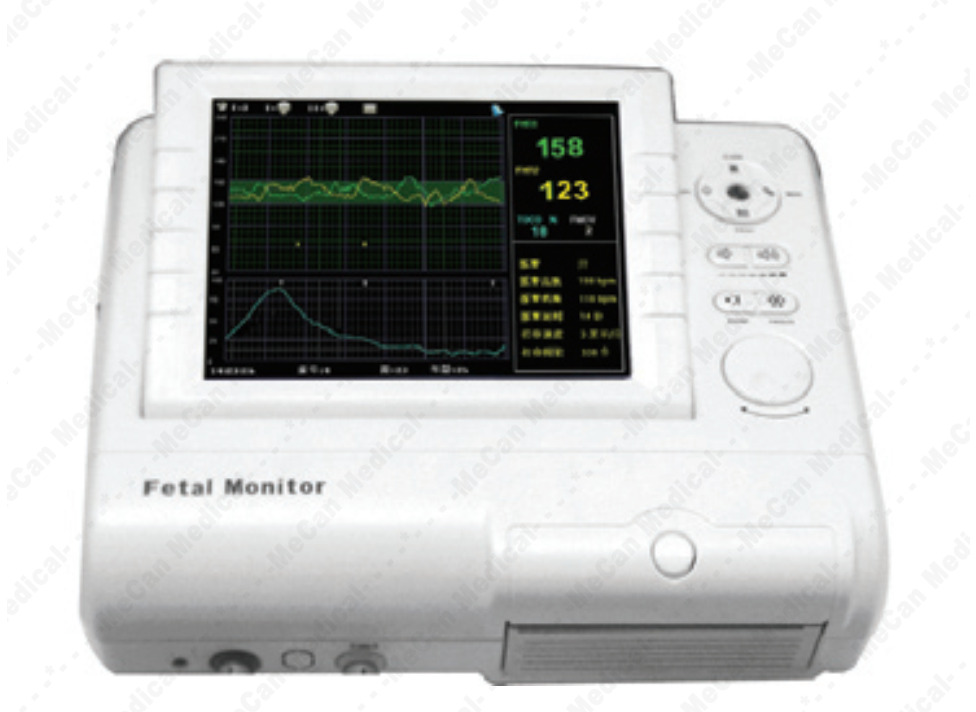

Fetal Monitor MSC0025 Fetal Monitor MCS0012
Model MSC0025 MCS0012
Display 12.1" TFT color screen, folded 90 degrees 8.0" LCD color screen , 60 degree folding
Standard Standard: TOCO contraction pressure, FHR baby heart rate, FM fetal movement TOCO,FHR,FM,Fetal Movement

twin montiroing, FAS (Fetal acoustic simulator)


6. Functional Classification-Fetal & Maternal Monitor

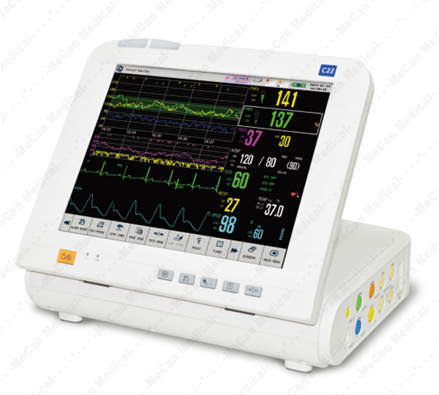

Fetal & Maternal Monitor MSC0026 Fetal & Maternal Monitor MCS0060
Model MSC0026 MCS0060
Display 12.1" TFT color screen, folded 90 degrees 12.1-inch LED-backlit touch screen, 0-90° tilt angle infinitely adjustable
Standard tandard: SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM Standard: FHR, TOCO, FM, AFM, ECG, SpO2, NIBP, Reserved TEMP, RESP, PR

Twin Monitoring,FAS(Fetal Acoustic Simulator)

Twins Monitoring, External Printer, Fetus Stimulator

Probes Holder, Nellcor SpO2, Masimo SpO2

7. Functional Classification-Anesthesia Depth Monitor

                              Anesthesia Depth Monitor MCS1497

Model: MCS1497


  1. Depth of anesthesia index (CSI)

  2. Analgesic index (Analgesic Index)

  3. Burst suppression ratio (BSR)

  4. Electromyographic Signal (EMG)

  5. Signal Quality (SQI)

Storage: 8G memory, 3600 sets of historical data

8. Functional Classification-Vital Signs Monitor

Vital signs monitor:

Meaning of vital signs:
1. the first explanation: vital signs refers to the evaluation of the presence or absence of vital activities and their quality indicators, including body temperature, pulse, respiration and blood pressure.
2. the second explanation: vital signs is used to determine the severity of the patient's condition and the degree of critical indications. Mainly heart rate, pulse, blood pressure, respiration, pupil and corneal reflex changes and so on.
Second, the use of places: operating rooms, wards, outpatient clinics, can be used

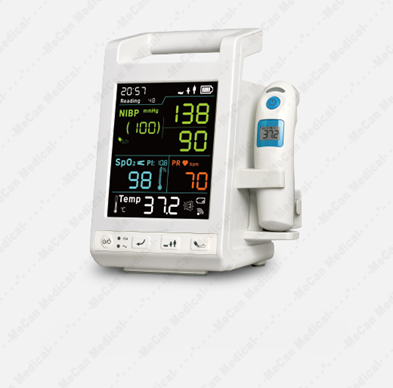

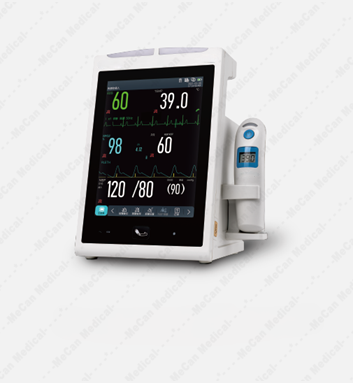

MCS1503 MSD1511
Model MCS1503 MSD1511
Display 6 inch segment LED screen 8 inch LED Touch Screen
Standard NIBP, Comen SpO2 NIBP, Comen SpO2

Infrared Ear Thermometer, Nellcor SpO2, Masimo SpO2

Infrared Ear Thermometer, Nellcor SpO2, Masimo SpO2, ECG(spot check 2-lead ECG)
